*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Makino |
| Model: | F5 |
| Year: | 2015 |
| Machine Type: | CNC Vertical Machining Center |

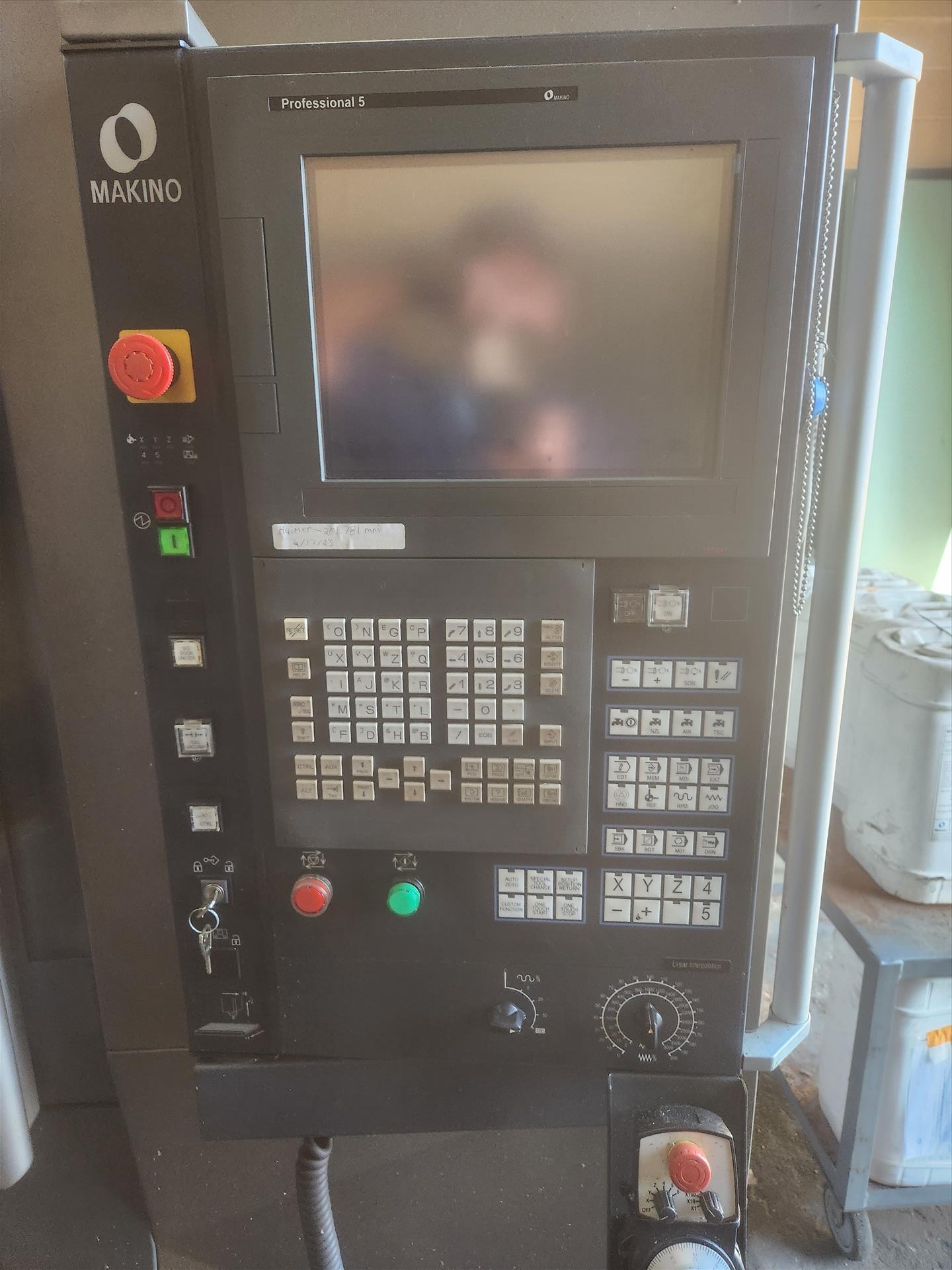

| CNC Control: | Makino Professional 5 |
| Features: |
|---|
| Makino Professional 5 CNC Control |
| 30-Position Automatic Tool Changer (ATC) |
| High-Speed Spindle |
| Worktable with T-Slots |
| Fully Enclosed Machining Area |
| SMC Air Dryer |
| Coolant Delivery Nozzles |
| Table: |
|---|
| Table Size: 39″ × 19.5″ |
| Table Load Capacity: 1,432 lbs |
| Table Type: T-Slotted Table |
| Travels: |
|---|
| X-Axis Travel: 35.4″ |
| Y-Axis Travel: 19.7″ |
| Z-Axis Travel: 17.7″ |
| Spindle: |
|---|
| Spindle Type: High-Speed Spindle |
| Maximum Spindle Speed: 20,000 RPM |
| Spindle Taper: HSK-63A |
| Automatic Tool Changer: |
|---|
| Tool Changer Capacity: 30 Tools |
| Electrical: |
|---|
| Power Source: 208V |
| Phase: 3-Phase |
| Frequency: 60 Hz |
| General: |
|---|
| Machine Dimensions (Approx.): 123.8″ × 101″ × 120.7″ |
| Machine Weight (Approx.): 16,535 lbs |
