*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Matsuura |
| Model No.: | ES-1000V |
| Year: | 2005 |
| Machine Type: | CNC Vertical Machining Center |

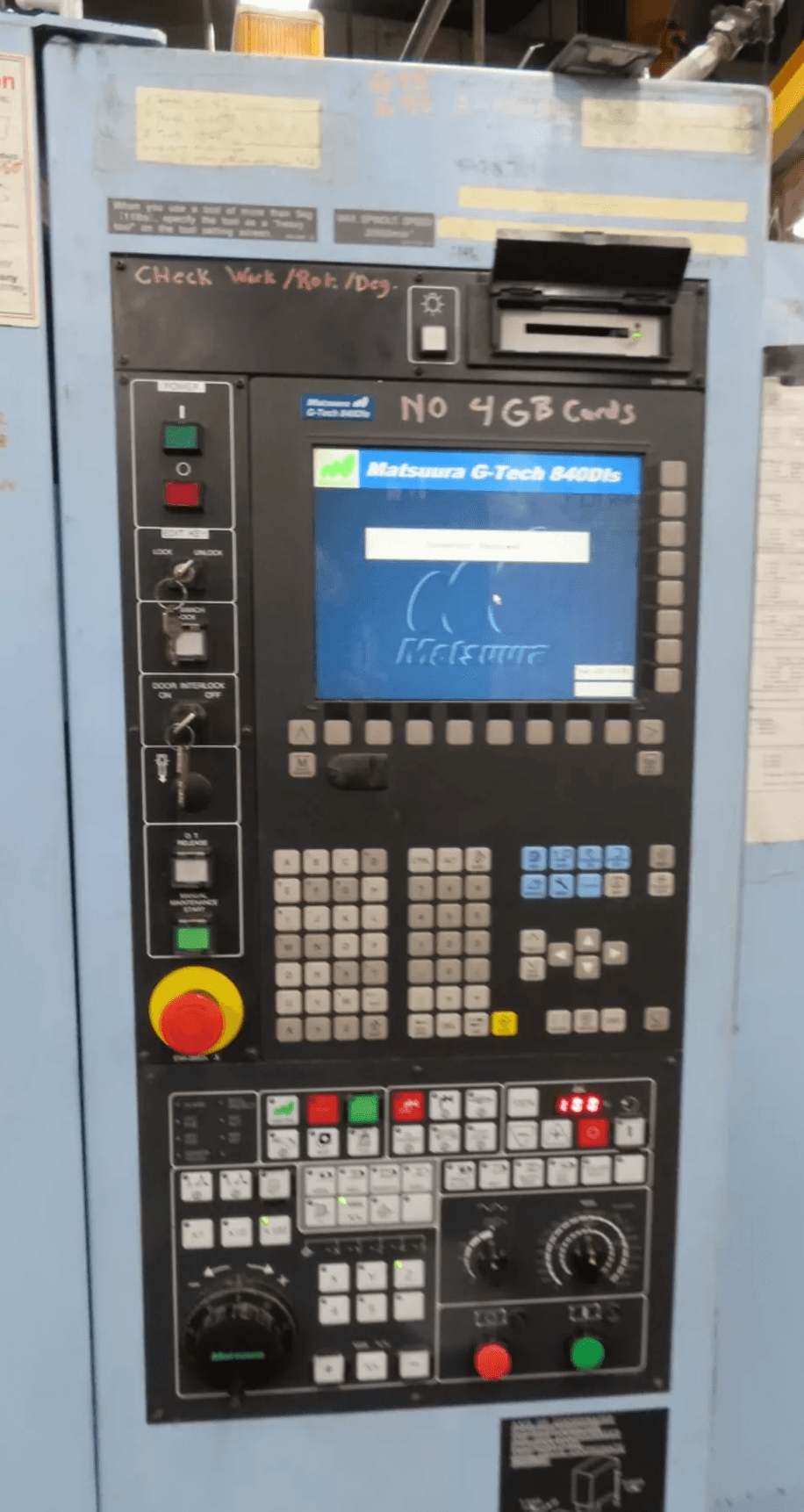

| Control: | Fanuc CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Fanuc CNC Control |
| 30-Station Automatic Tool Changer |
| 12,000 RPM High-Speed Spindle |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Travels: |
|---|
| X-Axis Travel: 40″ |
| Y-Axis Travel: 20″ |
| Z-Axis Travel: 20″ |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: BT40 |
| Spindle Motor: 15 HP |
| Table: |
|---|
| Table Size: 48″ x 22″ |
| Max Table Load: 1,500 lbs |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y/Z): 1,200 / 1,200 / 1,000 IPM |
| Tool Changer: |
|---|
| Tool Capacity: 30 Tools |
| Tool Change Type: Arm Type |
| Electrical: |
|---|
| Voltage: 200 / 220 V |
| Phase: 3 |
| Frequency: 50 / 60 Hz |
| General: |
|---|
| Air Required: 90 PSI |
| Power: 200/220V / 3-Phase |
| Overall Dimensions: 110″ x 95″ x 105″ High (Approx.) |
| Weight: 12,000 lbs (Approx.) |
