*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Matsuura |
| Model: | VX-1000 |
| Year: | 2019 |
| Machine Type: | CNC Vertical Machining Center (VMC) |
| CNC Control: | Matsuura G-Tech 31i CNC Control (FANUC-based) |
| Features: |
|---|
| Matsuura G-Tech 31i CNC Control |
| 20,000 RPM High-Speed Spindle |
| BT40 Spindle Taper |
| 60-Position Automatic Tool Changer |
| Through-Spindle High-Pressure Coolant System |
| Chip Conveyor |
| Full Machine Enclosure |
| Automatic Tool Changing System |
| Enclosed Machining Area |
| Table: |
|---|
| Table Size: 47.24″ × 23.62″ |
| Maximum Table Load Capacity: 1,100 lbs |
| Travels: |
|---|
| X-Axis Travel: 40.15″ |
| Y-Axis Travel: 24.01″ |
| Z-Axis Travel: 24.01″ |
| Spindle: |
|---|
| Maximum Spindle Speed: 20,000 RPM |
| Spindle Taper: BT40 |
| Automatic Tool Changer (ATC): |
|---|
| Tool Capacity: 60 Positions |
| Tool Taper: BT40 |
| Feedrates: |
|---|
| X-Axis Rapid Traverse: Approx. 1,575 IPM |
| Y-Axis Rapid Traverse: Approx. 1,575 IPM |
| Z-Axis Rapid Traverse: Approx. 1,417 IPM |

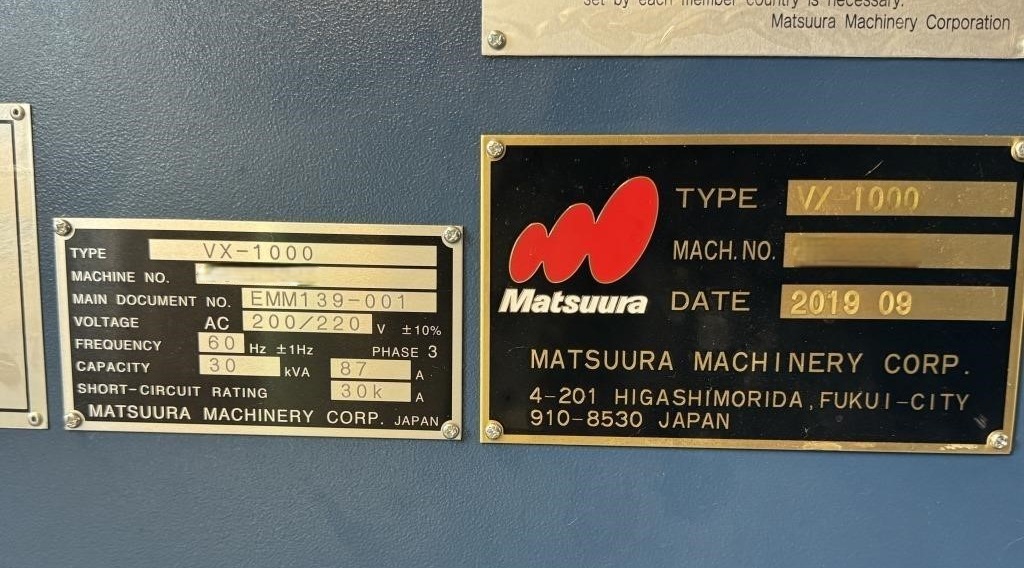

| Electrical: |
|---|
| Supply Voltage: AC 200/220 V |
| Phase: 3-Phase |
| Frequency: 60 Hz ±1 Hz |
| Rated Capacity: 30 kVA |
| Rated Current: 87 A |
| Short-Circuit Rating: 30 kA |
