*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Matsuura |
| Model: | ES-450H2 |
| Year: | 2000 |
| Machine Type: | CNC Horizontal Machining Center |

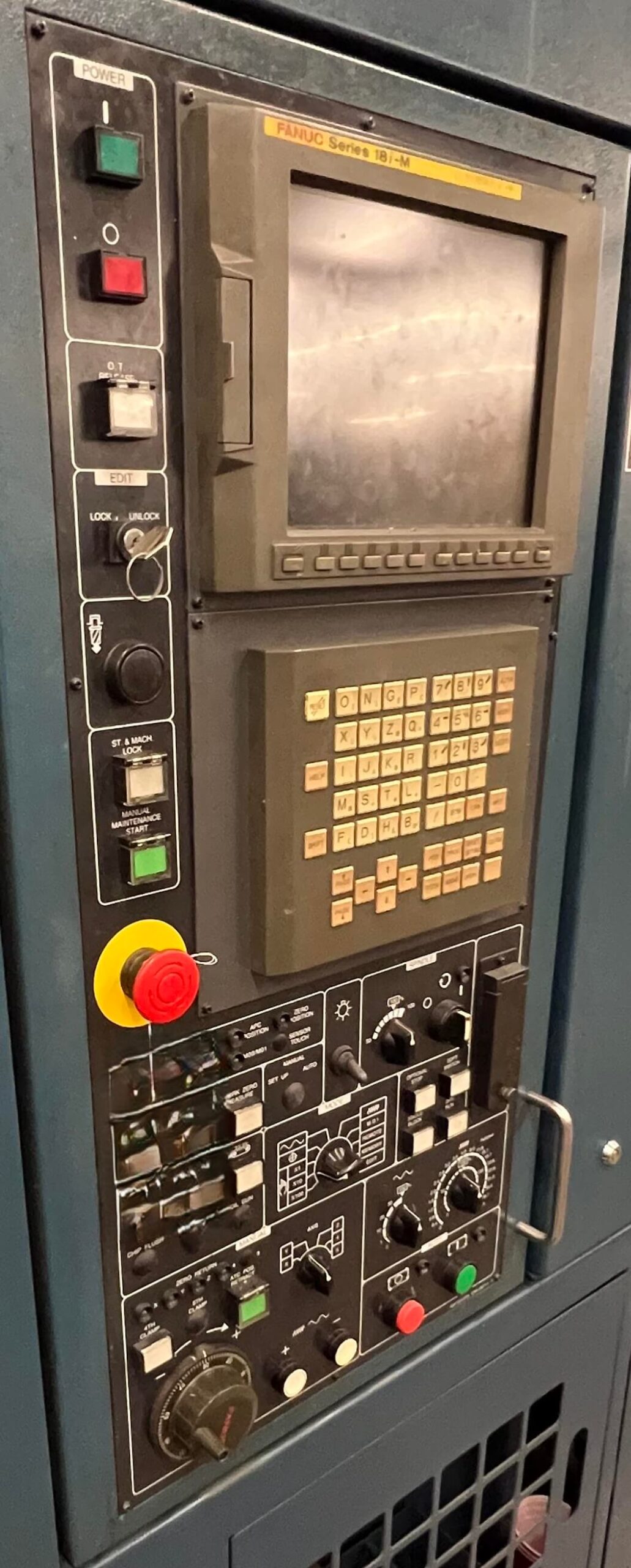

| CNC Control: | FANUC Series 18i-M |
| Features: |
|---|
| FANUC Series 18i-M CNC Control |
| Automatic Twin-Pallet Changer |
| BT-40 Spindle Taper |
| 30-Position Automatic Tool Changer (ATC) |
| Chip Conveyor |
| Dual Pallet System |
| Pallet System: |
|---|
| Number of Pallets: 2 |
| Pallet Size: 11.81″ × 11.81″ |
| Pallet Load Capacity: 440 lbs |
| Travels: |
|---|
| X-Axis Travel: 17.72″ |
| Y-Axis Travel: 15.75″ |
| Z-Axis Travel: 15.75″ |
| Rapid Traverse Rate: 1,181 IPM |
| Spindle: |
|---|
| Spindle Taper: BT-40 |
| Maximum Spindle Speed: Up to 15,000 RPM |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 30 Tools |
| Tool Taper: BT-40 |
| Electrical: |
|---|
| Power Supply: AC 200/220 V ±10% |
| Frequency: 50/60 Hz ±1 Hz |
| Rated Capacity: 37 kVA |
| Rated Current: 107 A |
