*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*

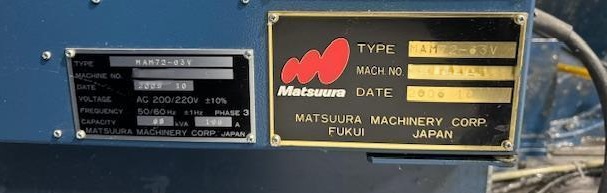

| Make: | Matsuura |
| Model: | MAM72-63V PC6 |
| Year: | 2006 |
| Machine Type: | 5-Axis CNC Vertical Machining Center |
| NC Control: | Matsuura G-TECH 31i |
| Features: |
|---|
| Matsuura G-TECH 31i CNC Control with Touchscreen |
| 5-Axis Simultaneous Machining Capability |
| BT40 Spindle Taper |
| 12,000 RPM Spindle Speed |
| 30-Position Automatic Tool Changer (ATC) |
| Dual-Pallet System |
| 19.7″ × 19.7″ Pallet Working Surface |
| A-Axis Tilting and C-Axis Rotary Table |
| Fully Enclosed Machining Area |
| Automatic Tool Changing System |
| Turbo-Branded Chip Conveyor |
| Coolant System |
| Capacity: |
|---|
| Maximum Workpiece Size: 28.3″ Diameter × 17.7″ Height |
| Maximum Pallet Load: 771 lbs |
| Pallet: |
|---|
| Pallet Size: 19.7″ × 19.7″ |
| Pallet Configuration: 2 Pallets |
| Travels: |
|---|
| X-Axis Travel: 29.9″ |
| Y-Axis Travel: 33.3″ |
| Z-Axis Travel: 24.0″ |
| A-Axis Rotation: -110° to +10° |
| C-Axis Rotation: 360° |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: BT40 |
| Additional Spindle Speed Option Listed: 15,000 RPM |
| Feedrates: |
|---|
| X/Y/Z Rapid Traverse: 1,969 IPM |
| A/C Rapid Traverse: 25 / 50 RPM |
| Automatic Tool Changer: |
|---|
| Standard Tool Capacity: 30 Tools |
| Maximum Tool Length: 13.8″ |
| Maximum Tool Weight: 22 lbs |
| Tool Changing Time: 1.1 Seconds |
| Electrical: |
|---|
| Voltage: 200/220 V |
| Frequency: 50/60 Hz |
| Phase: Three-Phase |
