*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

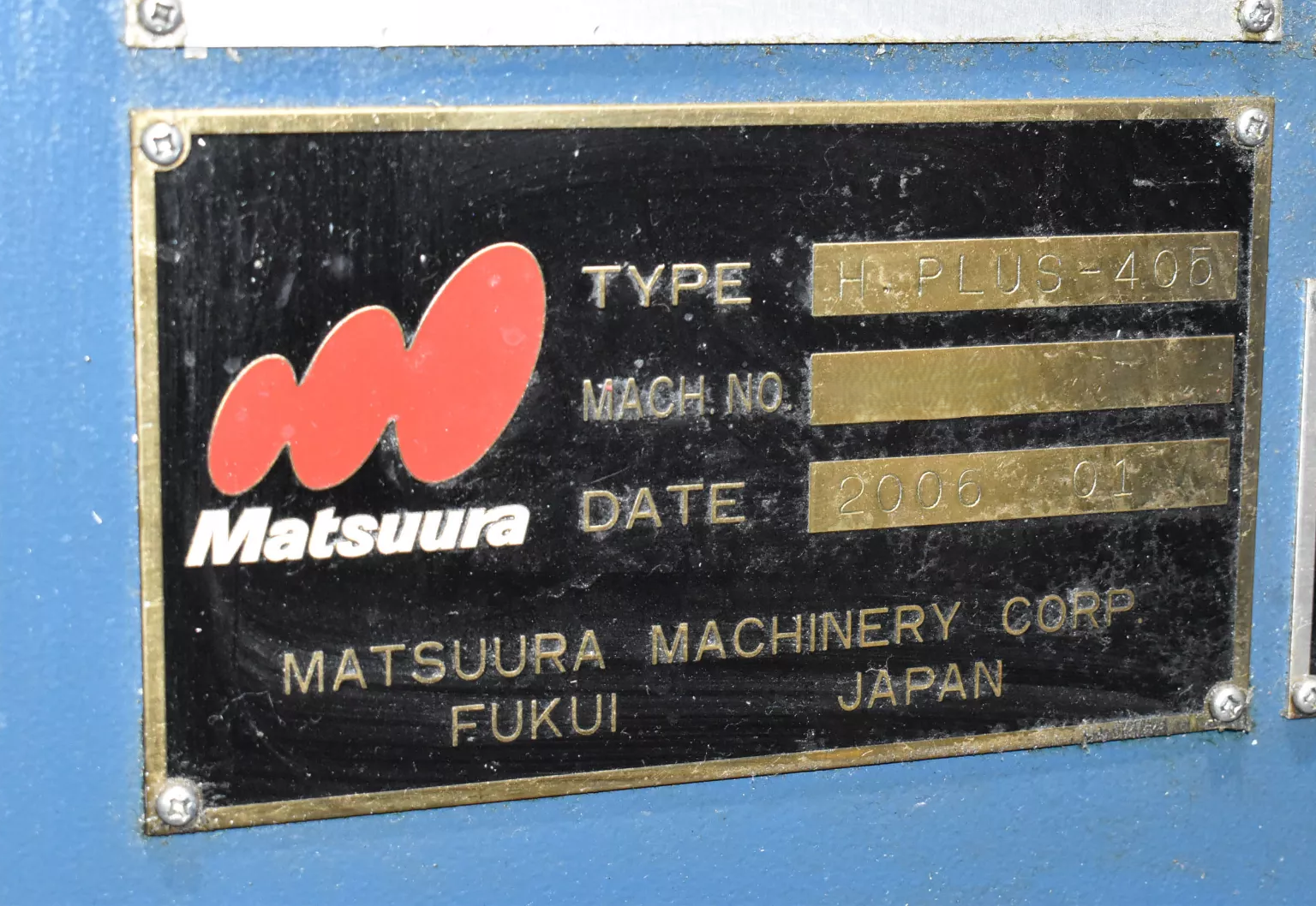

| Make | Matsuura |
| Model | H.Plus-405 |
| Year | 2006 |
| Condition | Used |
| Machine Type | 4-Axis CNC Horizontal Machining Center |
| Control | Matsuura G-Tech 30i CNC Control |
| FEATURES |
|---|
| Matsuura G-Tech 30i CNC Control |
| 6-Station Automatic Pallet Changer |
| 150-Station Automatic Tool Changer |
| BT40 High-Speed Spindle |
| 4th Axis Rotary Pallet (B-Axis) |
| High-Pressure Through Spindle Coolant |
| Turbo Systems Chip Conveyor |
| Flood Coolant System |
| Work Light |
| CAPACITY |
|---|
| Pallet Size: 19.68″ × 19.68″ |
| Number of Pallets: 6 |
| Max Size: 25.59″ Diameter × 29.52″ High |
| Max Weight: 881 lbs |
| Distance from Pallet Top to Spindle Centerline: 3.14″ – 26.77″ |
| TRAVELS |
|---|
| X-Axis Travel: 23.62″ |
| Y-Axis Travel: 23.62″ |
| Z-Axis Travel: 23.62″ |
| B-Axis Rotation: 360° (1° Indexing) |
| PALLETS |
|---|
| Automatic Pallet Changer: 6 Stations |
| Pallet Size: 19.68″ × 19.68″ |
| B-Axis Rotary Pallet |
| TABLE |
|---|
| Pallet Size: 19.68″ × 19.68″ |
| Maximum Table Load Capacity: 881 lbs |
| B-Axis Indexing: 1° Increments |
| 360° Rotary Pallet |

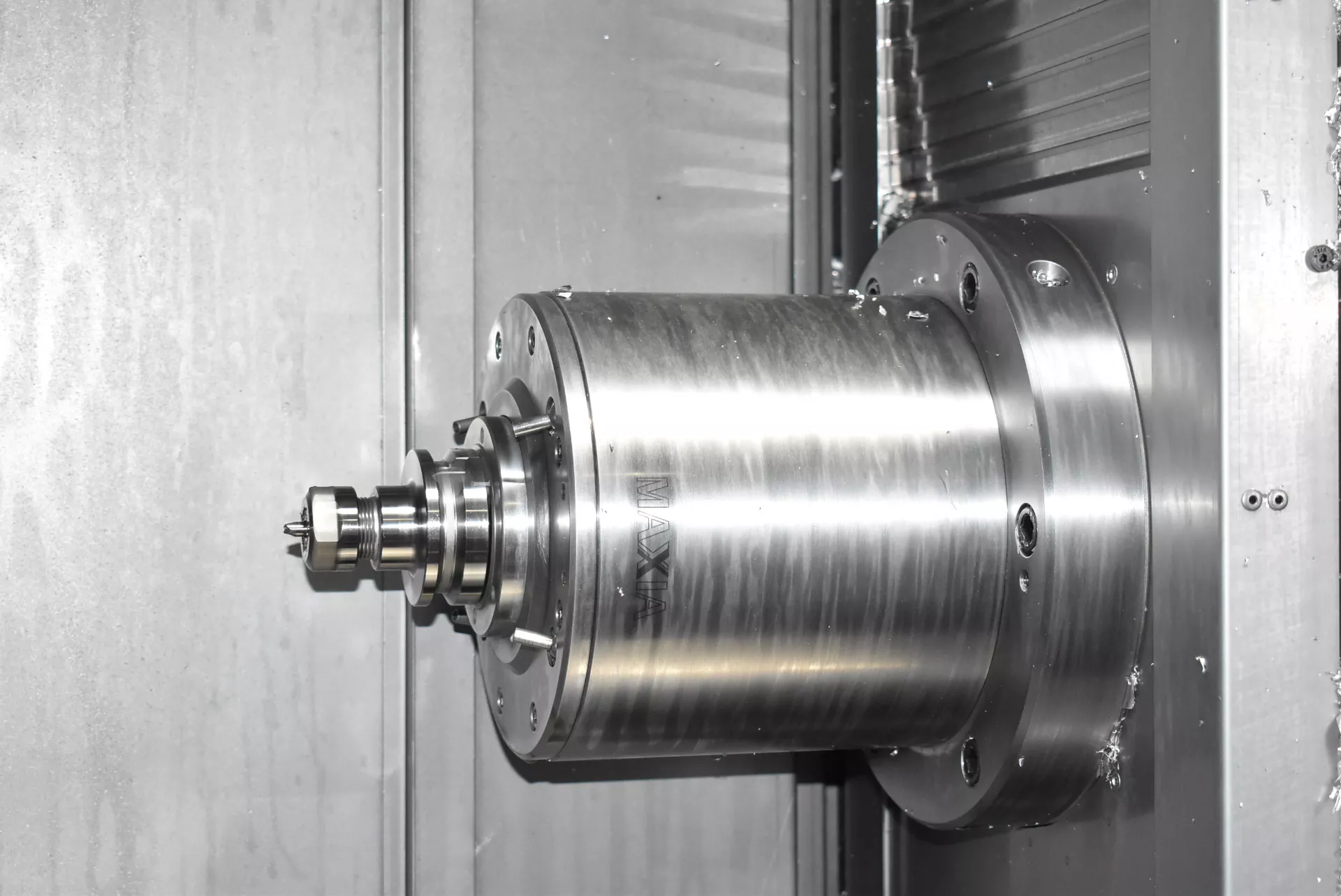

| SPINDLE |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: BT40 |
| AUTOMATIC TOOL CHANGER |
|---|
| Tool Capacity: 150 Stations |
| Tool Magazine Type: Chain Type |
| Max Tool Diameter: 4.92″ |
| Max Tool Length: 11.81″ |
| Max Tool Weight: 17.6 lbs |
| GENERAL |
|---|

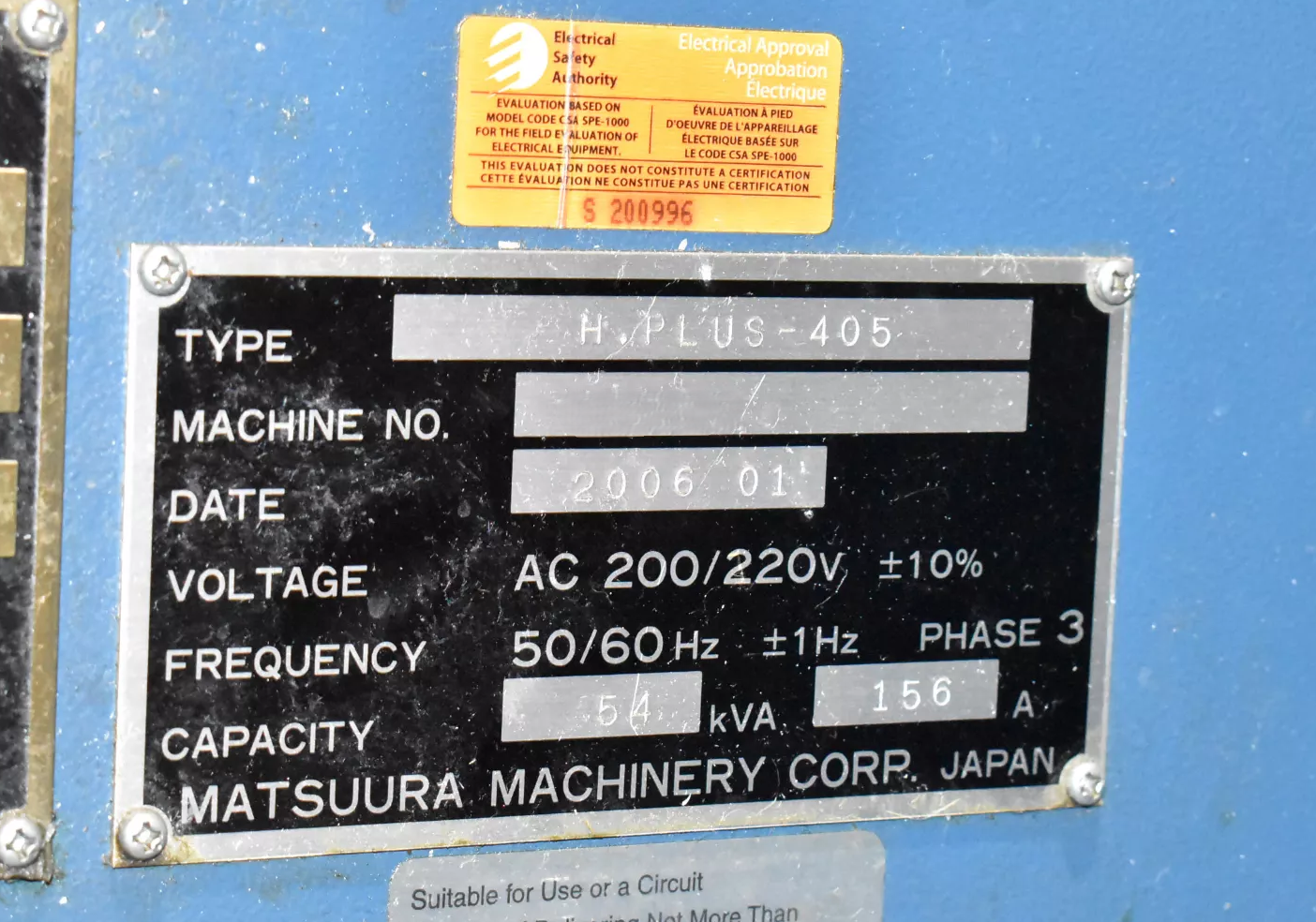

| Power Requirement: 200-220V / 3 Phase / 50-60 Hz |
| Machine Weight: Approx. 19,800 lbs |
| Machine Dimensions: Approx. 138″ L × 108″ W × 116″ H |
