*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Matsuura |
| Model: | H.Plus-630 |
| Year: | 2011 |
| Condition: | Used – Good |
| Machine Type: | CNC Horizontal Machining Center |

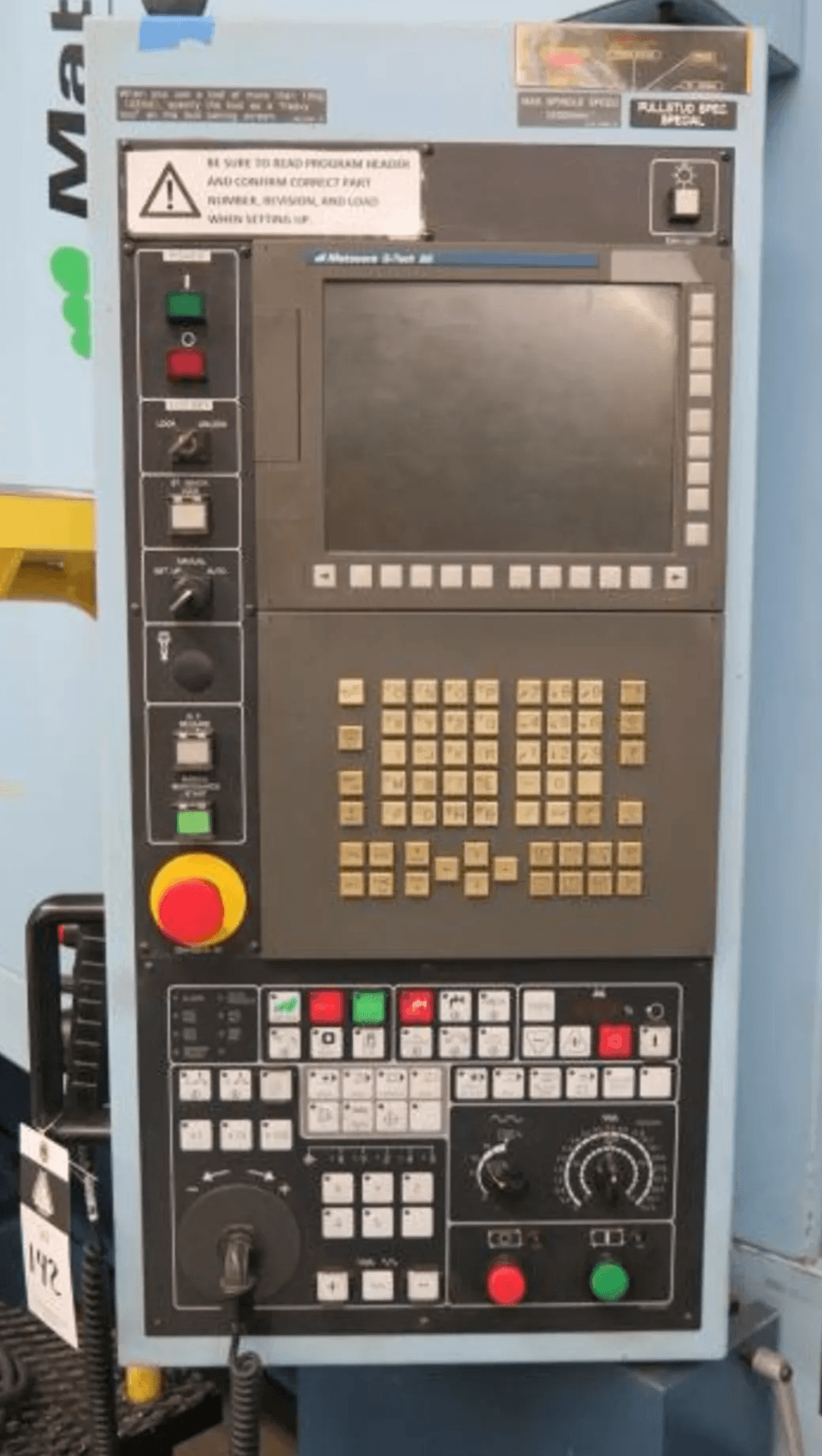

| Control: | Matsuura G-Tech 30i CNC Control |
| Country of Origin: | Japan |
| Features: |
|---|
| Matsuura G-Tech 30i CNC Control |
| 6-Pallet Automatic Pallet Changer System |
| Full 4th Axis Through Pallets |
| 130-Station Automatic Tool Changer |
| CAT-50 Spindle |
| 12,000 RPM Spindle |
| 40 HP Spindle Motor |
| Laser Tool Presetter |
| High-Pressure Coolant System |
| Chip Conveyor |
| Handwheel Pendant |
| Tool Magazine |
| Coolant System |
| Full Enclosure |
| Automatic Pallet Changer |
| Capacity: |
|---|
| Pallet Size: 24.75″ x 24.75″ |
| Number of Pallets: 6 |
| Pallet Indexing: Full 4th Axis |
| Maximum Workpiece Capacity: Approx. Verify |
| Travels: |
|---|
| X-Axis Travel: 41″ |
| Y-Axis Travel: 36″ |
| Z-Axis Travel: 34″ |
| Spindle: |
|---|
| Spindle Taper: CAT-50 |
| Spindle Speed: 12,000 RPM |
| Spindle Motor: 40 HP |
| Spindle Type: High Speed Production Spindle |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 130 Tools |
| Tool Change Type: Automatic |
| Tool Magazine Type: Matrix Style Tool Storage |
| Coolant & Chip Removal: |
|---|
| High-Pressure Coolant System |
| Chip Conveyor Included |
| Flood Coolant System |
| Electrical: |
|---|
| Power Requirement: 220V / 3-Phase / 60 Hz |
| Air Requirement: Typical – Verify |
| General: |
|---|
| Machine Condition: Used – Good |
| Machine Weight: Approx. Verify |
| Machine Dimensions: Approx. Verify |
