*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make | Matsuura |
| Model | MAM72-35V |
| Year | 2010 |
| Condition | Used |
| Machine Type | Full 5-Axis CNC Vertical Machining Center |
| Control | Matsuura G-Tech 30i CNC Control |
| Features |
|---|
| Matsuura G-Tech 30i CNC Control |
| Full Simultaneous 5-Axis Machining |
| 32-Station Automatic Pallet Changer (APC) |
| 240-Station Automatic Tool Changer |
| BT40 Big Plus Spindle |
| 20,000 RPM High-Speed Direct Drive Spindle |
| Through Spindle Coolant |
| Laser Tool Monitoring System |
| Mosnic Chip Conveyor |
| Rigid Tapping |
| Helical Interpolation |
| Look-Ahead Machining |
| High-Speed Machining Function |
| Automatic Lubrication System |
| Flood Coolant System |
| Fully Enclosed Splash Guard |
| Work Area Lighting |
| Three-Color Status Light |
| CAPACITY |
|---|
| Pallet Diameter: 5.12″ |
| Max Diameter: 13.78″ |
| Max Height: 9.44″ |
| Max Weight: 132 lbs |
| Maximum Machining Envelope: 13.78″ Diameter × 9.44″ High |
| TRAVELS |
|---|
| X-Axis Travel: 26.77″ |
| Y-Axis Travel: 15.15″ |
| Z-Axis Travel: 24.60″ |
| B-Axis Travel: +65° to -106° |
| C-Axis Travel: 360° Continuous |
| Simultaneous 5-Axis Machining |
| PALLET |
|---|
| Automatic Pallet Changer: 32 Stations |
| Pallet Diameter: 5.12″ |
| Maximum Pallet Load: 132 lbs |
| Automatic Pallet Scheduling |
| SPINDLE |
|---|
| Spindle Speed: 20,000 RPM |
| Spindle Taper: BT40 Big Plus |
| AUTOMATIC TOOL CHANGER |
|---|
| Tool Capacity: 240 Stations |
| Tool Magazine Type: Chain Type |
| Max Tool Diameter (Occupied): 2.76″ |
| Max Tool Diameter (Empty): 4.92″ |
| Max Tool Length: 11.81″ |
| Max Tool Weight: 17.6 lbs |
| Tool-to-Tool Time: 0.9 Seconds |
| FEED RATES |
|---|
| Rapid Traverse (X/Y/Z): 2,362 IPM |
| Cutting Feed Rate: 2,362 IPM |
| B & C -Axis Rapid Traverse: 100 RPM |
| ROTARY AXES |
|---|
| B-Axis Rotation: +65° to -106° |
| C-Axis Rotation: 360° Continuous |
| B & C -Axis Direct Drive |
| GENERAL |
|---|

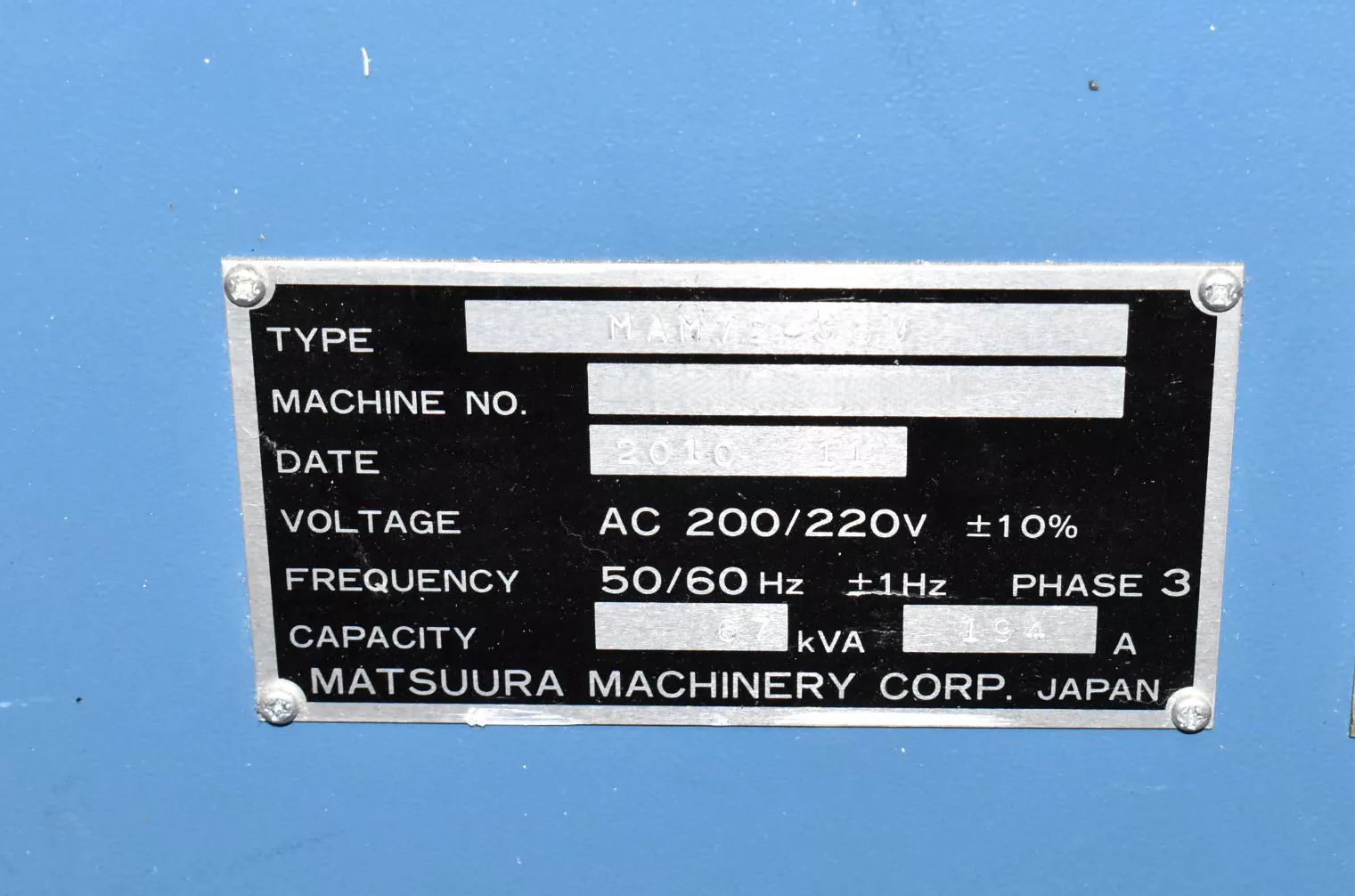

| Power Requirement: 200-220V / 3 Phase / 50-60 Hz |
| Machine Weight: Approx. 18,000 lbs |
| Machine Dimensions: Approx. 130″ L × 105″ W × 108″ H |
