*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Matsuura |
| Model: | MC-1000V5 |
| Year: | 1983 |
| Features: |
|---|

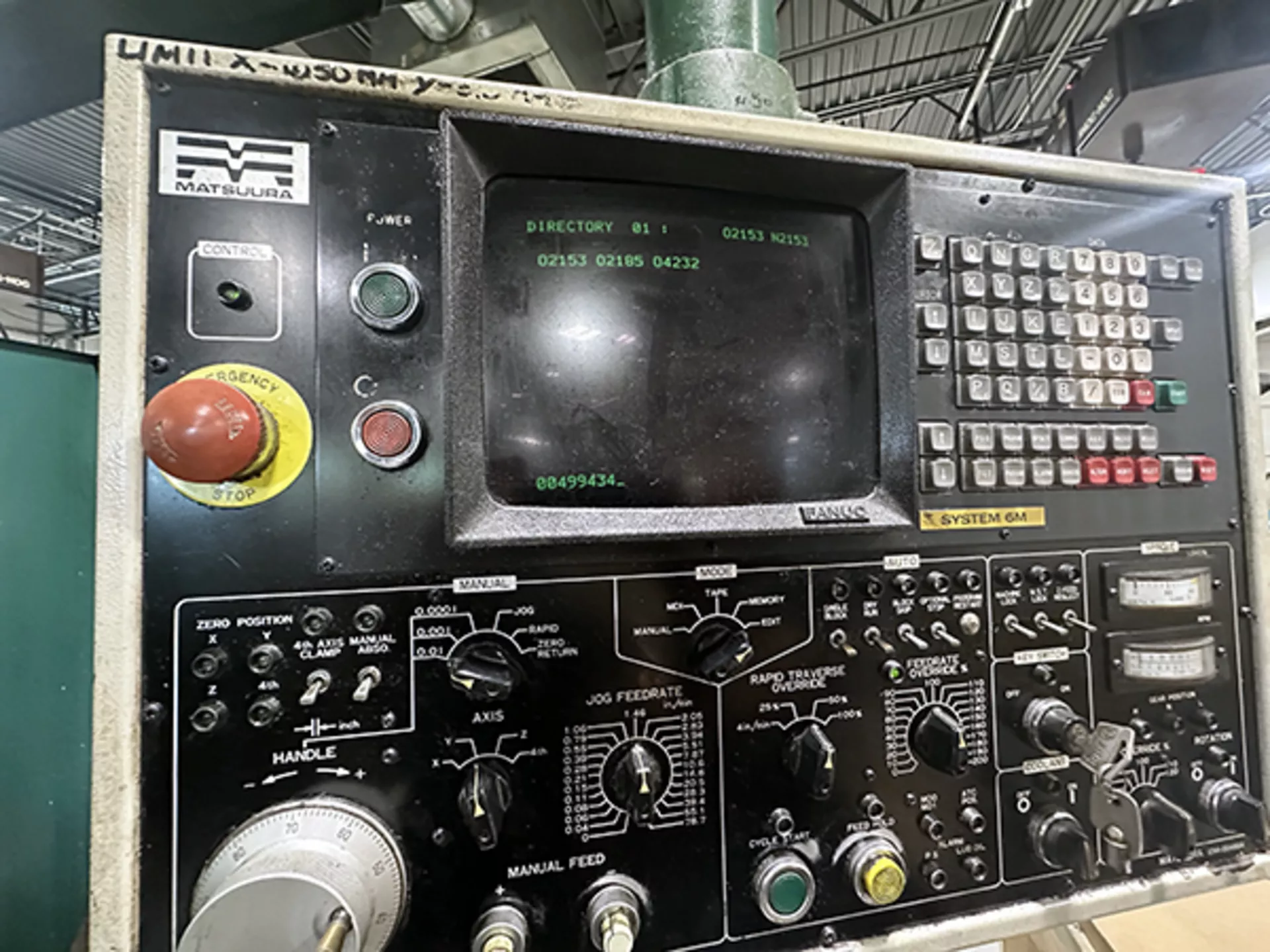

| Fanuc 6MB CNC Control |

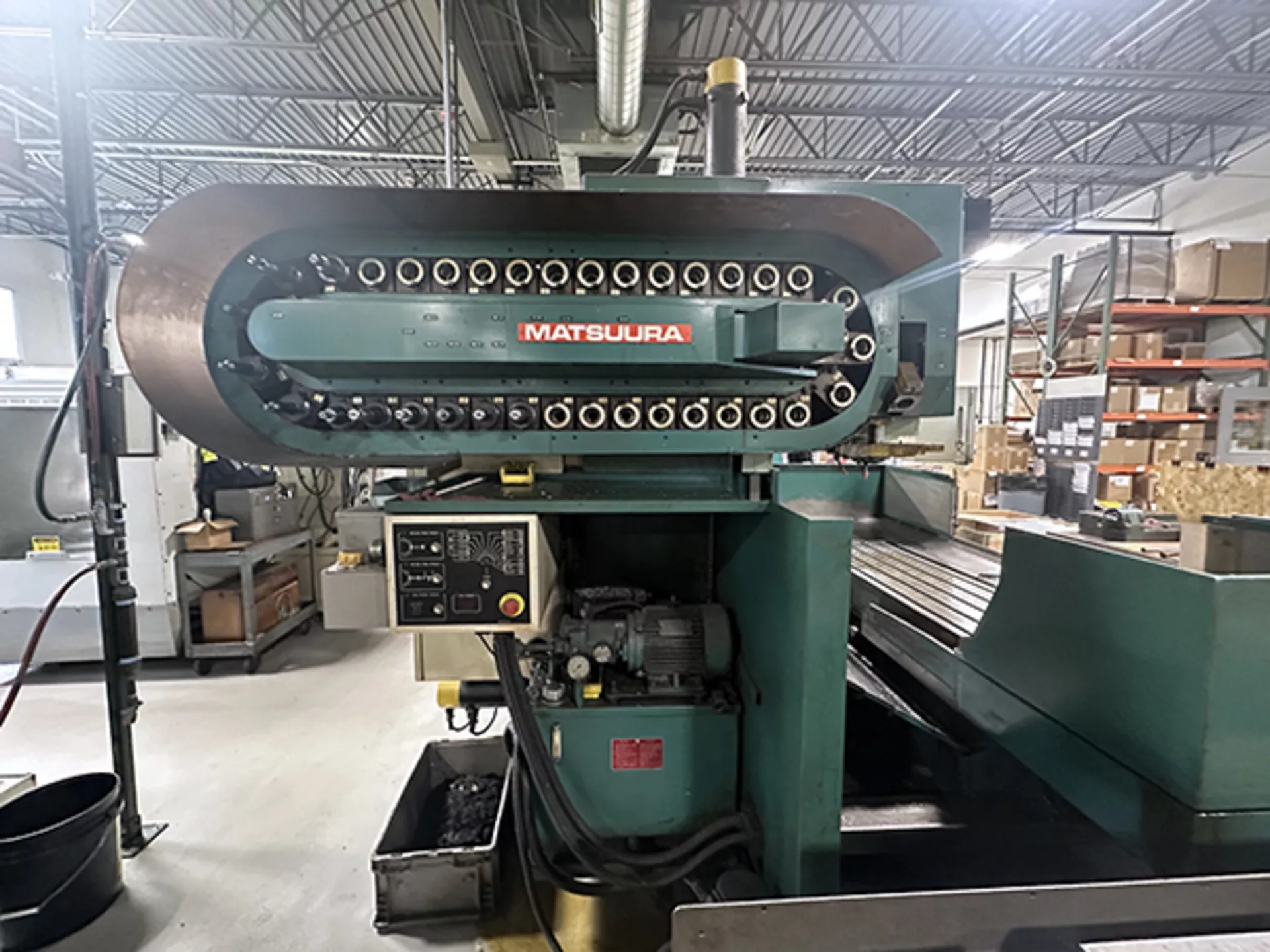

| 35-Station Twin-Arm Automatic Tool Changer |
| BT-45 Spindle Taper |
| Automatic Tool Changer |
| Flood Coolant System |
| Full Splash Enclosure |
| Travels: |
|---|
| X-Axis Travel: 41.30″ |
| Y-Axis Travel: 20.00″ |
| Z-Axis Travel: 22.00″ |
| Table: |
|---|
| Table Size: 19.70″ × 55.10″ |
| Table Load Capacity: 2,200 lbs. |
| Spindle Nose to Table: 5.90″ – 28.00″ |
| Spindle Center to Column: 22.05″ |
| Spindle: |
|---|
| Spindle Speed: 20 – 3,600 RPM |
| Spindle Motor: 20 HP |
| Spindle Taper: BT-45 |
| Automatic Tool Changer: |
|---|
| Tool Changer Type: Twin-Arm |
| Tool Capacity: 35 Tools |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y): 472 IPM |
| Rapid Traverse (Z): 394 IPM |
| Cutting Feed Rate: 118 IPM |
| General: |
|---|
| Machine Dimensions (Approx.): 116.00″ × 130.00″ × 122.00″ |
| Machine Weight (Approx.): 16,060 lbs. |
