Matsuura RA-3GII APC Dual-Pallet 3-Axis CNC Vertical Machining Center

SKU 11833

Make/Model Matsuura RA-3GII

Year 2000

Video On Request

Out of stock

SKU:	11833
Make/Model:	Matsuura RA-3GII
Year:	2000
Video:	On Request

SKU: 11833

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Matsuura
Model:	RA-3GII
Year:	2000
Machine Type:	CNC Vertical Machining Center
CNC Control:	Yasnac CNC Control

Features:

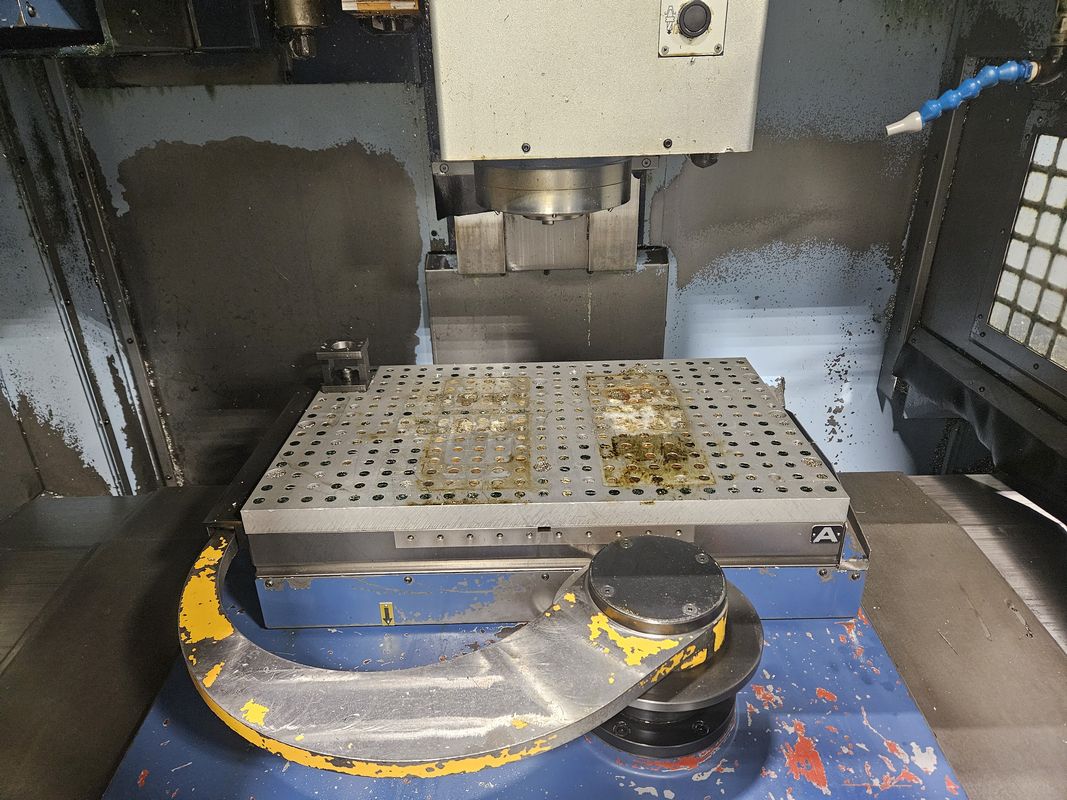

Automatic Pallet Changer
Pallets: (2) 16.5″ × 31.5″
40-Position Automatic Tool Changer
Coolant System
Chip Conveyor

Capacity:
Pallet Size: 16.5″ × 31.5″
Number of Pallets: 2

Travels:
X-Axis Travel: 31.5″
Y-Axis Travel: 20.8″
Z-Axis Travel: 20.8″

Spindle:
Spindle Taper: BT40

Automatic Tool Changer:
Tool Capacity: 40 Positions
Tool Changer Type: Automatic Tool Changer

General:
Machine Weight (Approx.): 15,000 lbs.
Machine Dimensions (Approx.): 130″ W × 125″ D × 105″ H

Capacity:
Pallet Size: 419 mm × 800 mm
Number of Pallets: 2

Travels:
X-Axis Travel: 800 mm
Y-Axis Travel: 528 mm
Z-Axis Travel: 528 mm

Spindle:
Spindle Taper: BT40

Automatic Tool Changer:
Tool Capacity: 40 Positions
Tool Changer Type: Automatic Tool Changer

General:
Machine Weight (Approx.): 15,000 lbs.
Machine Dimensions (Approx.): 3,302 mm W × 3,175 mm D × 2,667 mm H

Categories	CNC Vertical Machining Centers
Make	Matsuura
Model	RA-3GII

Automatic Pallet Changer
Pallets: (2) 419 mm × 800 mm
40-Position Automatic Tool Changer
Coolant System
Chip Conveyor

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
