Product Description

MAZAK FH-480 HORIZONTAL MACHINING CENTER

Make: Mazak
Model No.: FH-480
Serial No.: 118495
Year: 1995

All specifications are approximations, and are subject to verification.

——————————————————-

Mazak FH-480 Features:

12000 RPM Gear Head Spindle
Mazatrol M-32 CNC Control
40  Taper Through Spindle Coolant
4th “B” – Axis – Dual Pallet Changer
60 Tools Side Mount Tool Changer
1259 IPM Fast Rapids
Coolant Tank
Telescopic way covers
Chip Conveyor
High Pressure Coolant system

————————————————

Mazak FH-480 Specifications:

Travels:
X-Axis: 22.05″
Y-Axis: 22.05″
Z-Axis: 20.07″
Rapid Traverse Rates: 1259 Inch Per Minute
Cutting Feed Rates: 710 Inch Per Minute

Pallet:
Dual Pallet Changer
Pallet Size: 15.75″ X 15.75″
Pallet Change Time: 6 Seconds
Weight on Table: 900 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 0 – 12000 RPM
Spindle Power: 20 HP
Max Torque: 90ft-lb @ 2000RPM

Automatic Tool Changer:
Capacity: 60 + 1
Max Tool Weight: 26 lbs
Max Tool Dia: 4″
Max Tool Length: 13″
Tool Changing Time: 1.3 – 3.7 Seconds

General:
Air Required: 100 psi, 4 scfm
Power: 55kva / 220v  / 3-Phase
Overall Shipping Dimensions: High
Chip Conveyor, Coolant Tanks, Coolant systems Dimensions extra
Weight: 27,000 lbs

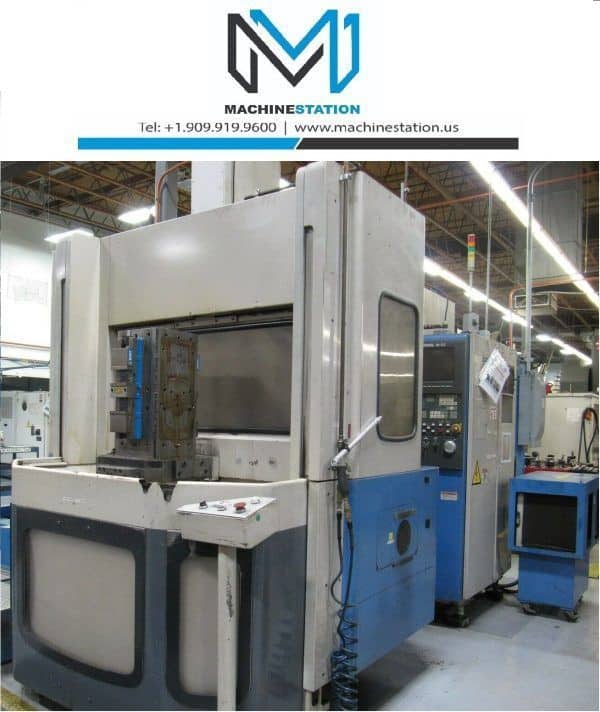

Mazak FH-480 Comes as shown in pictures..
