Mazak QT Nexus 350-II MSY CNC Multi Axis Turning Center

$4,872.30

“Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details”

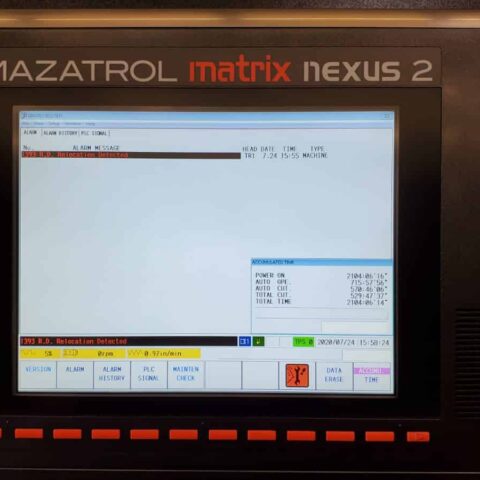

“2016 One Owner Very low hours Machine loaded with Options on our Floor now, fully powered / tested & is in Great working condition. Only 529 cutting Hours. 15″ Chuck Big Bore 62″ Cutting Length Machine with C M Y Axis Capabilities.”

Qty =

Product Description

MAZAK QT NEXUS 350-II MSY CNC MULTI AXIS TURNING CENTER

Make: Mazak
Model : Quick Turn NEXUS 350-II MSY
Serial No. 263936
YEAR: 2016
Condition: Almost New

Replacement Cost as Equipped is almost $375,000

All specifications are approximations, and are subject to verification.

“2016 One Owner Very low hours Machine loaded with Options on our Floor now, fully powered / tested & is in Great working condition. Only 529 cutting Hours. 15″ Chuck Big Bore 62″ Cutting Length Machine with C M Y Axis Capabilities.

Mazak QT Nexus 350-II MSY CNC Equipped With:

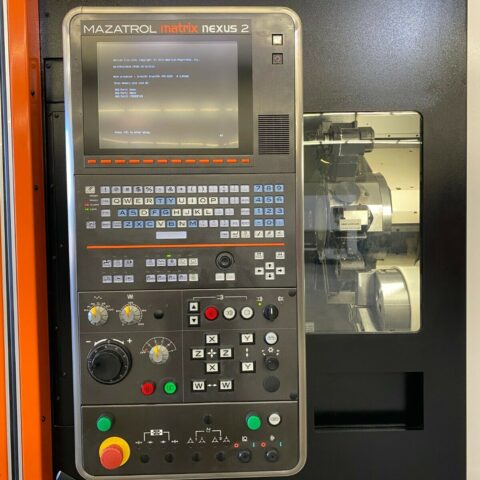

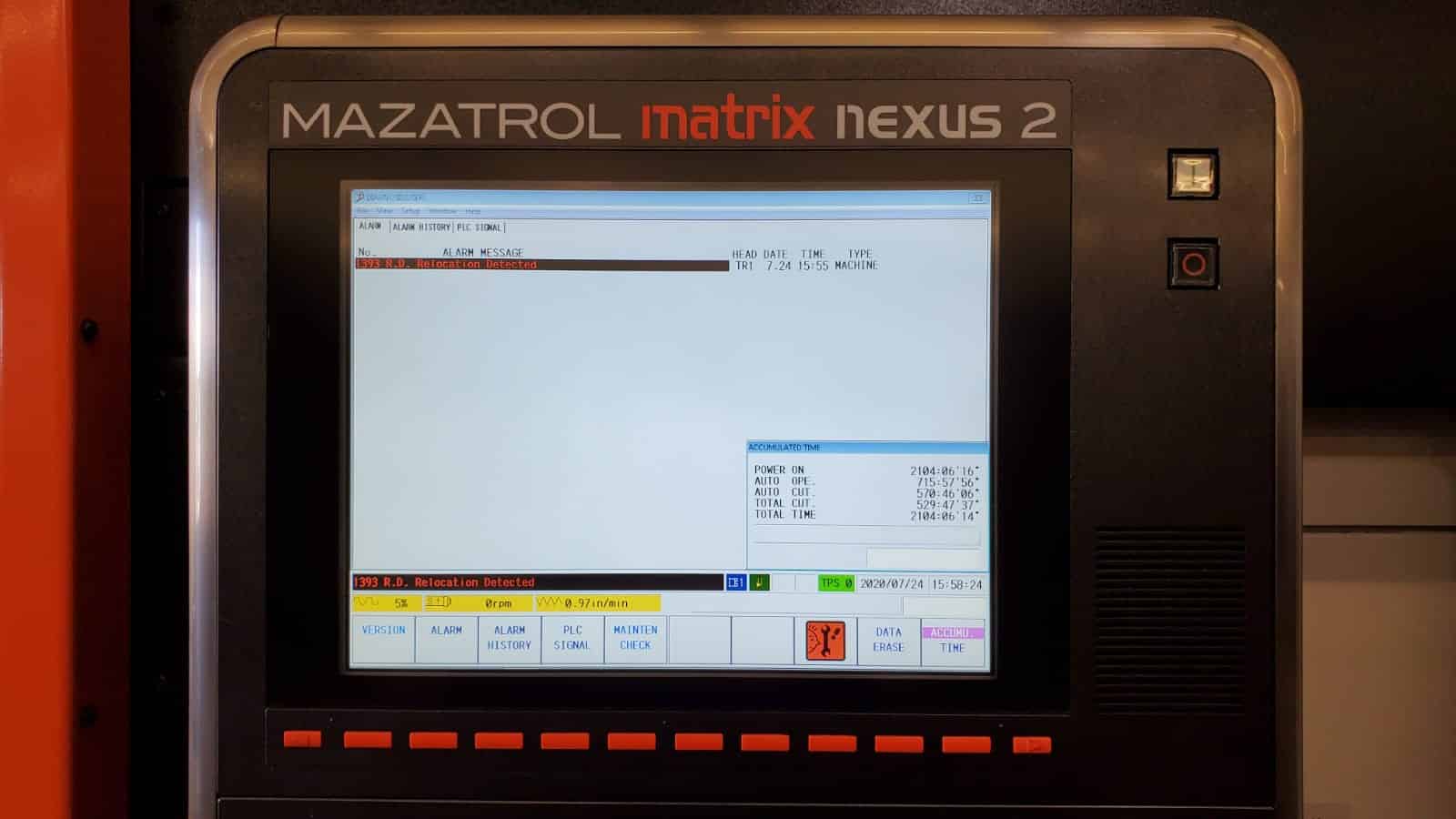

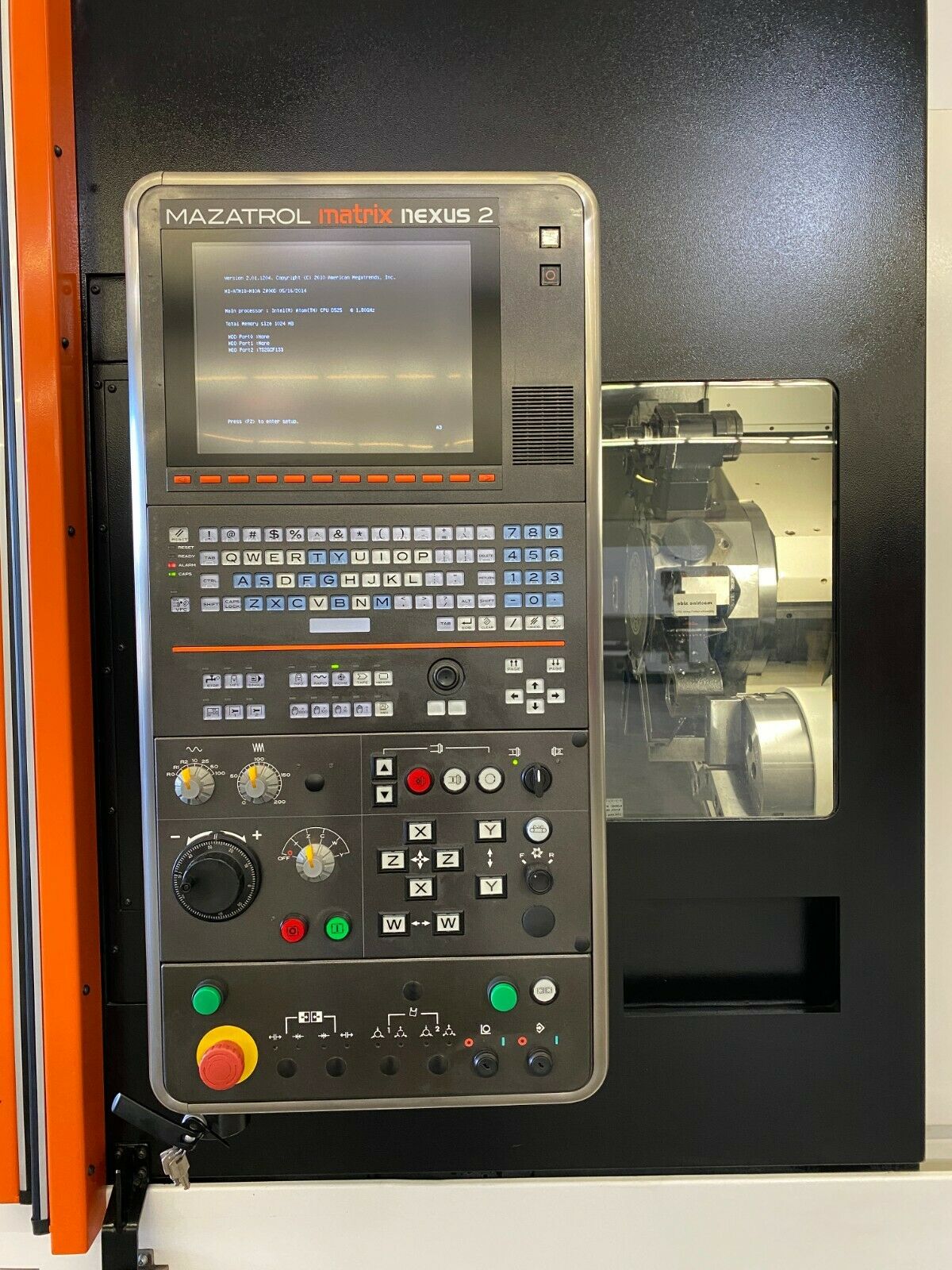

Mazatrol Matrix Nexus II CNC Control

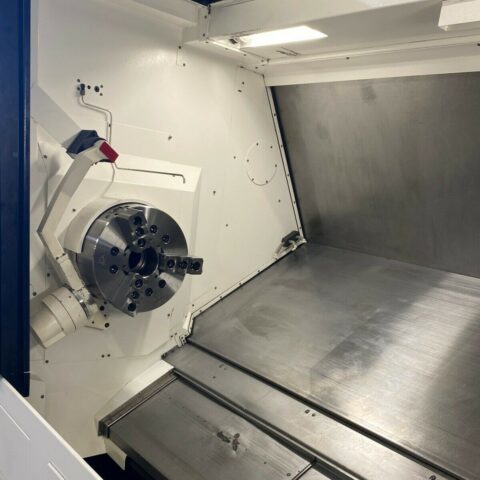

Milling Sub Spindle and Y Axis Capabilities

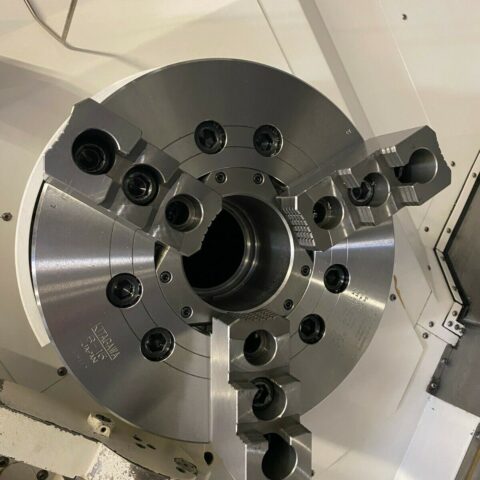

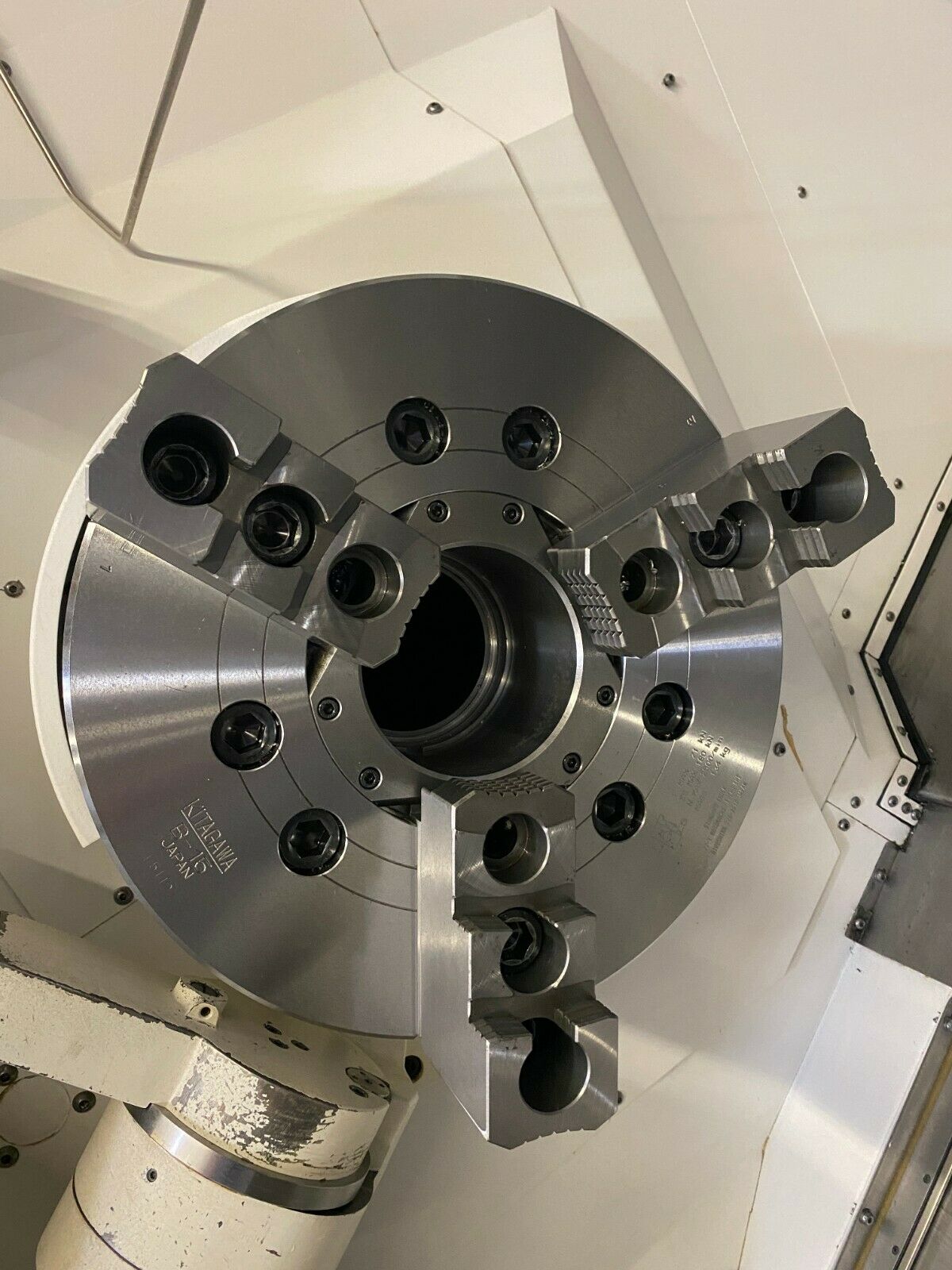

15″ Kitagawa Big Bore Chuck ( $9500 upgrade )
10″ Kitagawa Big Bore Chuck ( $4500 upgrade )
Robot Interface ( $6900 upgrade )
High Pressure coolant System ( $3500 Upgrade )
Turret Air Blast ( $2500 upgrade )
Chuck air blast ( $ 2200 upgrade )

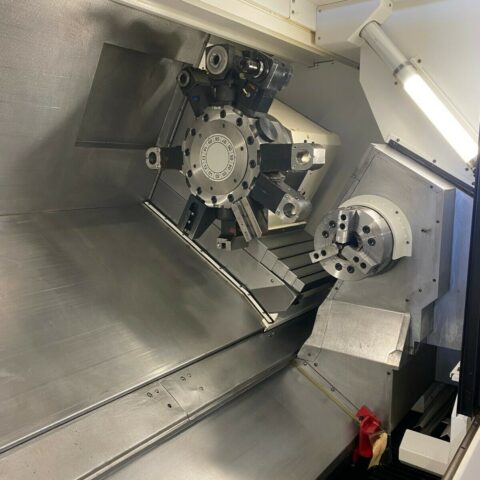

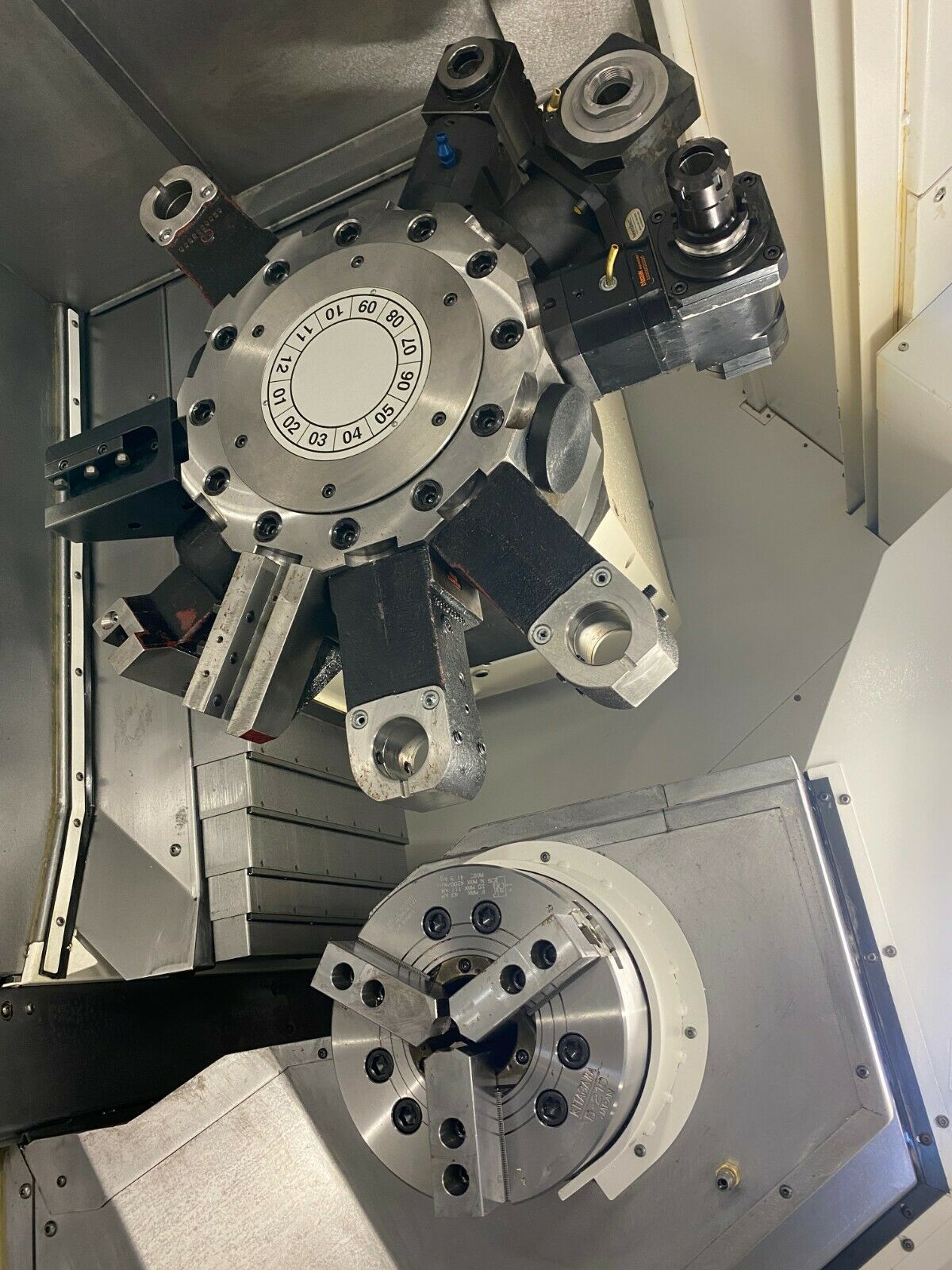

12 stations live tools turret
Automatic Tool eye
IMS – Intelligent Maintainence Support
ITS – Intelligent thermal Shield
ISS – Intelligent Safety Shield
MVA – Mazak Voice Advisor
Servo Controlled Full C-Axis on Both Spindles
40 Hp Integral Main spindle
USB Drives
EIA/ISO Programming
3D Coordinate Conversion
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck
High Pressure Coolant System
60″ Chip Conveyor( $9500 Upgrade )
Inbuilt Transformer
Comes with Live / static Tools, Books & Manuals.

Mazak QT Nexus 350-II MSY CNC Specifications:

Max Turning Diameter : 16.6″
Max Turning Length : 62.2″
Max Swing : 32.68″
Max Swing over Cross Slide : ″

Max Bar Capacity Main Spindle : 4.05″
Max Bar Capacity Sub Spindle : 2.55″
Max Weight on Main & Sub Spindle : 660 lbs

Travels:

X Axis Travel : 10.75″
Z Axis Travel Upper : 63.25″
Y Axis Travel: 6.90″
W Axis Travel: 62.4″ ( Sub Spindle )
C Axis: 360° (0.001°) Both Spindle

Rapid Traverse X Axis: 1496 IPM
Rapid Traverse Z Axis: 1496 IPM
Rapid Traverse Y Axis: 1023 IPM

Spindle:

Main Spindle Bore: 4.45″
Main Spindle Nose: A2-
Sub Spindle Nose: A2-
Main Spindle Speed: 35-3500 RPM
Sub Spindle Speed: 35-4000 RPM
Main Spindle Power: 40 Hp
Sub Spindle Power: 25 Hp

Turret:
Capacity: 12 stations
Live Tool Speed: 4000 RPM
Live Tools Motor: 10 HP

General:
Power: 75 kva, 220v / 3-Phase
Air Required: 90 PSI
Overall Dimensions: 180″ x 93″ x 102″ High
Overall Dimensions: 200″ x 93″ x 102″ High with Chip Conveyor
Weight: 25,500 lbs

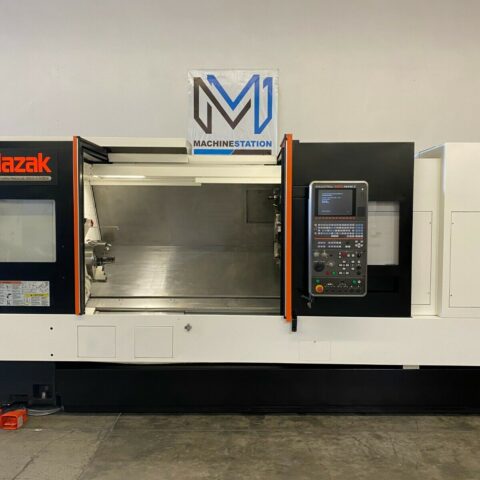

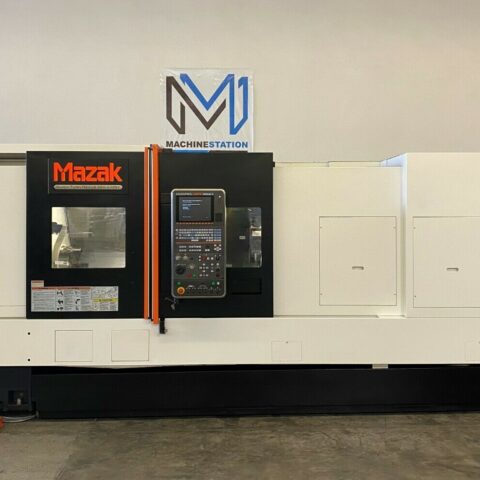

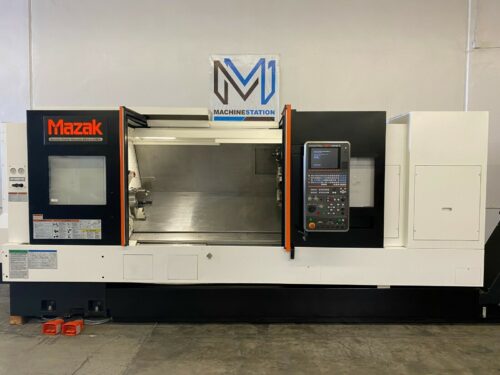

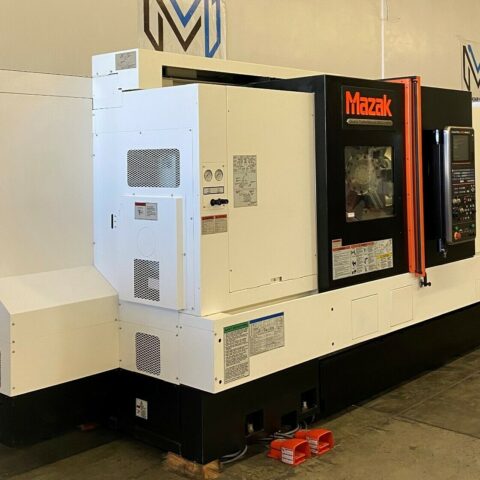

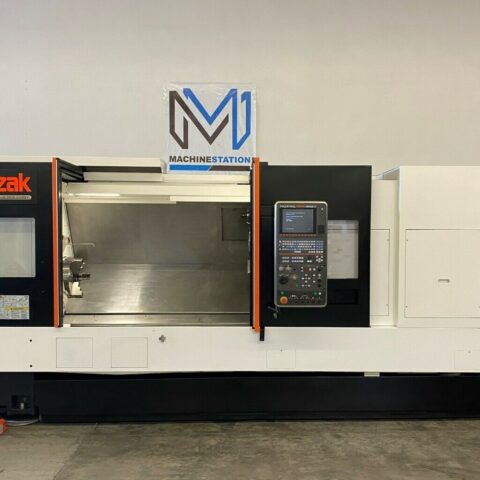

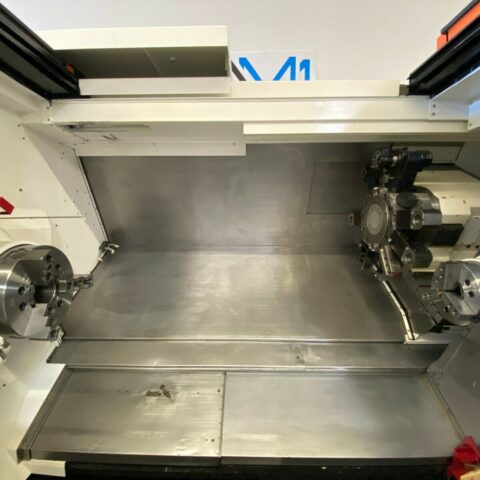

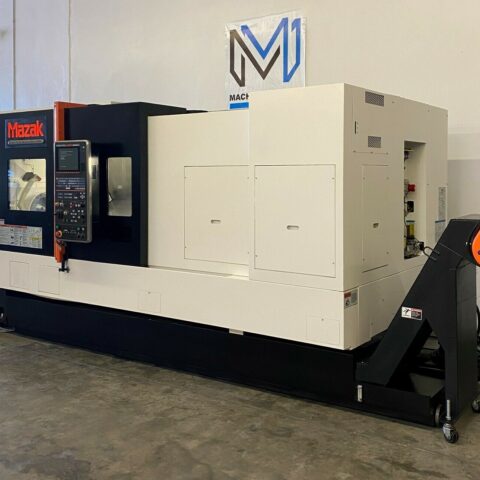

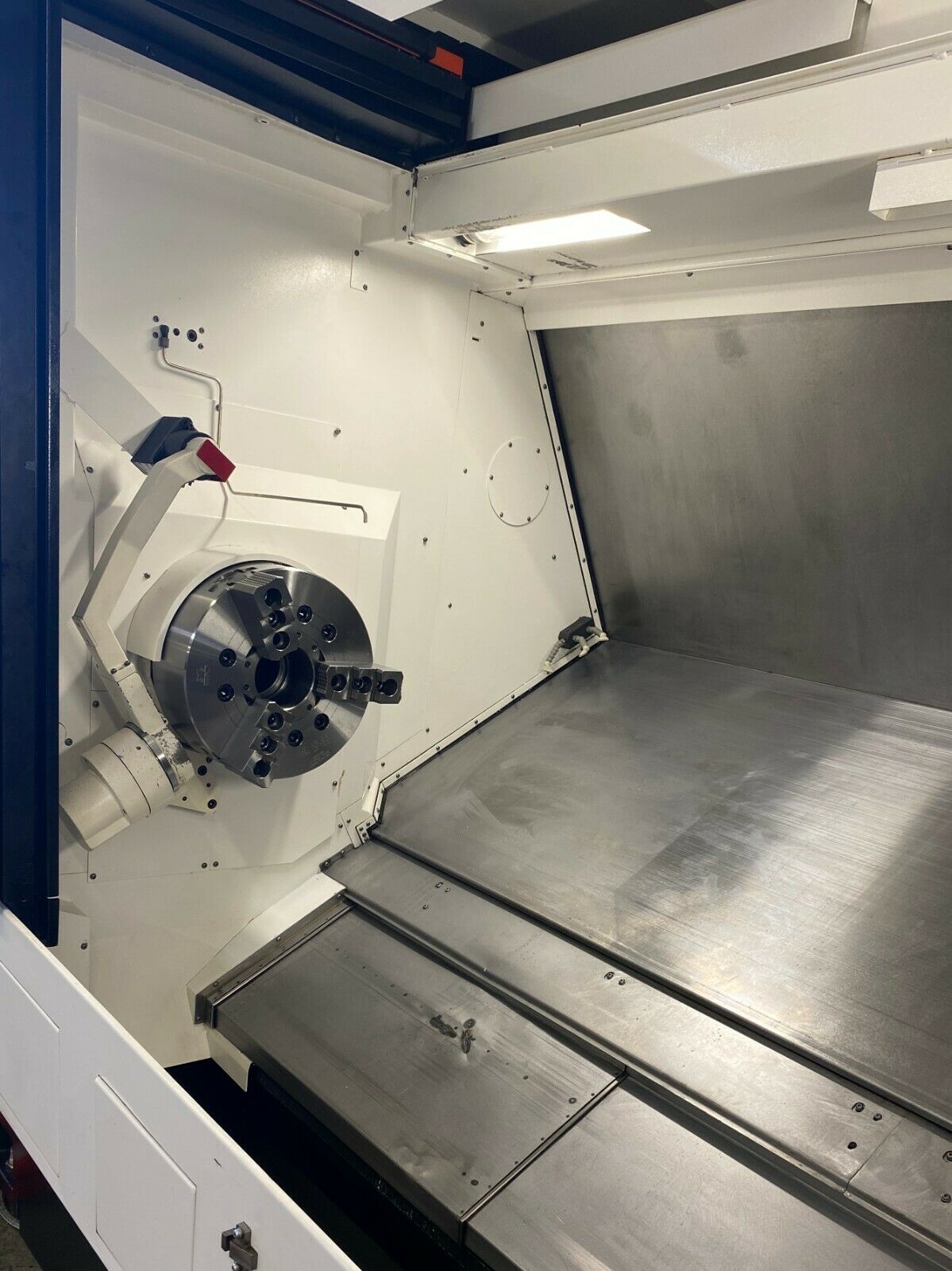

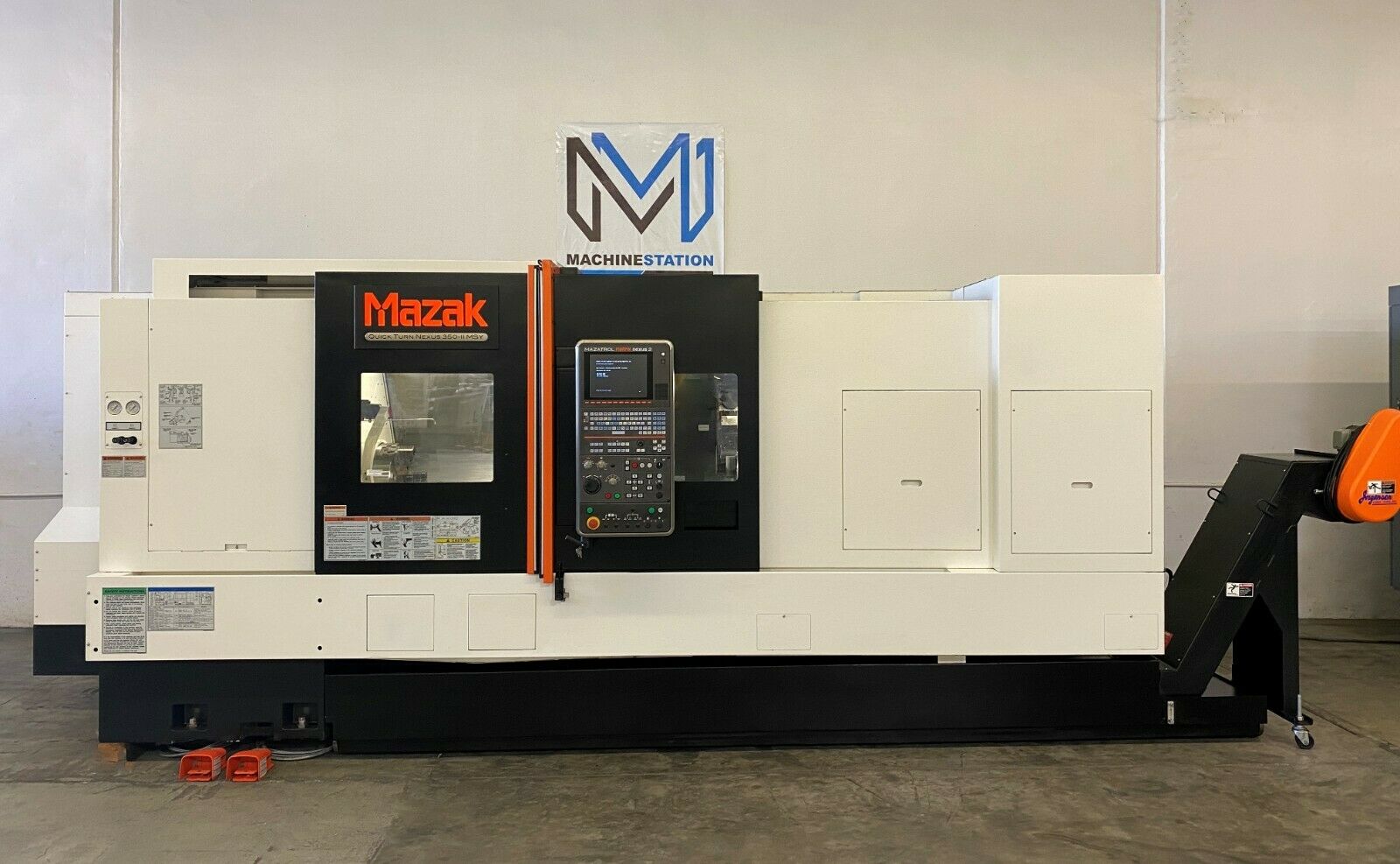

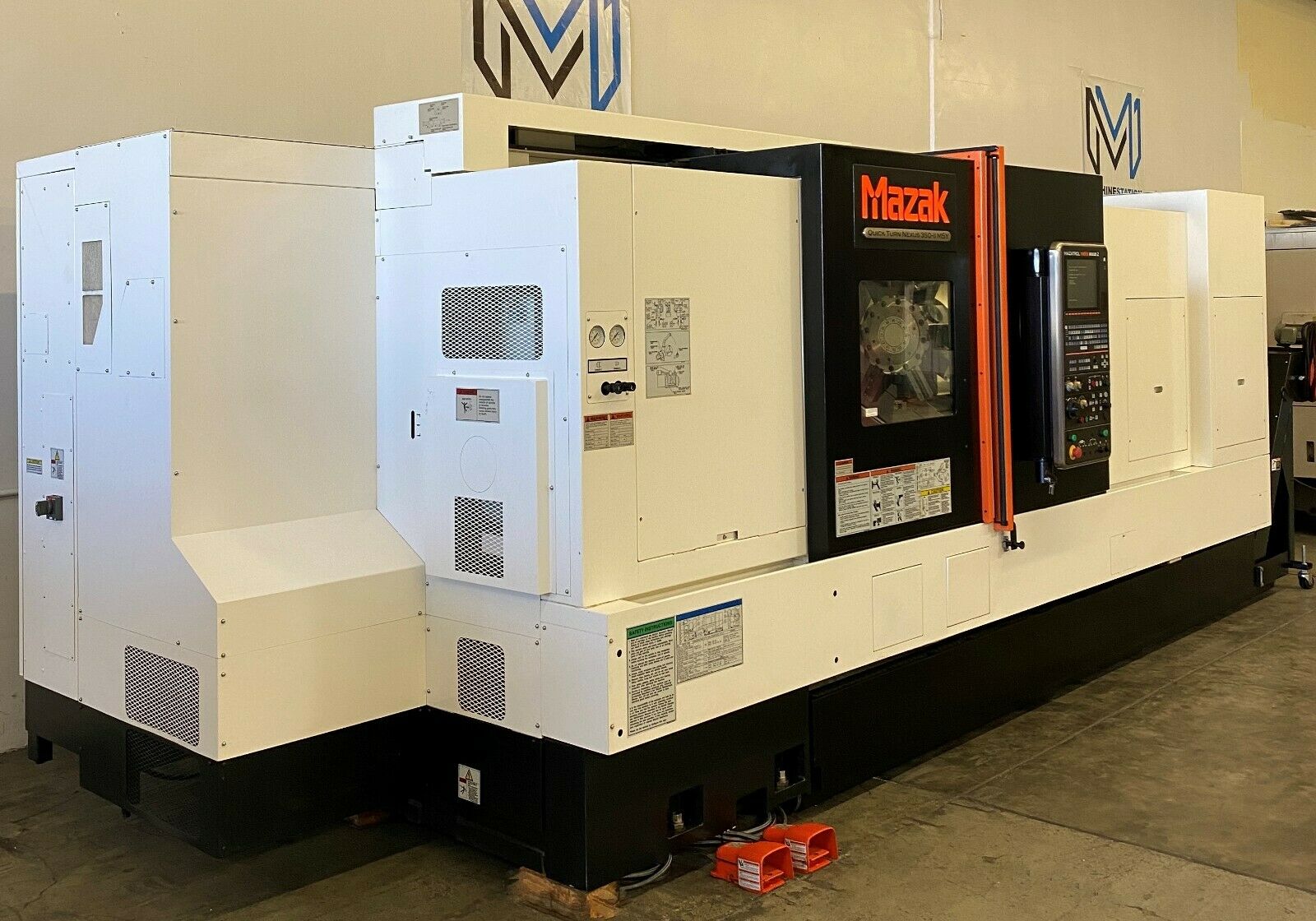

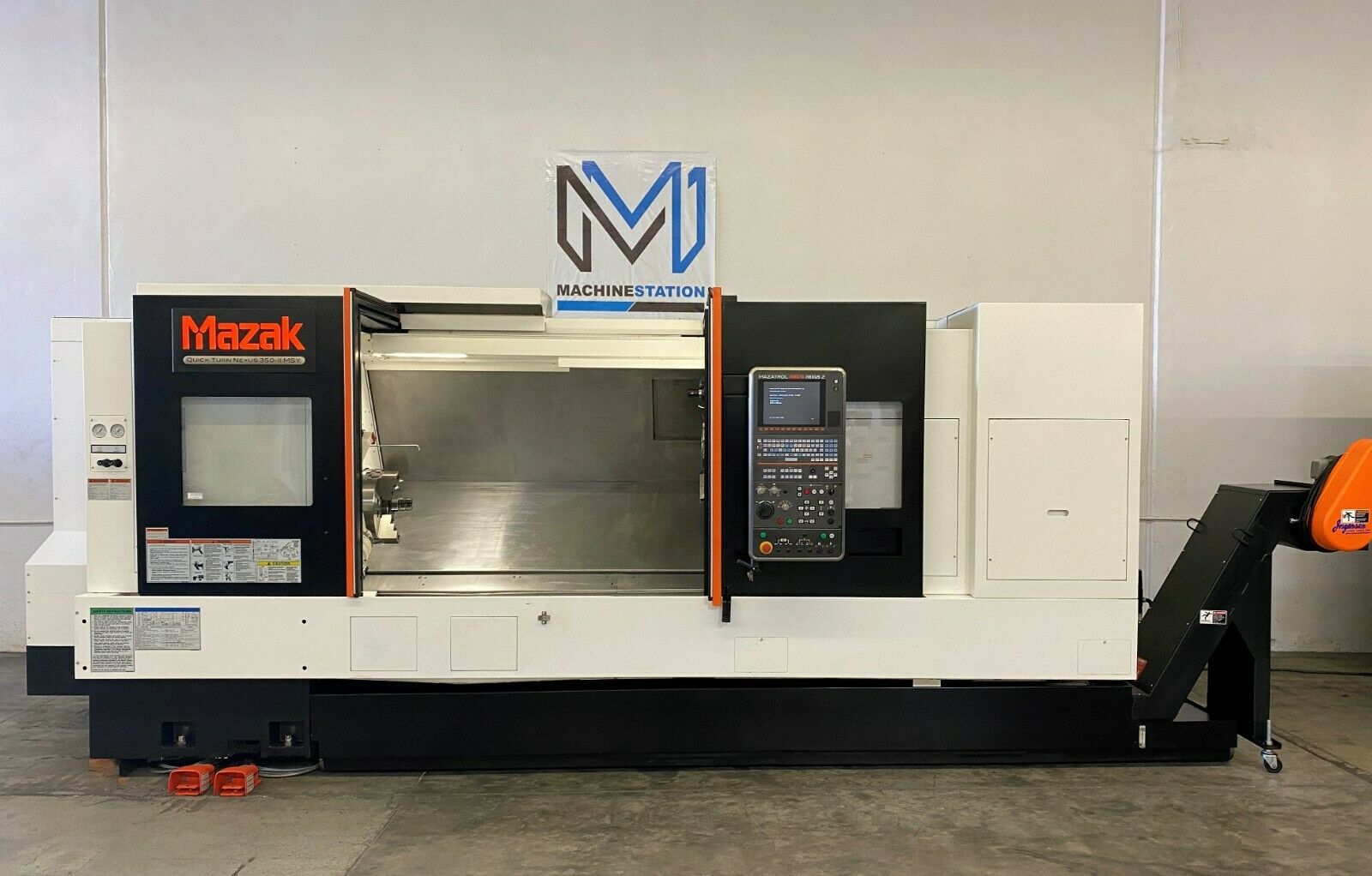

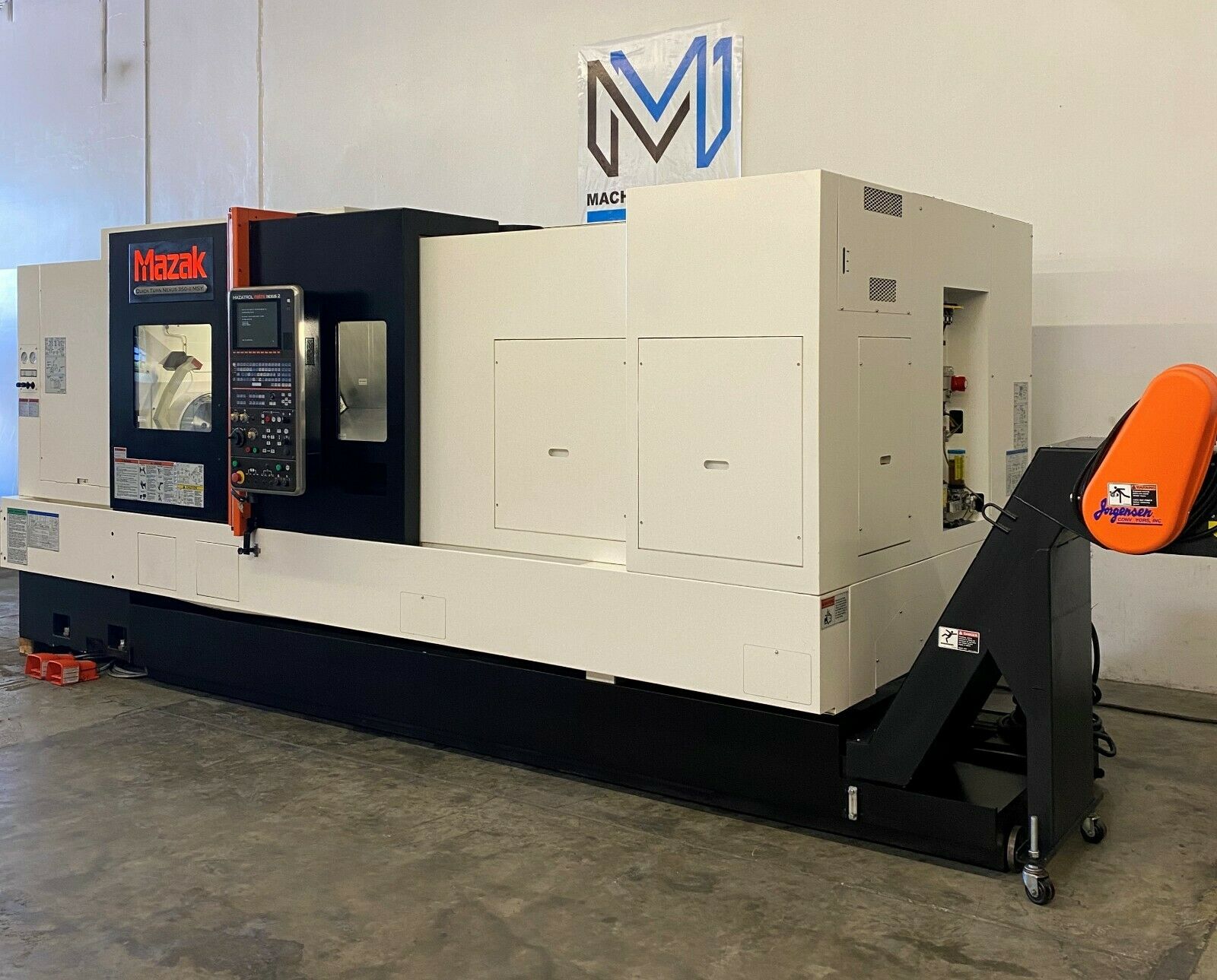

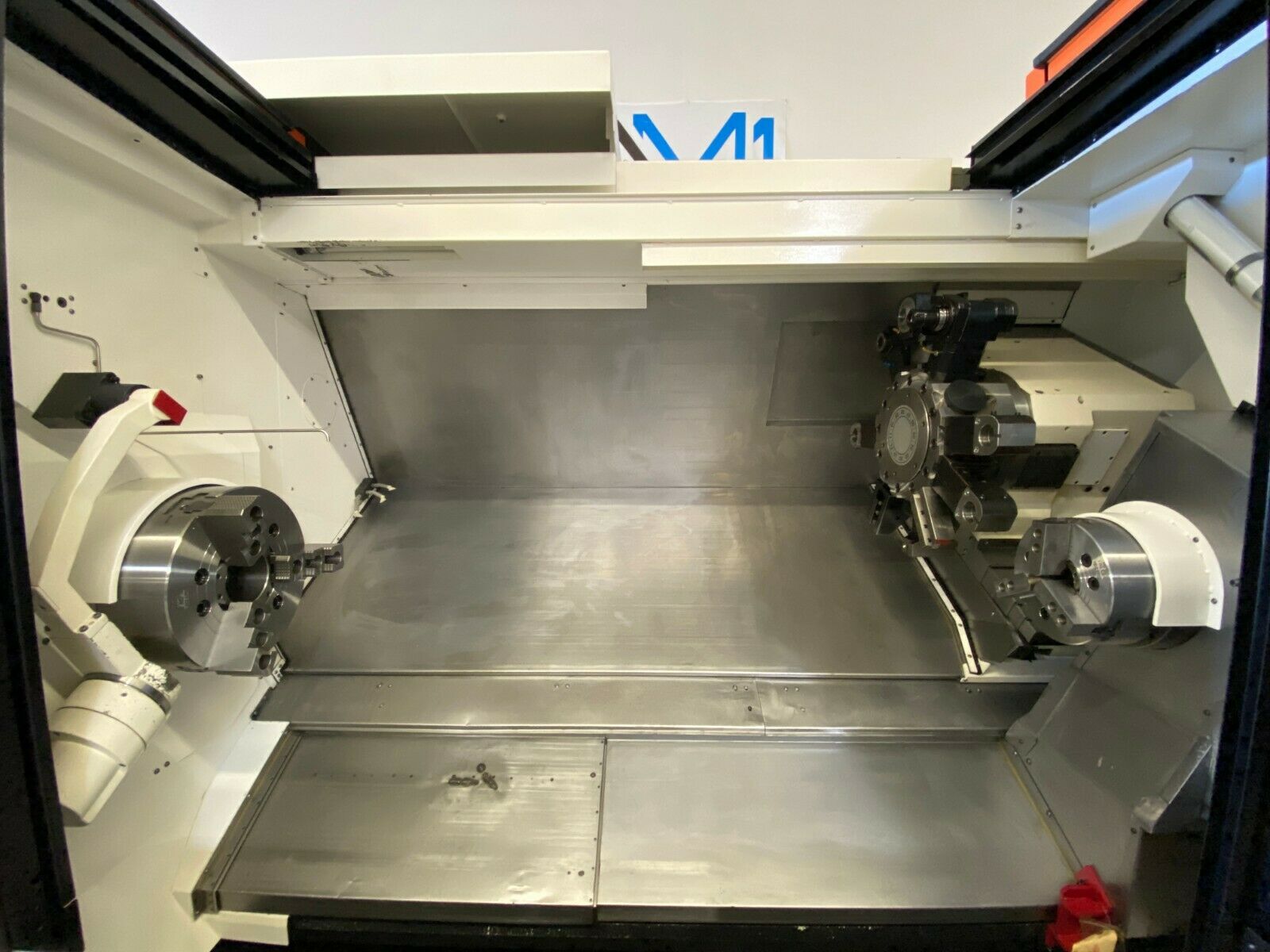

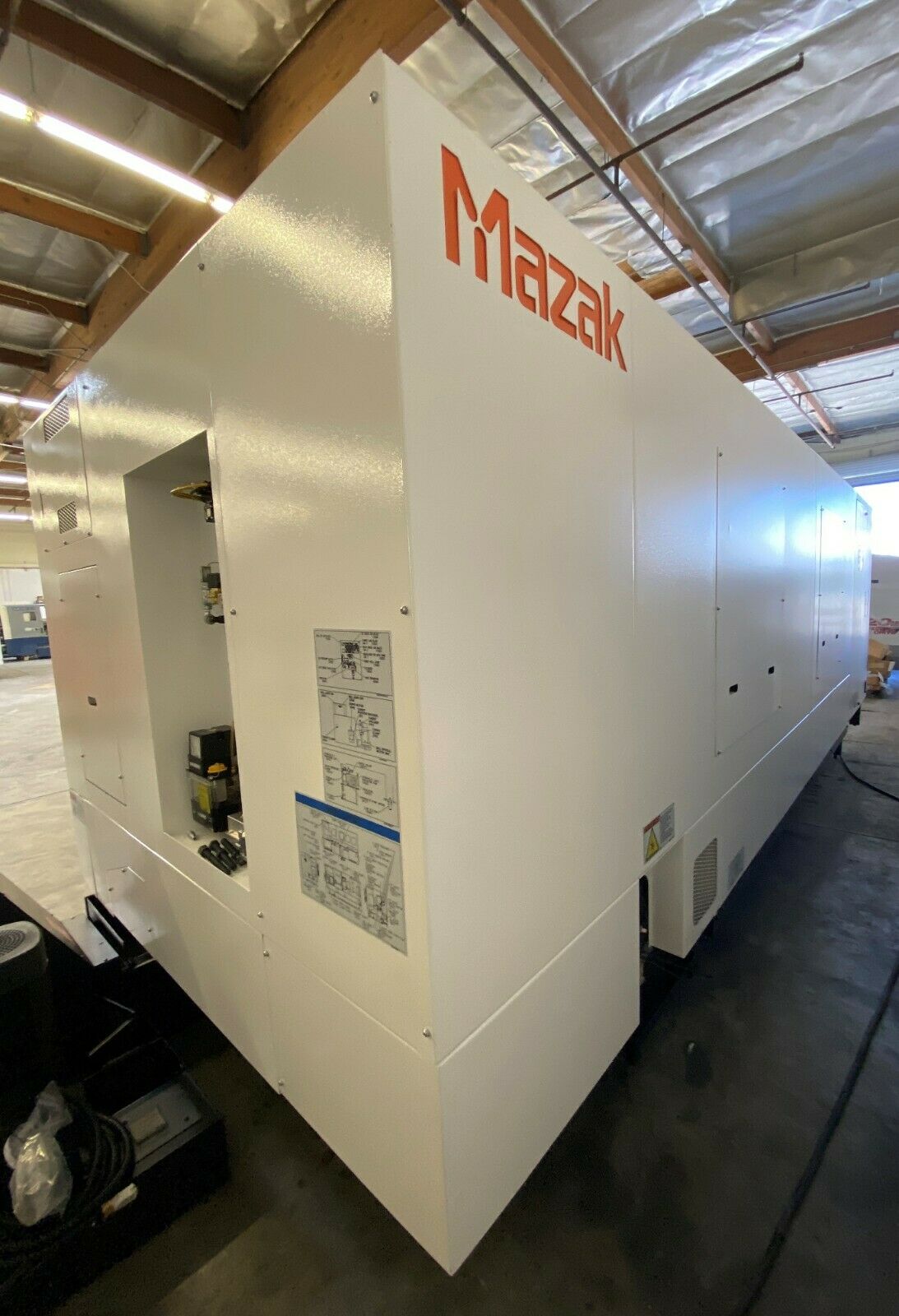

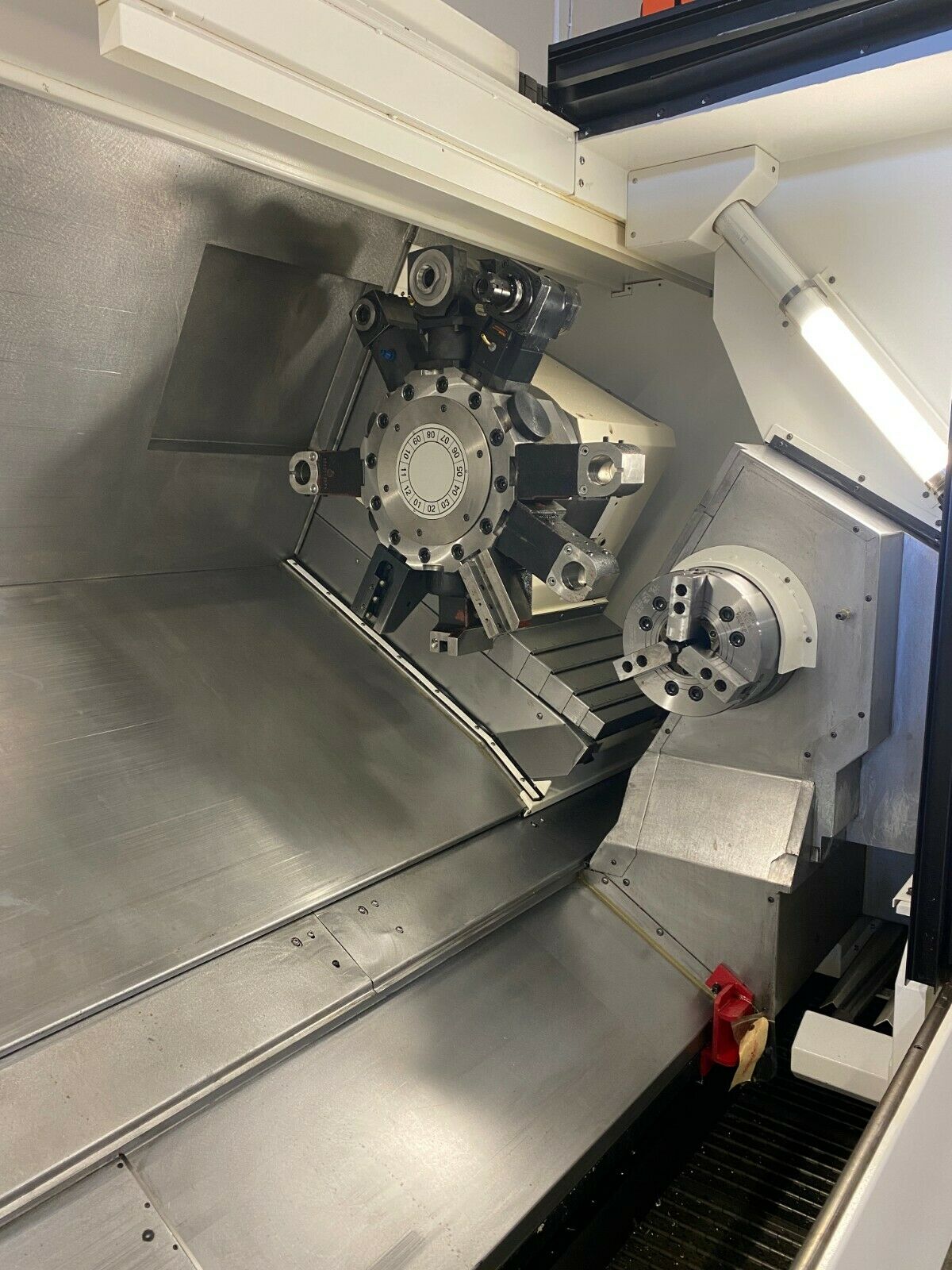

Mazak QT Nexus 350-II MSY CNC comes as shown in pictures…

“No Charges for loading at list Price”
