Mazak QTN-250 II MSY CNC Turning Centers

SKU 11514

Make/Model Mazak QTN-250 II MSY

Year 2006

Video On Request

Out of stock

SKU:	11514
Make/Model:	Mazak QTN-250 II MSY
Year:	2006
Video:	On Request

SKU: 11514

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Mazak
Model:	QTN-250 II MSY
Year:	2006
Machine Type:	CNC Turning Center

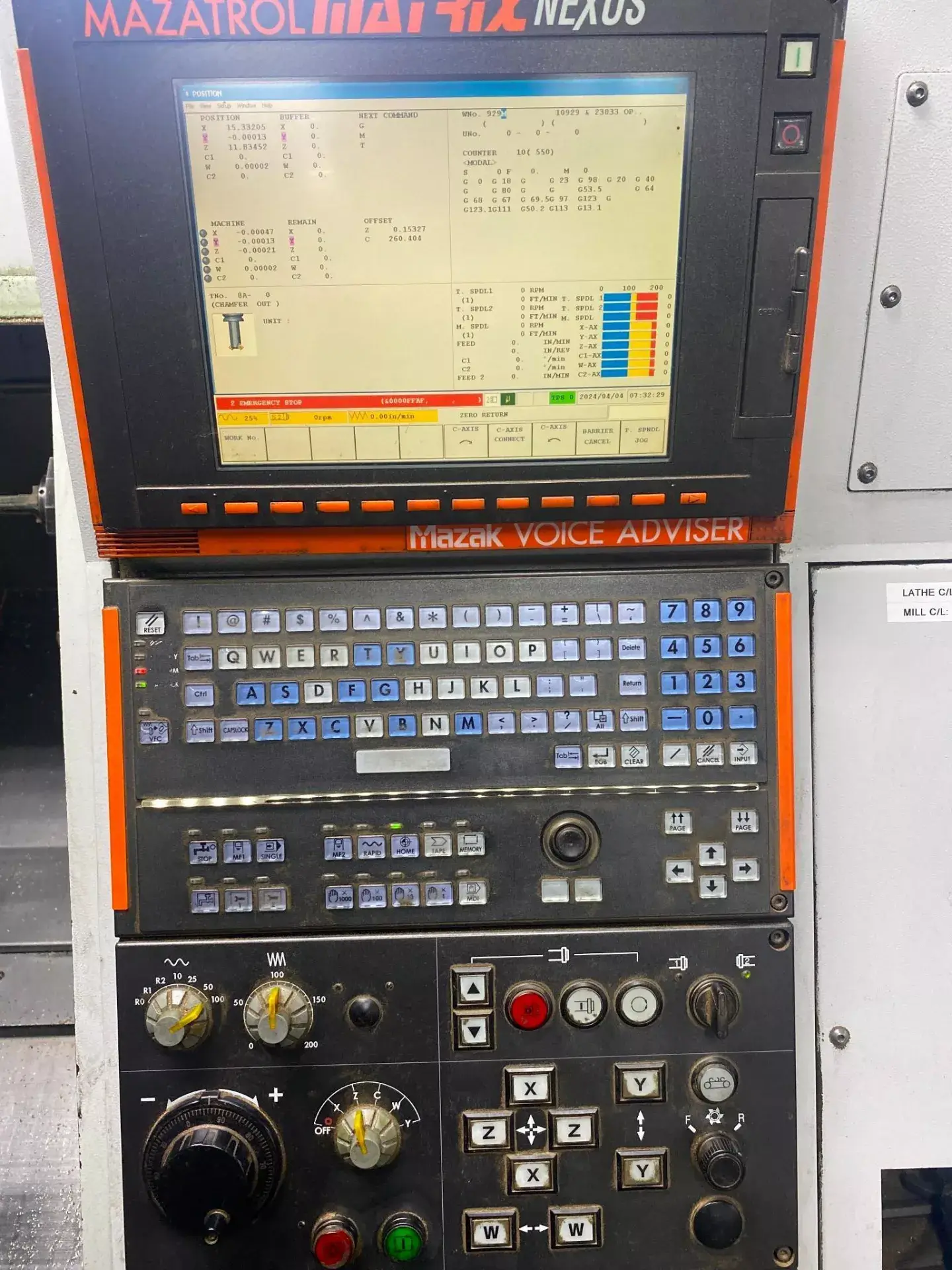

Control:	Mazatrol Matrix Nexus CNC Control

Equipped With:

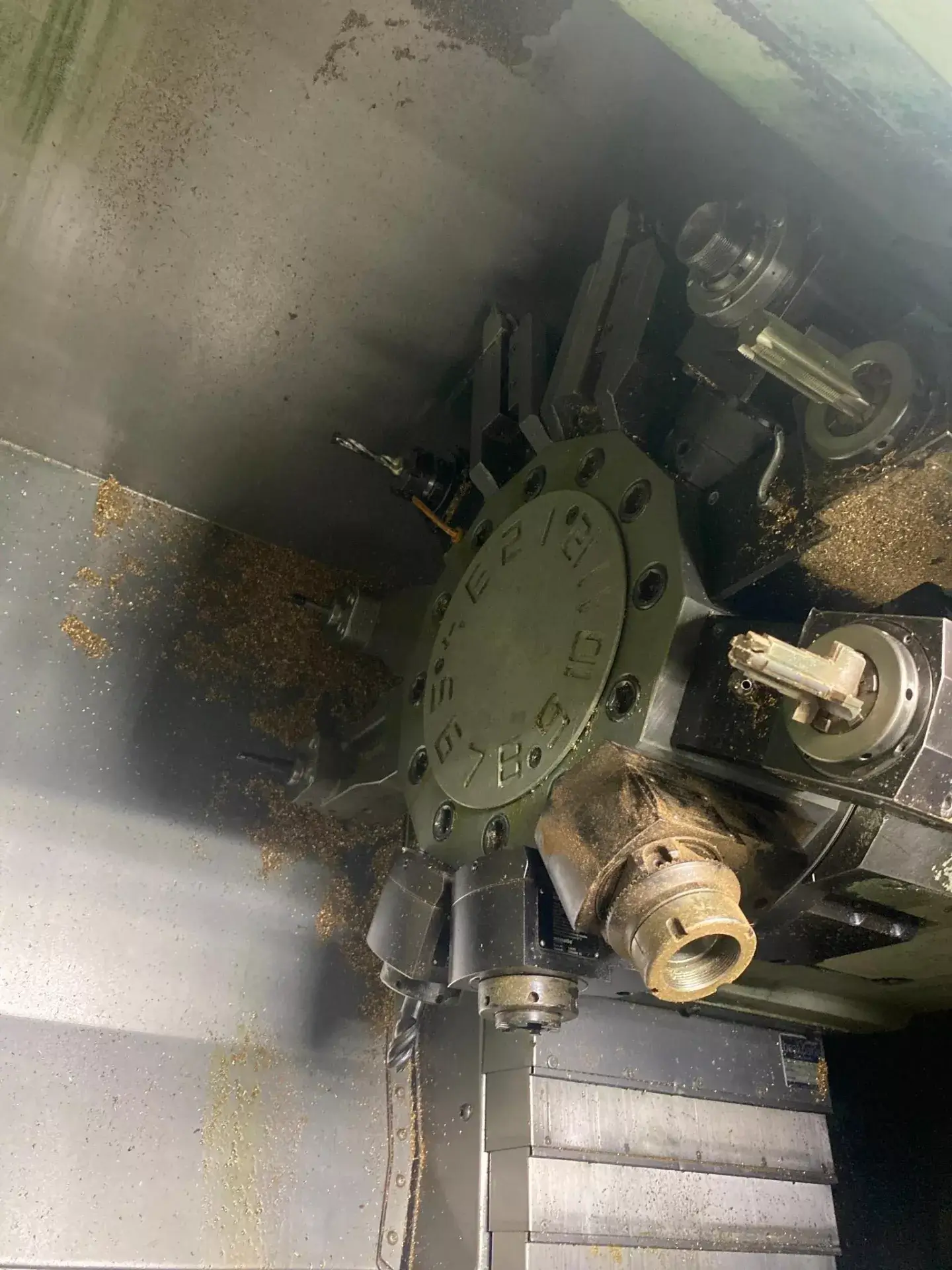

12 Station Turret
C-Axis
Y-Axis
Live Tooling Capability
Sub Spindle
Chip Conveyor
Parts Catcher
Hydraulic Chuck
Coolant System
Mazatrol Matrix Nexus CNC Control

Main Spindle:

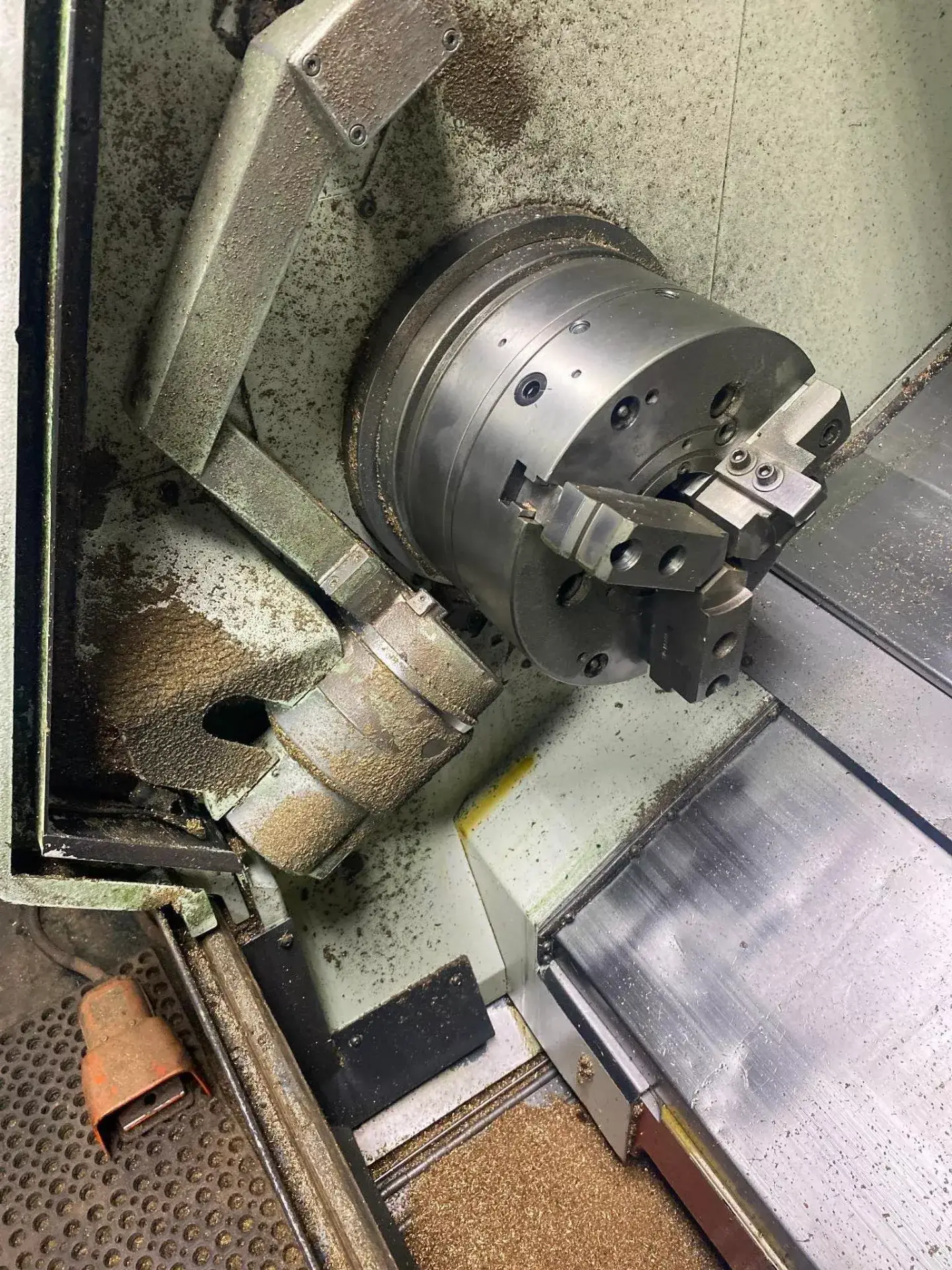

Chuck Size : 10″
Bar Capacity : 3″
Max Swing : 17.32″
Max Turning Diameter : 14.75″
Distance Between Centers : 21.28″
Spindle Speed : 4,000 RPM

Turret & Milling:
Turret Capacity : 12 Station
C-Axis : Yes
Y-Axis : Yes
Live Tool Motor : 7.5 HP

Sub Spindle:
Sub Spindle Chuck Size : 6″
Sub Spindle Speed : 6,000 RPM
Sub Spindle Motor : 7.5 HP

General:
Power Requirement : 208V / 3-Phase

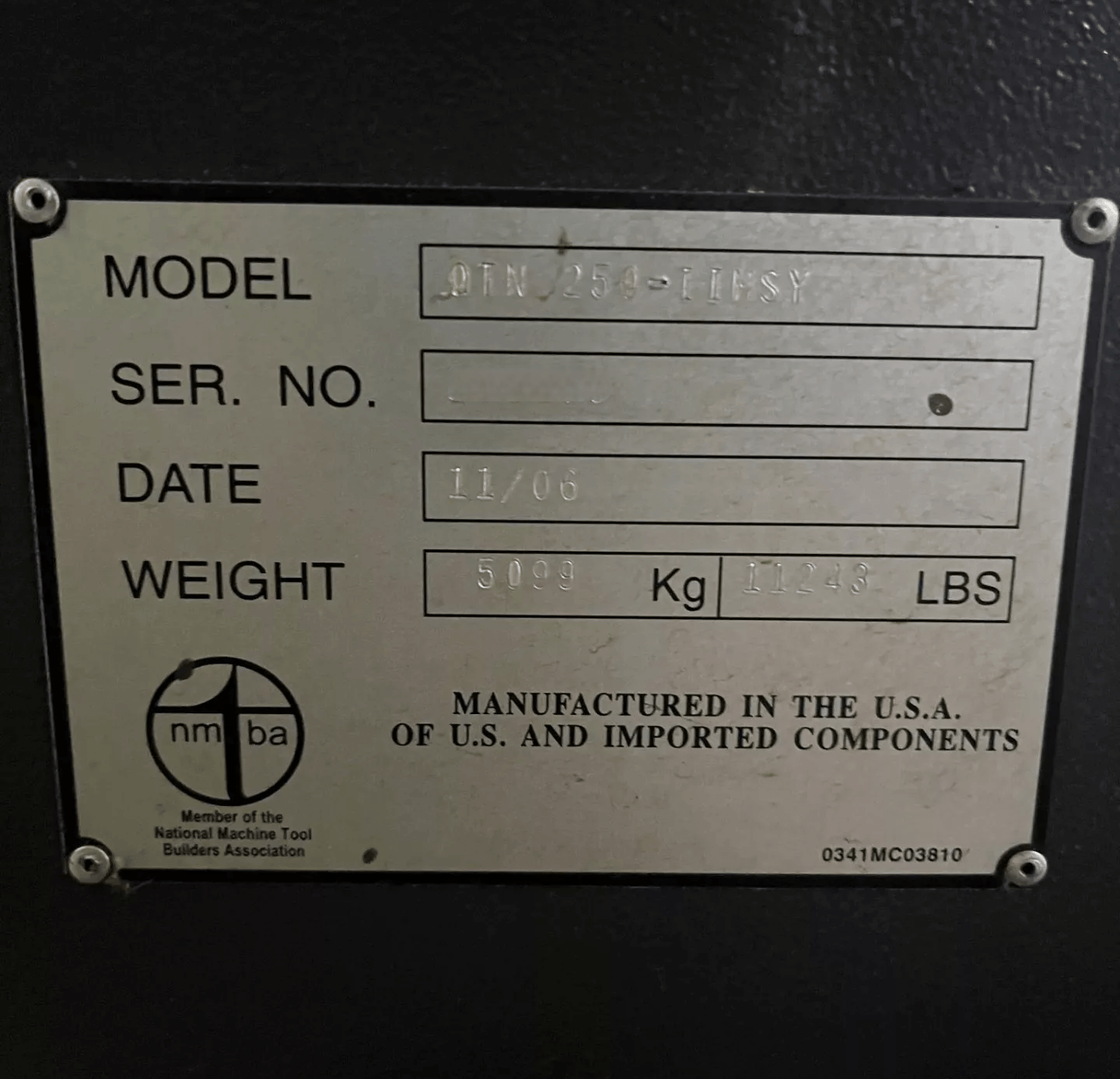

Machine Weight : Approx. 11,243 LBS

Categories	CNC Lathes & Turning Centers
Make	Mazak
Model	QTN-250 II MSY

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
