*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |
| Model: | Quick Turn Nexus 350-II |
| Year: | 2012 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |

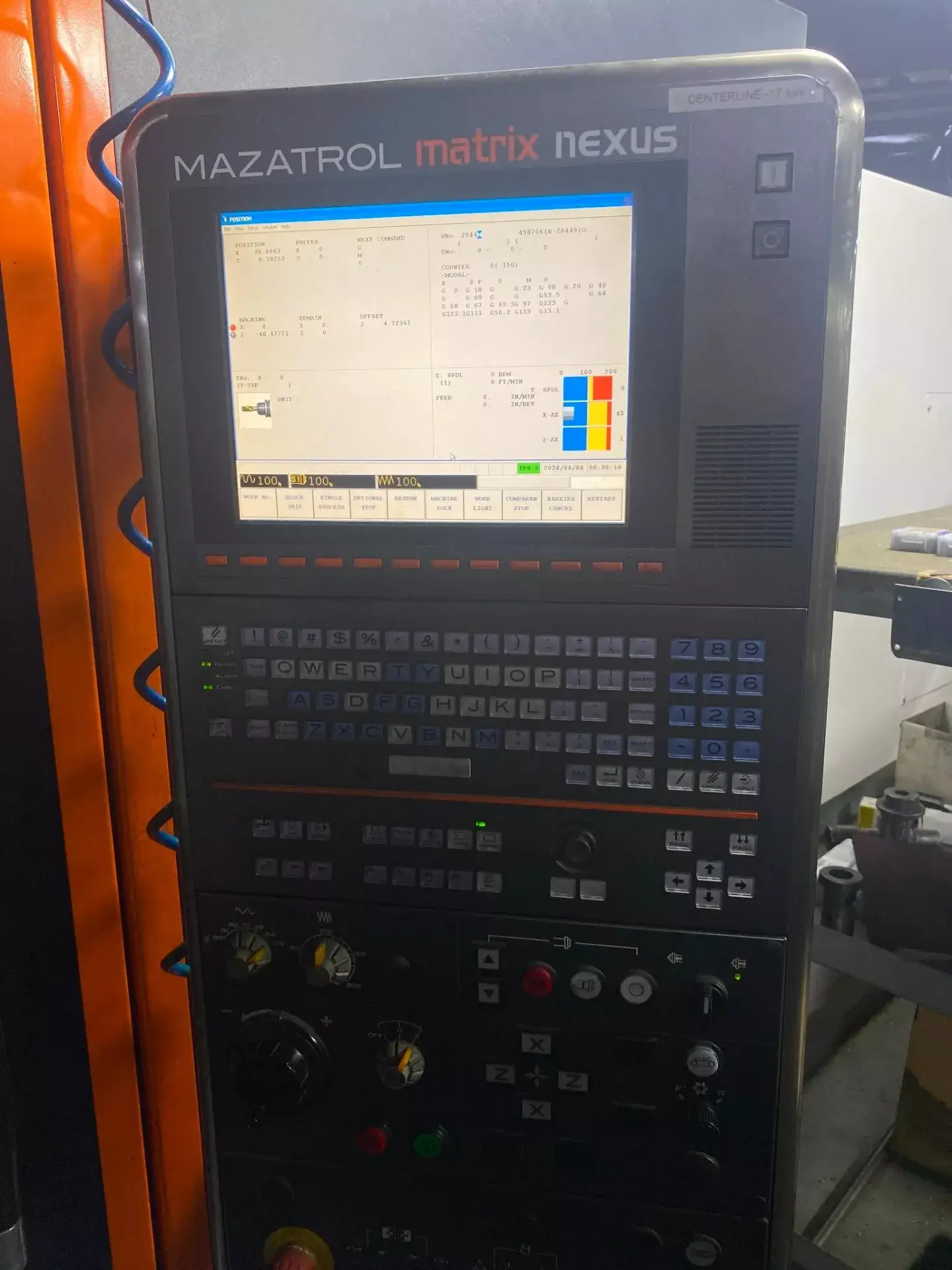

| Control: | Mazatrol Matrix Nexus CNC Control |
| Equipped With: |
|---|

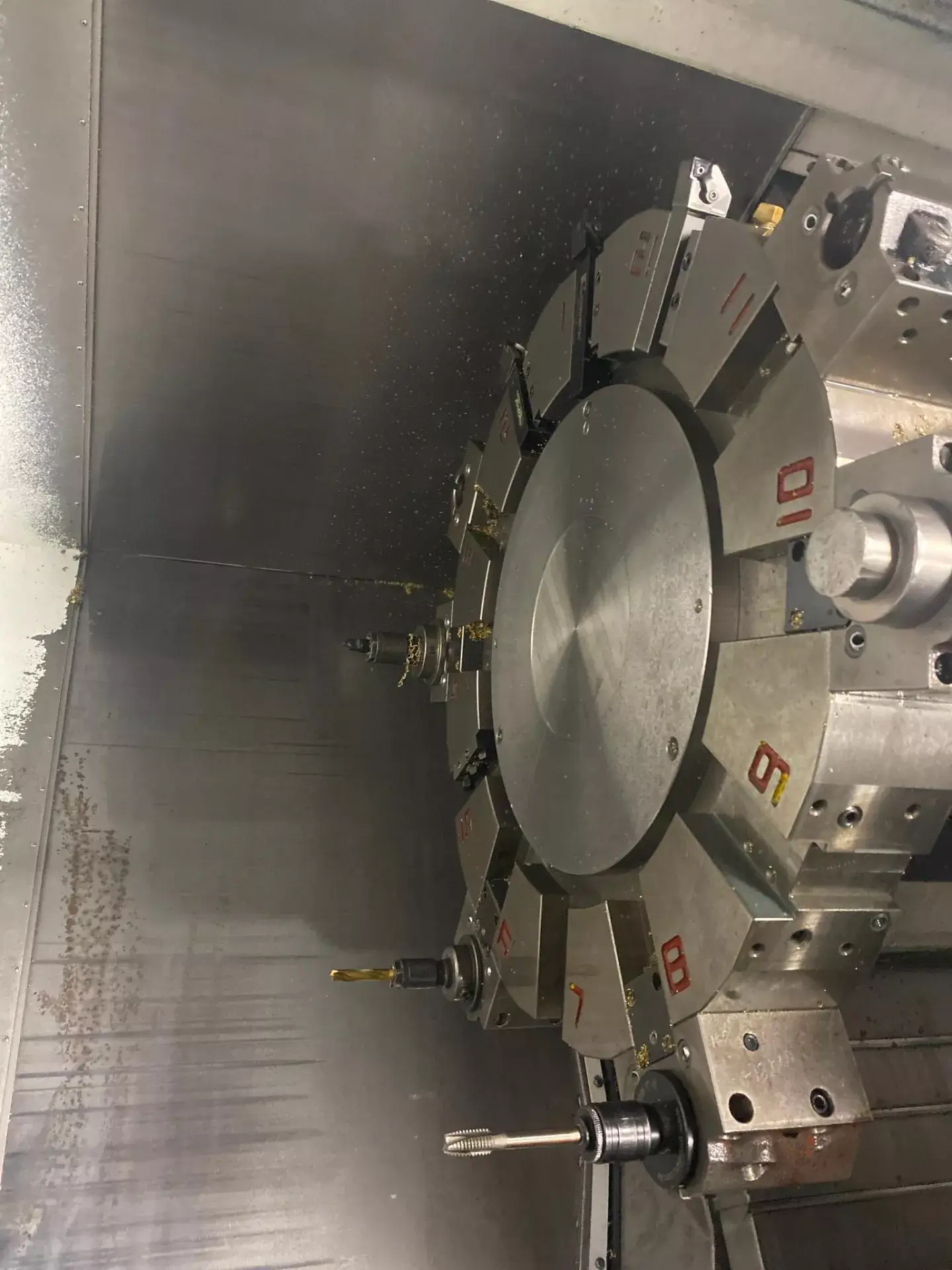

| 12 Position Turret |
| Tailstock |

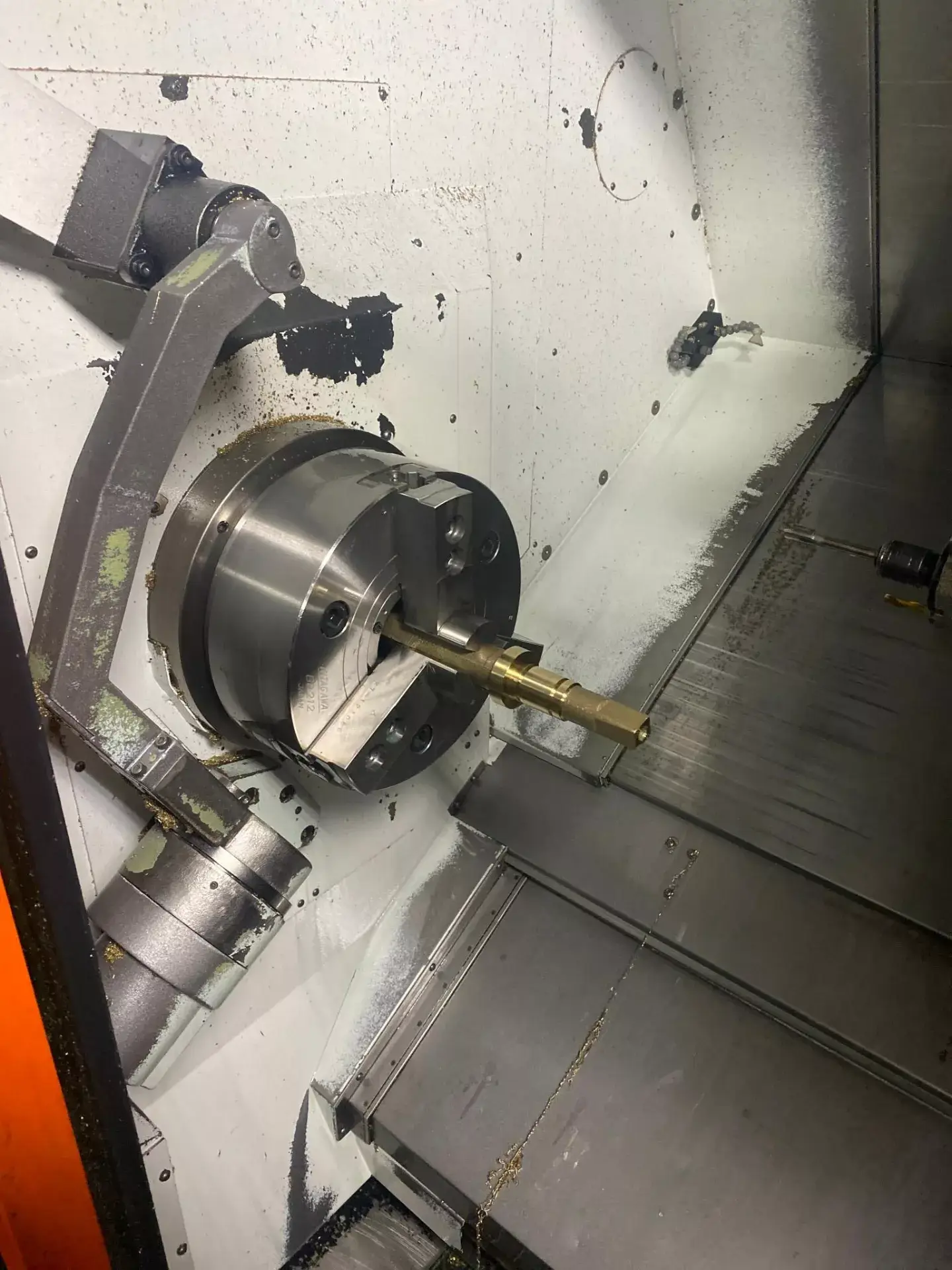

| Kitagawa Hydraulic Chuck |
| Chip Conveyor |
| Mazatrol Matrix Nexus CNC Control |
| Programmable Tailstock |
| Coolant System |
| Work Light |
| Fully Enclosed Guarding |
| Capacity: |
|---|
| Maximum Swing : 29″ |
| Swing Over Carriage : 20.67″ |
| Maximum Machining Diameter : 16.64″ |
| Maximum Machining Length : 61″ |
| Bar Capacity : 4″ |
| Chuck Size : 12″ |
| Travels: |
|---|
| X-Axis Travel : 10.12″ |
| Z-Axis Travel : 62.63″ |
| Spindle: |
|---|
| Spindle Nose : A2-11 |
| Maximum Spindle Speed : 3,300 RPM |
| Main Motor Output : 40 HP |
| Turret: |
|---|
| Number of Tools : 12 |
| Turret Type : 12 Position Turret |
| General: |
|---|

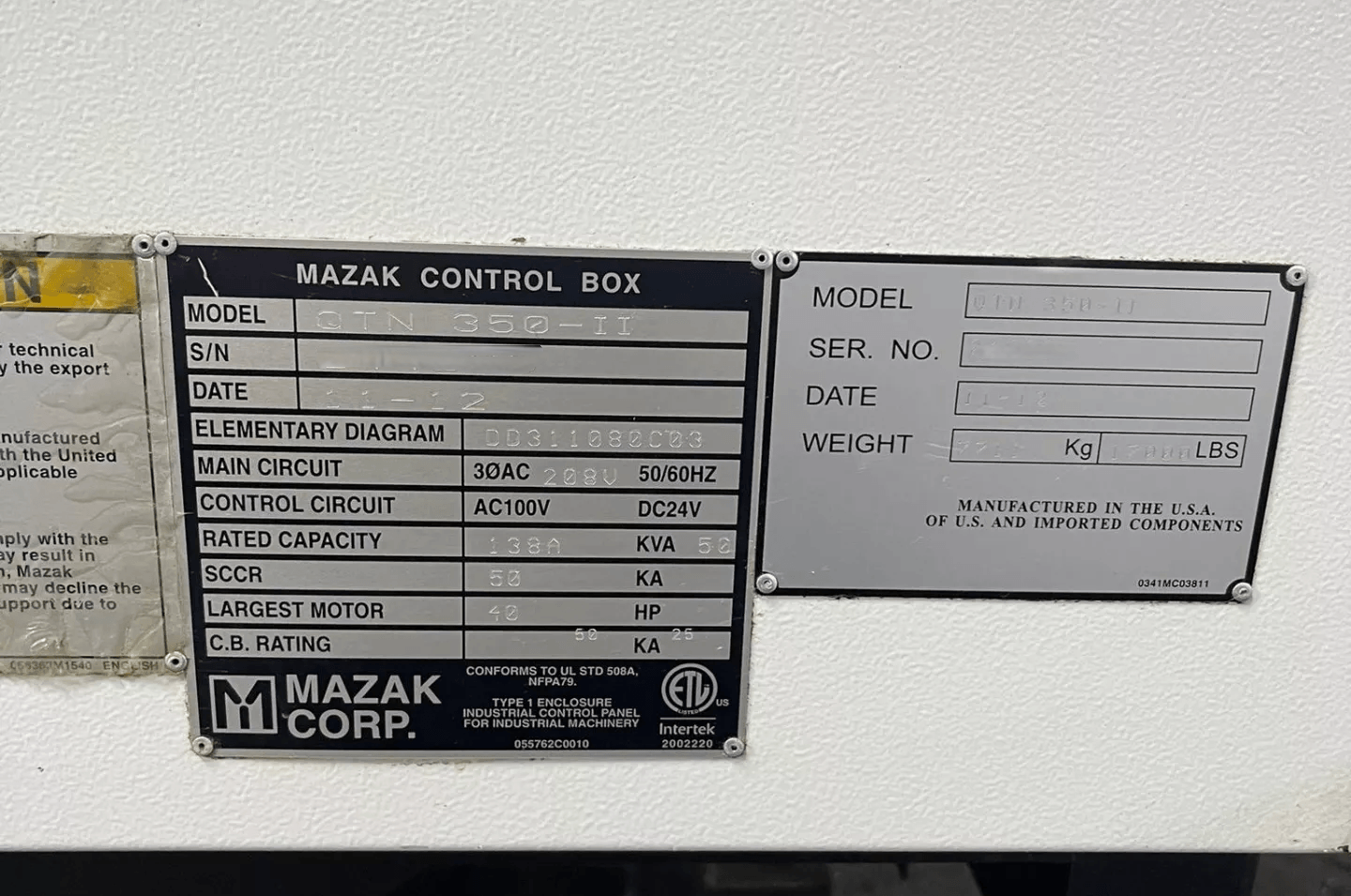

| Power Requirement : 208V / 3-Phase |
| Machine Weight : Approx. 17,000 LBS |
