*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |
| Model: | QTN 350-II |
| Year: | 2013 |
| Condition: | Used – Good |
| Country of Origin: | USA |
-
Equipped With:

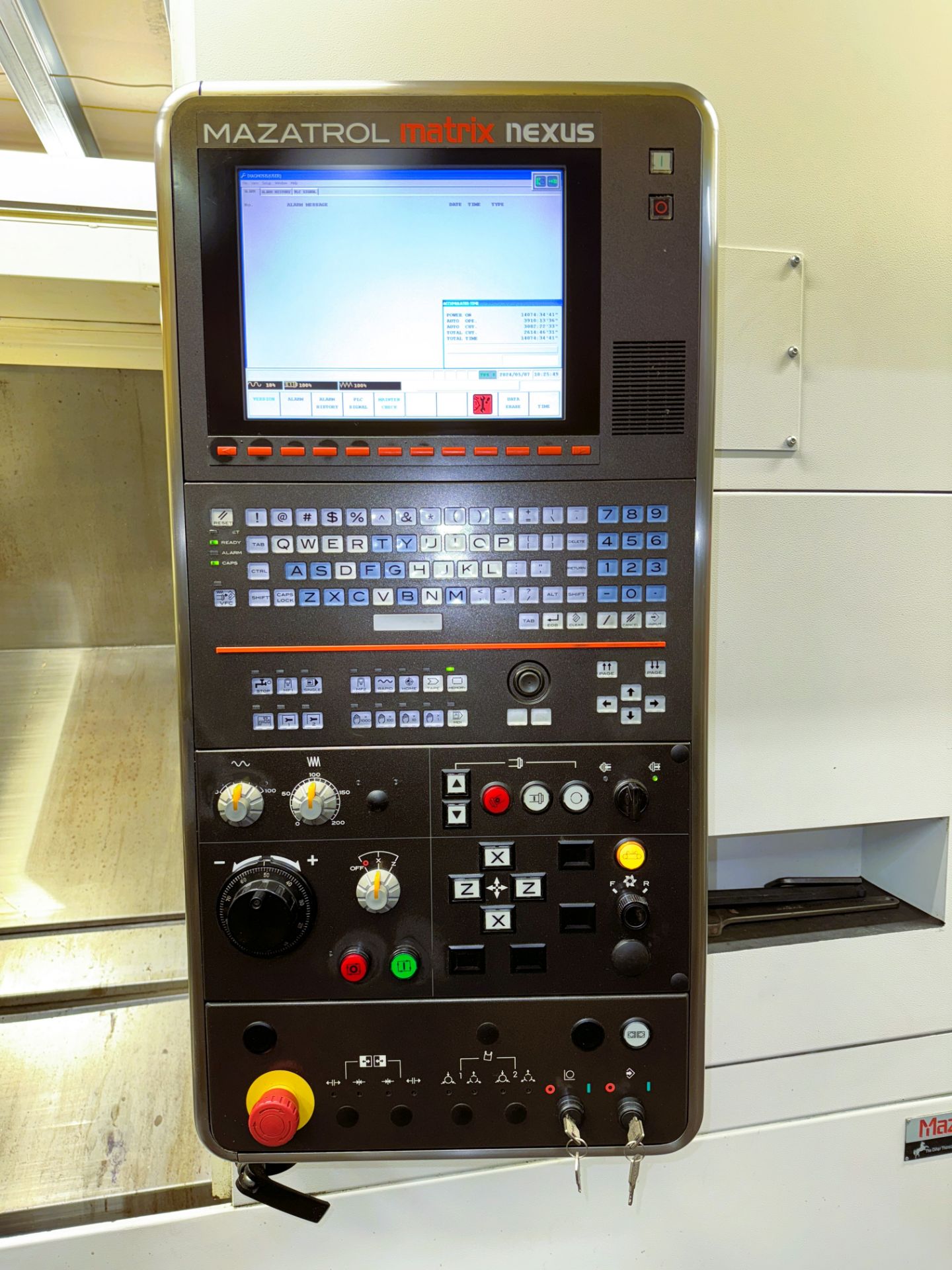

- Mazatrol Matrix Nexus CNC Control
- 15″ Color LCD Display
- Conversational Mazatrol Programming
- EIA / ISO G-Code Programming
- 12″ Kitagawa Hydraulic Chuck
- Servo-Driven Indexing Turret
- Flood Coolant System
- Fully Enclosed Splash Guard
- Rear Chip Discharge
- Chip Conveyor
-
Capacity:
- Max Turning Diameter: 16.54″ (420 mm)
- Max Turning Length: 63.27″ (1,607 mm)
- Spindle Bore: 4.00″ (102 mm)
- Chuck Size: 12″ Hydraulic Chuck
-
Travels:
- X-Axis Travel: 10.12″ (257 mm)
- Z-Axis Travel: 63.27″ (1,607 mm)
-
Spindle:
- Spindle Nose: A2-8
- Spindle Speed: 3,300 RPM
- Spindle Motor: 40 HP (30 kW)
- Spindle Bore: 4.00″
-
Chuck:
- Manufacturer: Kitagawa
- Chuck Model: BB212A115A
- Hydraulic Cylinder: SS2110C15Y
- Max Chuck Pressure: 426 PSI (2.94 MPa)
- Max Static Gripping Force: 153 kN (34,395 lbf)
- Max Chuck Speed: 3,300 RPM
-
Turret:
- Turret Type: Servo-Driven Indexing Turret
- Number of Stations: 12
- Tool Interface: Mazak BMT / VDI
- Bi-Directional Indexing
-

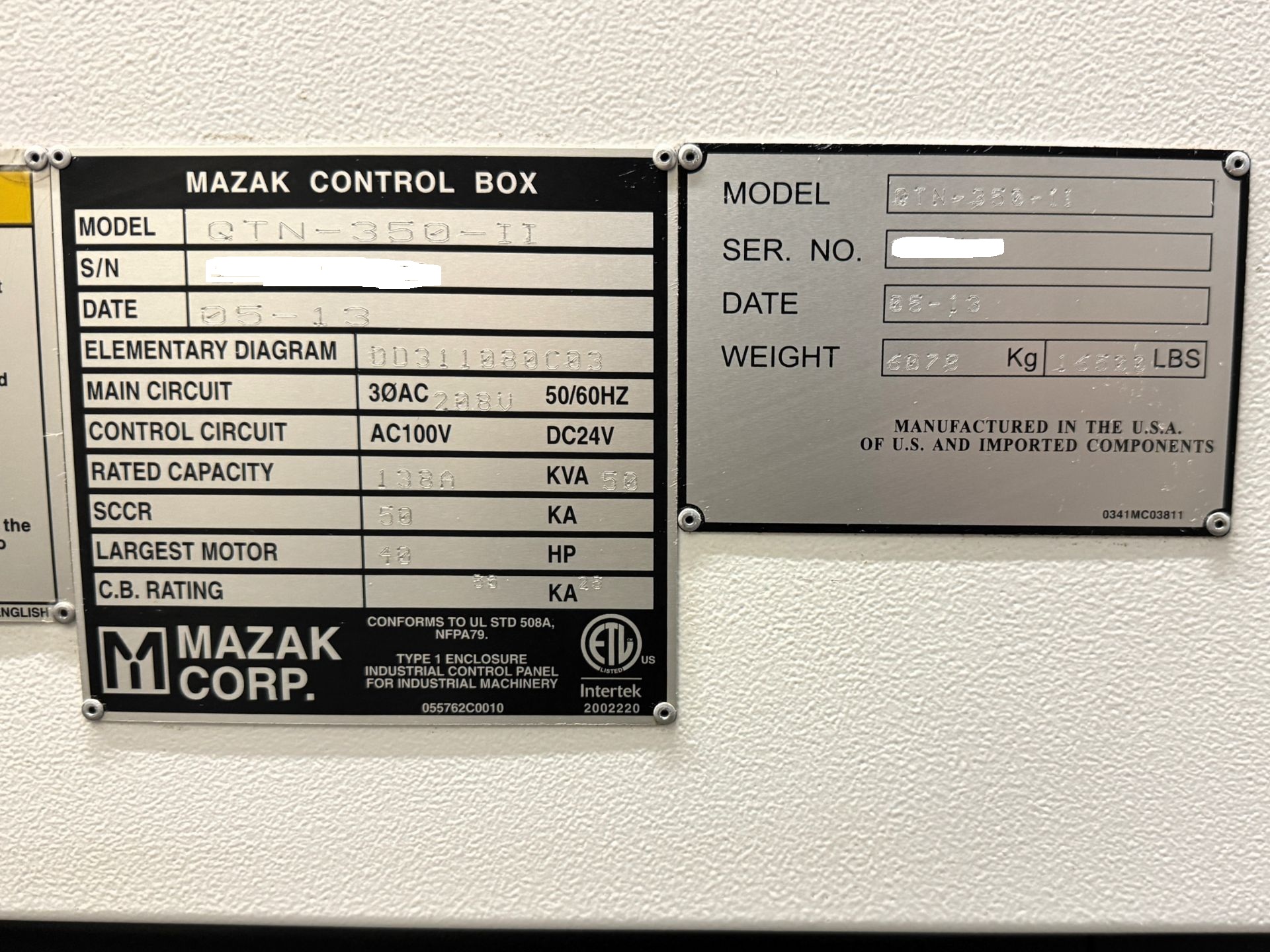

Electrical:
- Power Supply: 208V / 3-Phase / 50–60 Hz
- Rated Capacity: 138 kVA
- Largest Motor: 40 HP
- Short Circuit Current Rating (SCCR): 50 kA
- Circuit Breaker Rating: 50 kA
- Control Voltage: AC 100V / DC 24V
-

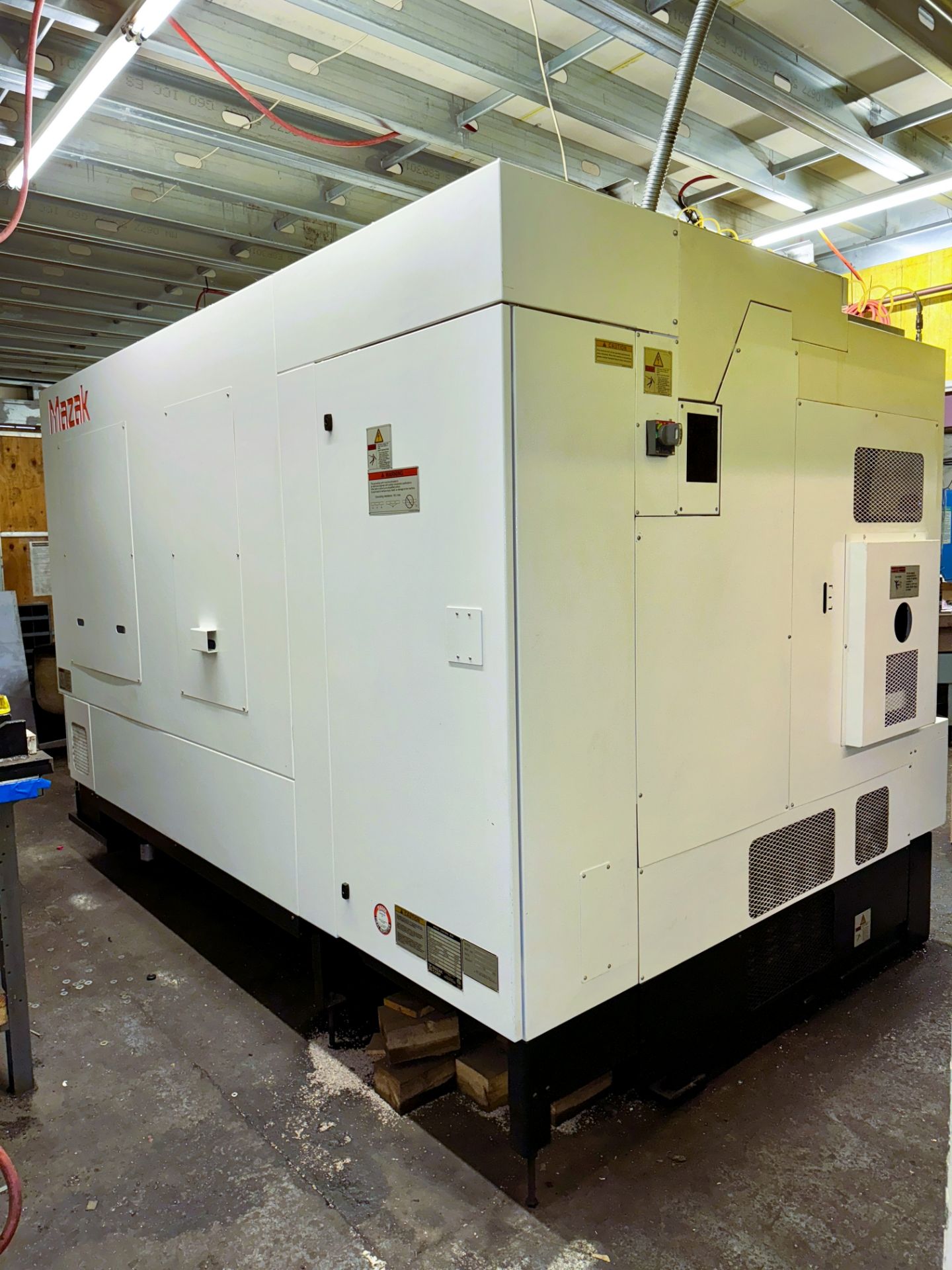

General:
- Overall Length: 196.9″ (5,000 mm)
- Overall Width: 82.7″ (2,100 mm)
- Overall Height: 86.6″ (2,200 mm)
- Machine Weight: Approx. 15,370 lbs (6,972 kg)
