Mazak Quick Turn 20 CNC Lathe

SKU 11513

Make/Model Mazak Quick Turn 20

Year 1997

Video On Request

Out of stock

SKU:	11513
Make/Model:	Mazak Quick Turn 20
Year:	1997
Video:	On Request

SKU: 11513

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Mazak
Model:	Quick Turn 20
Year:	1997
Machine Type:	CNC Turning Center
Control:	Mazatrol T Plus CNC Control

Equipped With:

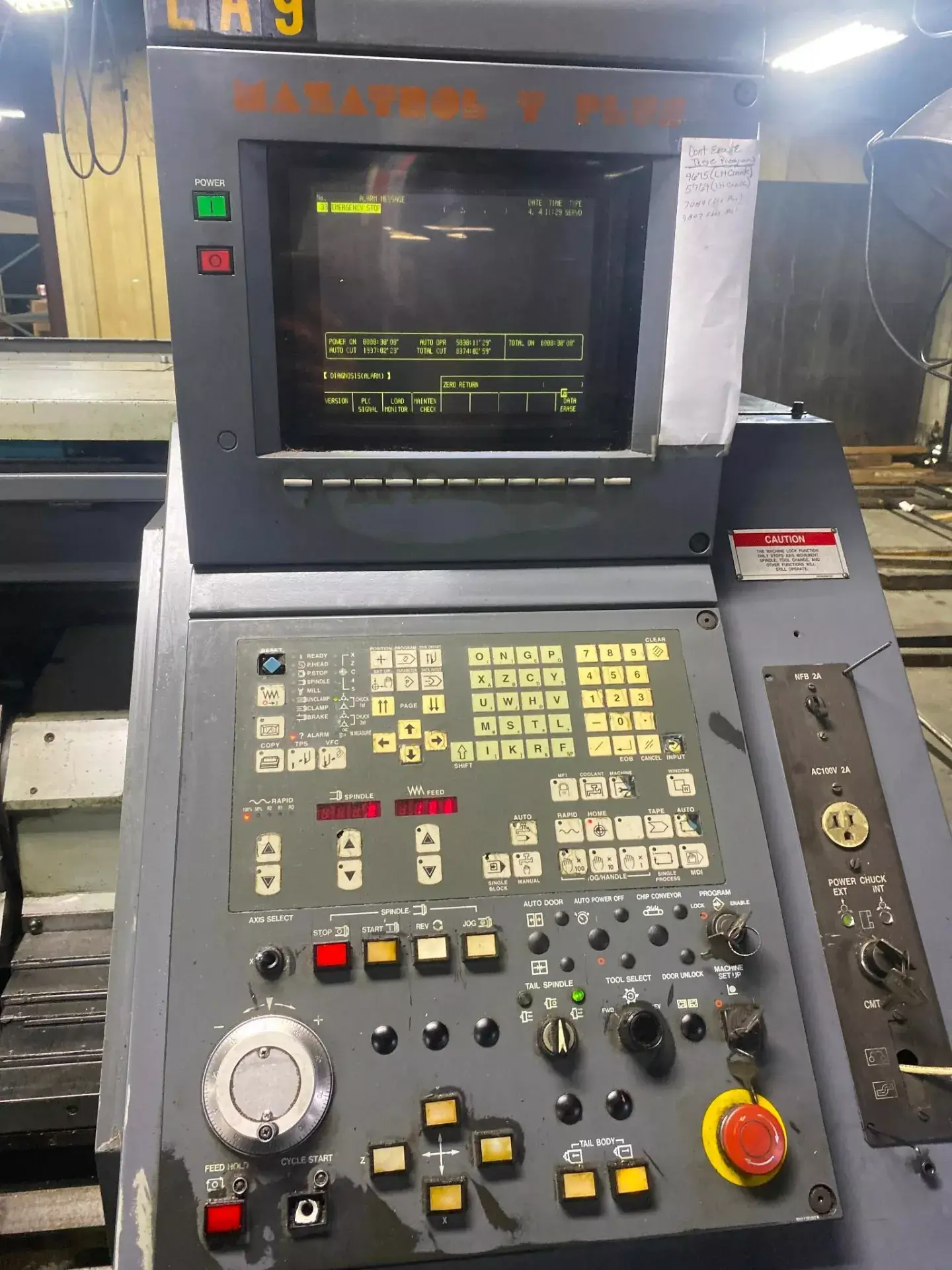

Mazatrol T Plus CNC Control
LNS Hydrobar Bar Feed
10″ Kitagawa Hydraulic Chuck
Hydraulic Collet Chuck Included
8 Position Turret
Tailstock
Chip Conveyor
Coolant System
Foot Pedal Chuck Control

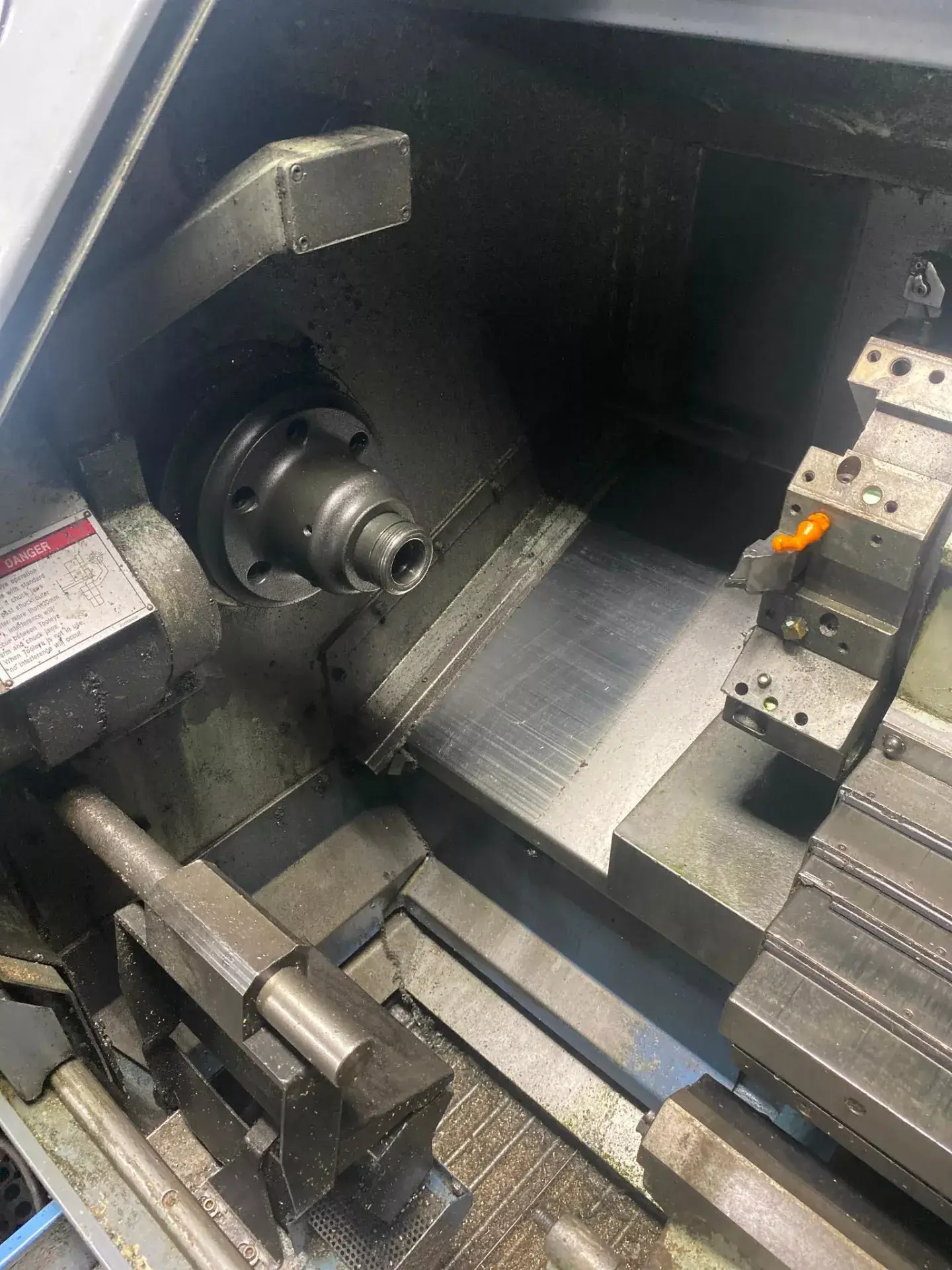

Enclosed Work Area
Work Light

Capacity:
Bar Capacity : 2.75″
Chuck Size : 10″
Maximum Turning Diameter : 11.81″
Maximum Turning Length : 17.5″
Maximum Swing : 17.32″
Bar Feed Capacity : 12′
Collet Chuck Capacity : Up To 1″ Ø

Travels:
X-Axis Travel : 7.125″
Z-Axis Travel : 20.125″

Spindle:
Spindle Speed : 4,000 RPM
Spindle Motor : 20 HP
Spindle Bore : 2.75″

Turret:
Turret Capacity : 8 Station
Rapid Traverse Rate X-Axis : 1,200 IPM
Rapid Traverse Rate Z-Axis : 1,300 IPM

General:

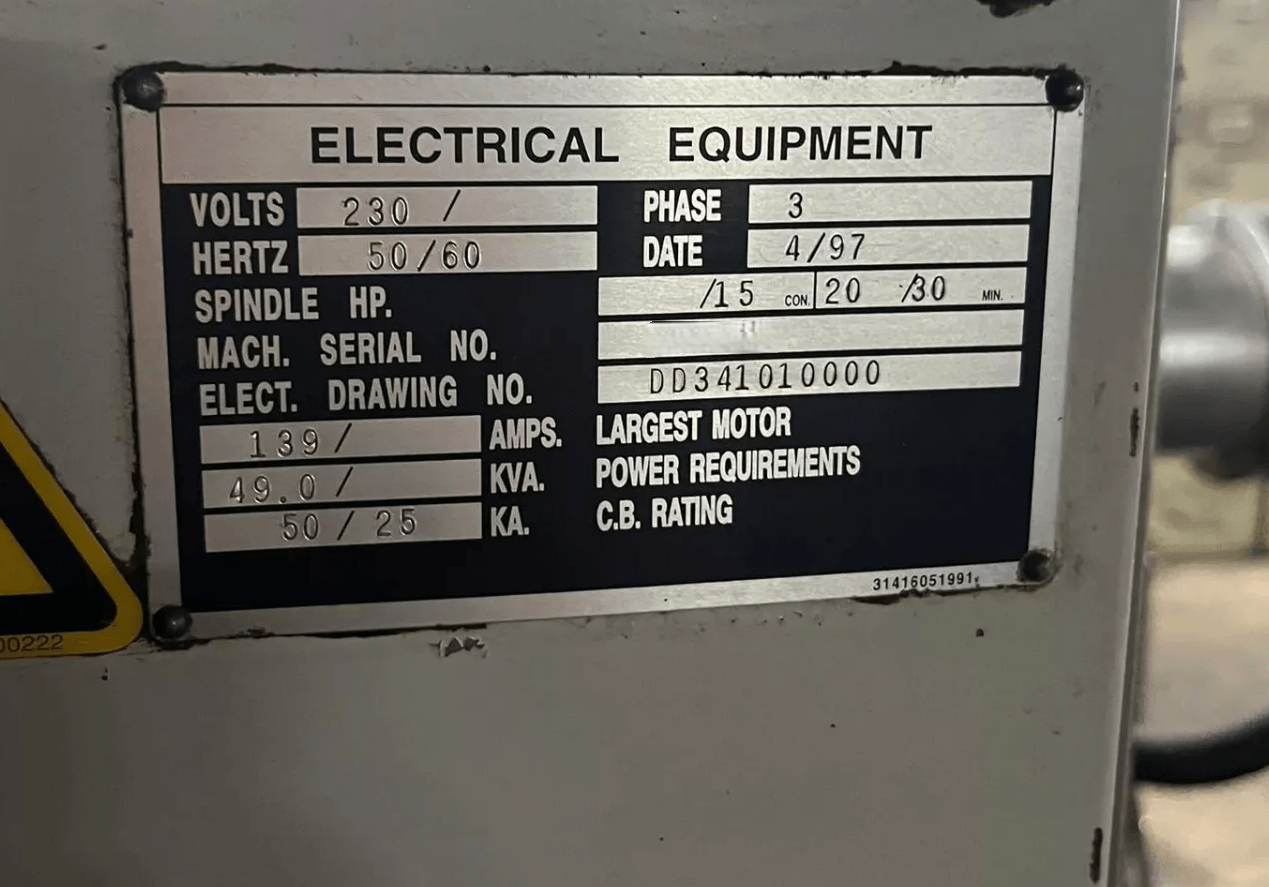

Power Requirement : 230V / 3-Phase
Machine Weight : Approx. 9,600 LBS
