*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Mazak |
| Model: | Quick Turn Nexus 250 |
| Condition: | Used |
-
Equipped With:

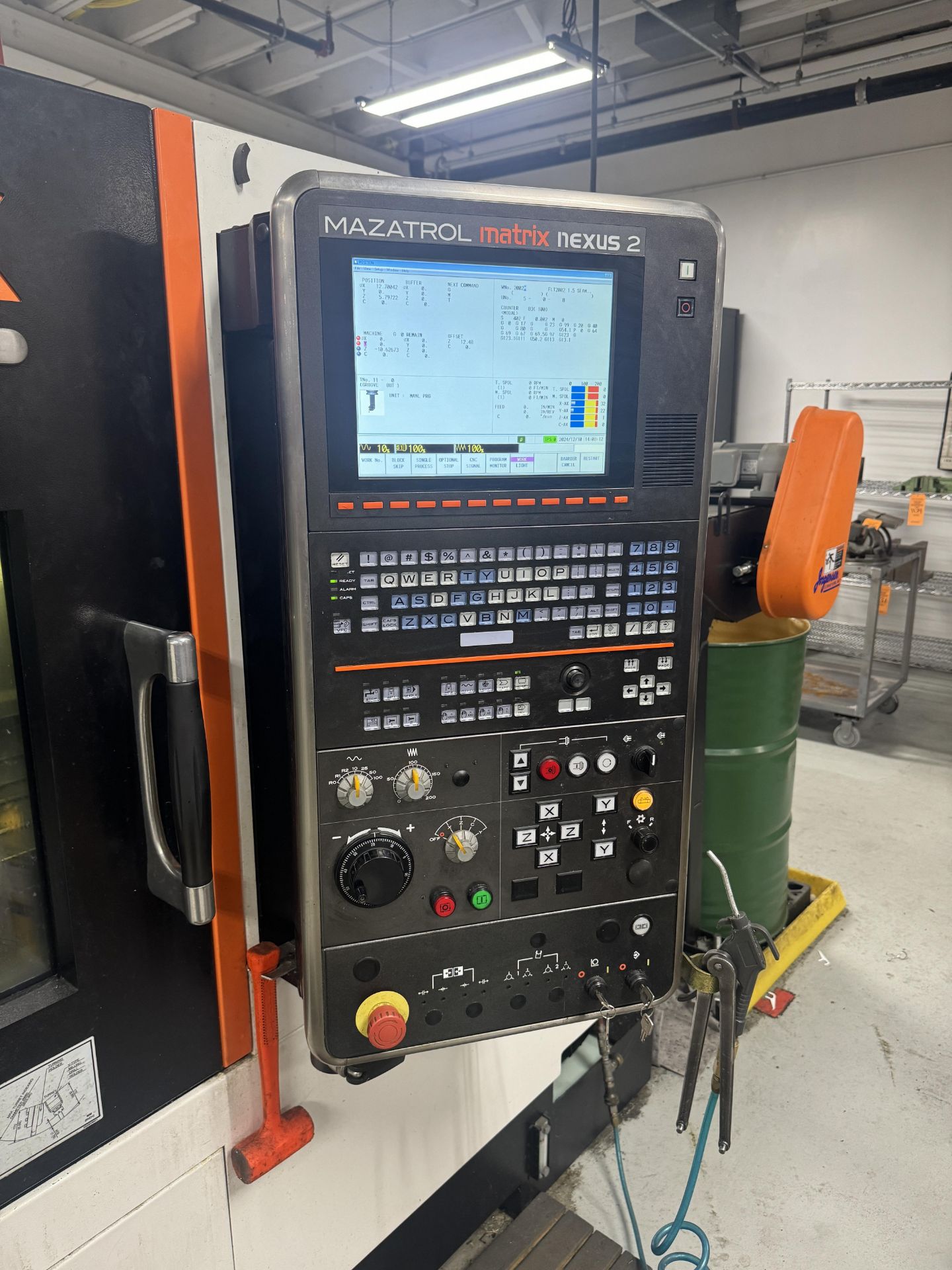

- MAZATROL MATRIX CNC Control
- 10″ Hydraulic Chuck
- 12-Station Automatic Turret
- C-Axis Control
- Live Tooling Ready
- Automatic Tool Presetter
- Coolant System
- Chip Conveyor
- Full Enclosure
-
Capacity:
- Max Turning Diameter: 14.0″
- Max Turning Length: 22.0″
- Swing Over Bed: 23.6″
- Swing Over Saddle: 17.7″
- Bar Capacity: 2.95″
-
Travels:
- X-Axis Travel: 9.45″
- Z-Axis Travel: 23.2″
- Rapid Traverse X/Z: 1,181 IPM
-
Spindle:
- Spindle Nose: A2-8
- Spindle Speed: 4,000 RPM
- Spindle Motor: 30 HP
- Spindle Bore: 3.15″
-
Feedrates:
- Rapid Traverse X/Z: 1,181 IPM
- Cutting Feedrate: 0.00004″ – 472″/min
-
Turret:
- Turret Capacity: 12 Stations
- Max Tool Size: 1.0″ × 1.0″
- Index Time: 0.2 sec
-
General:
- Power Requirement: 220V / 3-Phase
- Machine Weight (Approx.): 12,000 lbs
- Overall Dimensions (Approx.): 96″ × 67″ × 71″
