*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |
| Model No.: | Quick Turn Nexus 30 |
| Year of Manufacture: | 1996 |
| Machine Type: | CNC Turning Center |

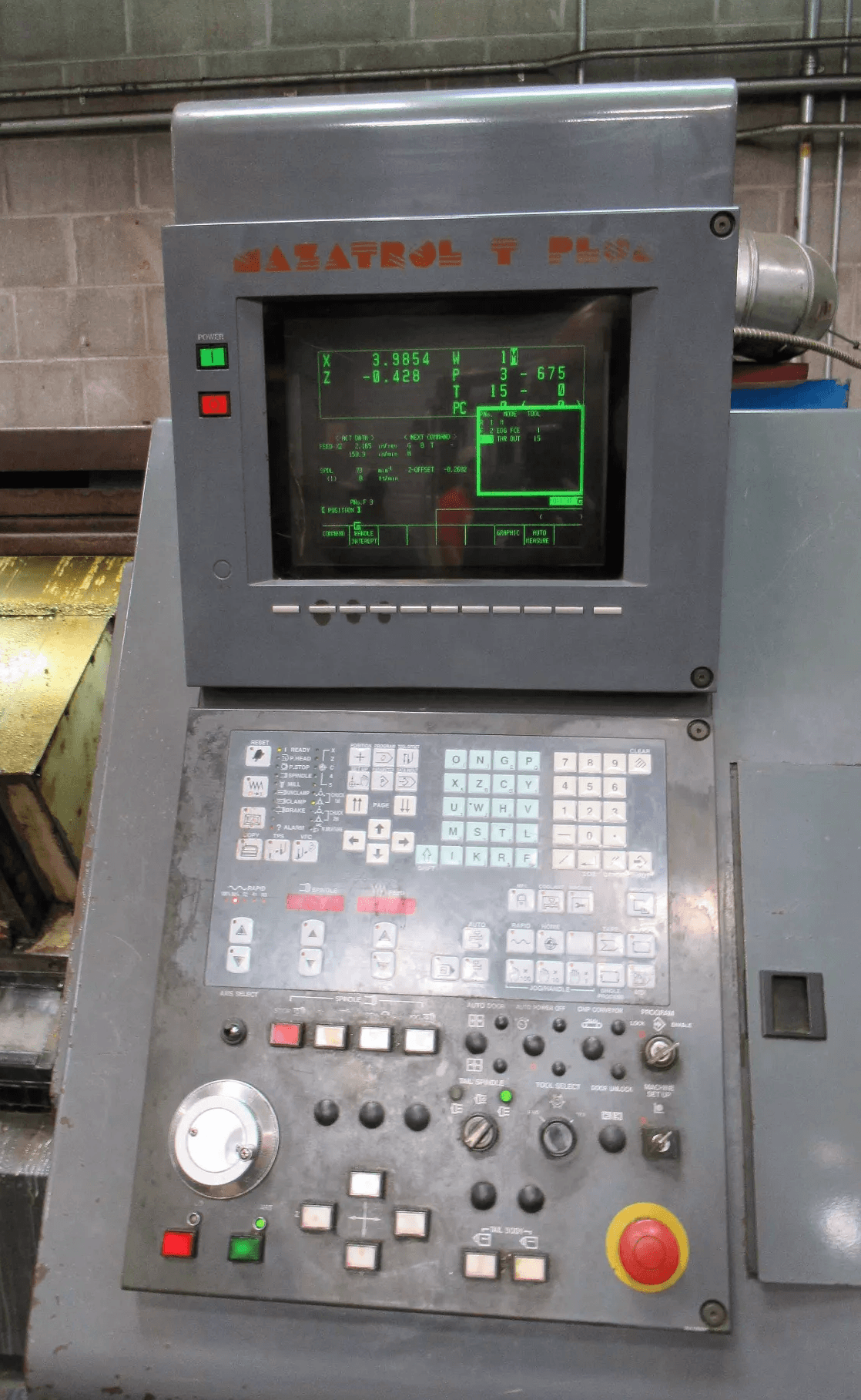

| Control: | Mazatrol CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| 12″ Hydraulic Chuck |
| 12-Station Turret |
| Tailstock |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Max Swing Over Bed: 30″ |
| Max Turning Diameter: 15.75″ |
| Max Turning Length: 40″ (Approx.) |
| Bar Capacity: 3″ |
| Travels: |
|---|
| X-Axis Travel: 9″ |
| Z-Axis Travel: 40″ |
| Spindle: |
|---|
| Spindle Speed: 3,000 RPM |
| Spindle Motor: 25–30 HP (Approx.) |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.5″ |
| Tooling: |
|---|
| Turret Capacity: 12 Stations |
| Tooling Type: Bolt-On |
| Feed Rates: |
|---|
| Rapid Traverse (X): 787 IPM |
| Rapid Traverse (Z): 944 IPM |
| General: |
|---|
| Power Source: AC 220/440 V, 3-Phase, 50/60 Hz |
| Machine Dimensions (L x W x H): 130″ x 80″ x 80″ |

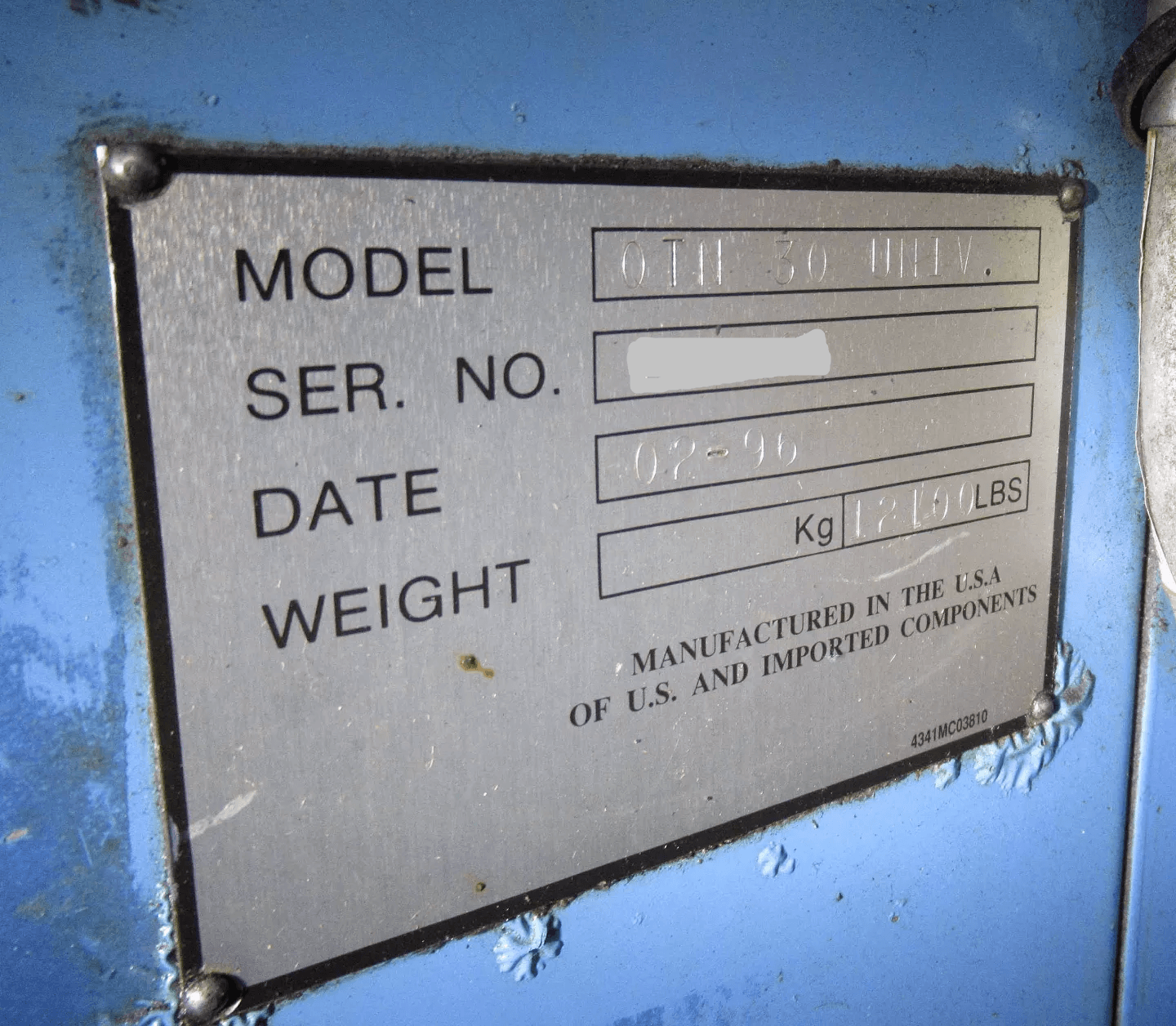

| Machine Weight: 13,500 lbs Approx. |
