*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

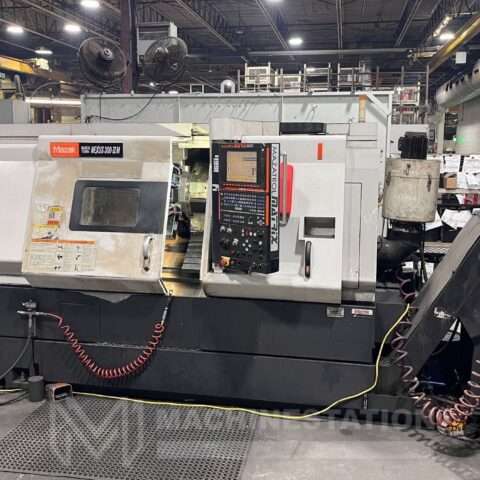

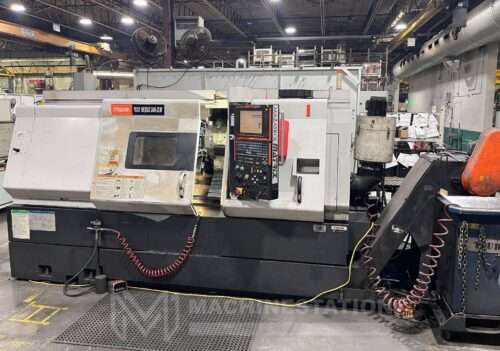

| Make: | Mazak |
| Model: | Quick Turn Nexus 300-II M |
| Year: | 2009 |
| Condition: | Used – Good |
| Equipped With: |
|---|

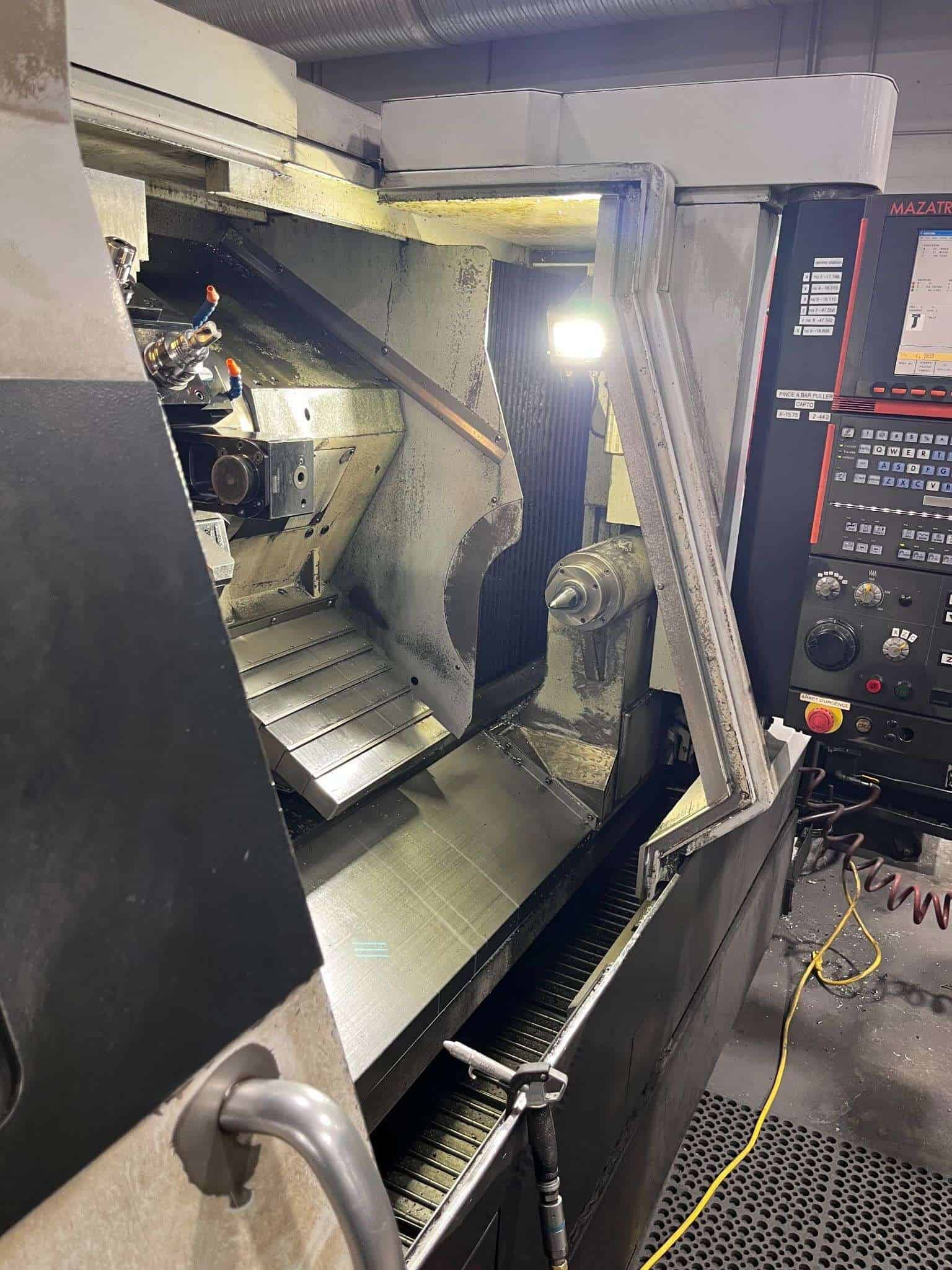

| Mazatrol Matrix Nexus CNC Control |

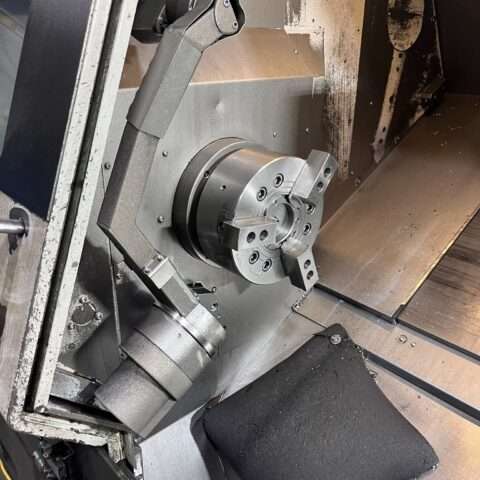

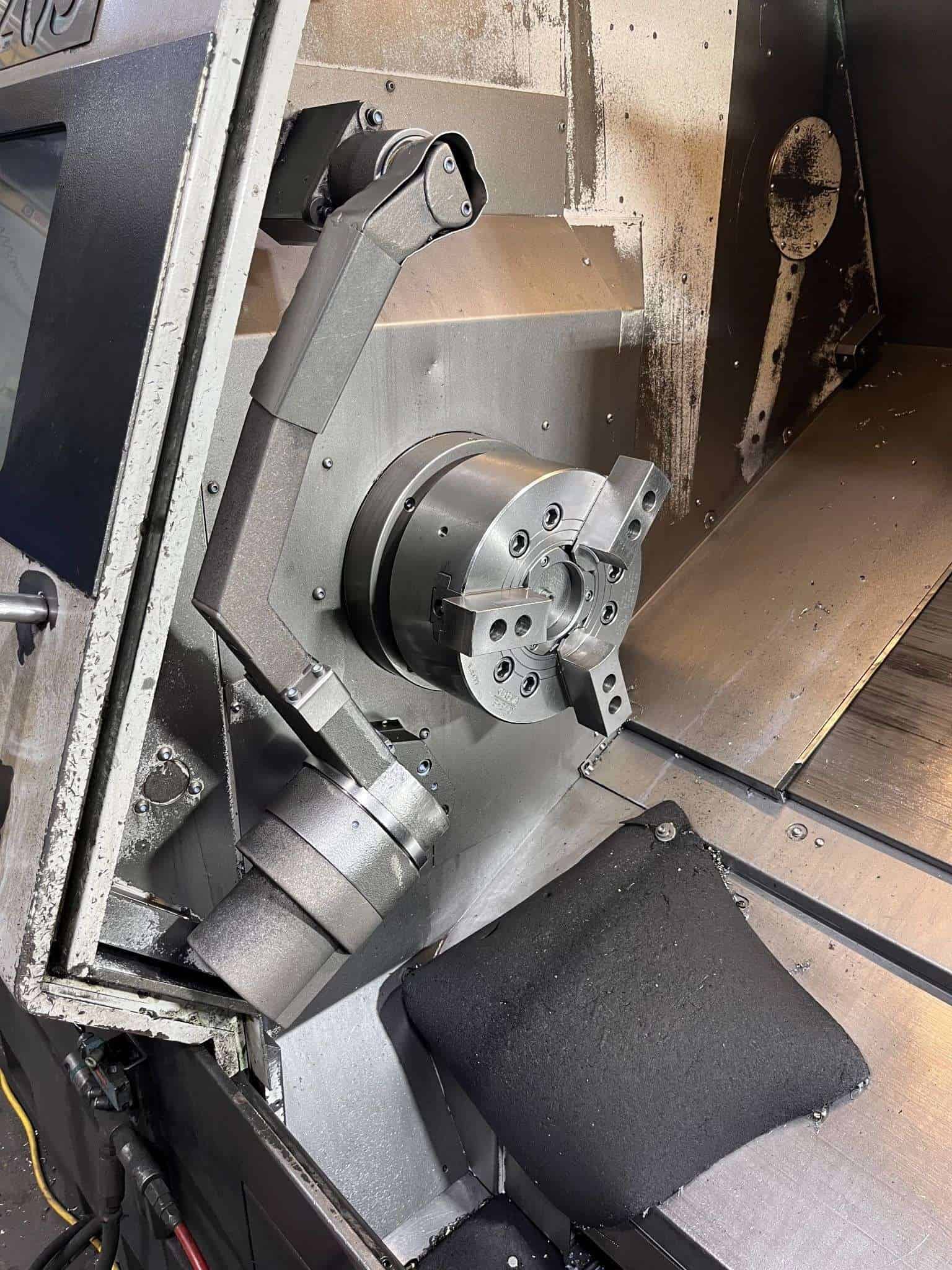

| 10″ 3-Jaw Hydraulic Chuck |

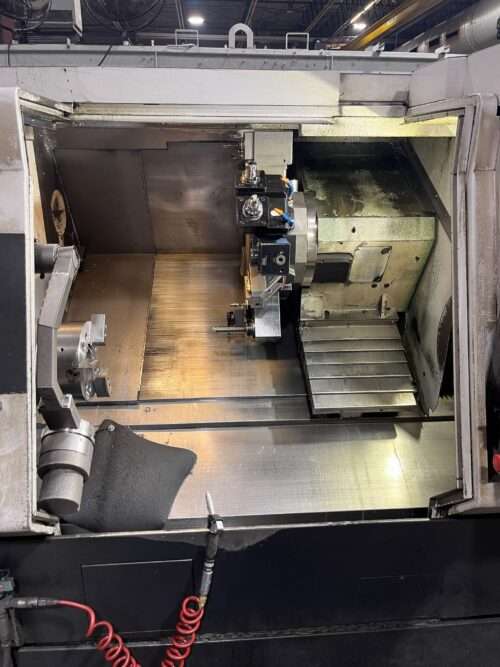

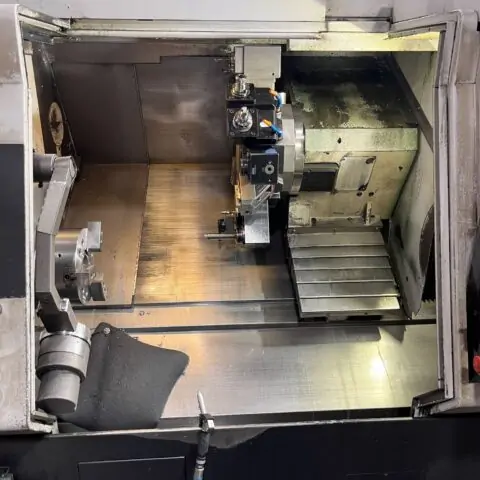

| 12 Station Live Tool Turret |
| C Axis, Live Tooling |
| Tool Presetter |

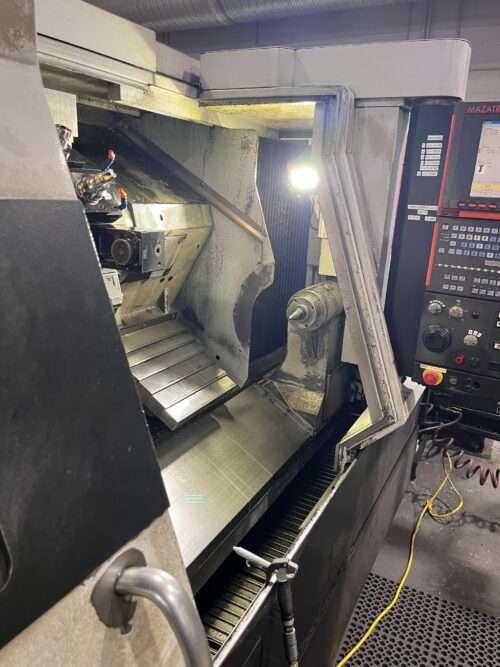

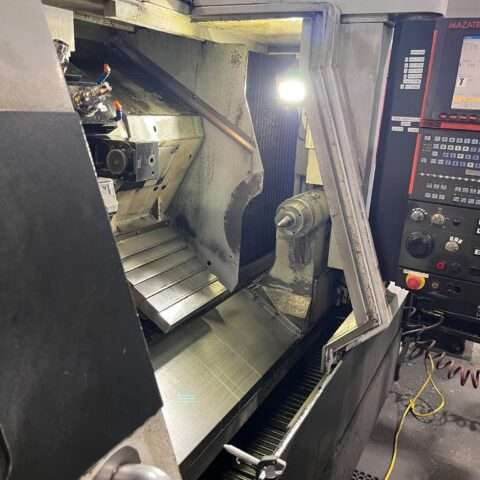

| Tailstock |
| Automatic Lubrication System |
| Coolant System |
| Chip Conveyor |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 16.50″ |
| Max Turning Length: 46.48″ |
| Max Bar Capacity: 3.0″ |
| Swing Over Bed: 29.50″ |
| Distance Between Centers: 48.0″ |
| Travels: |
|---|
| X Axis Travel: 10.13″ |
| Z Axis Travel: 48.75″ |
| C Axis: 0.001° |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 984 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.46″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 35 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Live Tool Spindle Speed: 4000 RPM |
| Live Tool Spindle Motor: 10 HP |
| Turret Index Time: 0.2 Second |
| Tailstock: |
|---|
| Tailstock Quill Dia: 2.90″ |
| Tailstock Quill Stroke: 3.15″ |
| Tailstock Taper: MT-4 |
| General: |
|---|
| Power Source: Three Phase, 60 Hz |
| Overall Dimensions: 136″ x 81″ x 79″ High Approx. |
| Weight : 16,314 lbs Approx. |
