*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Mazak |
| Model: |
Quick Turn Nexus 350-II |
| Year: |
2009 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Turning Center |
| CNC Control: |

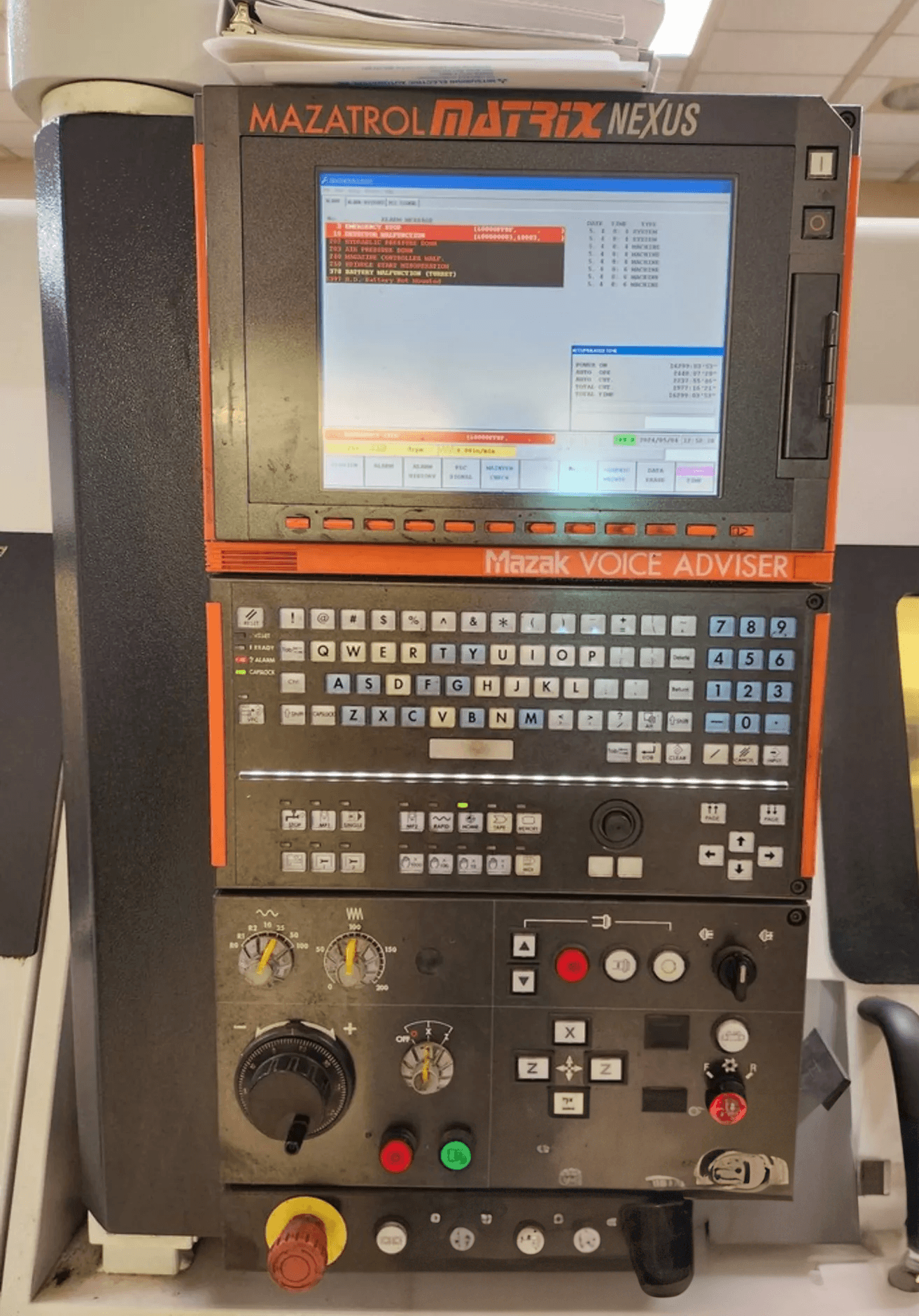

Mazatrol Matrix Nexus CNC Control |
| Country of Origin: |
Japan |
| Equipped With: |
| Mazatrol Matrix Nexus CNC Control |

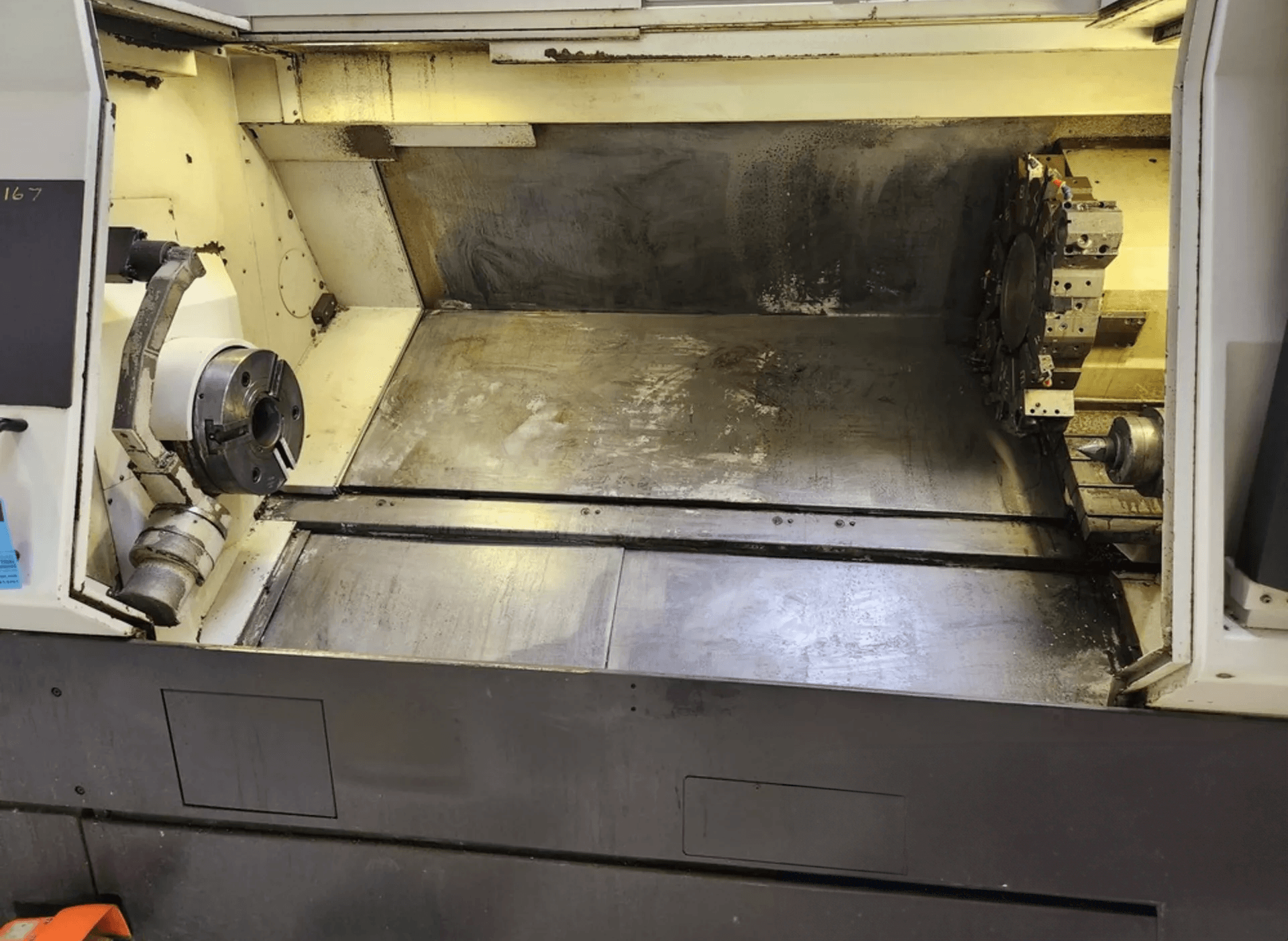

| 12 Position Turret |

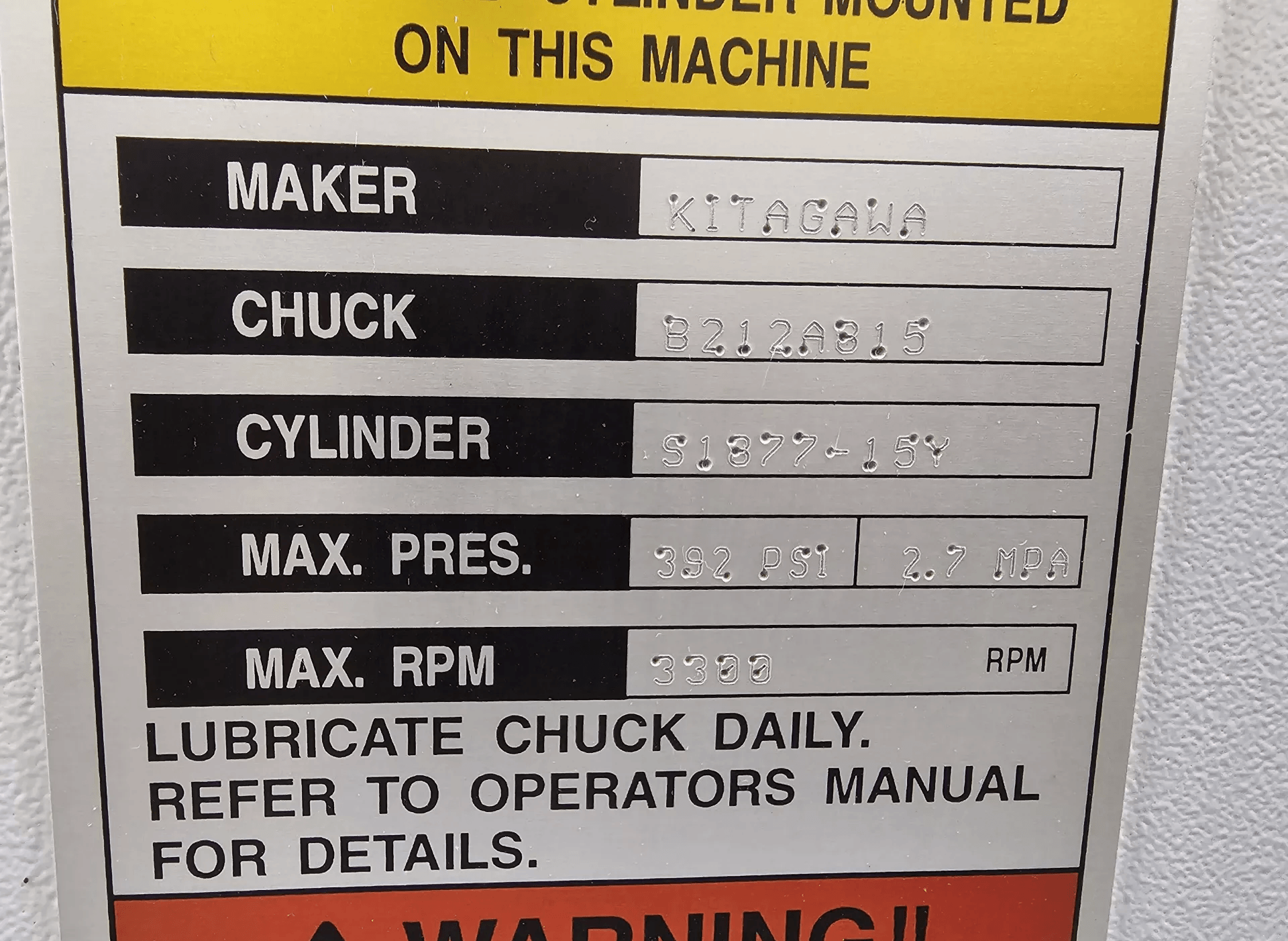

| 12″ Kitagawa Hydraulic Chuck |
| Tailstock |
| Jorgensen Chip Conveyor |
| Coolant System |
| Foot Pedal |
| Manual Pulse Generator |
| Full Enclosure |
| Capacity: |
| Max Swing Over Bed: 26.77″ |
| Max Machining Diameter: 16.14″ |
| Max Machining Length: 60.00″ |
| Bar Capacity: 4.02″ |
| Chuck Size: 12″ |
| Travels: |
| X-Axis Travel: 11.06″ |
| Z-Axis Travel: 61.38″ |
| Spindle: |
| Spindle Speed: 3,300 RPM |
| Spindle Bore: 4.53″ |
| Spindle Nose: A2-11 |
| Main Spindle Motor: 40 HP |
| Turret: |
| Turret Capacity: 12 Position |
| OD Tool Size: 1.25″ |
| Boring Bar Capacity: 3.50″ |
| Maximum Tool Weight: 20 lbs |
| Feed Rates: |
| Rapid Traverse Rate X-Axis: 945 IPM |
| Rapid Traverse Rate Z-Axis: 1,181 IPM |
| Cutting Feed Rate: Programmable |
| Electrical: |
| Main Power: 208V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Control Circuit: AC100V / DC24V |
| Power Requirement: 138 kVA |
| General: |
| Overall Dimensions: Approx. 205″ x 84″ x 87″ High |
| Weight: Approx. 18,000 lbs |
