*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |
| Model No.: | Quick Turn Nexus 450-IIM |
| Year of Manufacture: | 2007 |
| Machine Type: | CNC Multi-Tasking Turning Center |

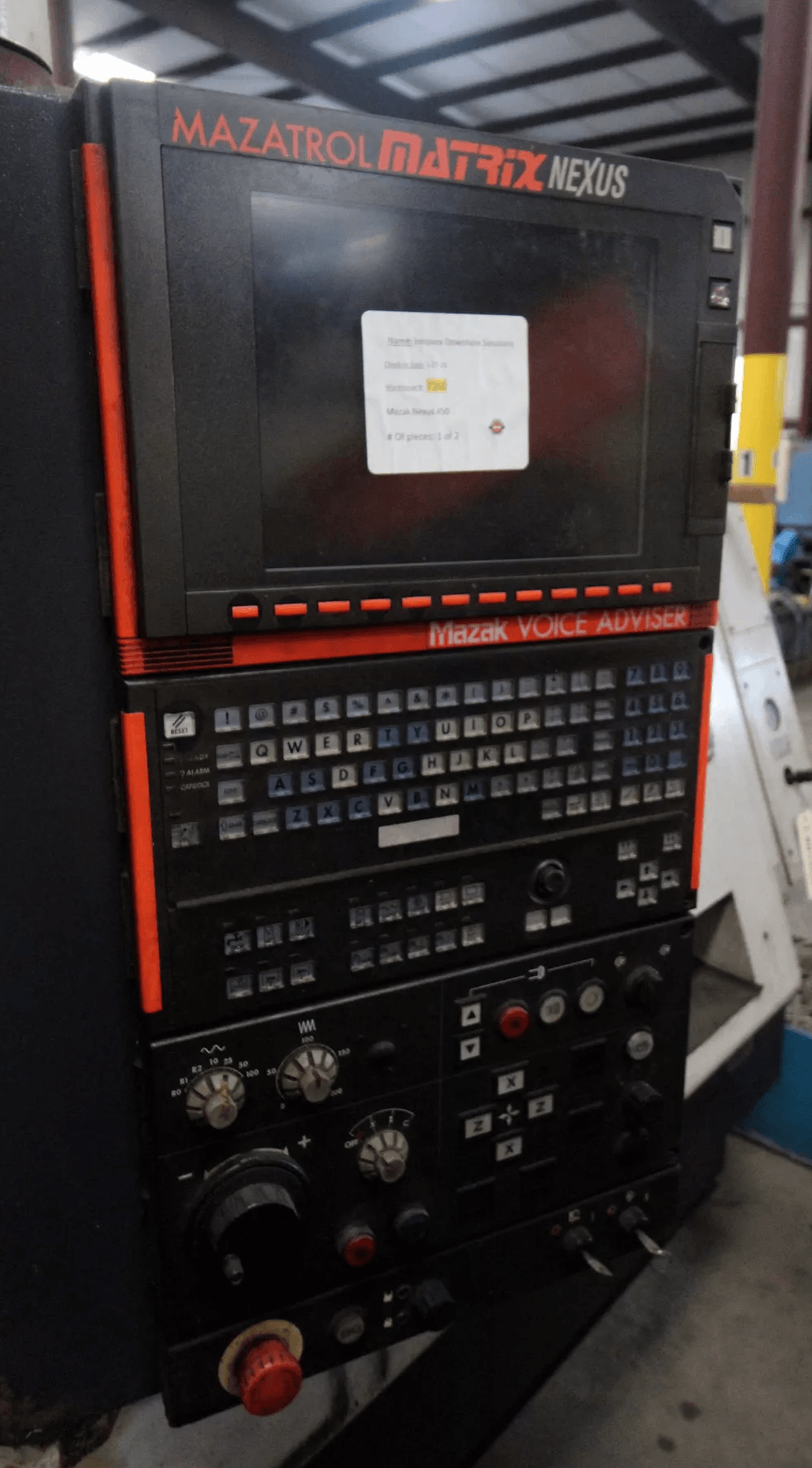

| Control: | Mazatrol CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Live Tooling |
| Y-Axis Capability |
| C-Axis Spindle Control |

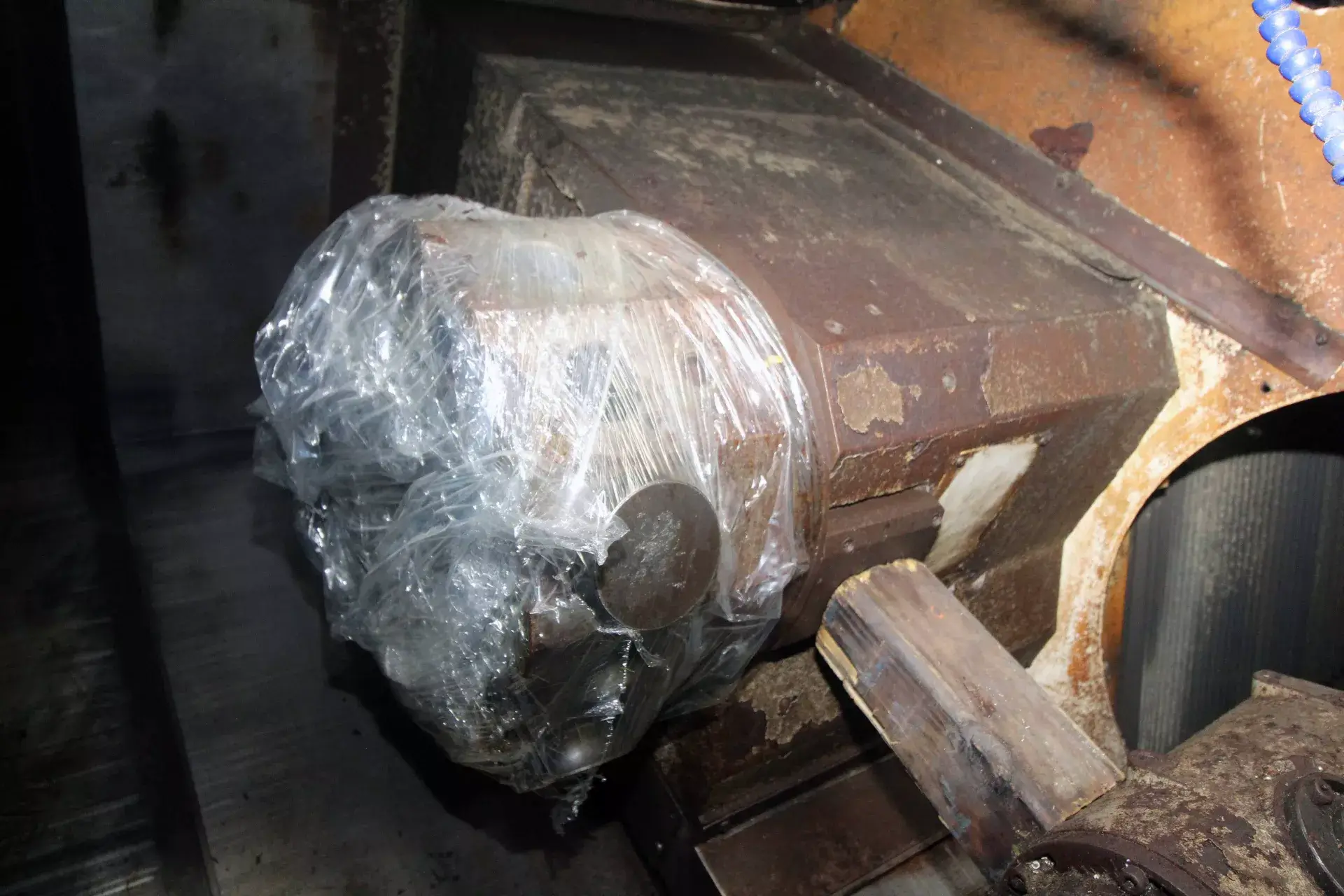

| 12-Station Turret |
| Heavy-Duty 18″ Hydraulic Chuck |
| Tailstock |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Max Turning Diameter: 30″ |
| Max Turning Length: 80″ (Approx.) |
| Bar Capacity: 4″ |
| Travels: |
|---|
| X-Axis Travel: 17″ |
| Y-Axis Travel: ±2″ |
| Z-Axis Travel: 80″ |
| Spindle: |
|---|
| Spindle Speed: 2,400 RPM |
| Spindle Motor: 40 HP |
| Spindle Nose: A2-11 |
| Spindle Bore: 4.5″ |
| Tooling: |
|---|
| Turret Capacity: 12 Stations |
| Live Tooling Positions: Yes |
| Feed Rates: |
|---|
| Rapid Traverse (X): 787 IPM |
| Rapid Traverse (Y): 472 IPM |
| Rapid Traverse (Z): 787 IPM |
| General: |
|---|

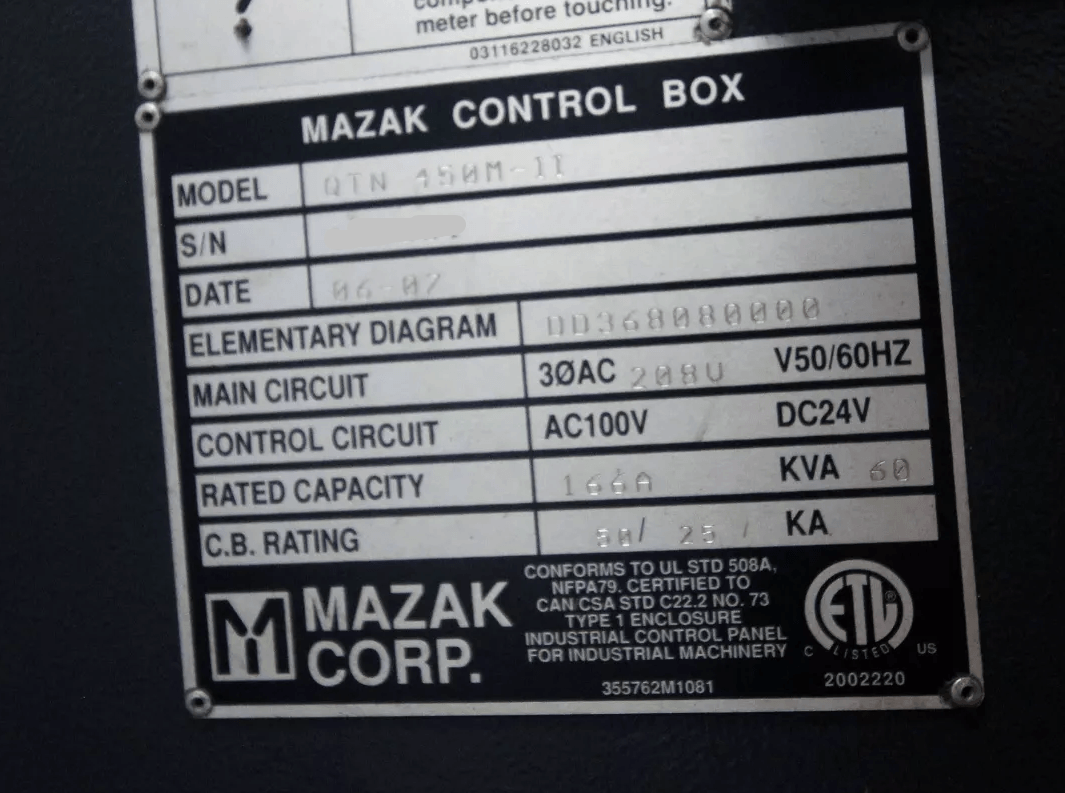

| Power Source: AC 220/440 V, 3-Phase, 50/60 Hz |
| Machine Dimensions (L x W x H): 210″ x 95″ x 105″ |
| Machine Weight: 22,000 lbs Approx. |
