*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |
| Model: | Quick Turn Nexus 450MY II |
| Year: | 2011 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |
| Control: | Mazatrol Matrix Nexus CNC Control |
| Country of Origin: | Japan |
| Features: |
|---|
| Mazatrol Matrix Nexus CNC Control |
| Live Tooling |
| Y-Axis Capability |
| 80″ Centers |
| 18″ Big Bore Chuck |
| 6.5″ Bar Capacity |
| Tailstock |
| Renishaw LP2 Probe Kit |
| 213 PSI Coolant Through Spindle |
| High-Pressure Coolant System |
| Chip Conveyor |
| Hydraulic Chuck |
| Programmable Tailstock |
| Full Enclosure |
| Capacity: |
|---|
| Distance Between Centers: 80″ |
| Chuck Size: 18″ |
| Bar Capacity: 6.5″ |
| Maximum Turning Diameter: Approx. 25″ |
| Maximum Turning Length: Approx. 80″ |
| Travels: |
|---|
| X-Axis Travel: Approx. 15″ |
| Y-Axis Travel: Approx. ±2″ |
| Z-Axis Travel: Approx. 82″ |
| Spindle: |
|---|
| Main Spindle Speed: Approx. 2,000 RPM |
| Spindle Bore: 6.5″ |

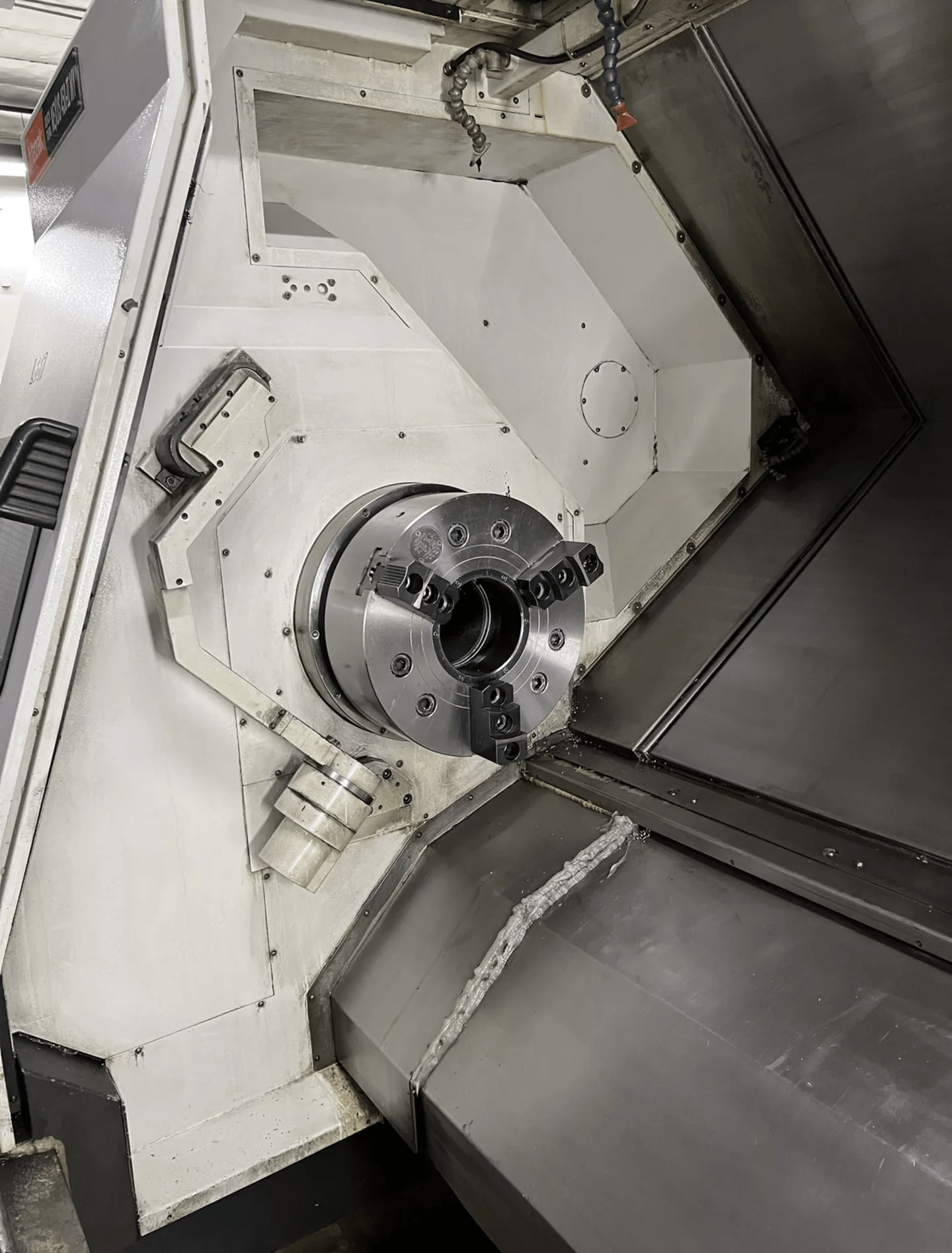

| Chuck Type: Hydraulic Big Bore Chuck |
| Coolant Through Spindle: 213 PSI |

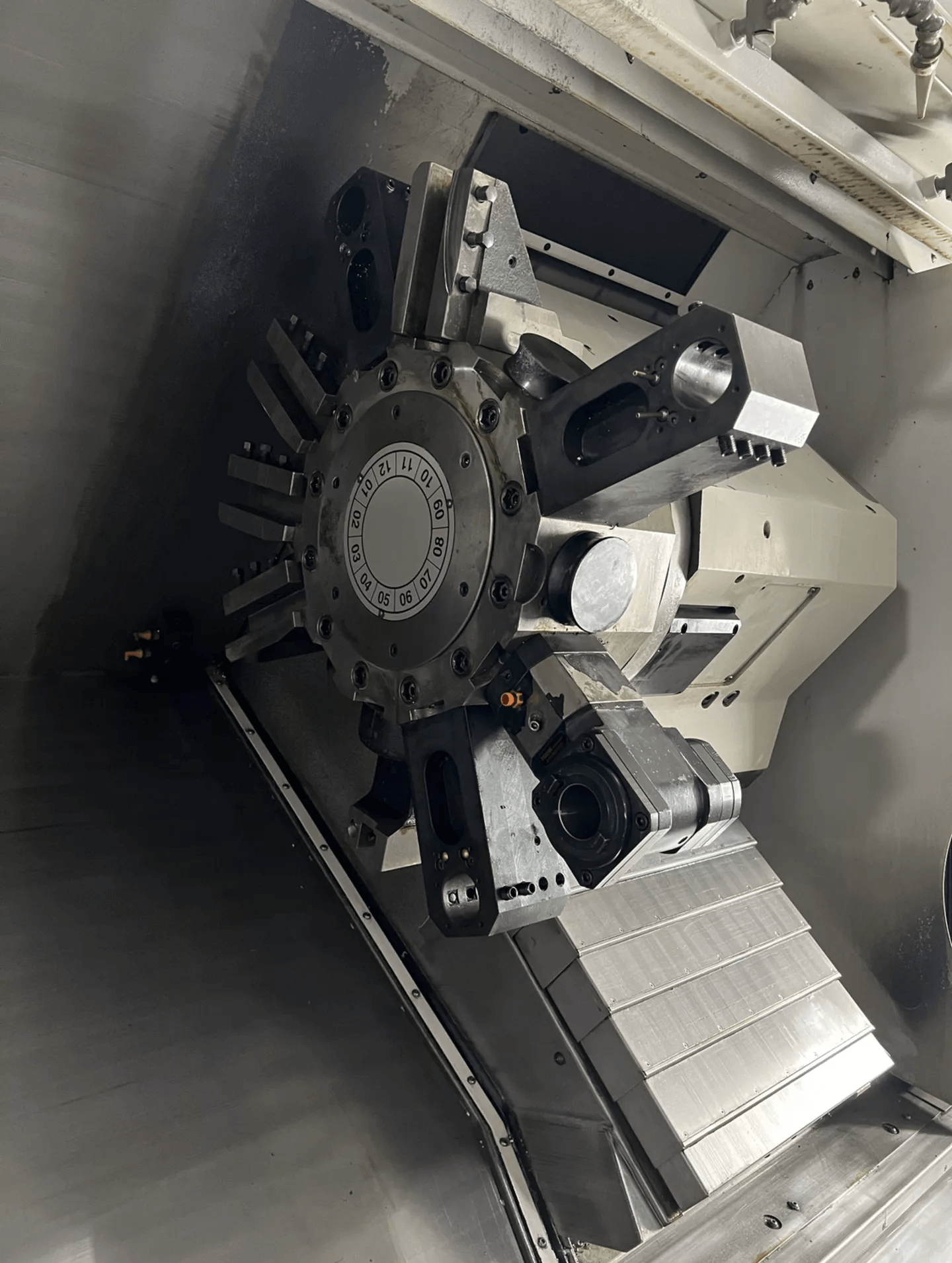

| Turret: |
|---|
| Turret Stations: 12 |
| Live Tooling Capability: Yes |
| Tool Change Type: Automatic |
| Tailstock: |
|---|

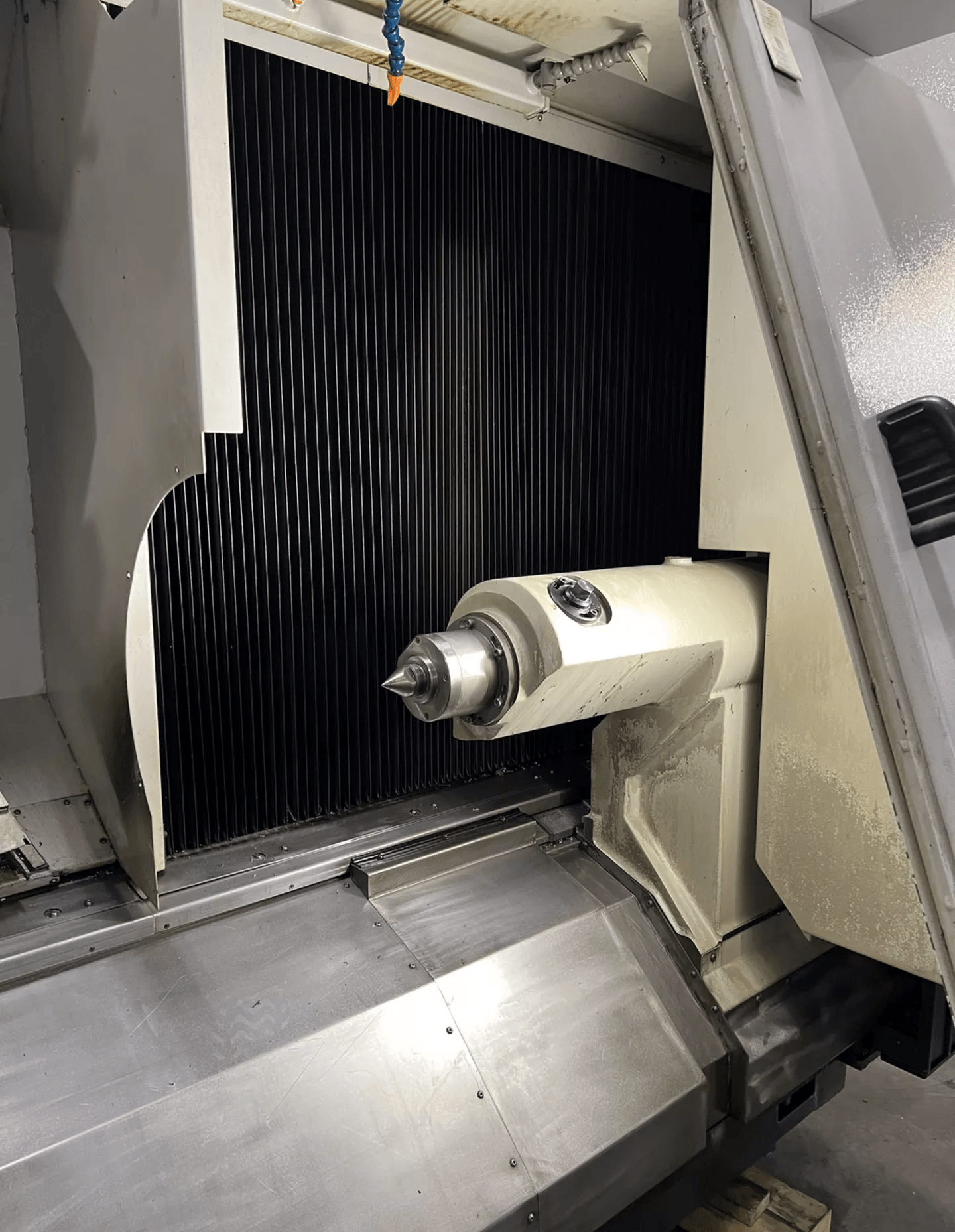

| Tailstock Type: Programmable Hydraulic |
| Tailstock Included: Yes |
| Coolant & Chip Removal: |
|---|
| High-Pressure Coolant System |
| Chip Conveyor Included |
| Flood Coolant System |
| Electrical: |
|---|
| Power Requirement: 220V / 3-Phase / 60 Hz |
| Air Requirement: Typical – Verify |
| General: |
|---|
| Machine Weight: Approx. 24,000 lbs |
| Machine Dimensions: Approx. 220″ x 95″ x 90″ |
