*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

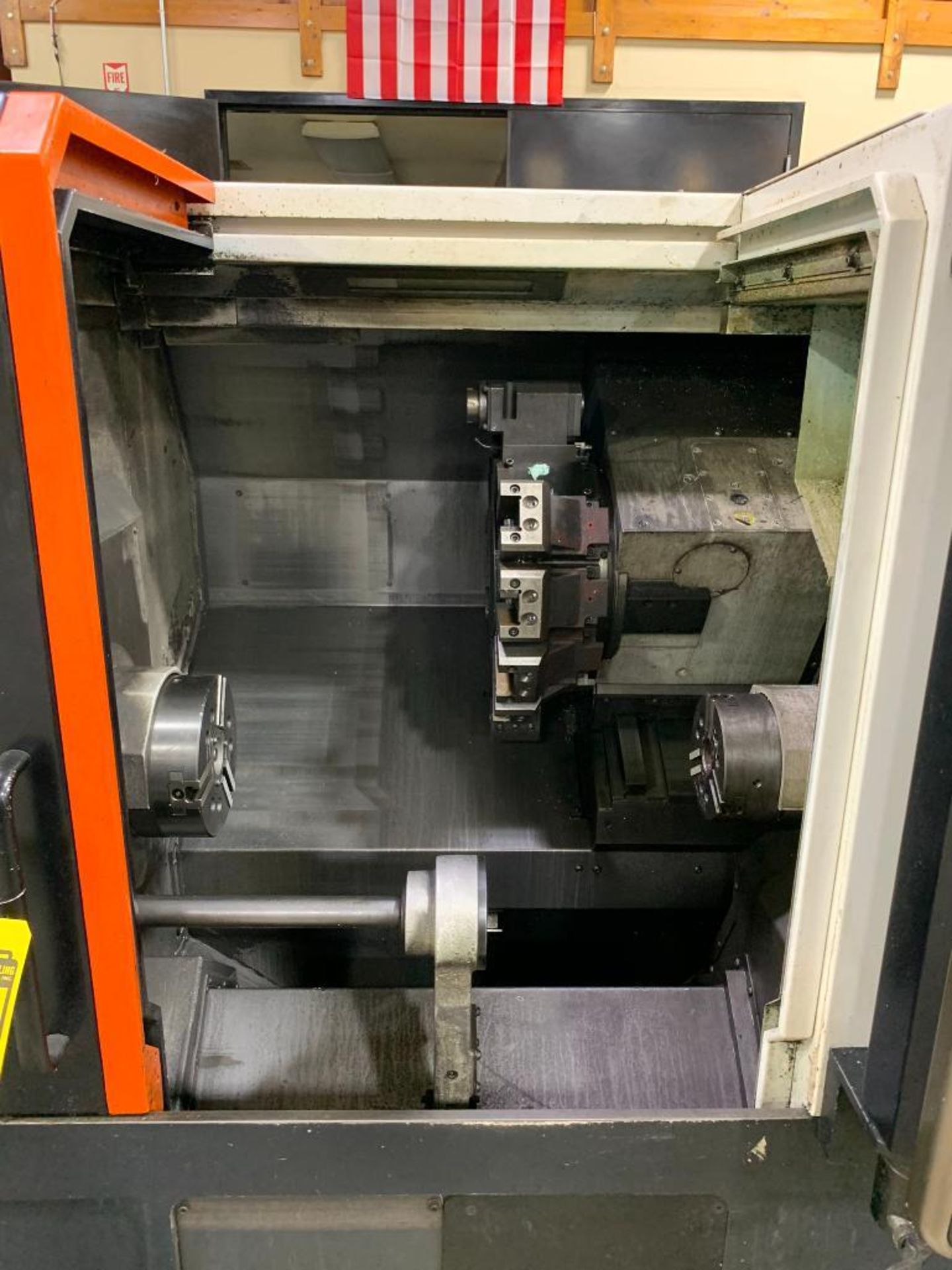

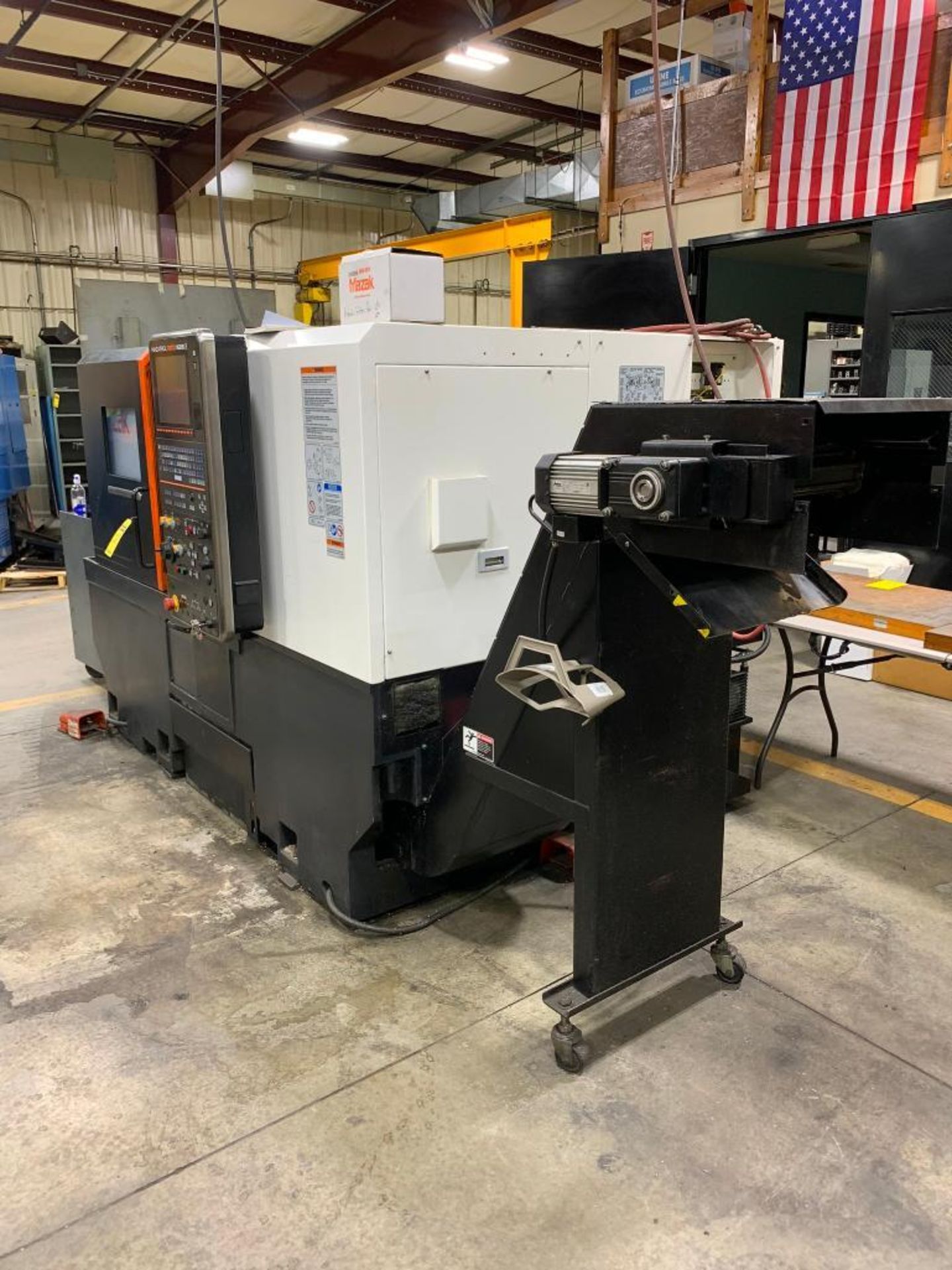

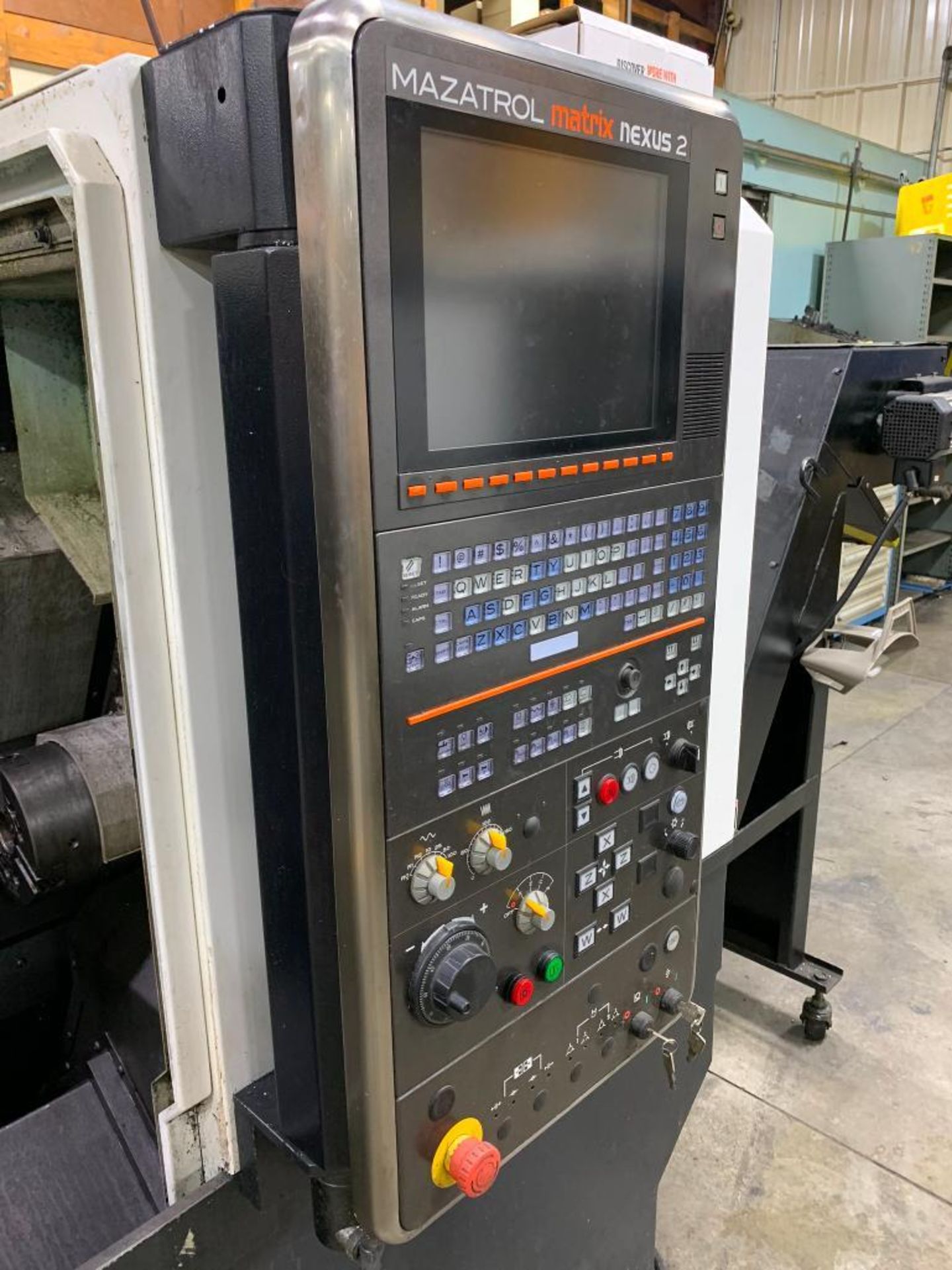

| Make: | Mazak |
| Model: | Quick Turn Universal 250MS |
| Condition: | Used |
| Capacity: |
|---|
| Maximum Swing: 26.5″ |
| Maximum Turning Diameter: 14.75″ |
| Maximum Bar Capacity: 3.25″ |
| Maximum Turning Length: 21.27″ |
| Main Spindle: |
|---|
| Main Spindle Chuck: 10″ |
| Main Spindle Speed: 4,000 RPM |
| Main Spindle Motor: 35 HP |
| C-Axis: Yes |
| Sub-Spindle: |
|---|
| Sub-Spindle Chuck: 6″ |
| Sub-Spindle Speed: 6,000 RPM |
| Sub-Spindle Motor: 15 HP |
| C-Axis: Yes |
| Turret & Milling: |
|---|
| Turret Type: VDI |
| Number of Tools: 12 Stations |
| Live Tooling: Yes |
| Live Tool Speed: 6,000 RPM |
| Live Tool Motor: 10 HP |
| Axis Travels: |
|---|
| X-Axis Travel: 9.0″ |
| Y-Axis Travel: 4.0″ |
| Z-Axis Travel: 22.75″ |
| Construction & Configuration: |
|---|
| Bed Length: 20″ |
| Tailstock: Not Applicable (Sub-Spindle Model) |
| Automation Ready: Yes (Bar Feeder / Gantry Compatible) |
