All specifications are approximations and are subject to verification.
-

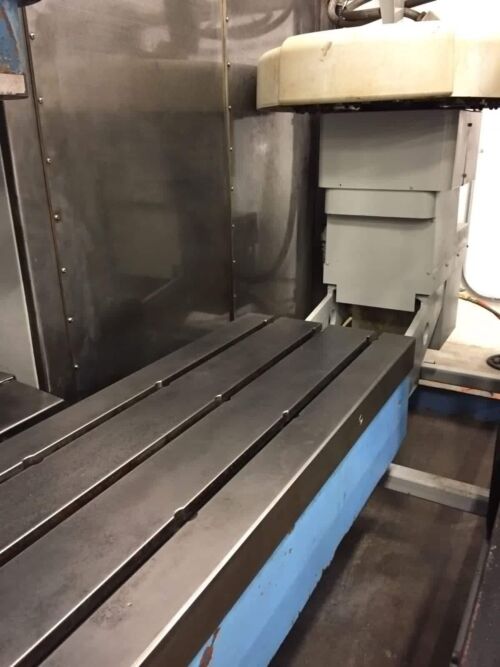

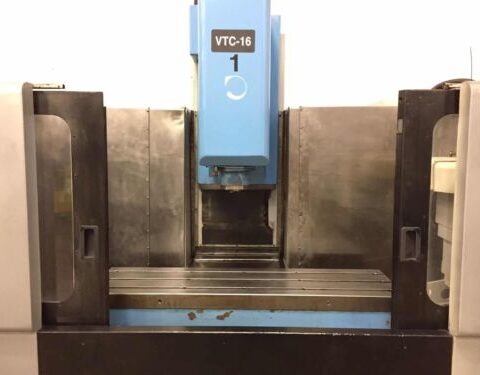

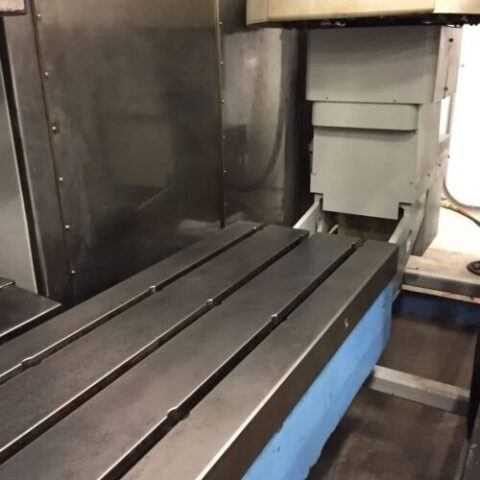

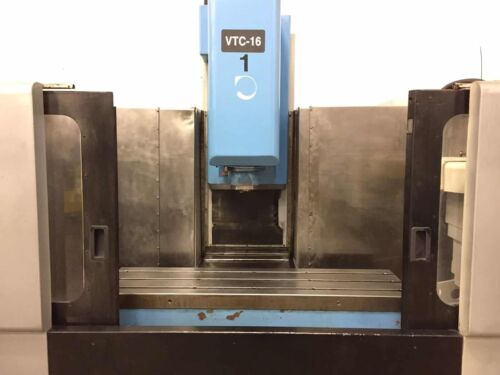

MAZAK VTC 16B Features:
- Travelling Column Design

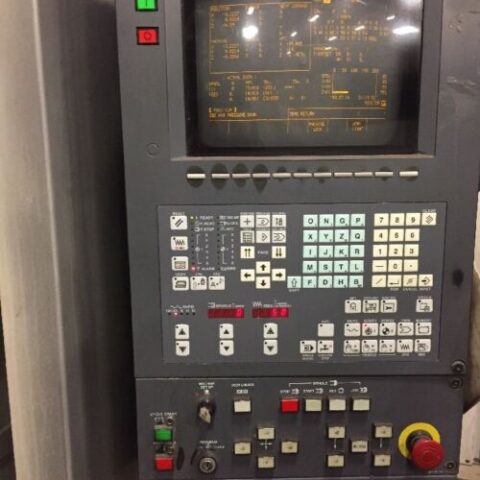

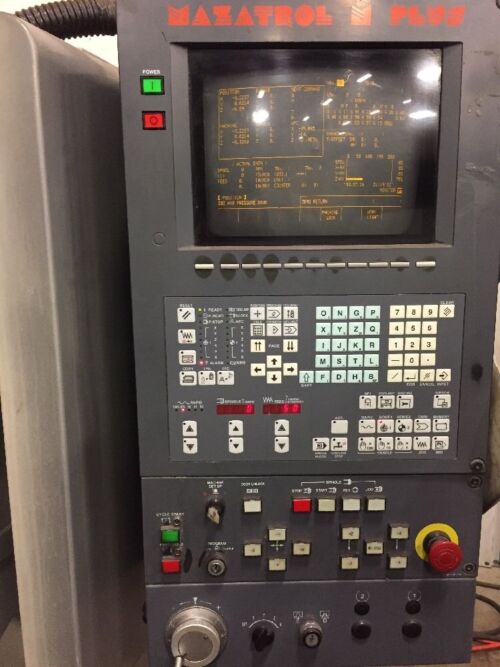

- Mazatrol M-Plus Control
- Full Enclosure
- Renishaw Probe
- 24 Tool Automatic Tool Changer
- Auto Lube System
- Coolant System
- Manual Pulse Generator
- Books and Manuals
-
MAZAK VTC 16B Specifications:
- Travels:
- X-Axis: 44.10″
- Y-Axis: 16.14″
- Z-Axis: 20.08″
- Spindle Nose to Table (Min.- Max.): 4.3″ – 24.4″
- Spindle Center to Column: 22.1″
-
Table:
- Length: 57.4″
- Width: 16.2″
-
Spindle:
- Taper Size: No. 40
- Speed Range: 0 – 8000 RPM
- Spindle Power: 15/10 JP AC
-
Feed rates:
- Rapid Traverse Rate X & Y : 787ipm
- Rapid Traverse Rate Z : 590ipm
-
Automatic Tool Changer:
- Capacity: 24
- Max Tool Weight: 17.6 lbs
- Max Tool Length: 13.78″
- Max Tool Dia: 4.3″
-
General:
- Air Required: 70 psi, 5 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 118″ x 102″ x 106″ High
- Weight: 11,600 lbs
