*All specifications are approximations and are subject to verification.
-

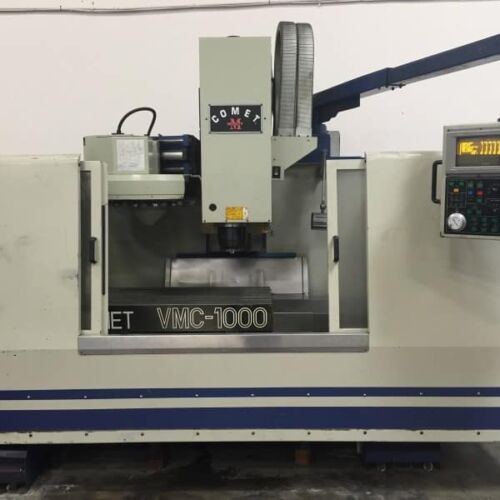

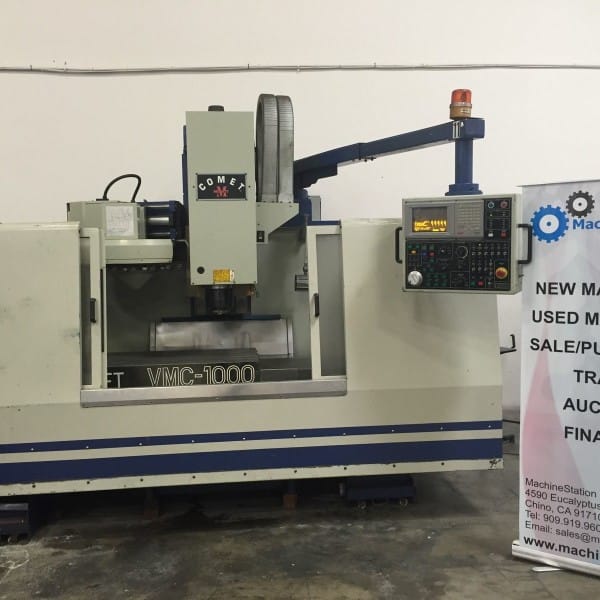

MIGHTY COMET 1000 Features:
- Box Way Design

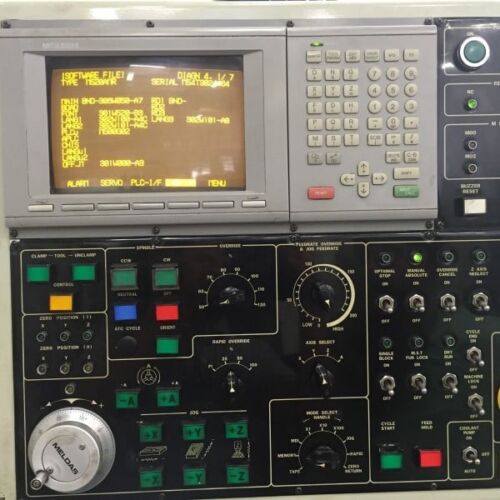

- Mitsubishi 520 CNC Control
- Rigid Tapping
- Full Enclosure

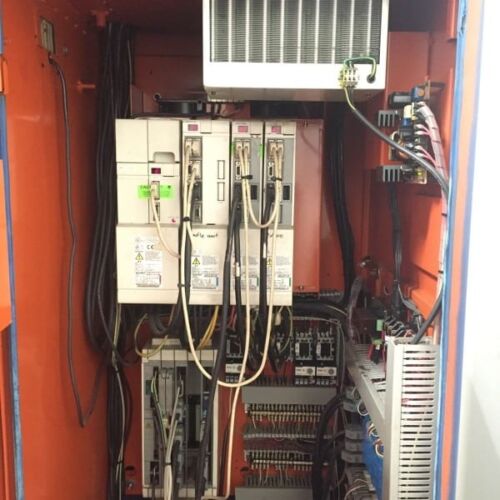

- AC Servo Motors on All Axis

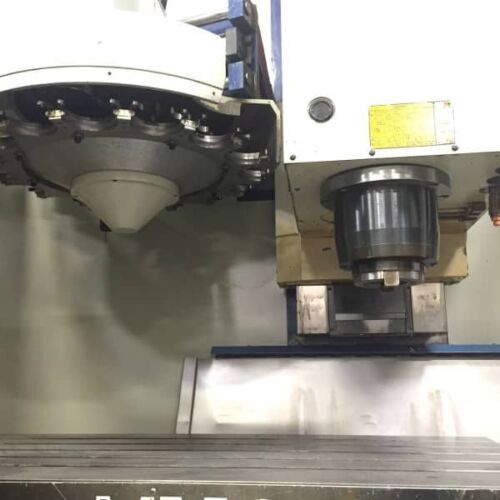

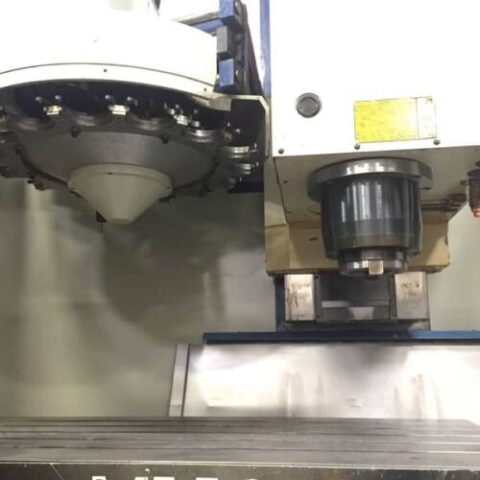

- 16 Tool Bi-directional Tool Changer
- CAT 50 Taper Spindle
- Coolant Tank
- Manual Pulse Generator
-
MIGHTY COMET 1000 Specifications:
- Travels:
- X-Axis: 42″
- Y-Axis: 22″
- Z-Axis: 25″
- Spindle Nose to Table (Min.- Max.): 7.9″ – 29.9″
- Spindle Center to Column: 23.6″
-

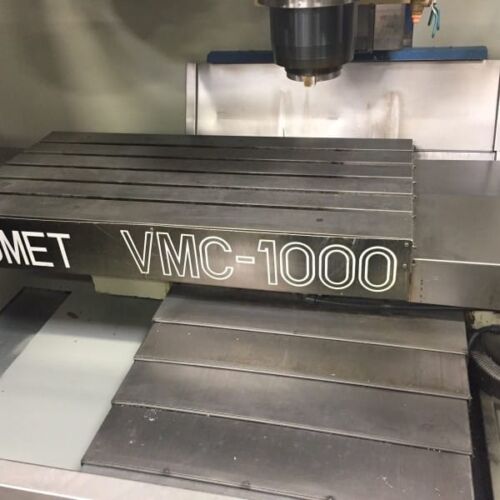

Table:
- Length: 50″
- Width: 25″
- Max Weight on Table: 2300 lbs
-
Spindle:
- Taper Size: CAT 50
- Speed Range: 10 – 4500 RPM
- Spindle Power: 15 HP
-
Feed rates: (All Axis)
- Rapid (Max.) XYZ: 590,590,472 ipm
-
Automatic Tool Changer:
- Capacity: 16
- Max Tool Weight: 22 lbs
- Max Tool Length: 13.78″
- Max Tool Dia: 7.4″
-
General:
- Air Required: 70 psi, 5 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 127″ x 102″ x 110″ High
- Weight: 15,000 lbs
