Mighty Viper PRW-5340 CNC Vertical Bridge Milling

$6,560.00

*Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details*

This One Owner Machine has low Cutting Hours, all original paint was cutting Aluminium only mostly 7050. Equipped with Fanuc 21iMB, 50 Taper, 60 Tool changer, Chip Conveyor and many more features. Replacement Cost over 750K.”

Qty =

Video

Product Description

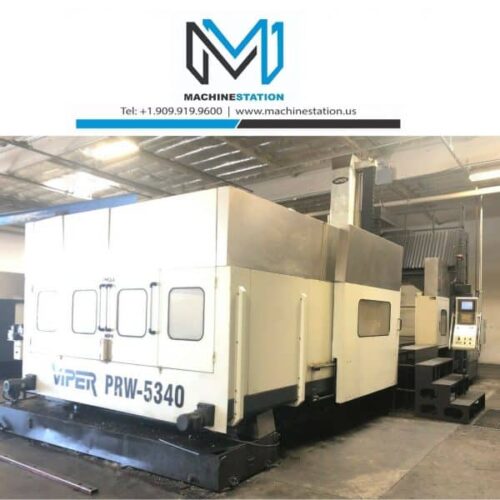

MIGHTY VIPER PRW-5340 CNC VERTICAL BRIDGE MILLING

Make: Mighty Viper
Model #: PRW-5340
Year: 2007
Serial #: 008915
Condition: Excellent

All specifications are approximations, and are subject to verification.

Machine is fully operational and holds high Tolerance, still under power till june end.
All original paint, was cutting Aluminium only. Machine recently checked by Service Techs and all features are tested.

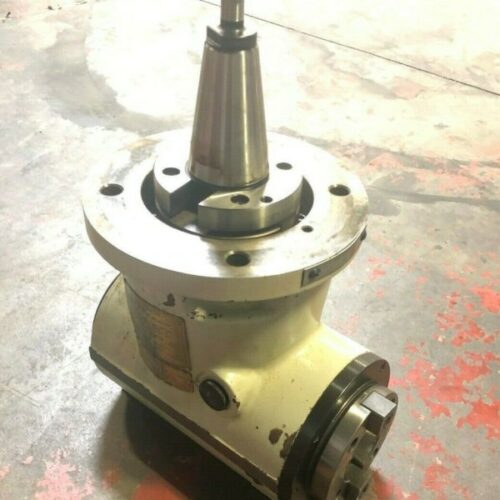

Comes with 90° Right Angle Head

This One Owner Machine has low Cutting Hours, all original paint was cutting Aluminium only mostly 7050. Equipped with Fanuc 21iMB, 50 Taper, 60 Tool changer, Chip Conveyor and many more features. Replacement Cost over 750K.”

Mighty Viper PRW-5340 Equipped With:

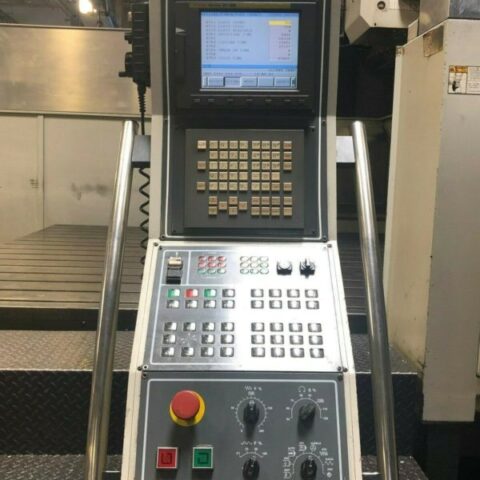

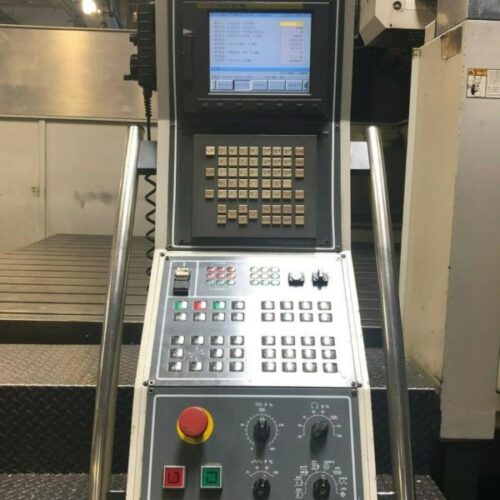

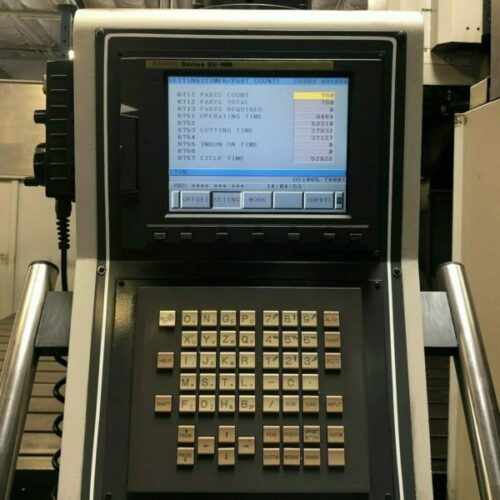

  • Fanuc 21i-MB CNC Control
  • 204.72″ X 118.11″ Table
  • 60 Station Side Mount Tool Changer ( Upgrade )
  • 50 Taper Geared Head 6000 RPM Spindle
  • 90° Right Angle Head ( $35,000 Value )
  • Powerful 35 HP high torque spindle motor
  • 500MB expanded memory
  • Air Blast thru Spindle
  • High Splash Guards around the Machine
  • PCMCIA Card Slot
  • RS-252 Port
  • Spindle Orientation
  • Box Way Construction
  • Portable manual pulse generator
  • Flood coolant with large separate coolant tank
  • Base Flush Chip Disposal with Dual Auger

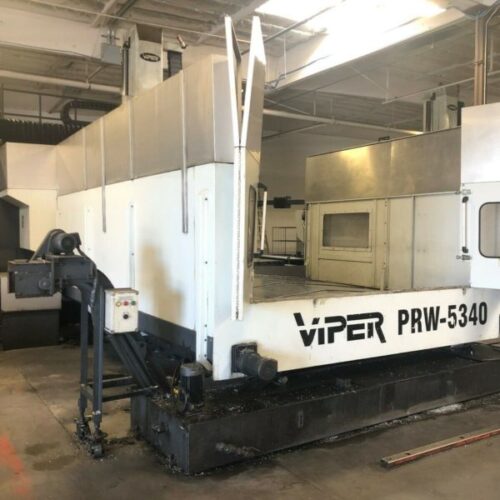

  • Chip Conveyor
  • Spindle Chiller Unit
  • Levelling Pads
  • Books and Manuals
  • Replacement Cost over $750,000.00

Mighty Viper PRW-5340 Specifications:

Travels:
X-Axis: 200.79″
Y-Axis: 133.86″
Z-Axis: 42.13″
Distance Between Columns: 140.16″
Spindle Nose to Table (Min.- Max.): 8.86″- 39.57″

Table:
Length: 204.72″
Width: 118.11″
T-Slot: 1.1″ Wide X 15 X 7.87″
Max Weight on Table: 35,273 lbs

Spindle:
Taper Size: 50
Speed Range: 6000 RPM
Spindle Power: 35 HP

Feed rates:
Rapid X,Y & Z: 472 inch/P.M
Cutting Feedrate: .04″ – 276″ inch/ P.M

Automatic Arm Type Tool Changer:
50 Taper
Capacity: 60
Max Tool Weight: 44 lbs
Max Tool Length: 13.77″
Max Tool Dia.: 7.87″

General:
Air Required: 100 psi, 4 scfm
Power: 205-235v / 66FLA / 3-Phase, 40 Kva
Overall Dimensions: 528″ x 240″ x 168″ High
Shipping Dimensions change upon Dismantling before removal
Hydraulic Unit, Chip Conveyor, Chiller unit Extra
Weight: 140,600 lbs.

Mighty Viper PRW-5340 Comes as Shown in Pictures…..
