All specifications are approximations and are subject to verification.

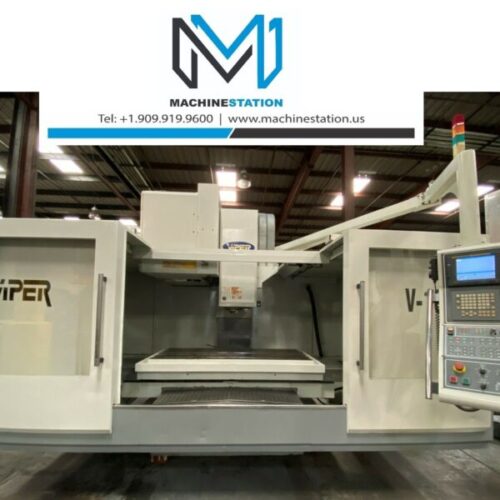

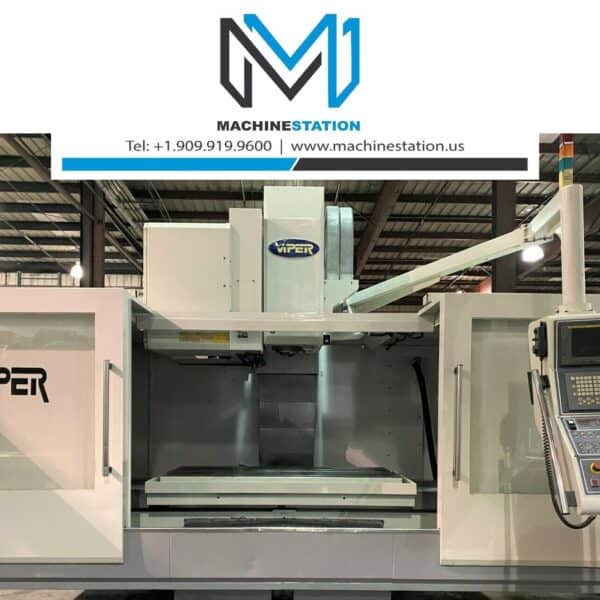

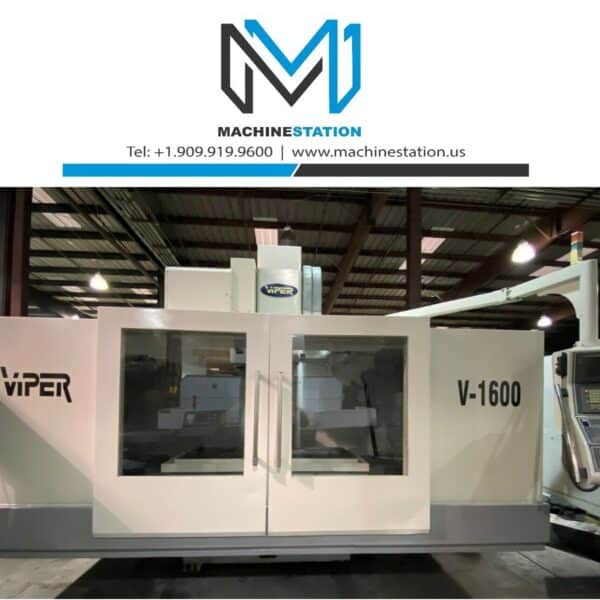

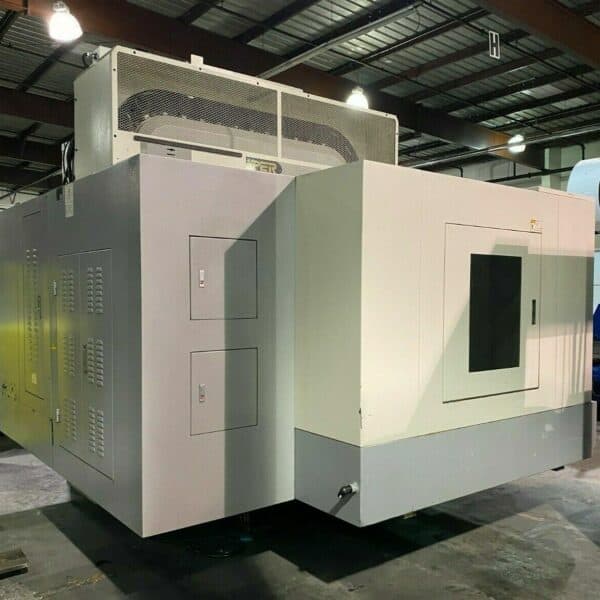

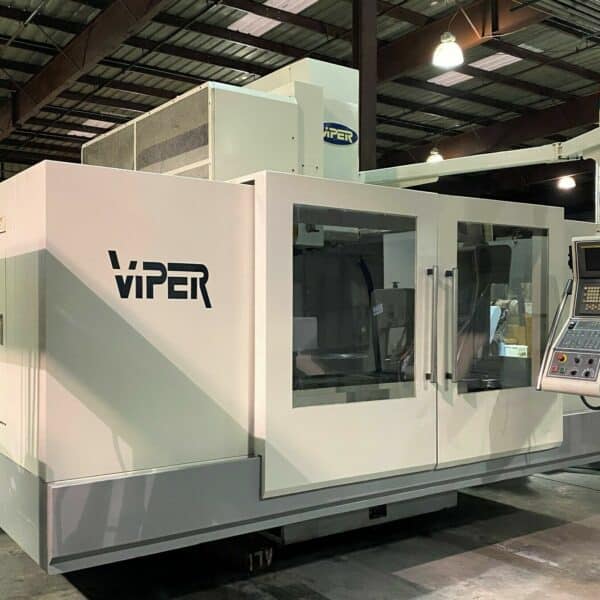

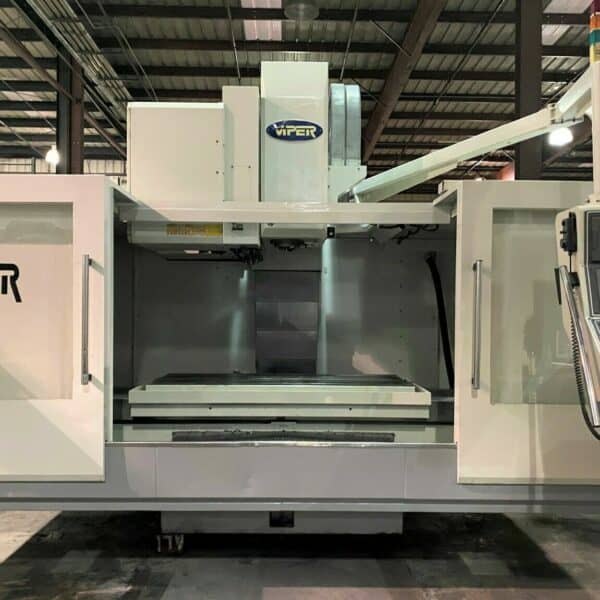

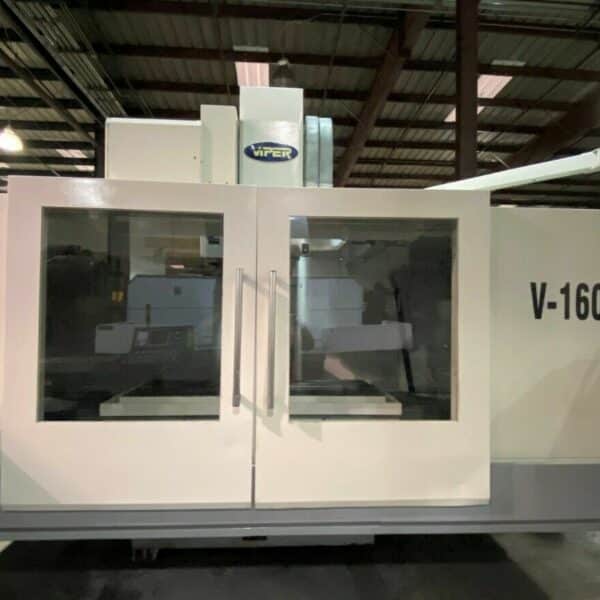

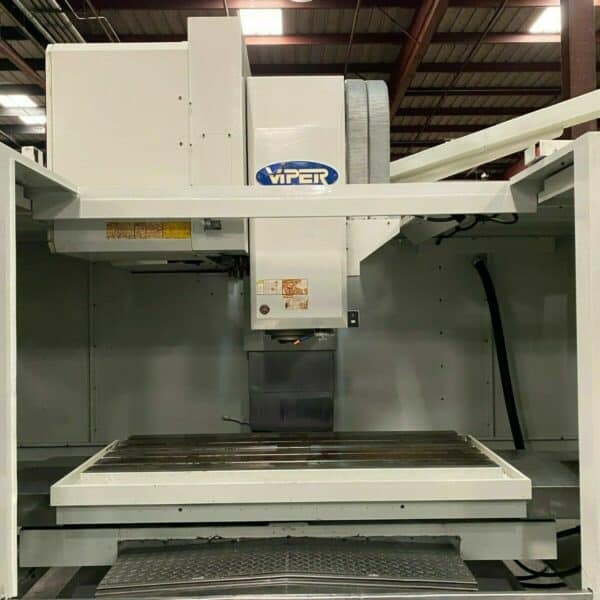

“This Machine has Fanuc Control, 30 Hp 6000 rpm 50 Taper Gear Head Spindle, 32 tool side mount tool changer. On our Floor now, fully powered / tested & is in Great working condition.”

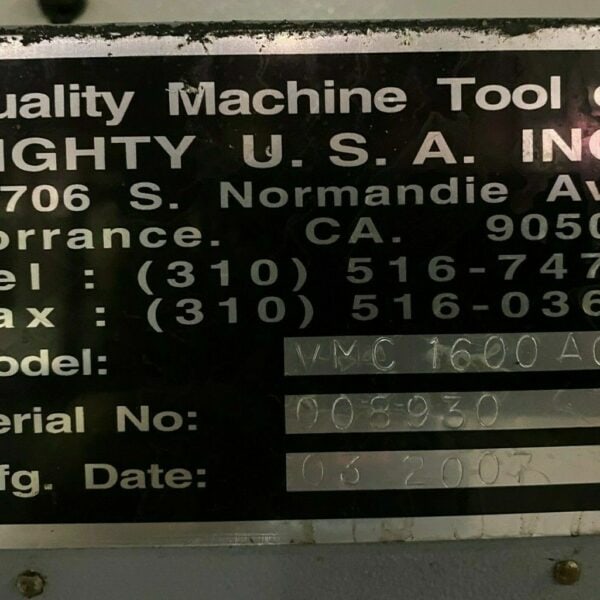

| Make | Mighty Viper |
| Model No. | VMC-1600AG |
| Year | 03/2007 installed: 2009 |
| Serial # | 008930 |
| Condition | Very Good |
| Cutting Hours: | 16866 |
-
Mighty Viper VMC-1600 Features:

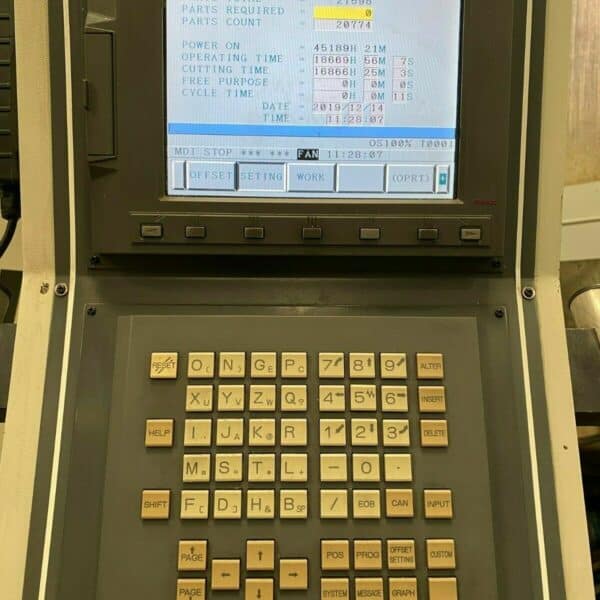

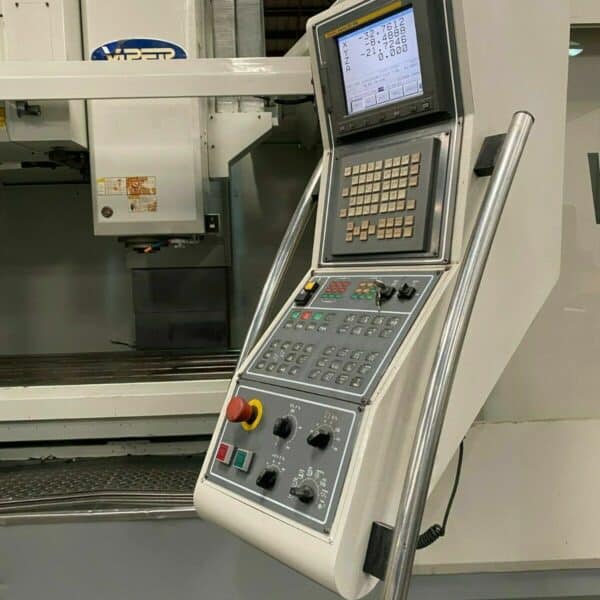

- Fanuc 21i-MB CNC Control
- 4 Way Box Way Heavy Construction
- Wired for 4th Axis
- 30 HP High Torque Spindle Motor
- 50 Taper 6000 RPM Geared Head Spindle
- PCMCIA Card Slot
- MPG Control
- 32 Automatic tool changer
- Rigid Tapping
- Spindle Orientation

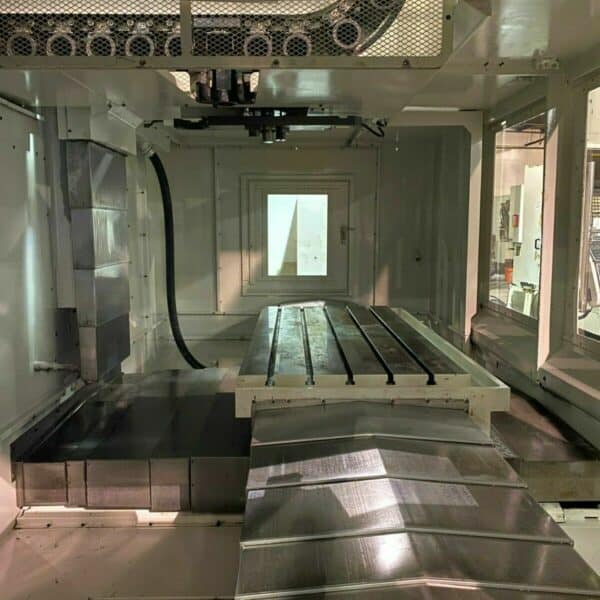

- Telescopic way covers
- Chip auger
-
Mighty Viper VMC-1600 Specifications:
- Travels:
- X-Axis: 62.99″
- Y-Axis: 31.49″
- Z-Axis: 25.98″
- Rapid Traverse Rates: 590 Inch Per Minute
- Cutting Feed Rates: 360 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 5.5″ – 37.79″
-

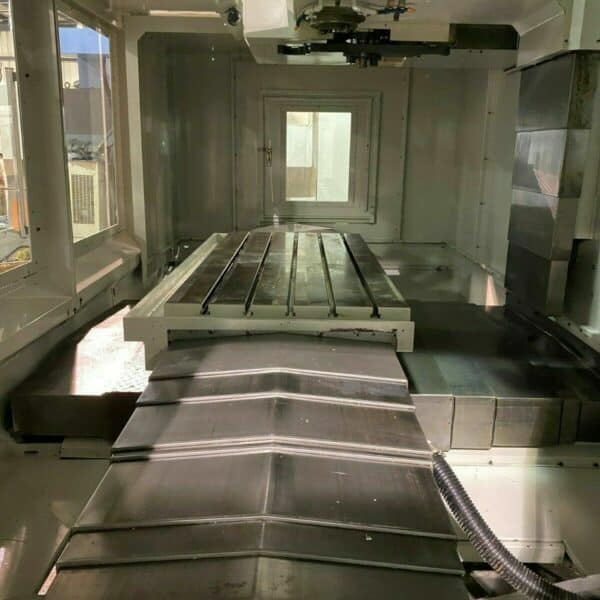

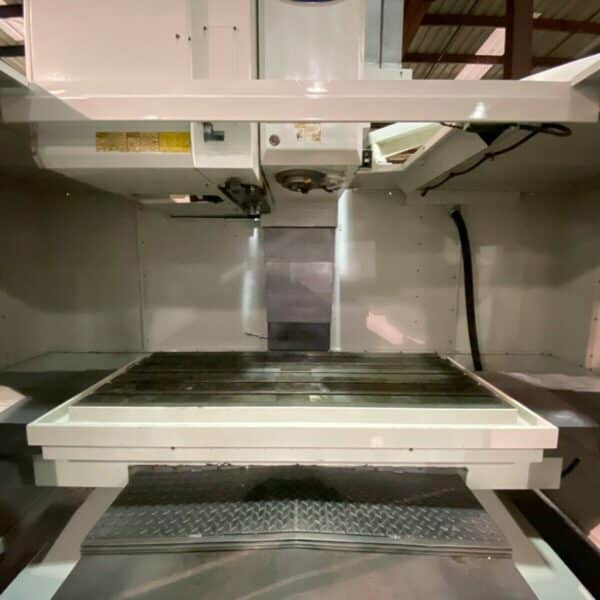

Table:
- Length: 66.92″
- Width: 29.52″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 4400 lbs
-
Spindle:
- Taper Size: BT-50
- Speed Range: 6000 RPM
- Spindle Power: 30 HP
-
Automatic Tool Changer:
- Capacity: 32
- Max Tool Weight: 33 lbs
- Max Tool Dia: 5.2″
- Max Tool Length: 11.8″
- Tool Changing Time: 4.2 Seconds
-
General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 158″ x 98″ x 118″ High
- Weight: 28000 lbs
