*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112762 |

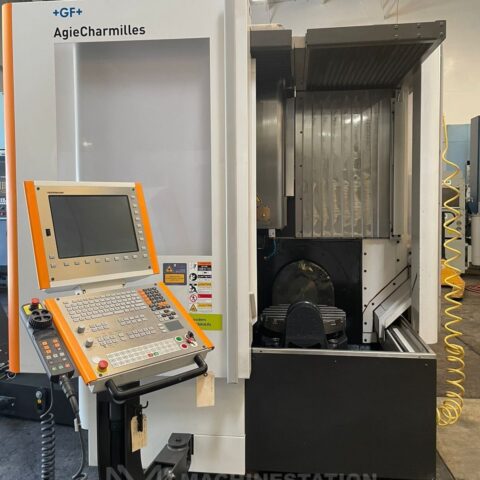

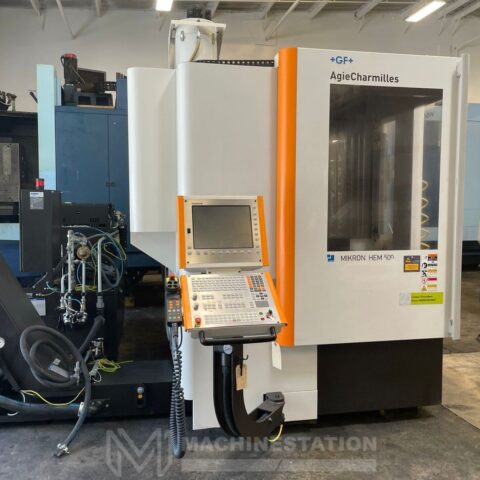

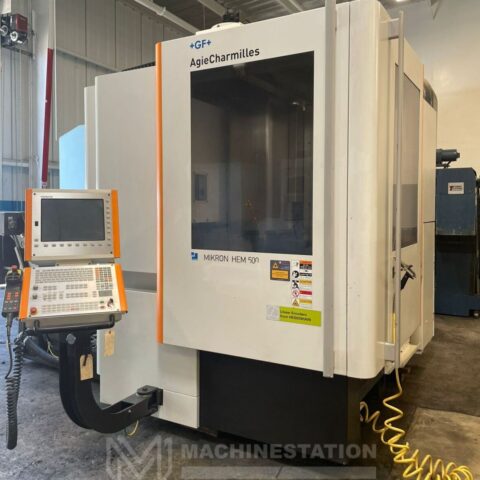

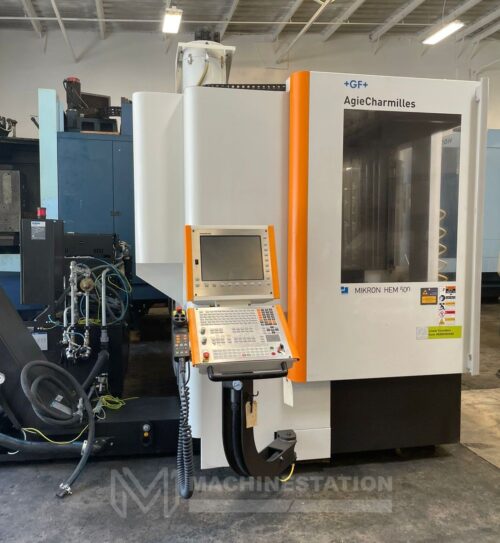

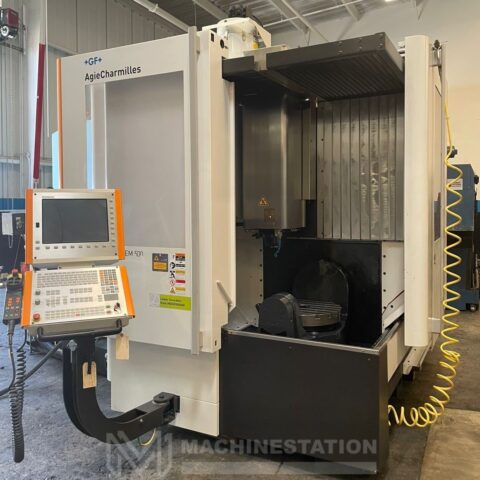

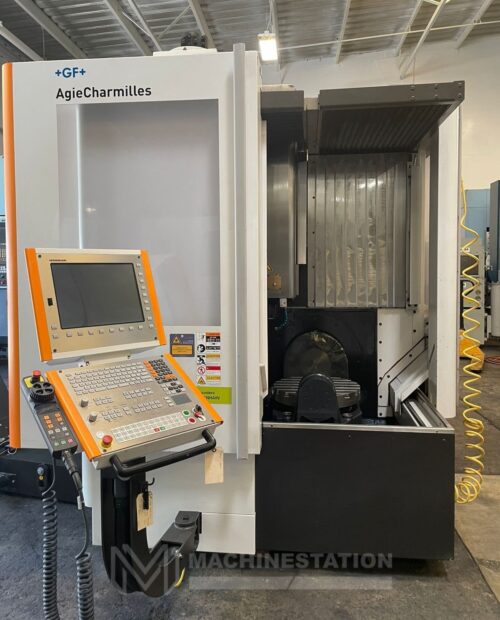

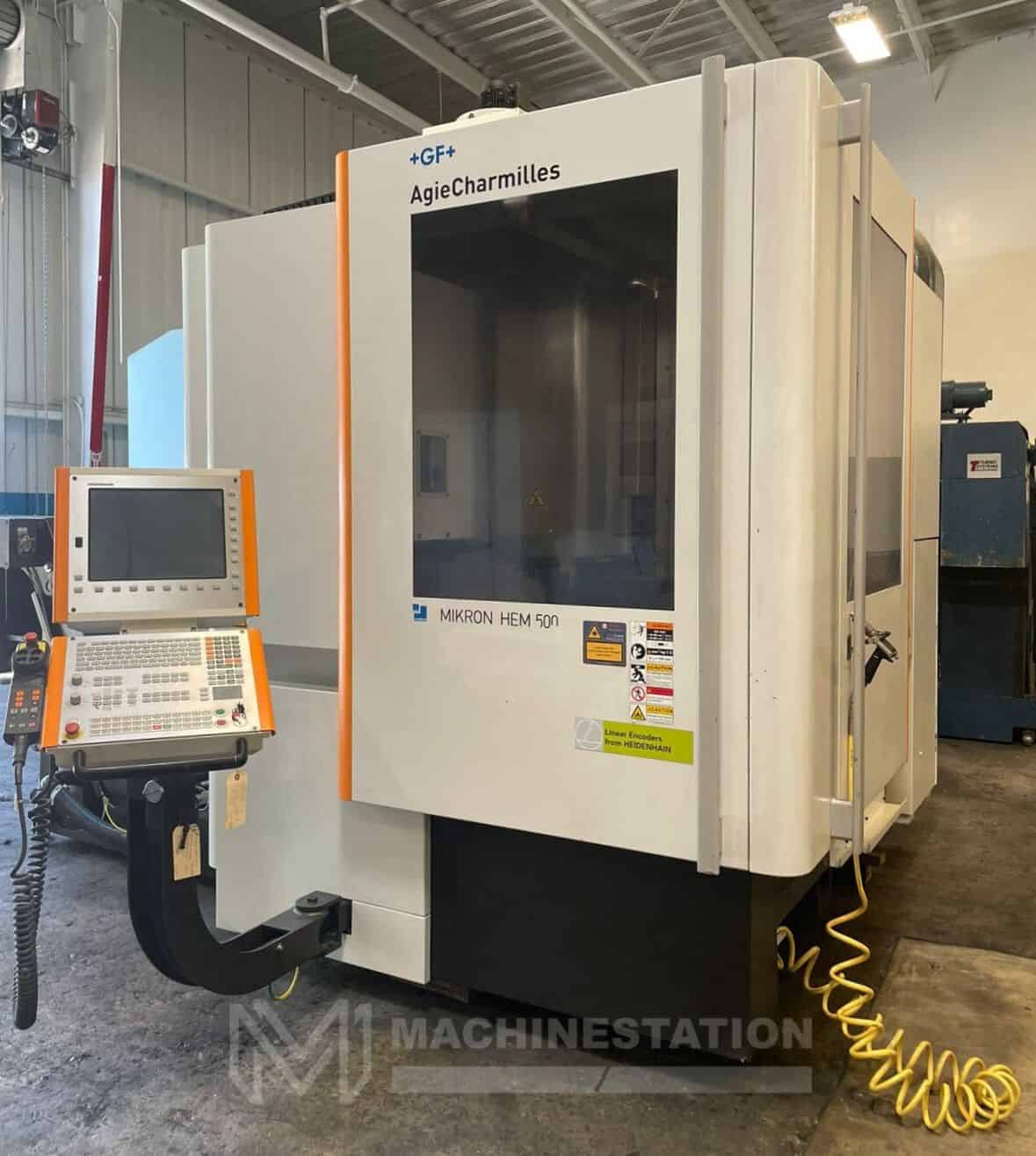

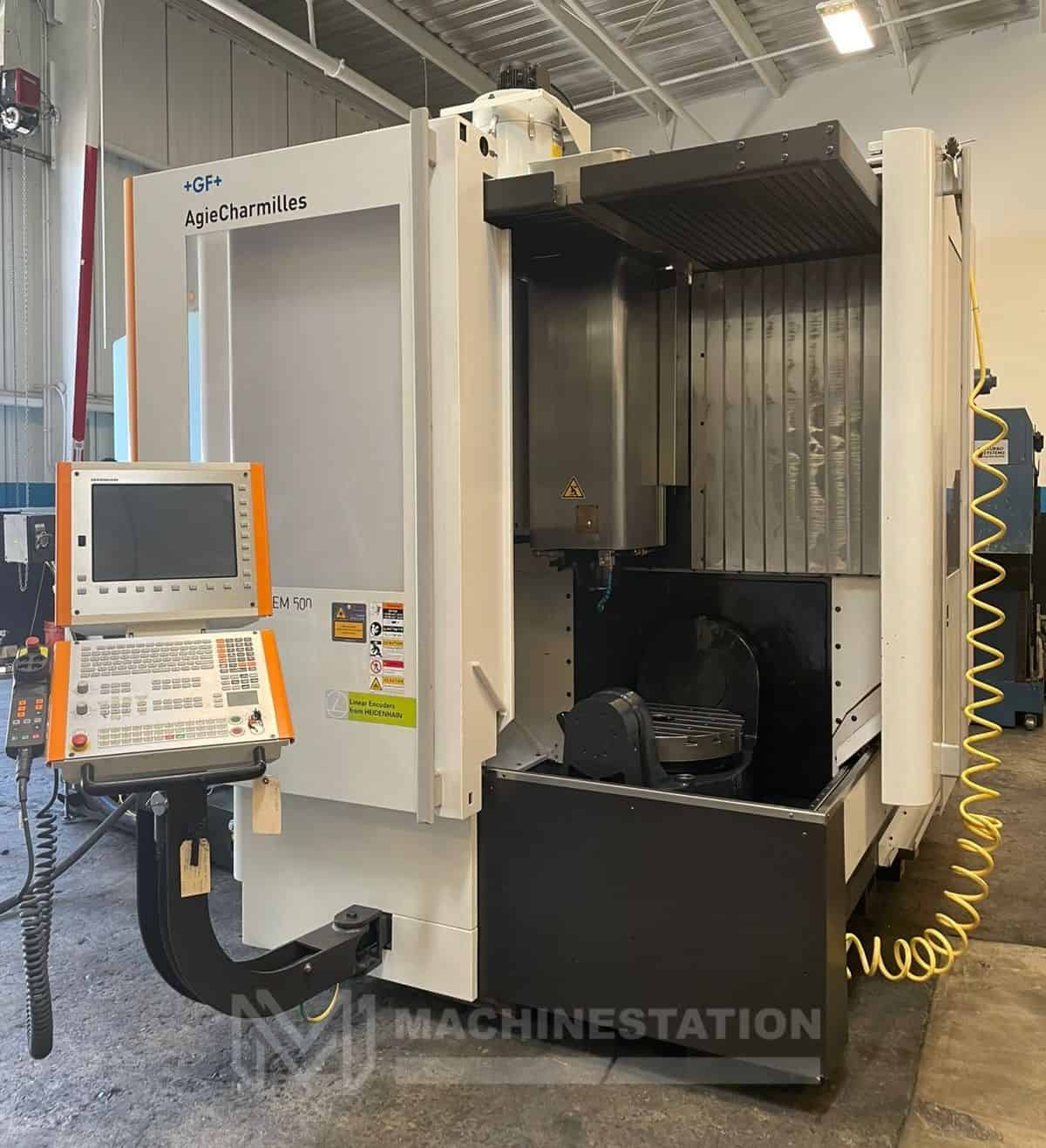

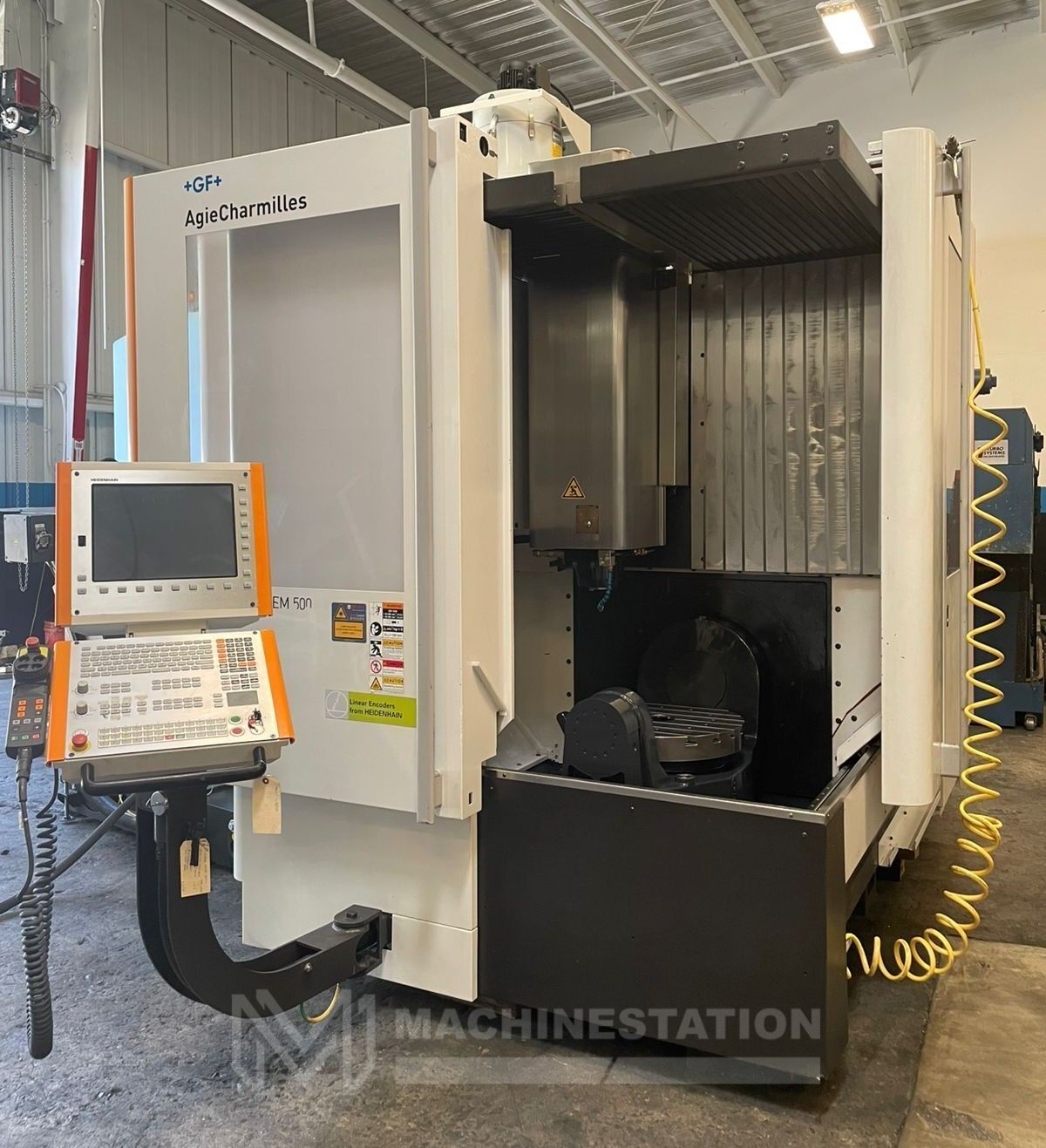

| Make: | Mikron |
| Model: | Hem 500U |
| Year: | 2013 (Sold & Installed in 2016) |
| Features: |
|---|

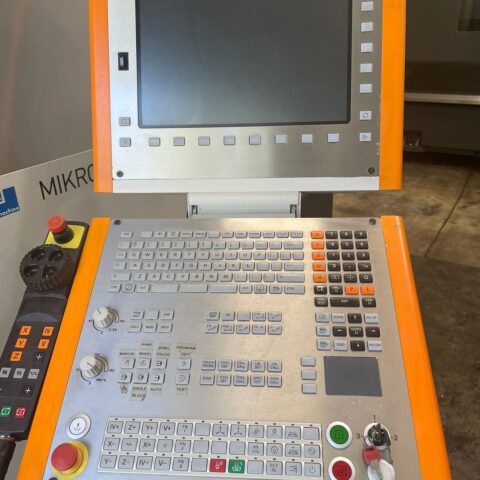

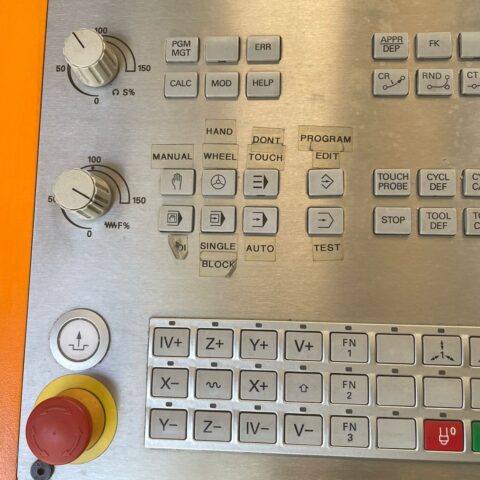

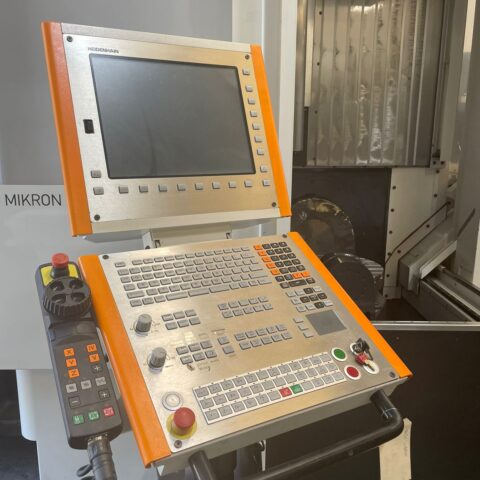

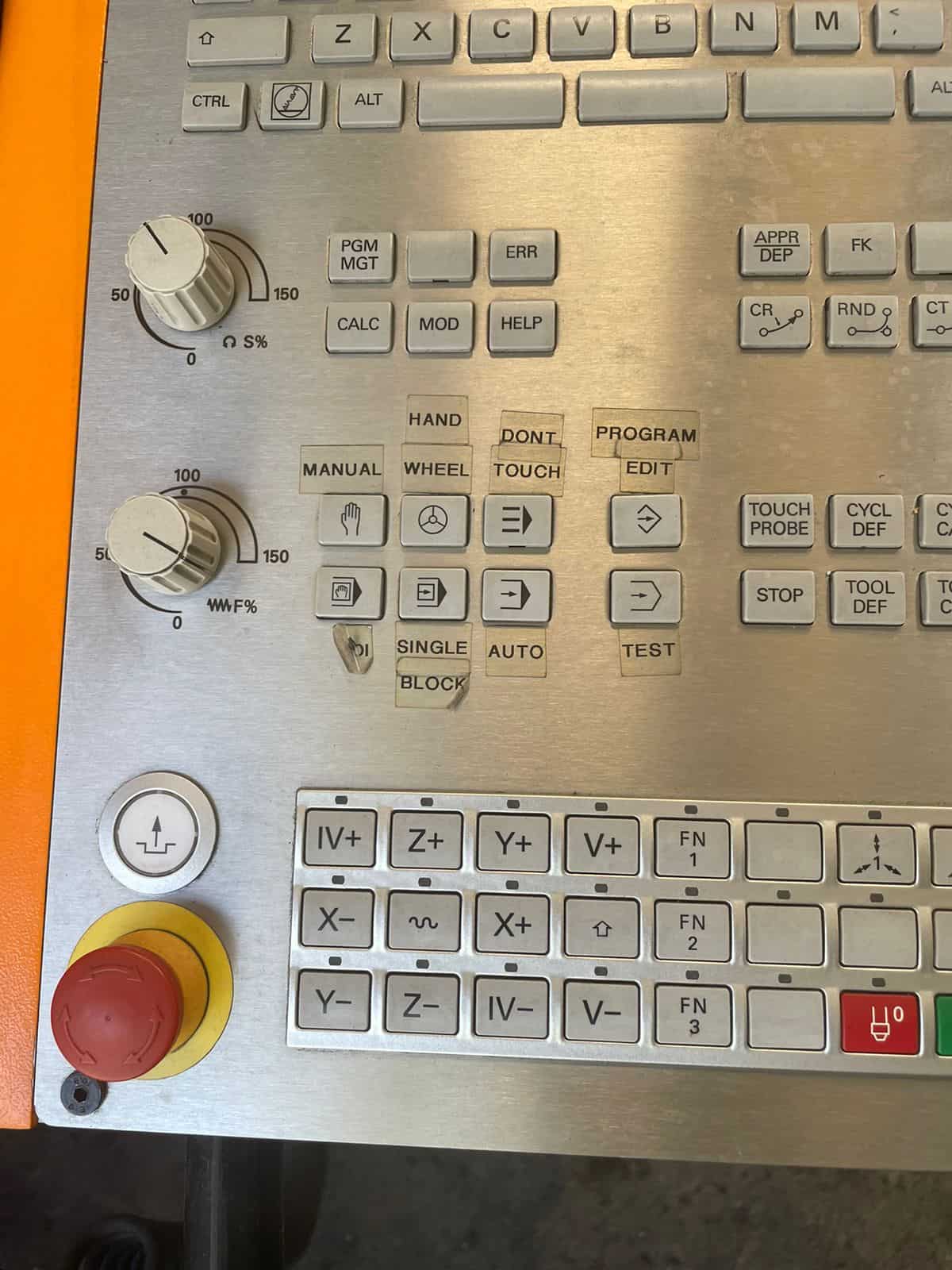

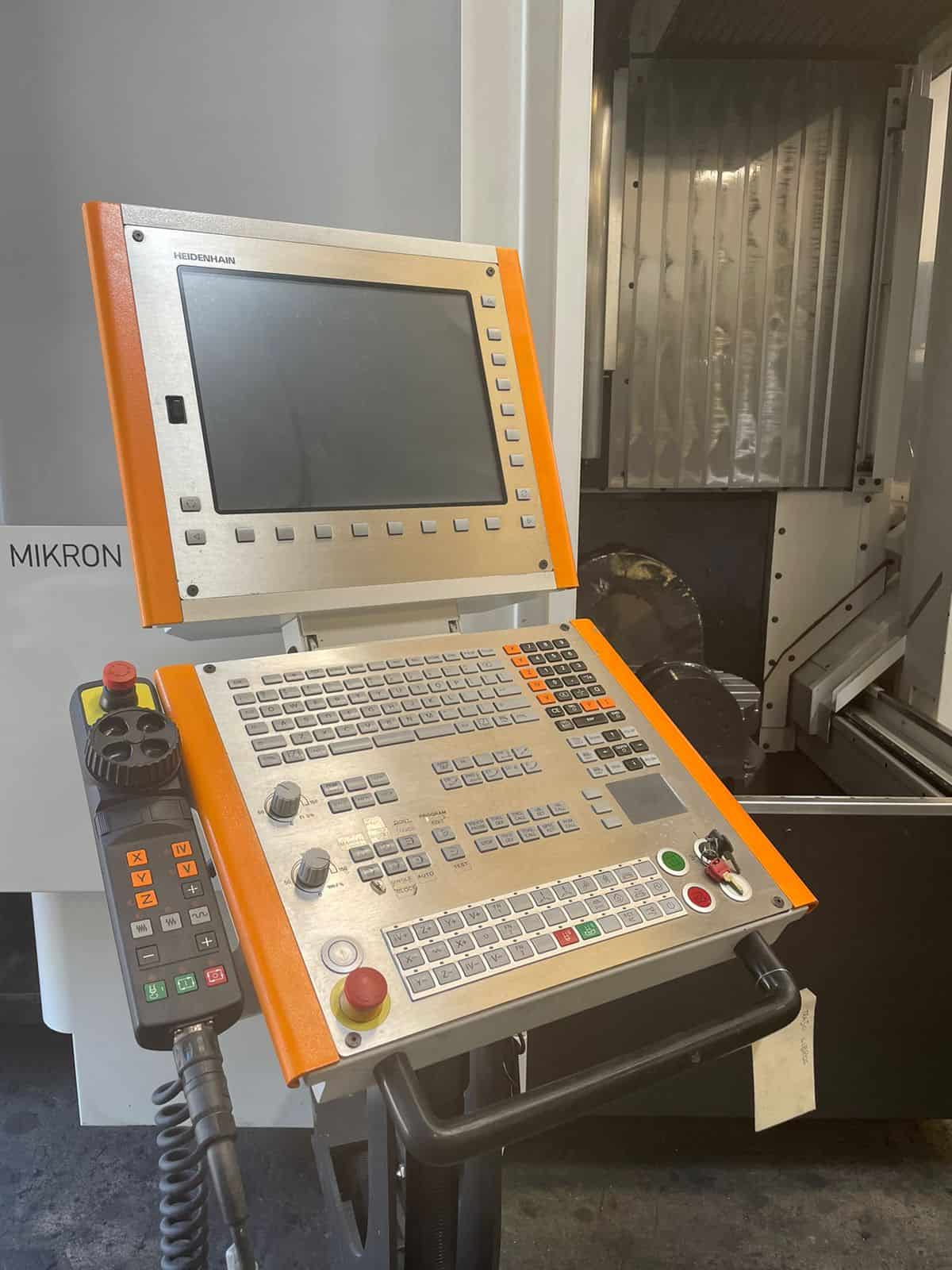

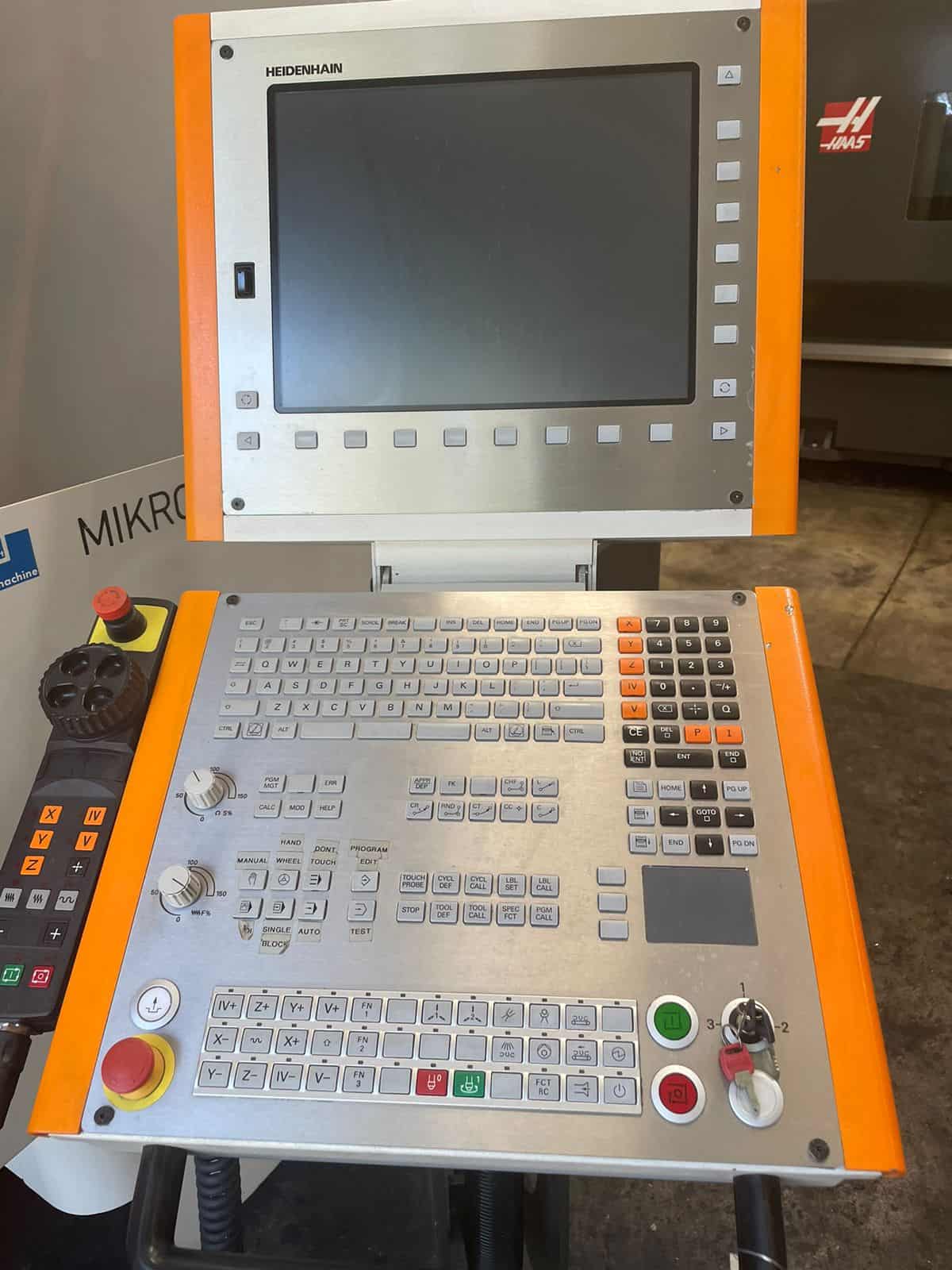

| Heidenhain iTNC 530 CNC Control |
| 5 Axis Machining (3+2) |

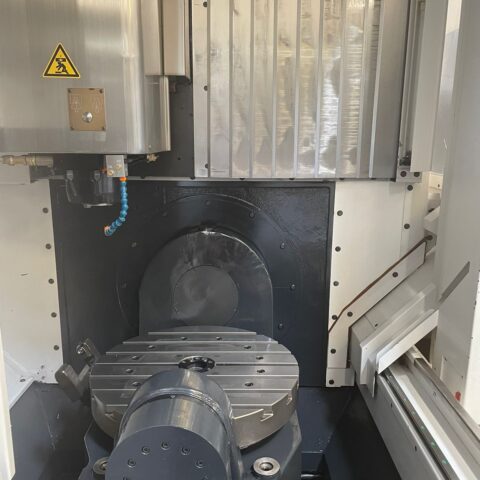

| Hem Rotary Tilting Table |
| 12,000 RPM High Speed Spindle |
| 30 Station Automation Tool Changer |
| Through Spindle Coolant – 300 psi |
| Oil Mist Spray Unit |
| Mist Extraction Unit |
| MPG Handwheel Control |

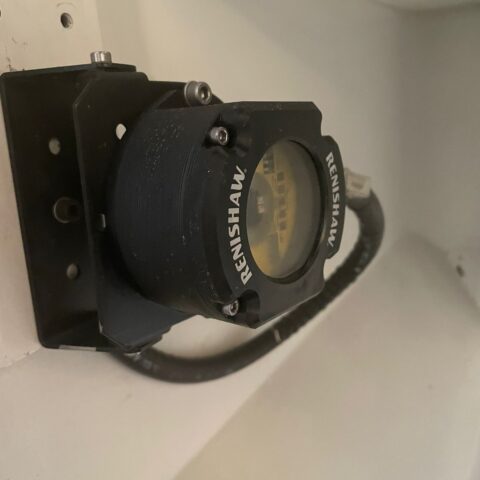

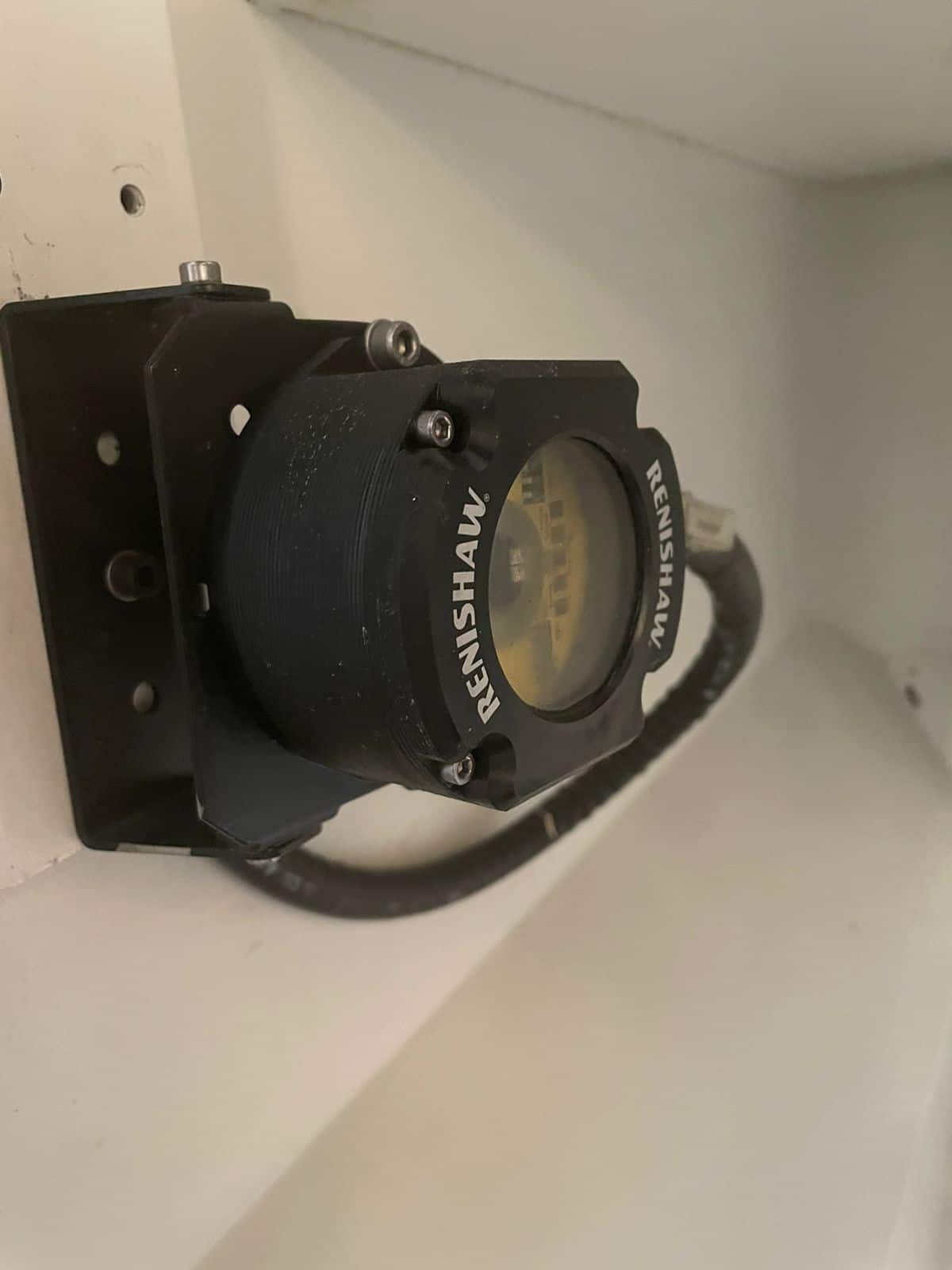

| Renishaw Probing System (Probe Needed) |

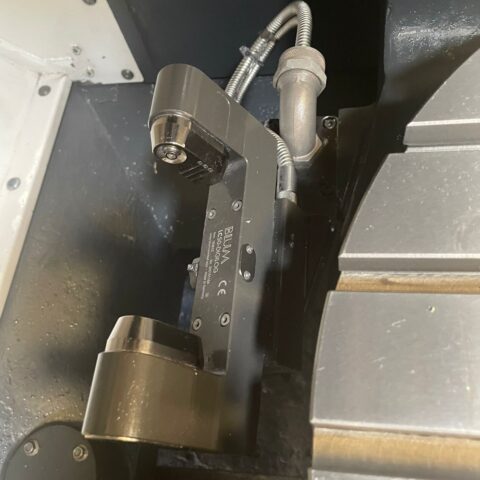

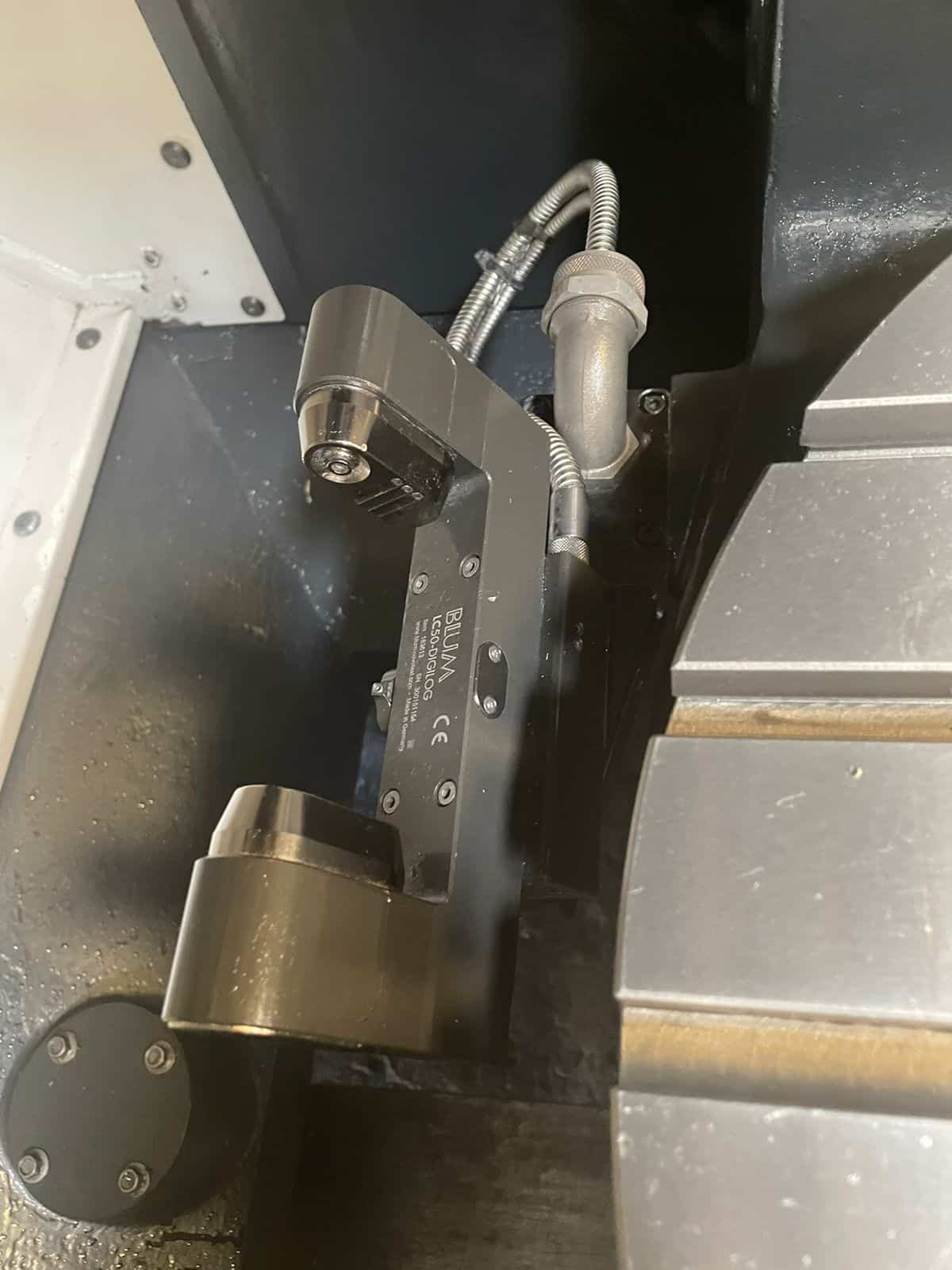

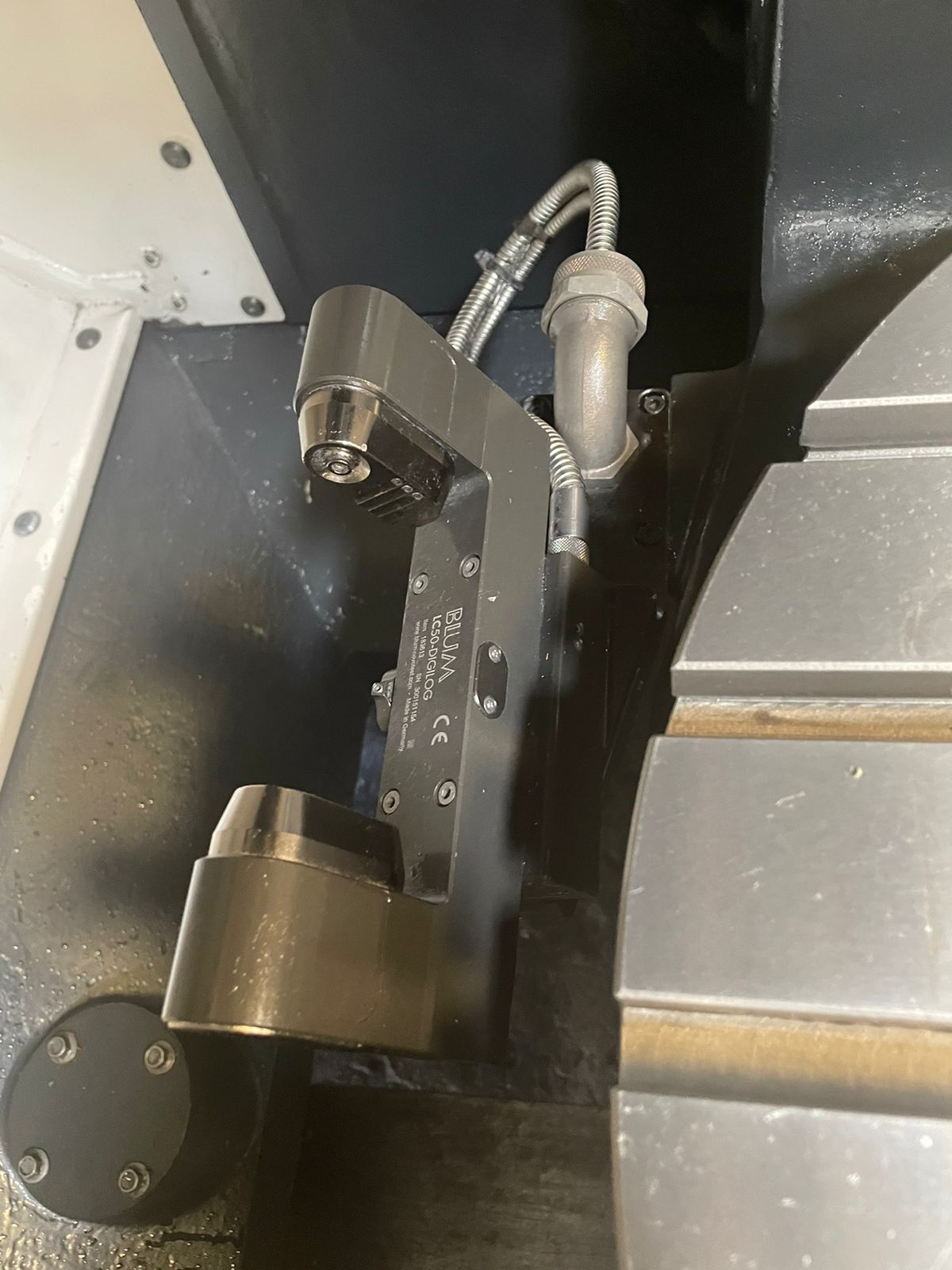

| BLUM Laser Tool Setter |

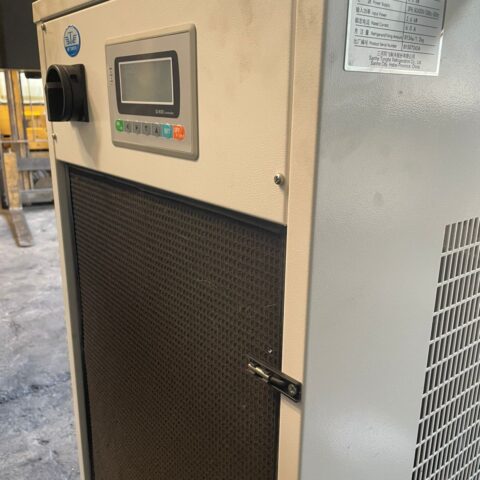

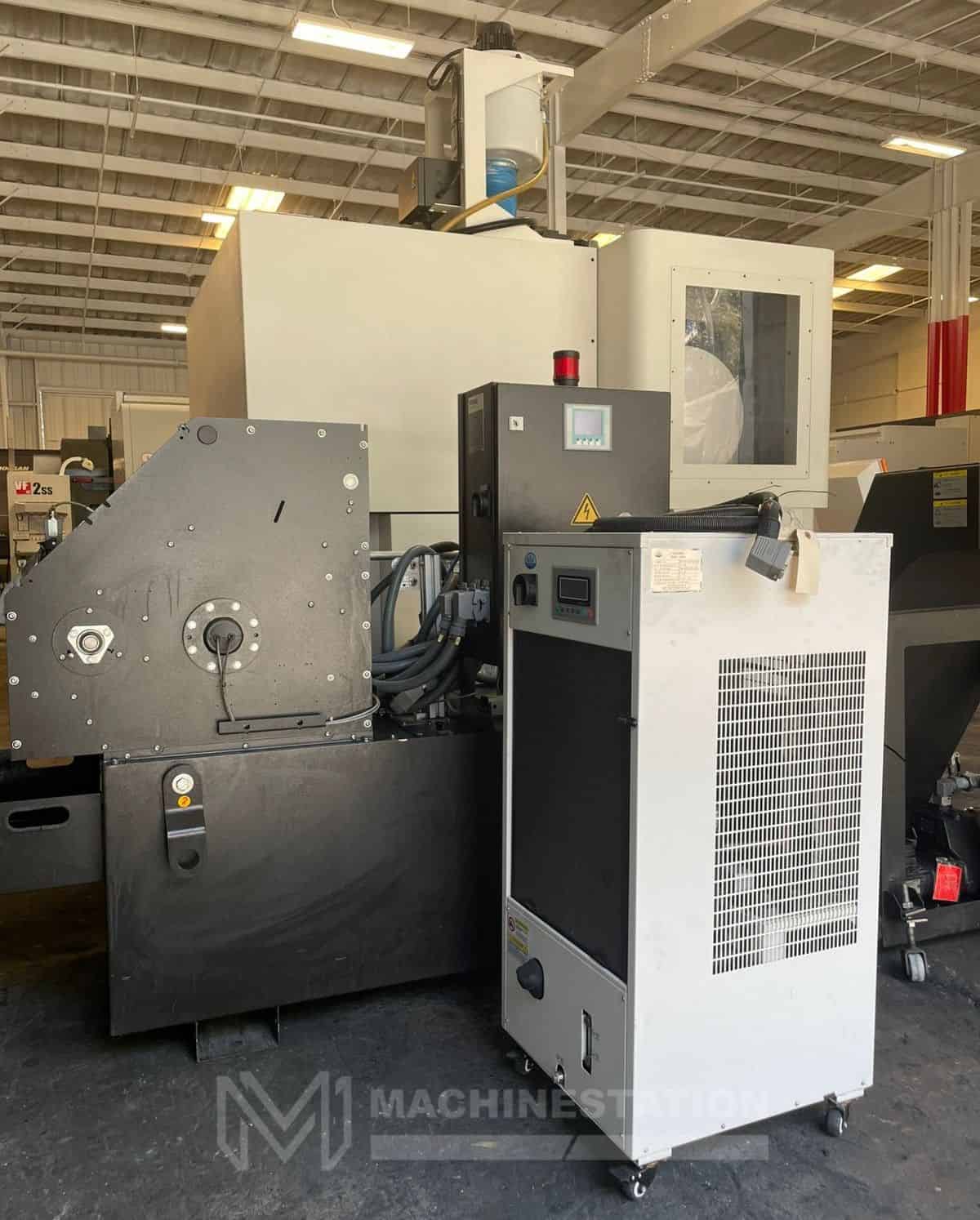

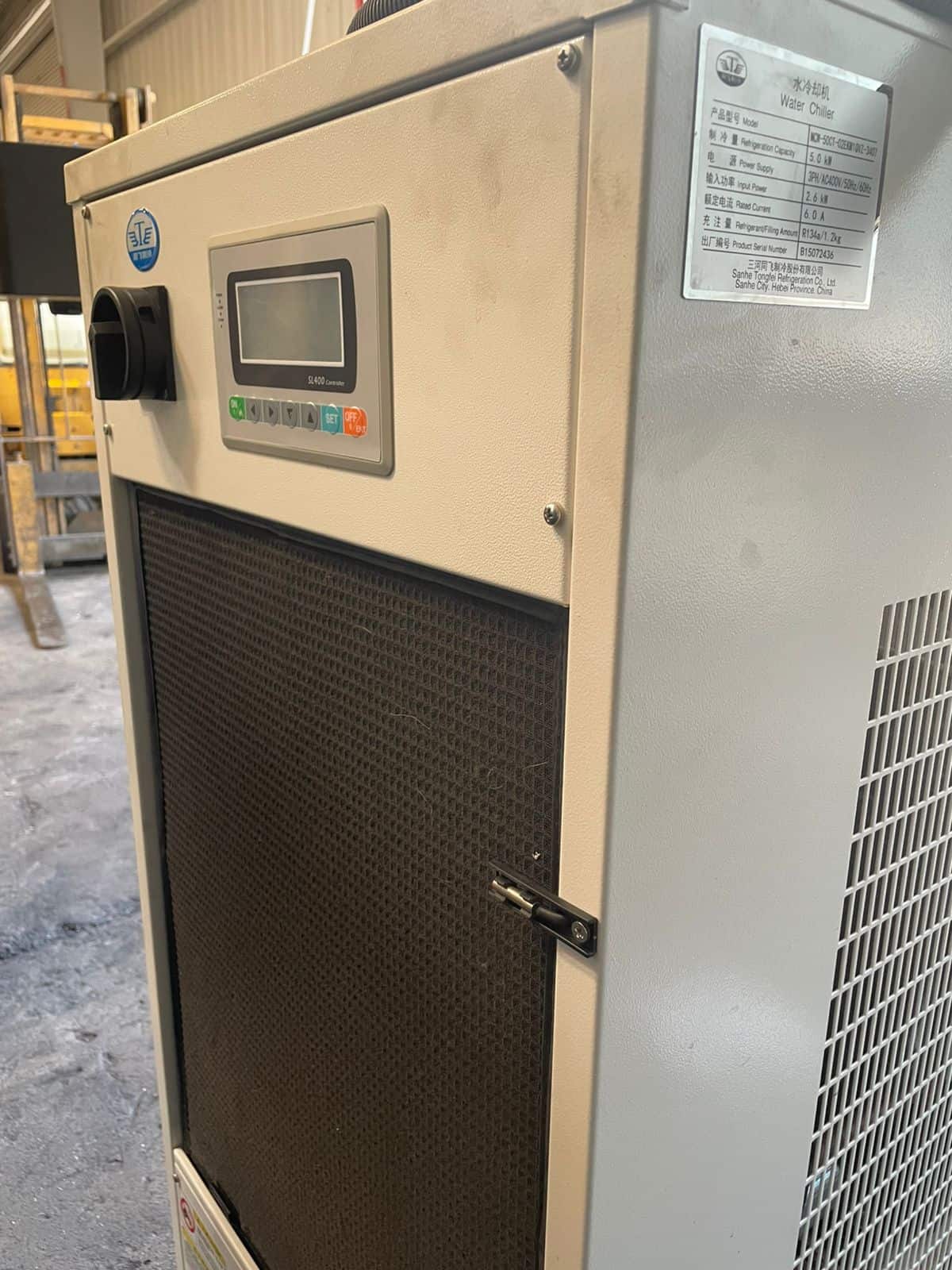

| Spindle Chiller Unit |
| Automatic Lubrication System |

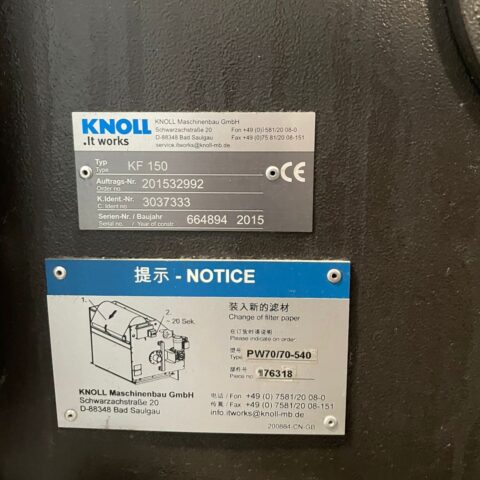

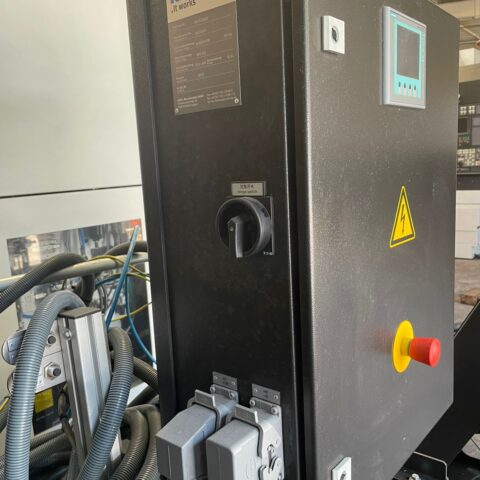

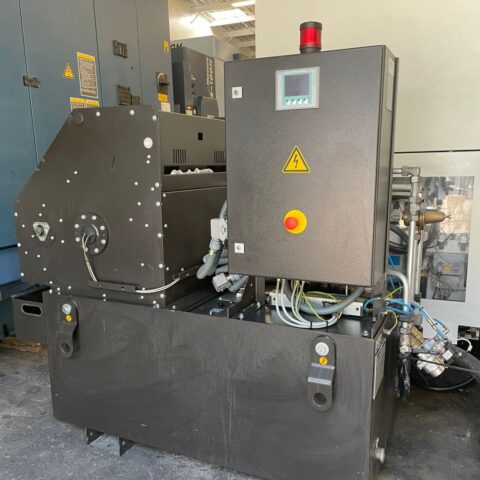

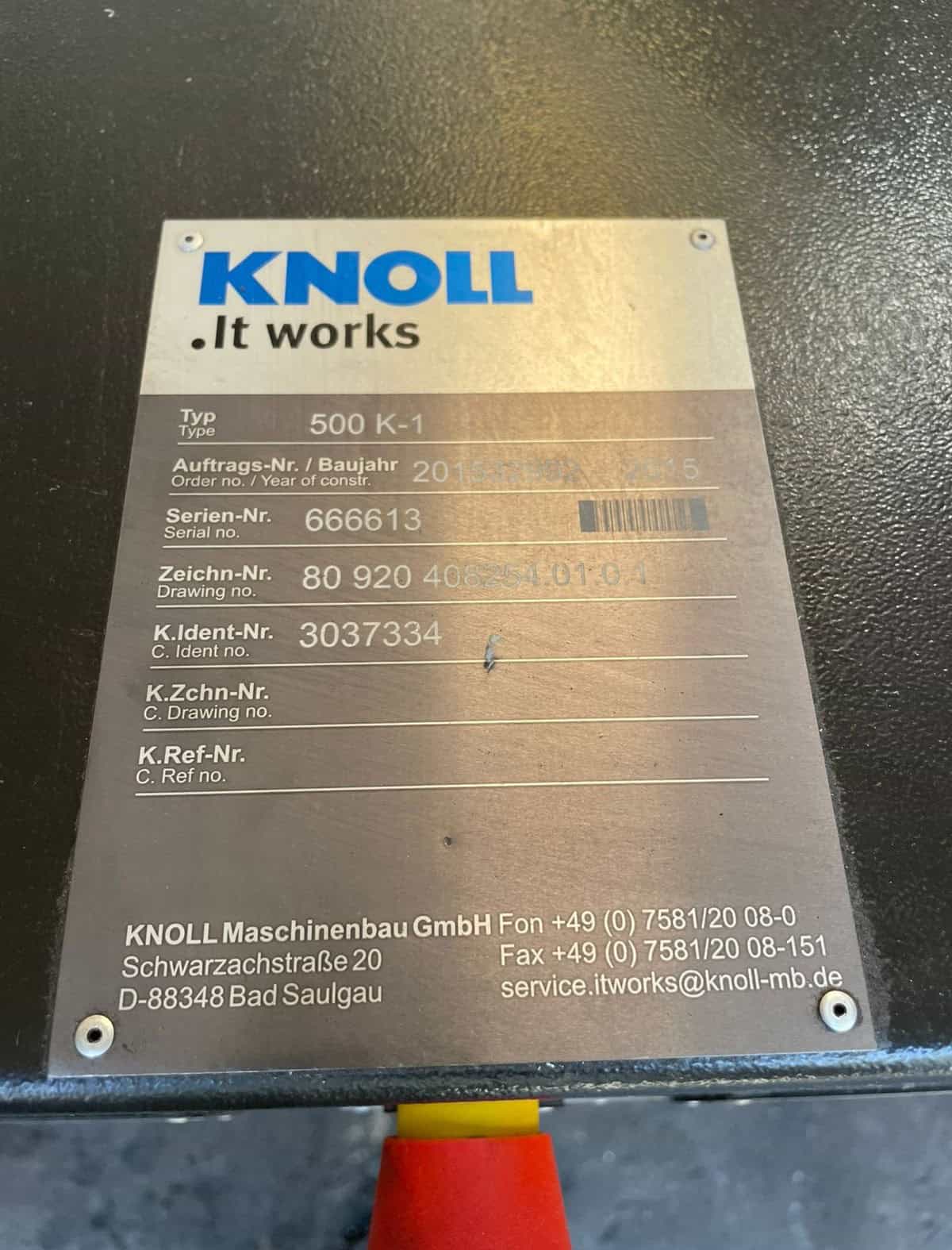

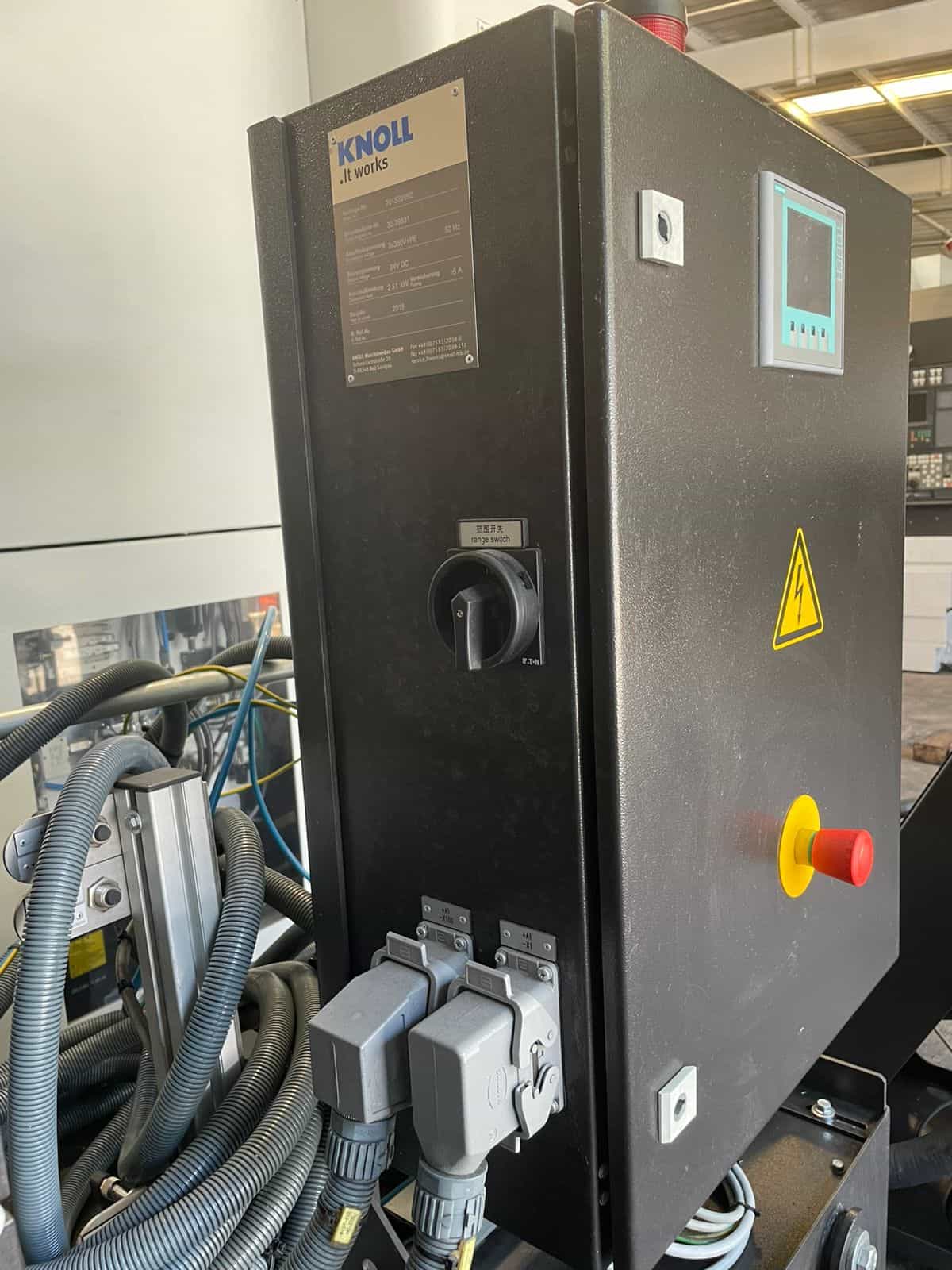

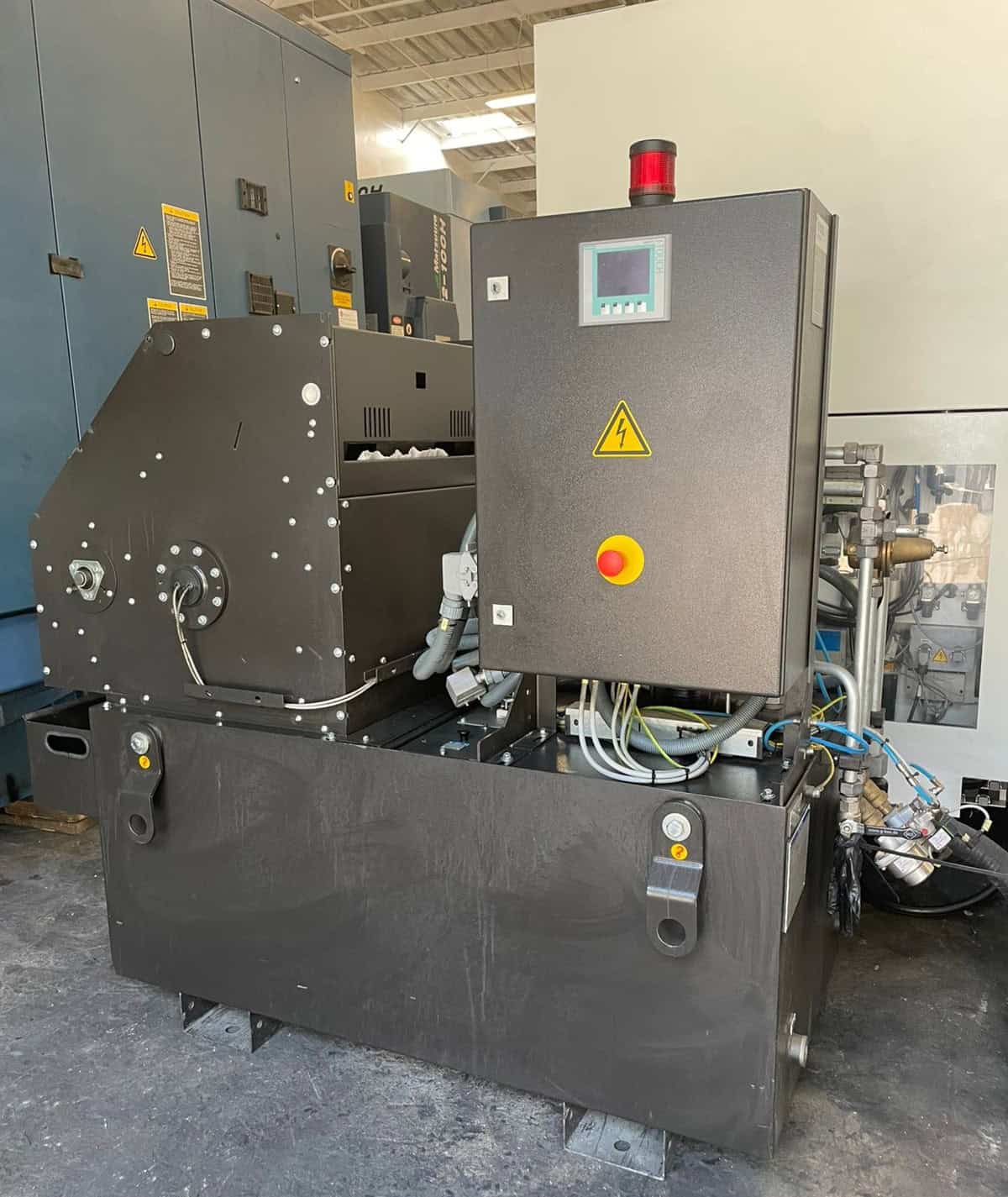

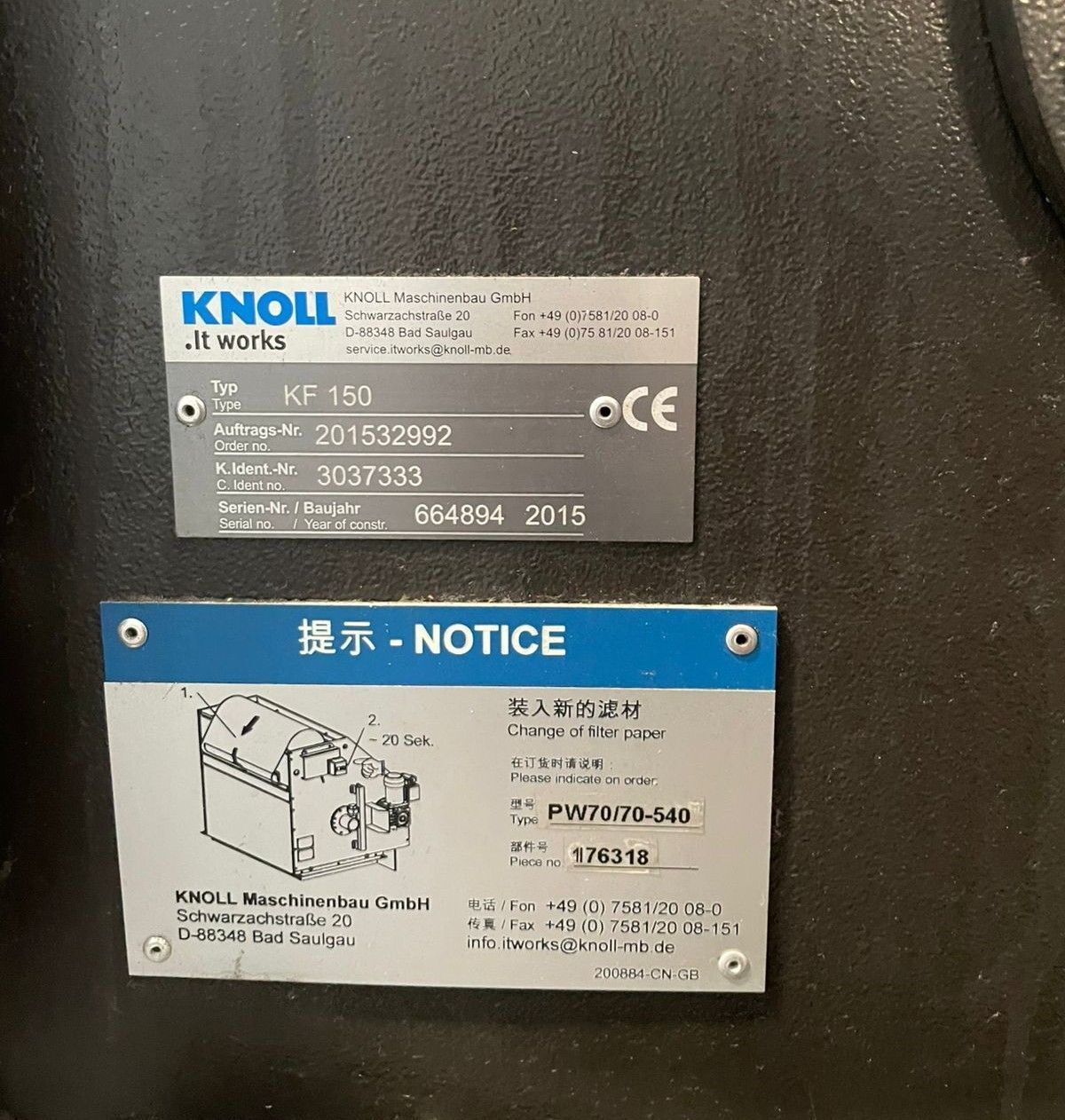

| Coolant Filtration System – Paper Type |
| Coolant Tank |

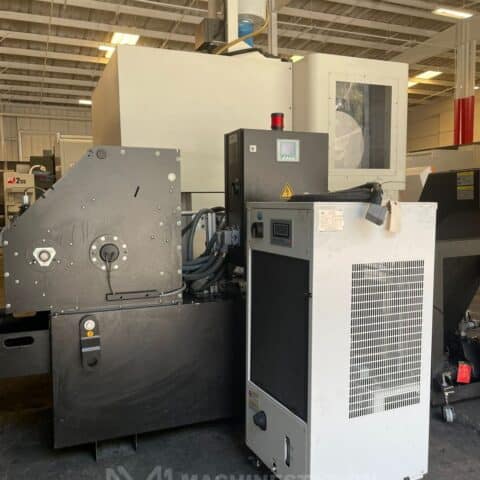

| Chip Conveyor |

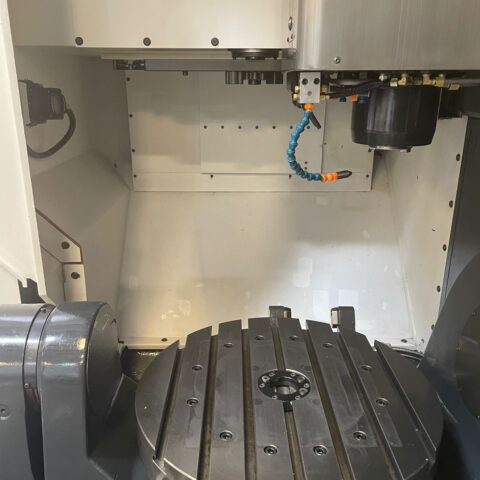

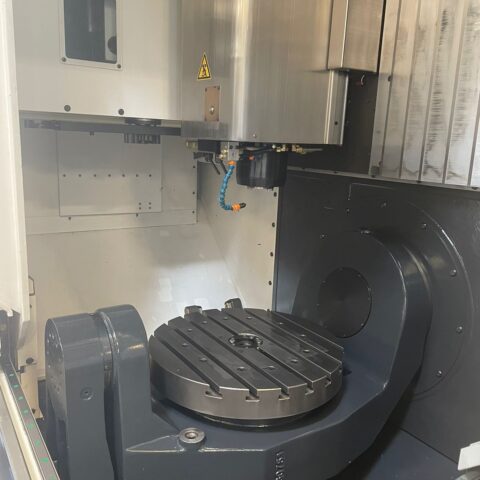

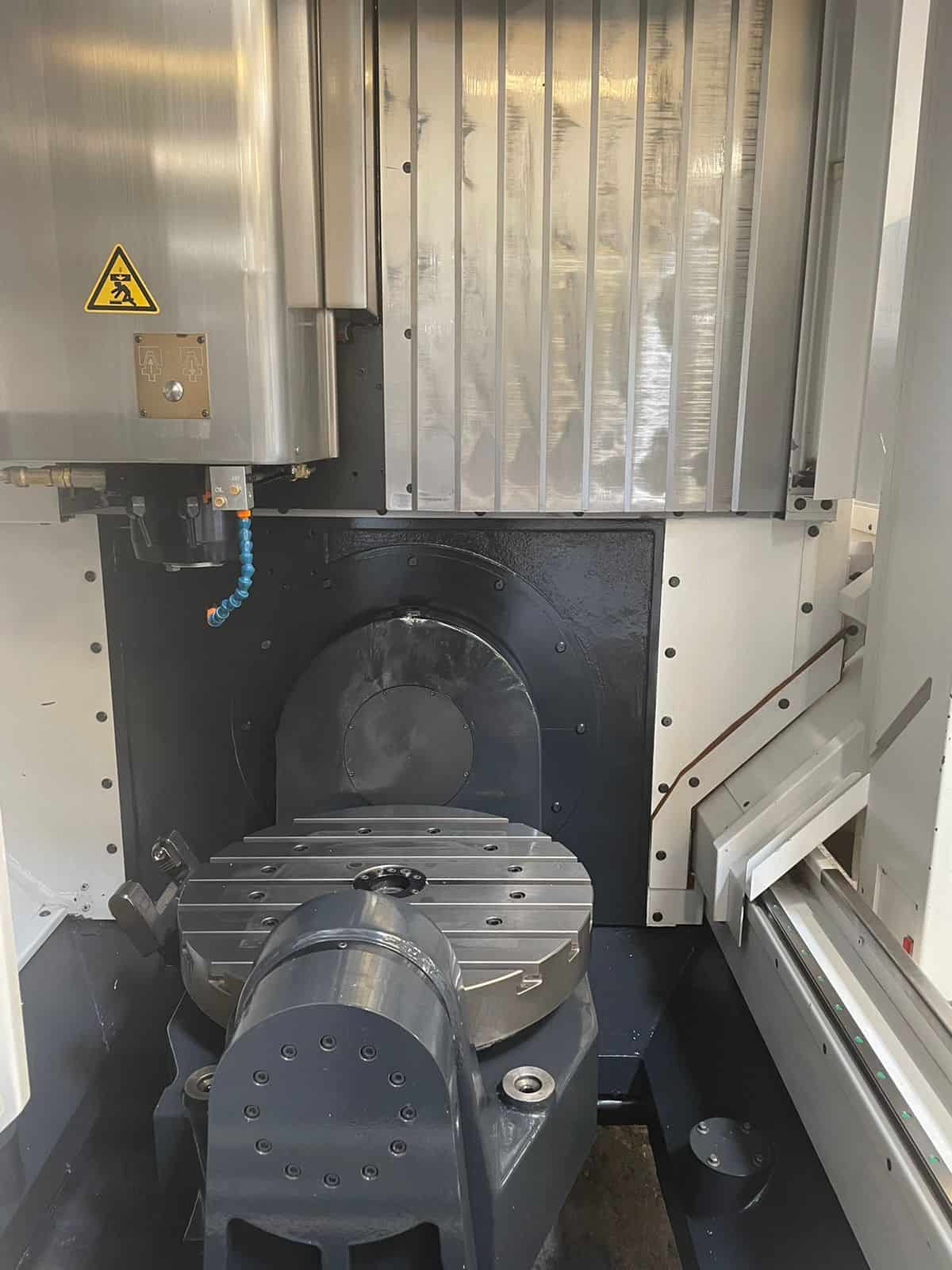

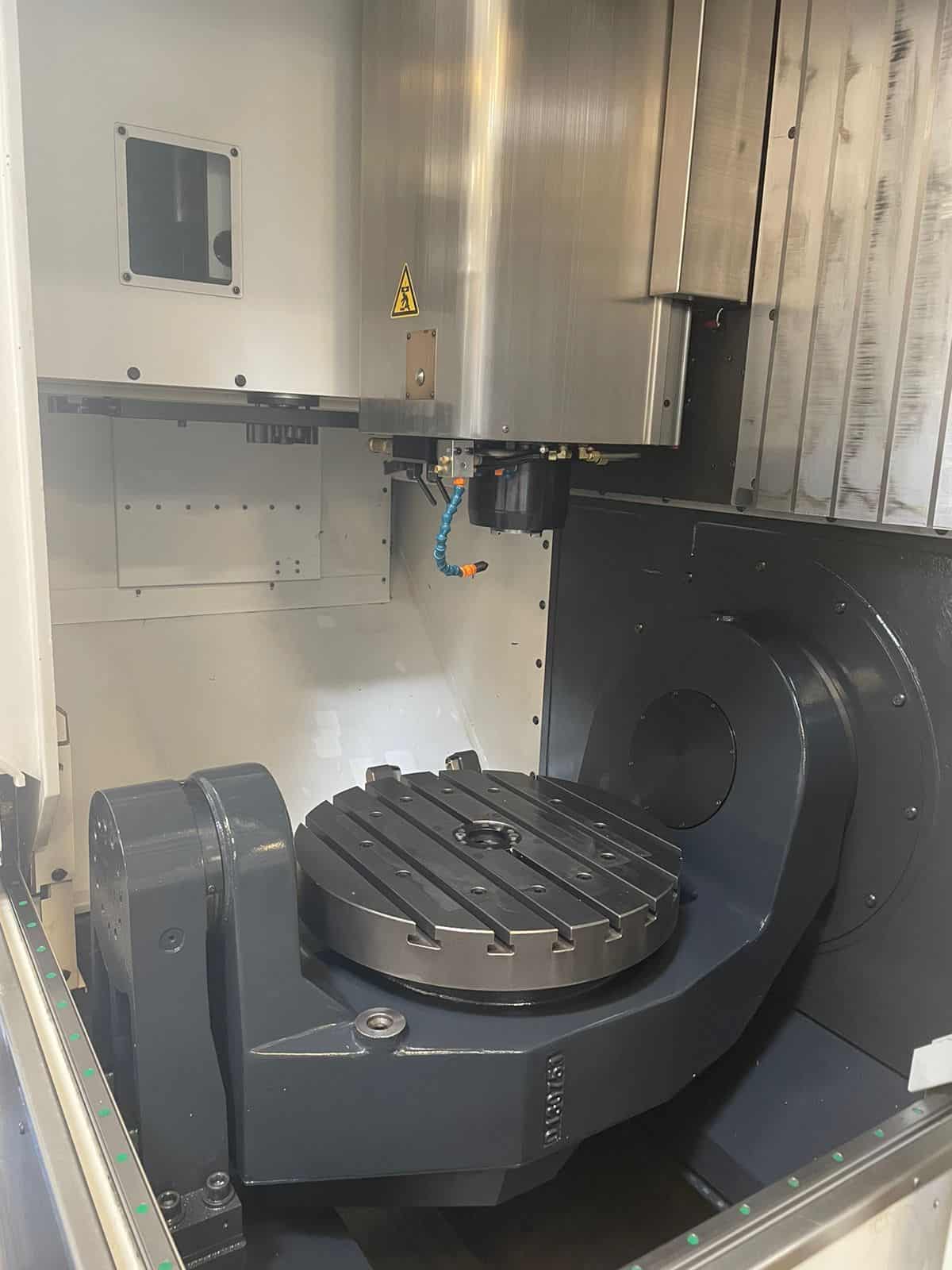

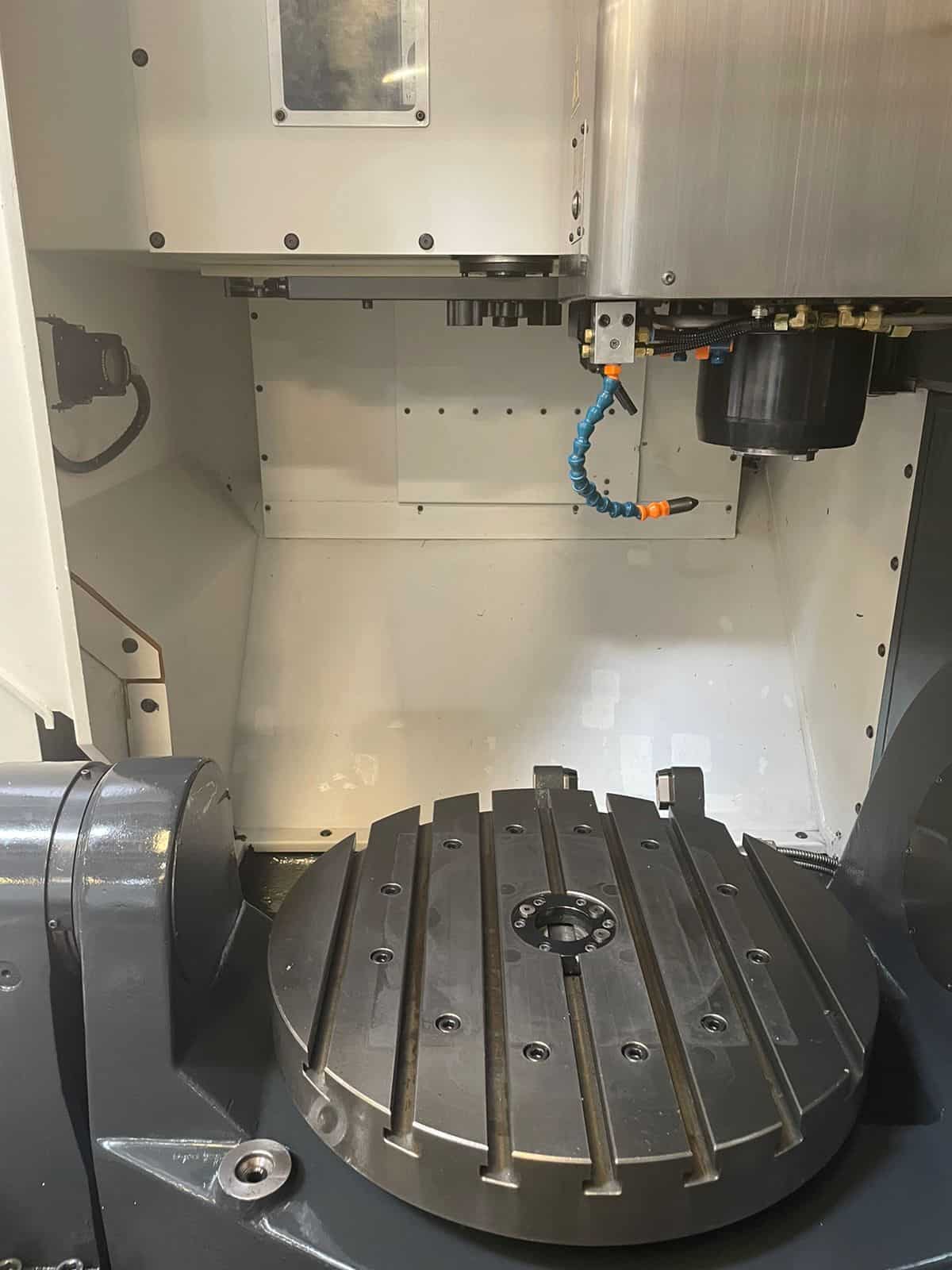

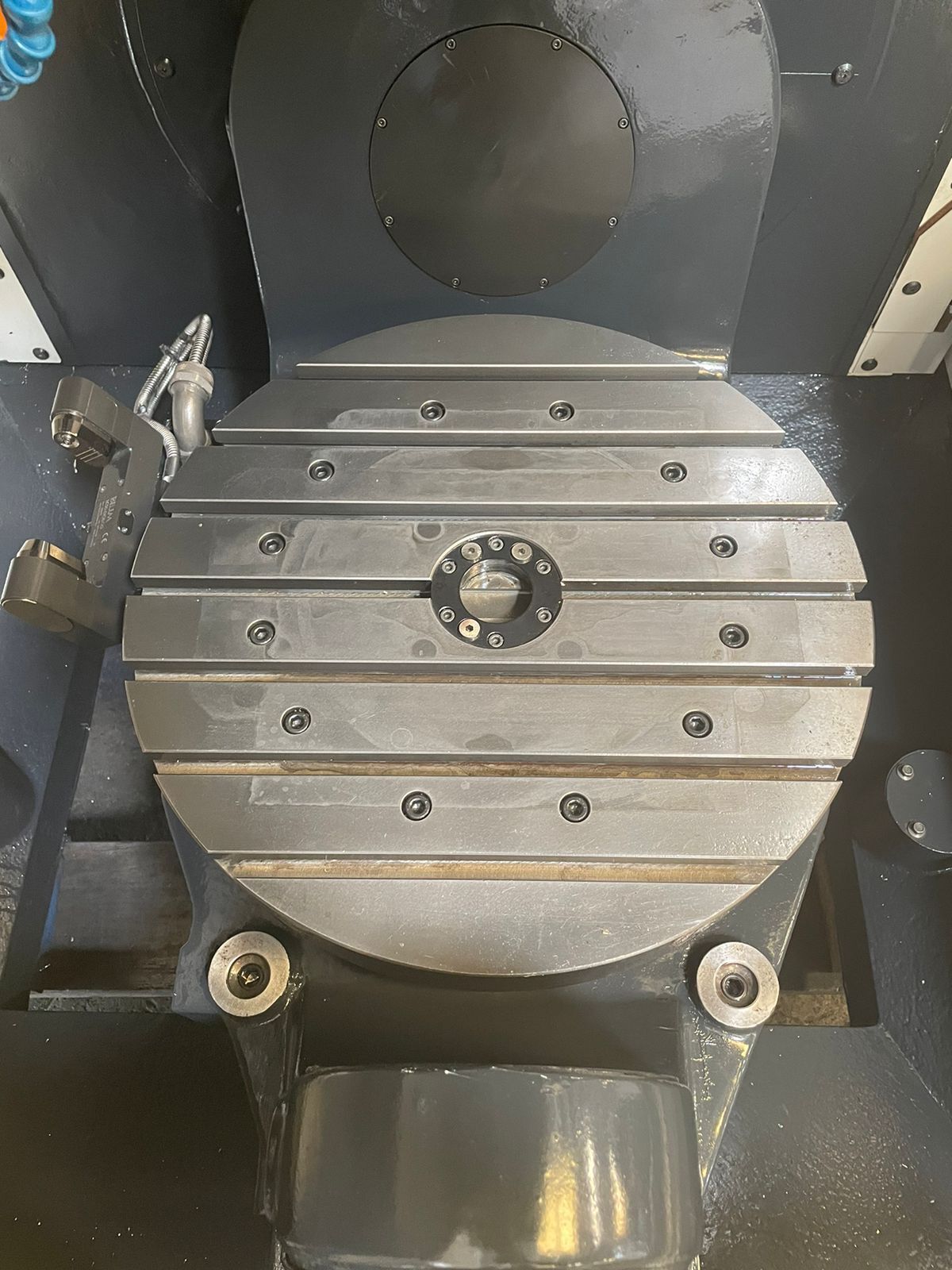

| Rotary Swivel Table: |
|---|
| T-groove Table: 19.69″ |
| Max Weight on Table: 661 lbs |
| Travel: |
|---|
| X Axis: 19.69″ |
| Y Axis: 17.71″ |
| Z Axis: 15.75″ |
| A Axis: –65° / +110° ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |

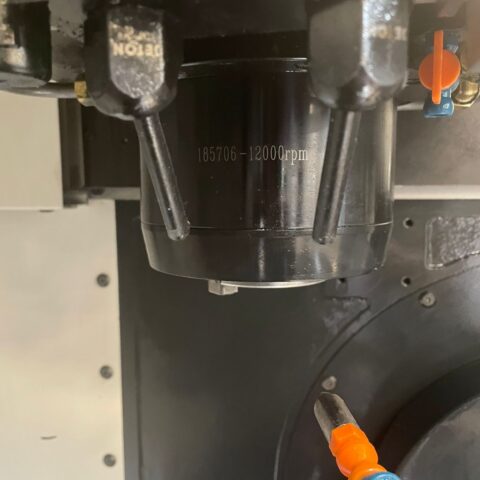

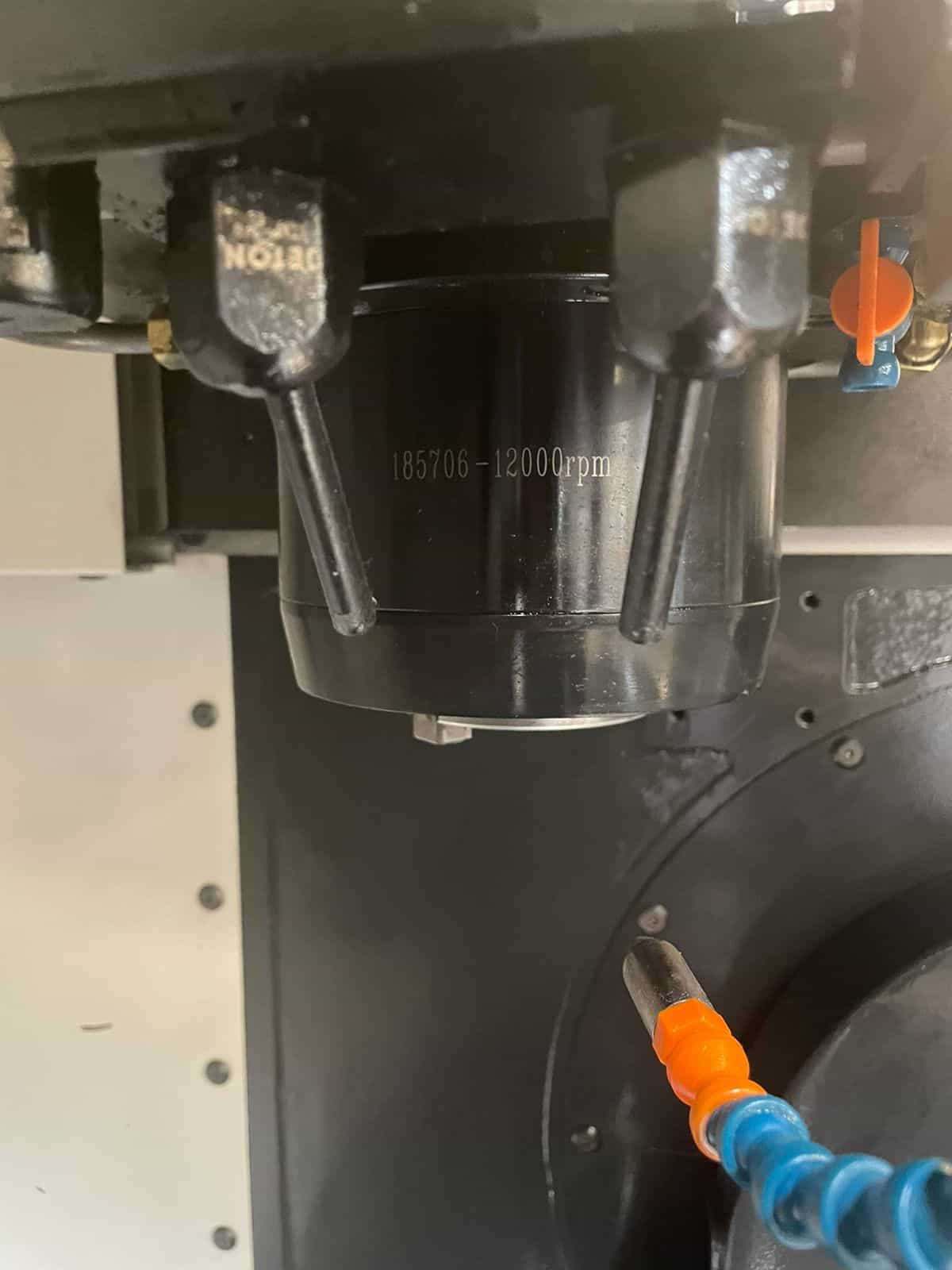

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 25 HP |
| Feed rates: |
|---|
| Rapid X Y & Z: 1181 Inch Per Minute |
| Rapid A & C : 17 & 28 Round Per Minute |

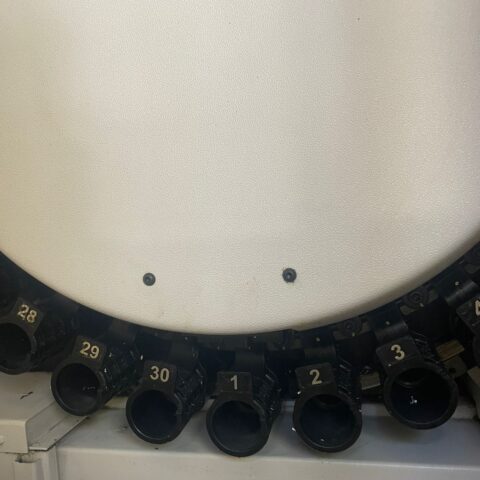

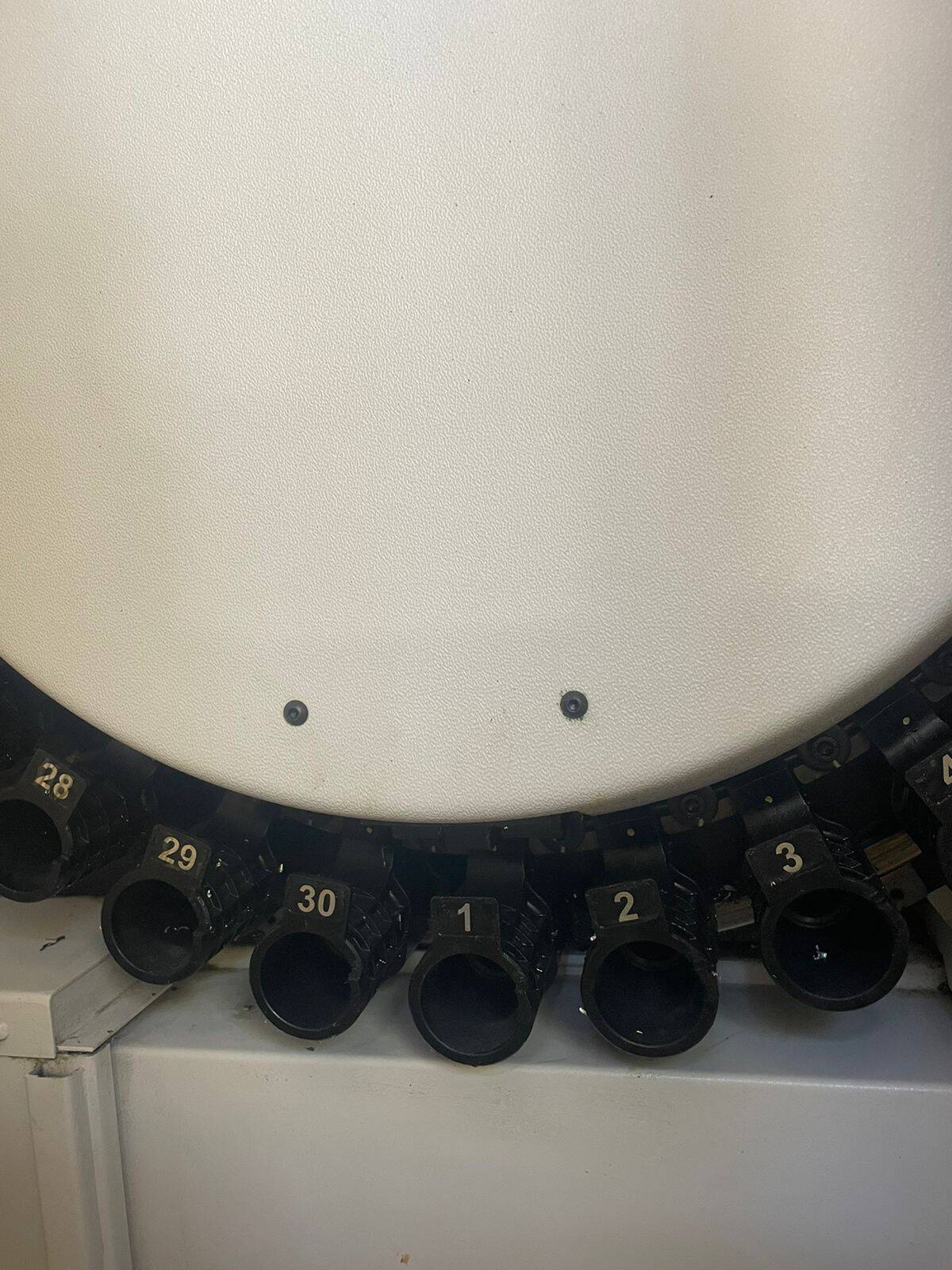

| Tool changer: |
|---|
| Capacity: 30 Tools |
| Taper: 40 |
| Max Tool Diameter: 2.55″ |
| Max Tool Length: 8.62″ |
| Max Tool Weight: 5.51 lbs. |
| Tool Change Time: 9 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

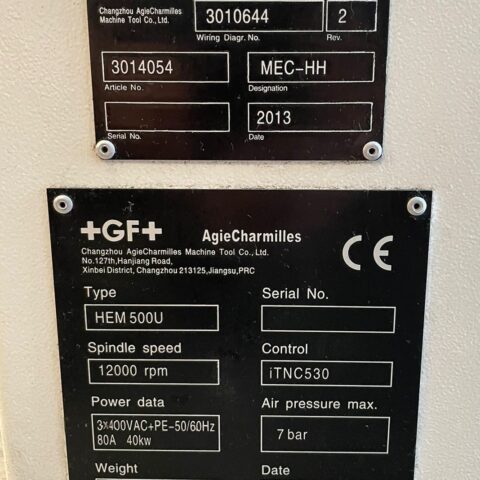

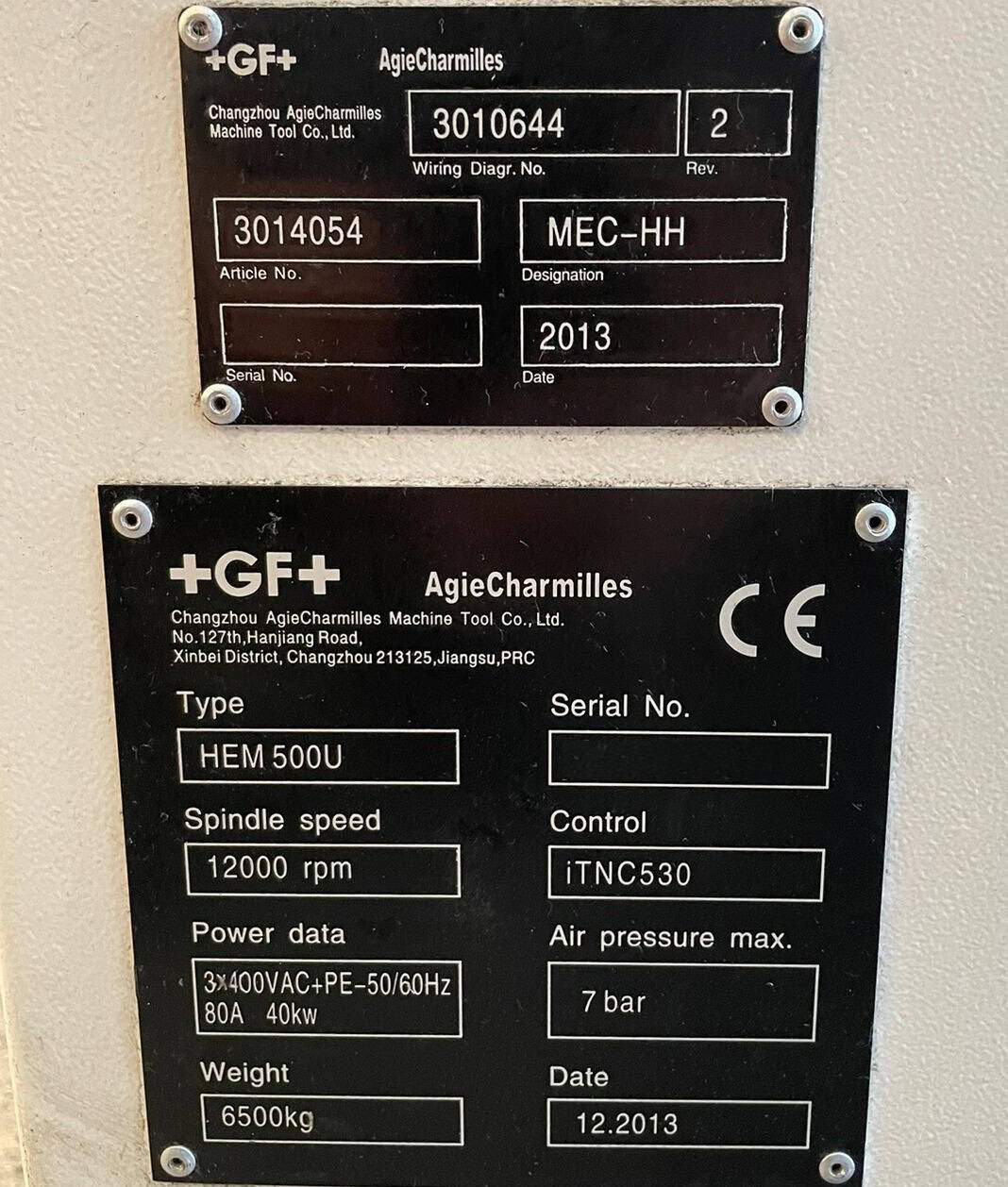

| Power: 400v / 50/60 Hz / 3-Phase / 40 kw |
| Machine Dimensions: 105″ x 128″ x 123″ High High Approx. |
| Weight: 14,330 lbs |
