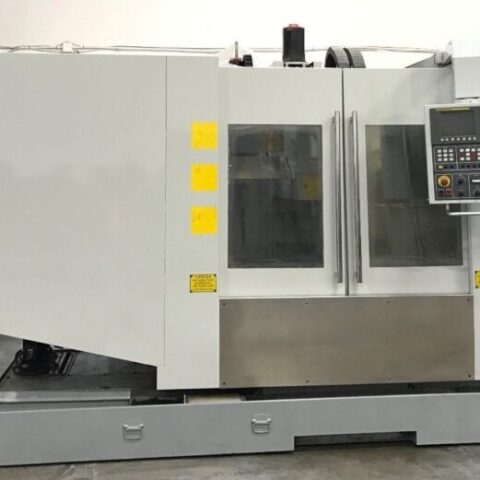

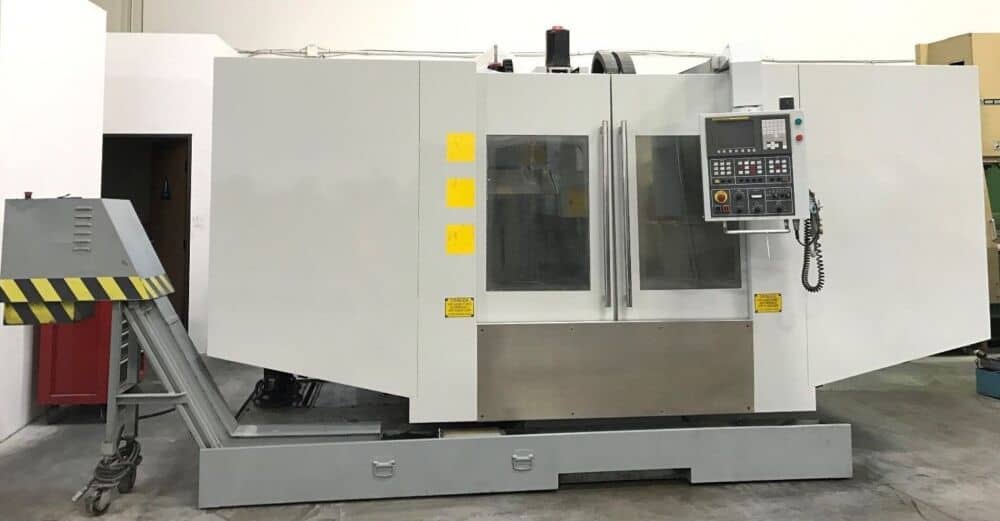

| MILLTRONICS RH 30 CNC VMC | |
|---|---|
| Make | Milltronics |
| Model No. | RH-30 |
| Year of Manufacture: | 2004 |

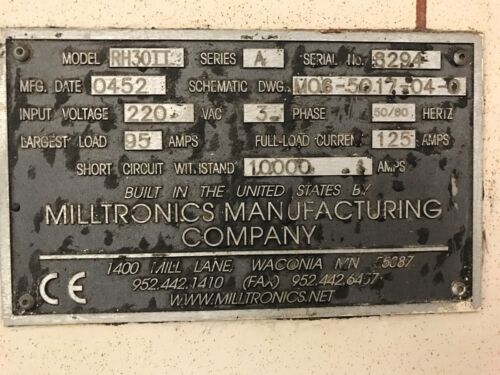

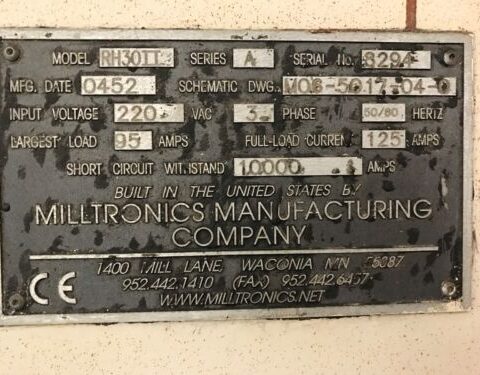

| Serial # | 8294 |
| Condition | Very Good |
| Country Of Origin: | USA |
All specifications are approximations and are subject to verification.
“This One Owner machine is in Great condition. Only 2249 Cutting Hours, Equipped with Fanuc 0i-MC Control, Rigid Geared Head Spindle. On our Floor fully powered / tested and ready for inspection“
- Features:

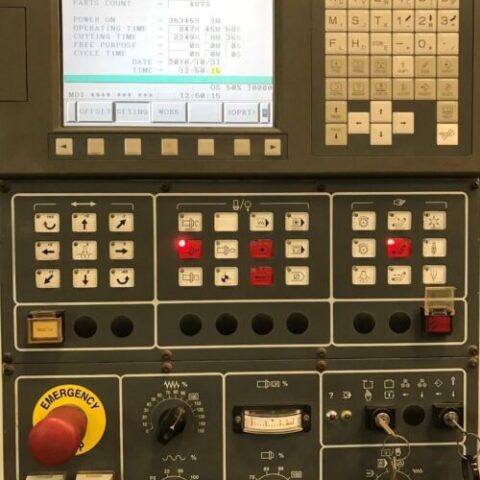

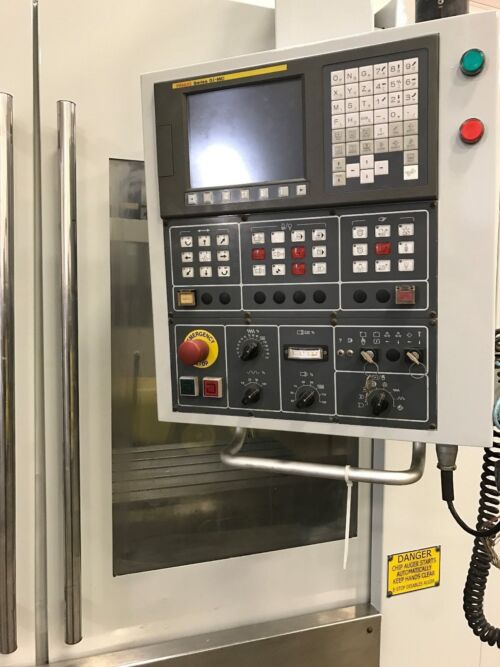

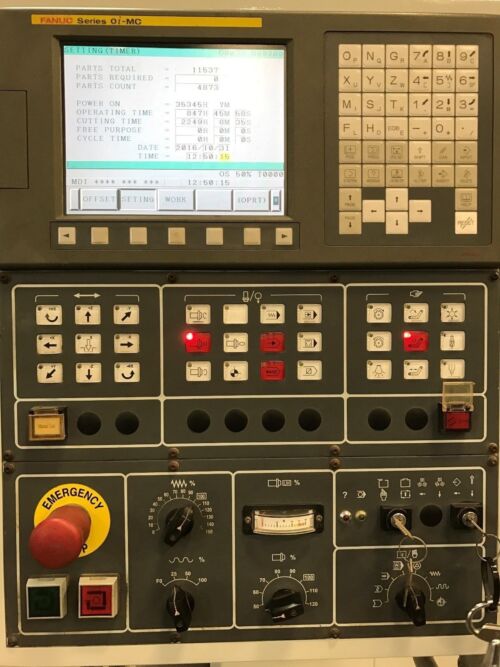

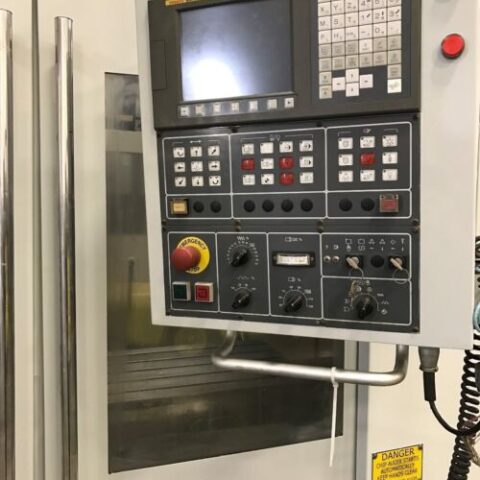

- Fanuc 0i-MC CNC Control

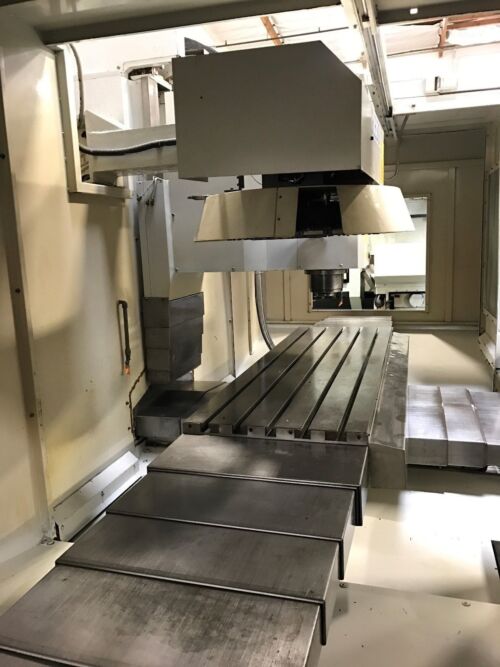

- 76″ x 24″ Big Table
- 60″ x 30″ x 28″ Travels
- 4th Axis Pre Wired
- Expanded Program Memory
- Remote Jog Handle
- Rigid Tapping
- High Speed Machining
- Advanced Tool Management
- Power Failure Detection Module
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling

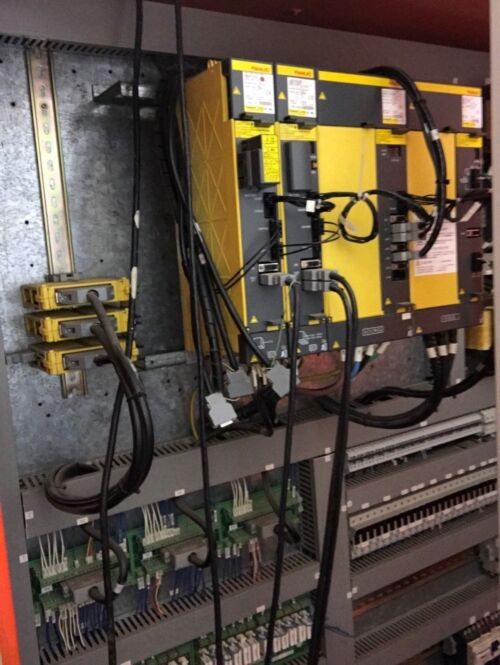

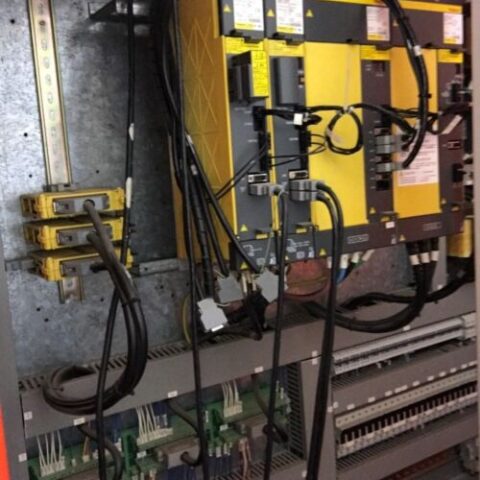

- Brush-type servo drive motors on all axis
- 20 automatic tool changer

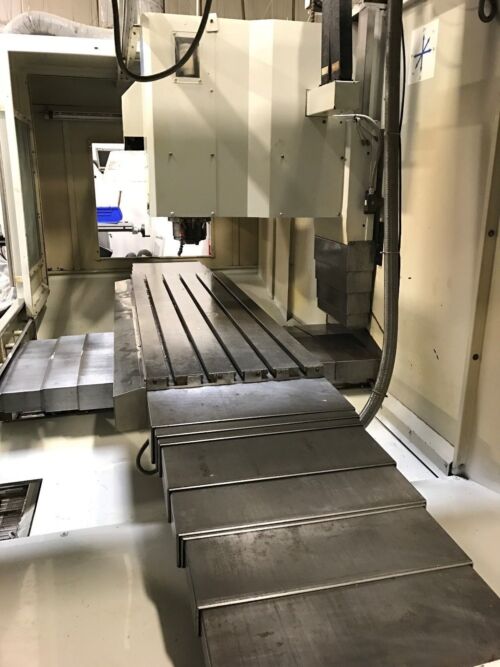

- Telescopic way covers

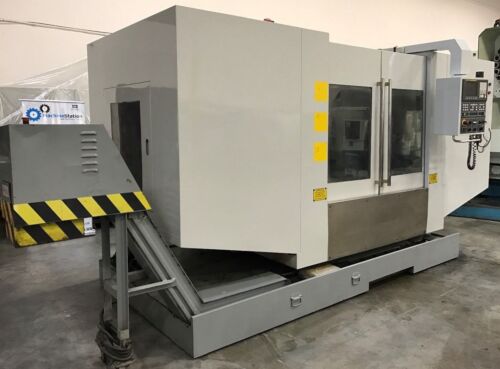

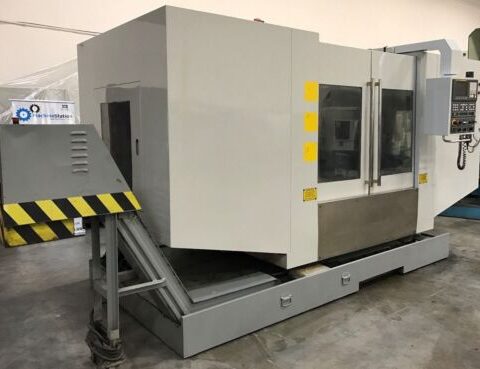

- Chip Conveyor
- PCMCI Card Slot
- Flood Coolant system
- Additional Photos and Video available.
- MILLTRONICS RH 30
- Specifications:
- Travels:
- X-Axis: 60″
- Y-Axis: 30″
- Z-Axis: 28″

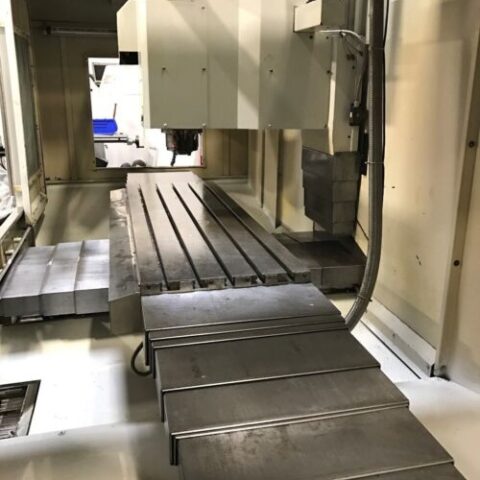

- Table:
- Length: 76″
- Width: 24″
- Number of Std T-Slots: 5
- T-Slot Width: 0.70″
- Max Weight on Table: 3000 lbs
- Spindle:
- Taper Size: CAT 40
- Speed Range: 0 – 8000 RPM
- Spindle Power: 15 HP
- Max Torque: 90ft-lb @ 2000RPM
- Automatic Tool Changer:
- Capacity: 20
- Max Tool Weight: 15 lbs
- Max Tool Dia: 3.5″
- Max Tool Length: 11″
- Tool Changing Time: 3.0 Seconds
- General:
- Air Required: 100 psi, 30 cfm
- Power: 220v / 66FLA / 3-Phase, 30 KVA
- Overall Dimensions: 136″ x 110″ x 105″ High
- Weight: 24000 lbs

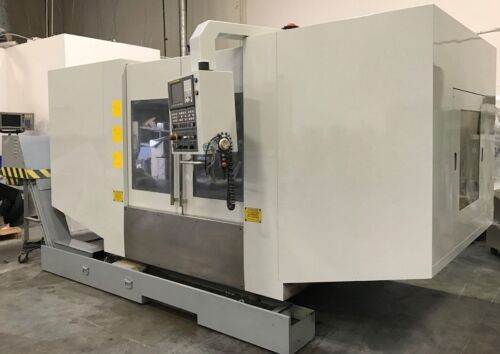

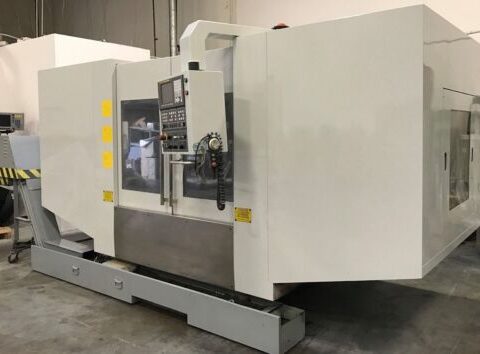

MILLTRONICS RH 30 Comes as shown in pictures.
