Miyano GN-4 2-Axis CNC Lathe

SKU 11753

Make/Model Miyano GN-4

Year 1991

Condition Used - Good

Video On Request

Out of stock

SKU:	11753
Make/Model:	Miyano GN-4
Year:	1991
Condition:	Used – Good
Video:	On Request

SKU: 11753

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Miyano
Model:	GN-4
Year:	1991
Machine Type:	2-Axis CNC Lathe
Control:	Fanuc Series 0-T CNC Control

Equipped With:
Fanuc Series 0-T CNC Control

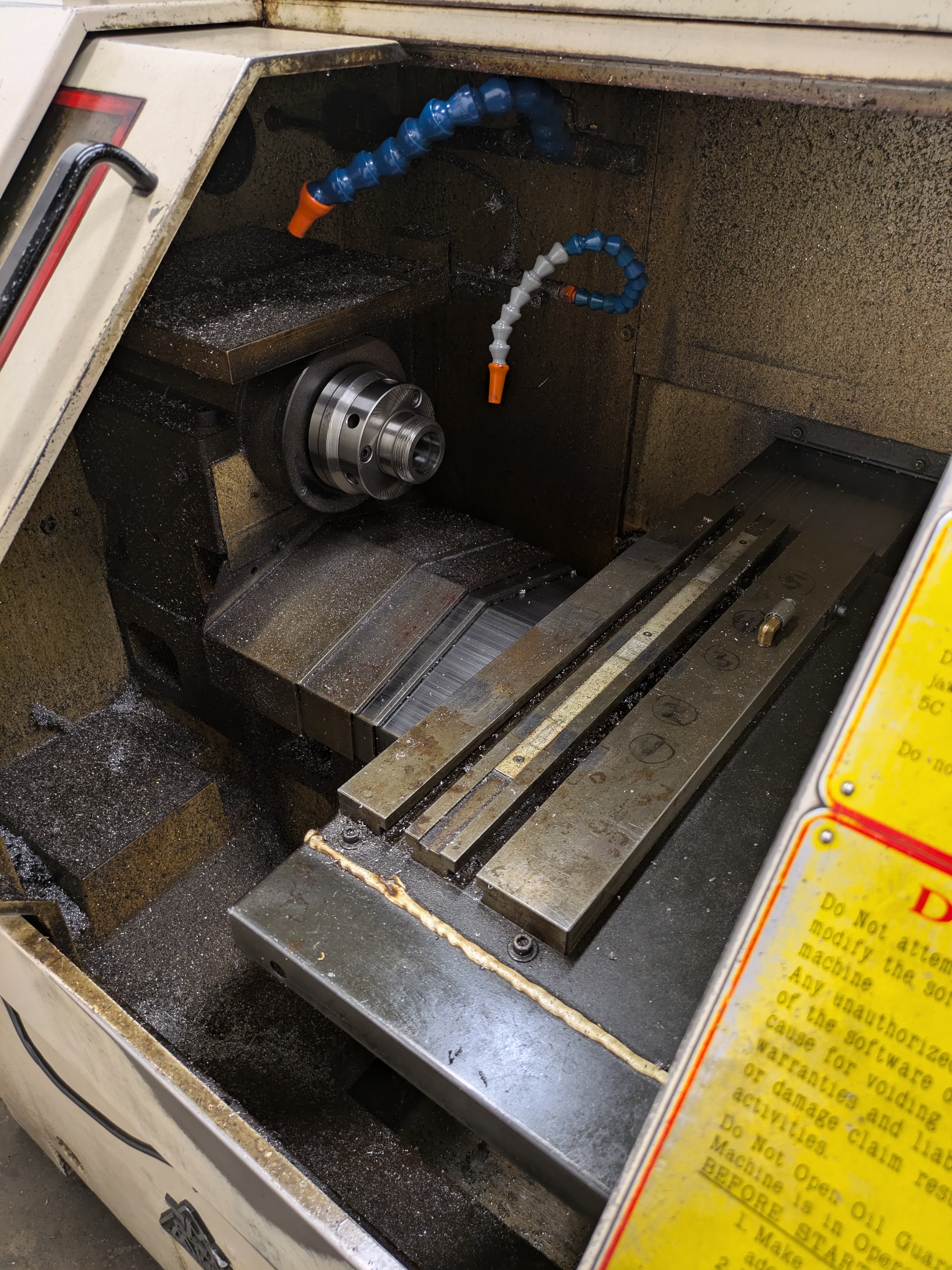

Gang Slide Tooling
Enclosed Work Area
Coolant System
4″ Chuck

Capacity:
Maximum Turning Diameter: 3.156″
Maximum Turning Length: 3.156″
Chuck Size: 4″

Spindle:
Maximum Spindle Speed: 4,000 RPM
Spindle Motor: 5 HP

General:
Machine Dimensions (Approx.): 60″ L × 50″ W × 65″ H
Machine Weight (Approx.): 2,500 lbs.

Equipped With:
Fanuc Series 0-T CNC Control
Gang Slide Tooling
Enclosed Work Area
Coolant System
102 mm Chuck

Capacity:
Maximum Turning Diameter: 80 mm
Maximum Turning Length: 80 mm
Chuck Size: 102 mm

Spindle:
Maximum Spindle Speed: 4,000 RPM
Spindle Motor: 5 HP

General:
Machine Dimensions (Approx.): 1,524 mm L × 1,270 mm W × 1,651 mm H
Machine Weight (Approx.): 2,500 lbs.

Categories	CNC Lathes & Turning Centers
Make	Miyano
Model	GN-4

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
