*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

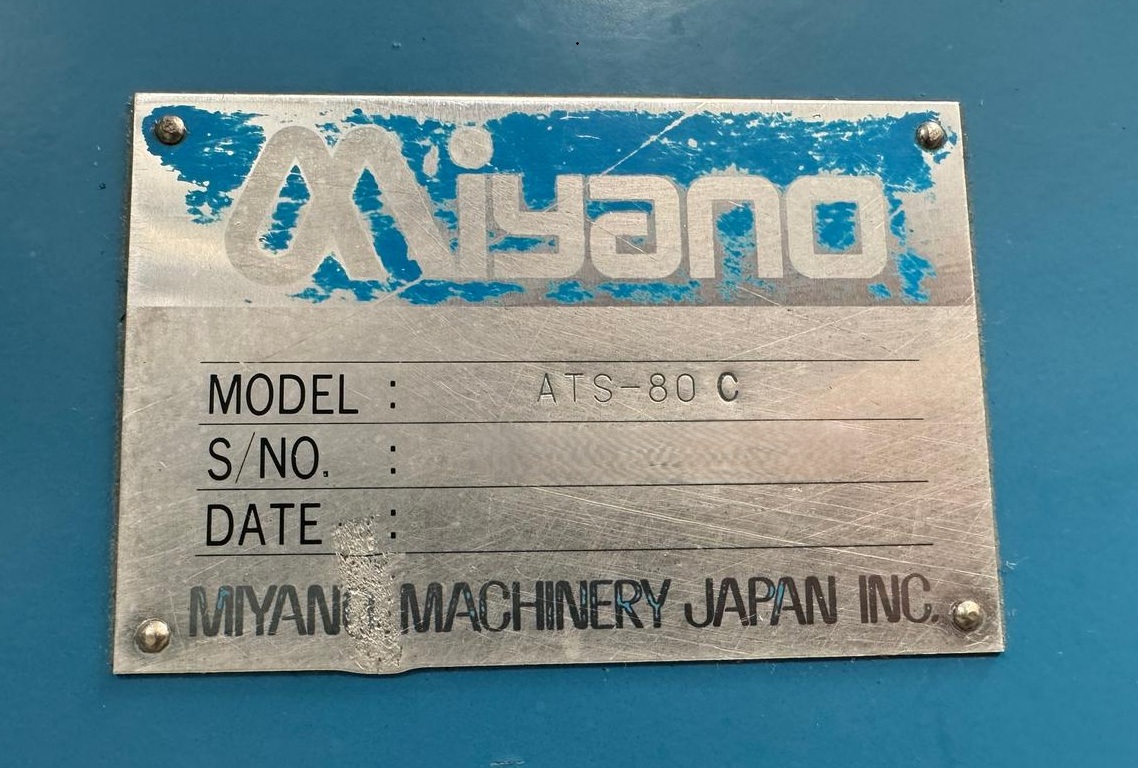

| Make: | Miyano |
| Model: | ATS-80C |
| Machine Type: | CNC Turning Center |
| Control: | Fanuc OT CNC Control |
| Equipped With: |
|---|
| Fanuc OT CNC Control |

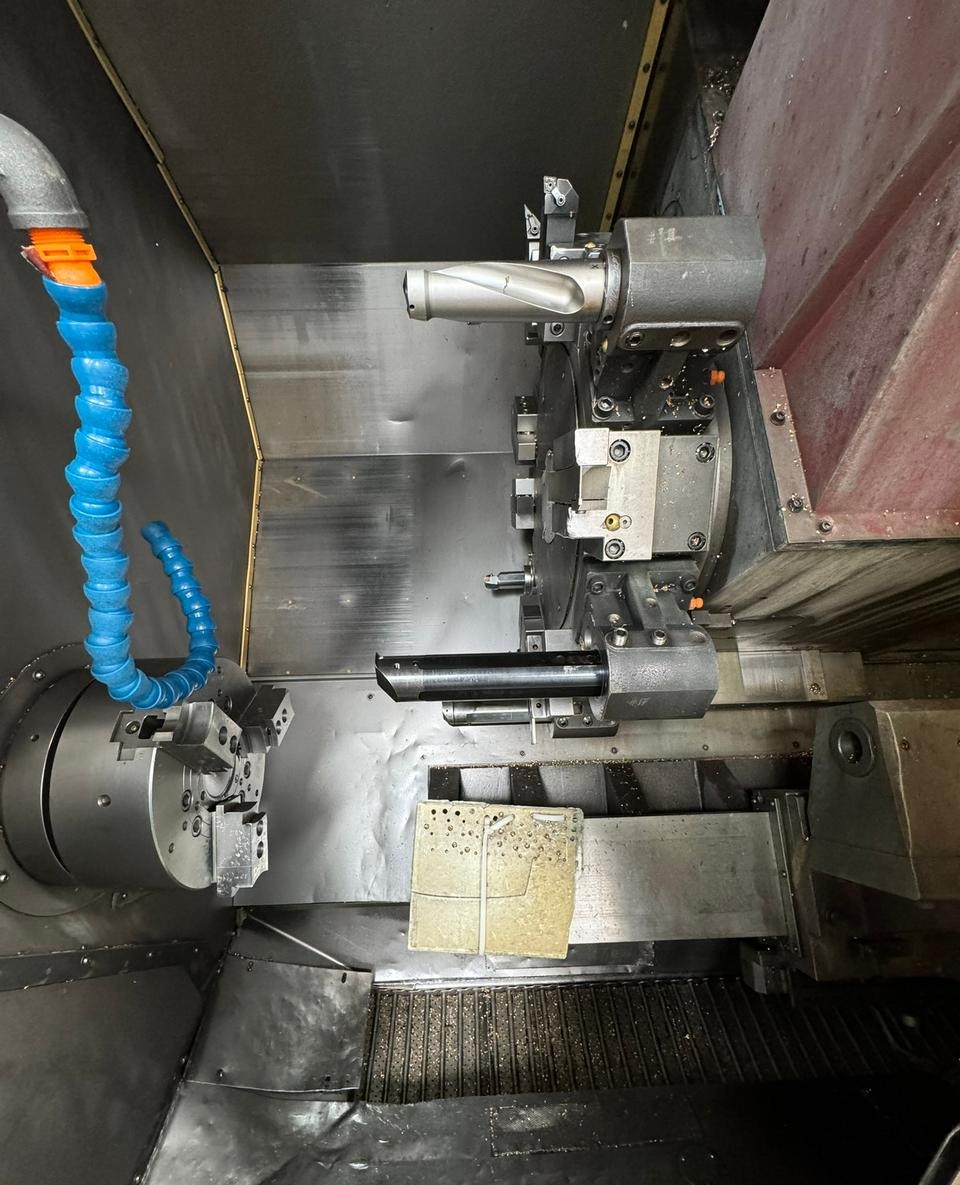

| Kitagawa Chuck |
| 12-Station Turret |
| Tailstock |
| C-Axis |
| Revolving Tool Capability |
| Chip Conveyor |
| Coolant System |
| Coolant Filtration System |
| Capacity: |
|---|
| Maximum Turning Diameter: 12″ |
| Maximum Machining Length: 28.25″ |
| Travels: |
|---|
| X-Axis Travel: Approx. 12″ |
| Z-Axis Travel: Approx. 29″ |
| Rapid Traverse X/Z: Approx. 590 IPM / 590 IPM |
| Spindle: |
|---|
| Spindle Speed: Up to 2,400 RPM |
| Main Spindle Motor: 34 HP |
| Turret: |
|---|
| Turret Type: Automatic Turret |
| Number of Stations: 12 |
| Electrical: |
|---|
| Voltage: 230 V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| General: |
|---|
| Machine Dimensions (Approx.): 14′ L × 9′ W × 8.5′ H |
| Machine Weight (Approx.): 24,000 lbs |
