*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | DuraVertical 5100 |
| Year: | 2012 |
| Machine Type: | 3-Axis CNC Vertical Machining Center |
| Features: |
|---|
| Mori Seiki MSX-504 IV CNC Control |
| 30-Station Automatic Tool Changer |
| CAT 40 Spindle Taper |
| 12,000 RPM High-Speed Spindle |
| 20 HP Spindle Motor |
| LNS Chip Conveyor |
| Coolant Tank & Pump |

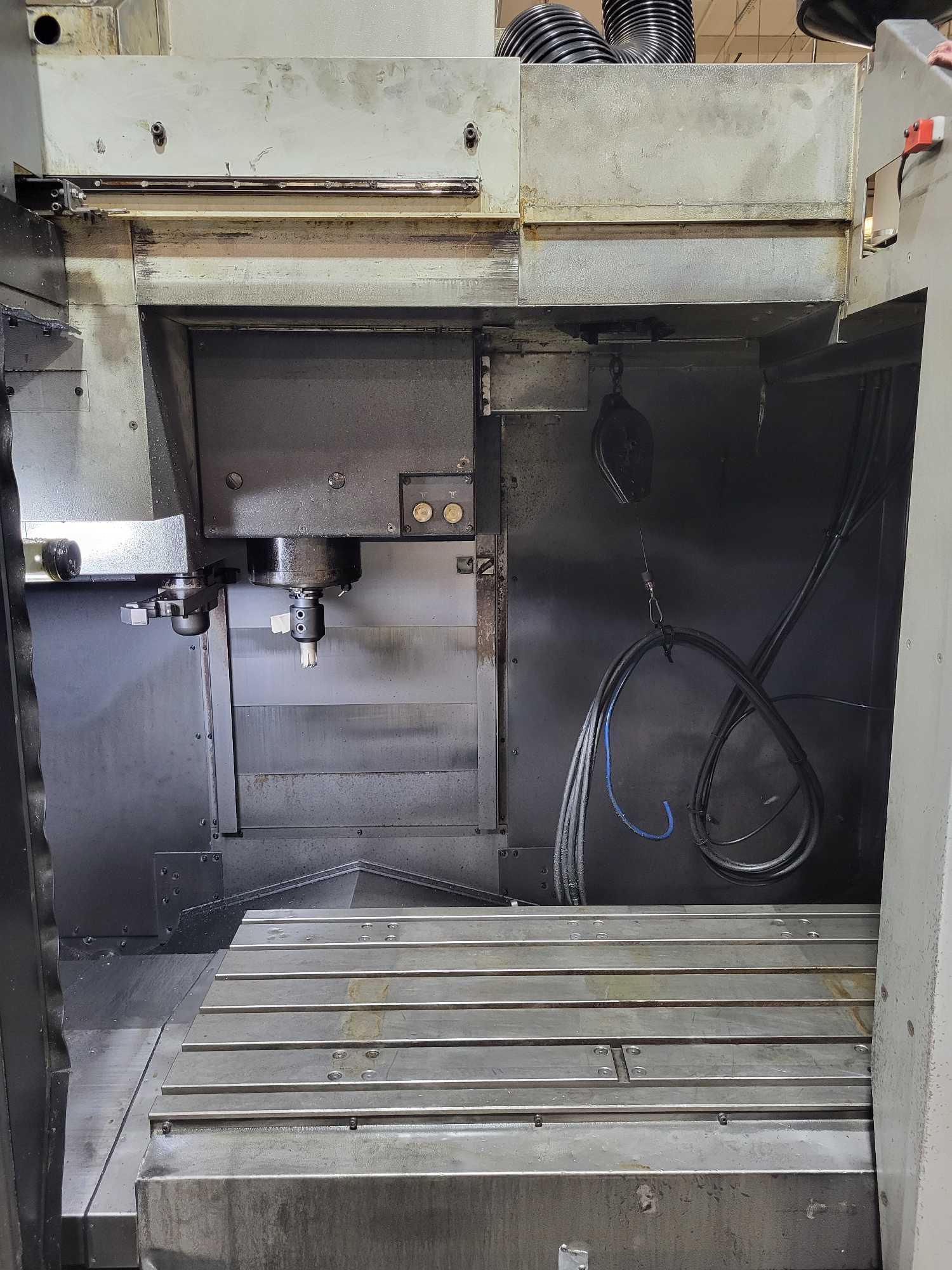

| Enclosed Work Area |
| Mist/Dust Collection System |
| In-Machine Spindle |
| Tool Monitoring Equipment |
| Signal Tower |
| High-Pressure Coolant System |
| Capacity: |
|---|
| Table Size: 53.1″ × 23.6″ |
| Maximum Table Load: 2,200 lbs. |
| Spindle Nose to Table: 5.9″–26.0″ |
| Maximum Tool Length: 11.8″ |
| Maximum Tool Weight: 17.6 lbs. |
| Travels: |
|---|
| X-Axis Travel: 41.3″ |
| Y-Axis Travel: 20.9″ |
| Z-Axis Travel: 20.1″ |
| Rapid Traverse X-Axis: 1,417 IPM |
| Rapid Traverse Y-Axis: 1,417 IPM |
| Rapid Traverse Z-Axis: 787 IPM |
| Spindle: |
|---|
| Spindle Type: Vertical |
| Spindle Taper: CAT 40 |
| Maximum Spindle Speed: 12,000 RPM |
| Spindle Motor: 20 HP |
| Spindle Nose to Table: 5.9″–26.0″ |
| Automatic Tool Changer: |
|---|
| Tool Changer Type: Automatic Tool Changer |
| Tool Changer Capacity: 30 Stations |
| Tool Changer Configuration: Side-Mount ATC |
| Tool Taper: CAT 40 |
| Maximum Tool Length: 11.8″ |
| Maximum Tool Weight: 17.6 lbs. |
| General: |
|---|
| Cutting Time: 18,579 Hours |

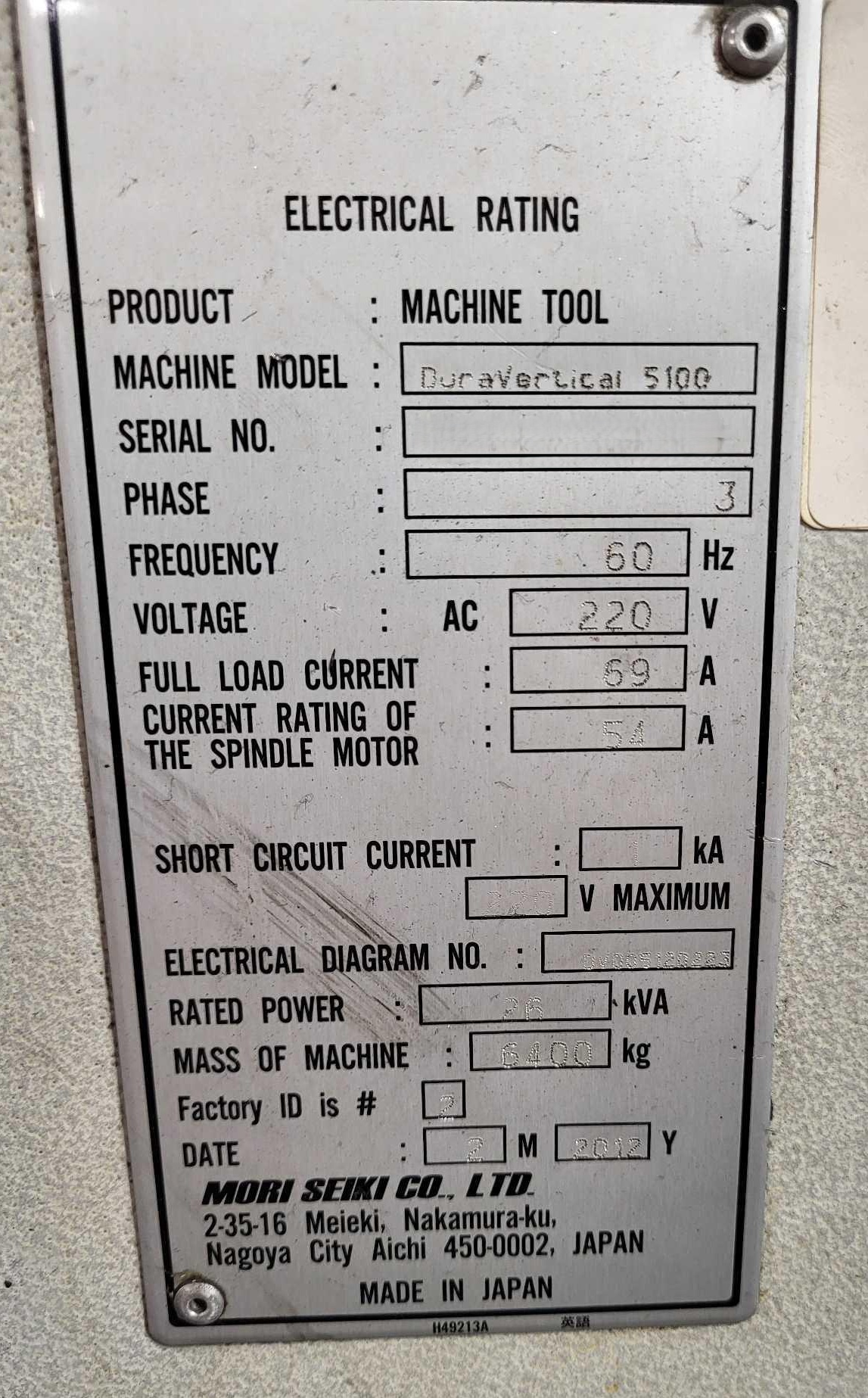

| Power Source: 220V / 3-Phase / 60 Hz |
| Machine Weight (Approx.): 14,100 lbs. |
| Machine Dimensions (Approx.): 108″ L × 95″ W × 105″ H |
