*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

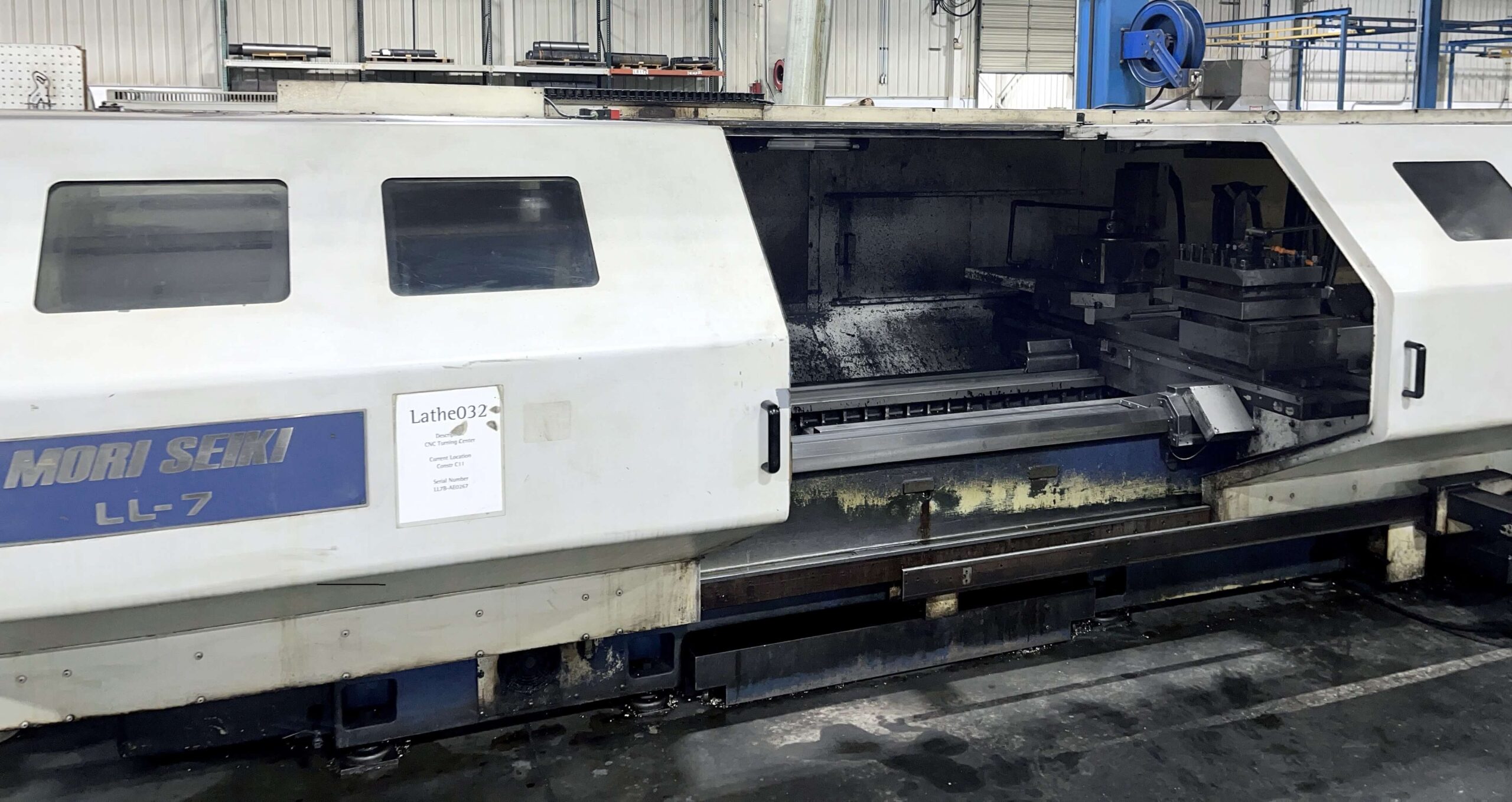

| Make: | Mori Seiki |
| Model: | LL-7B/3500 |
| Year: | 2001 |
| Equipped With: |
|---|
| Mori Seiki MSC-501 CNC Control |

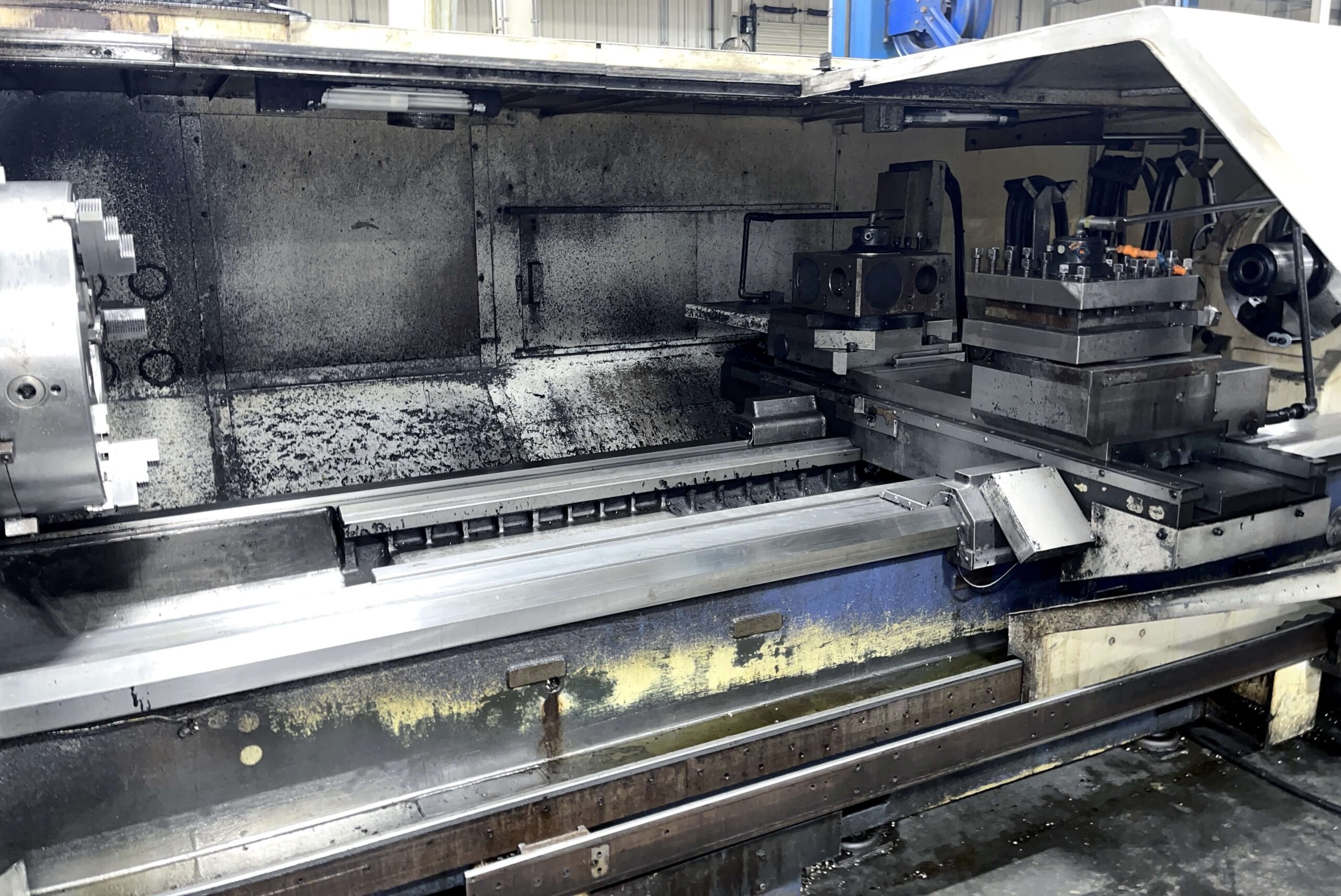

| Twin Turret Configuration |
| 4-Position Tool Stations |
| 25″ Manual Chuck |
| Tailstock |
| (2) Manual Steady Rests |
| Boring Bar Attachment |
| Chip Conveyor |
| Hydraulic System |
| Fully Enclosed Splash Guard |
| Capacity: |
|---|
| Distance Between Centers: 137″ |
| Swing Over Bed: 43″ |
| Spindle Bore: 8.5″ |
| Chuck Size: 25″ |
| Travels: |
|---|
| X-Axis Travel: Approx. 21.5″ |
| Z-Axis Travel: Approx. 137″ |
| Spindle: |
|---|
| Spindle Speed: 750 RPM |
| Spindle Motor: 50 HP |
| Spindle Bore: 8.5″ |
| Turrets: |
|---|
| Twin Turrets |
| 4 Tool Stations |
| Tailstock: |
|---|
| Heavy-Duty Programmable Tailstock |
| (2) Manual Steady Rests |
| General: |
|---|

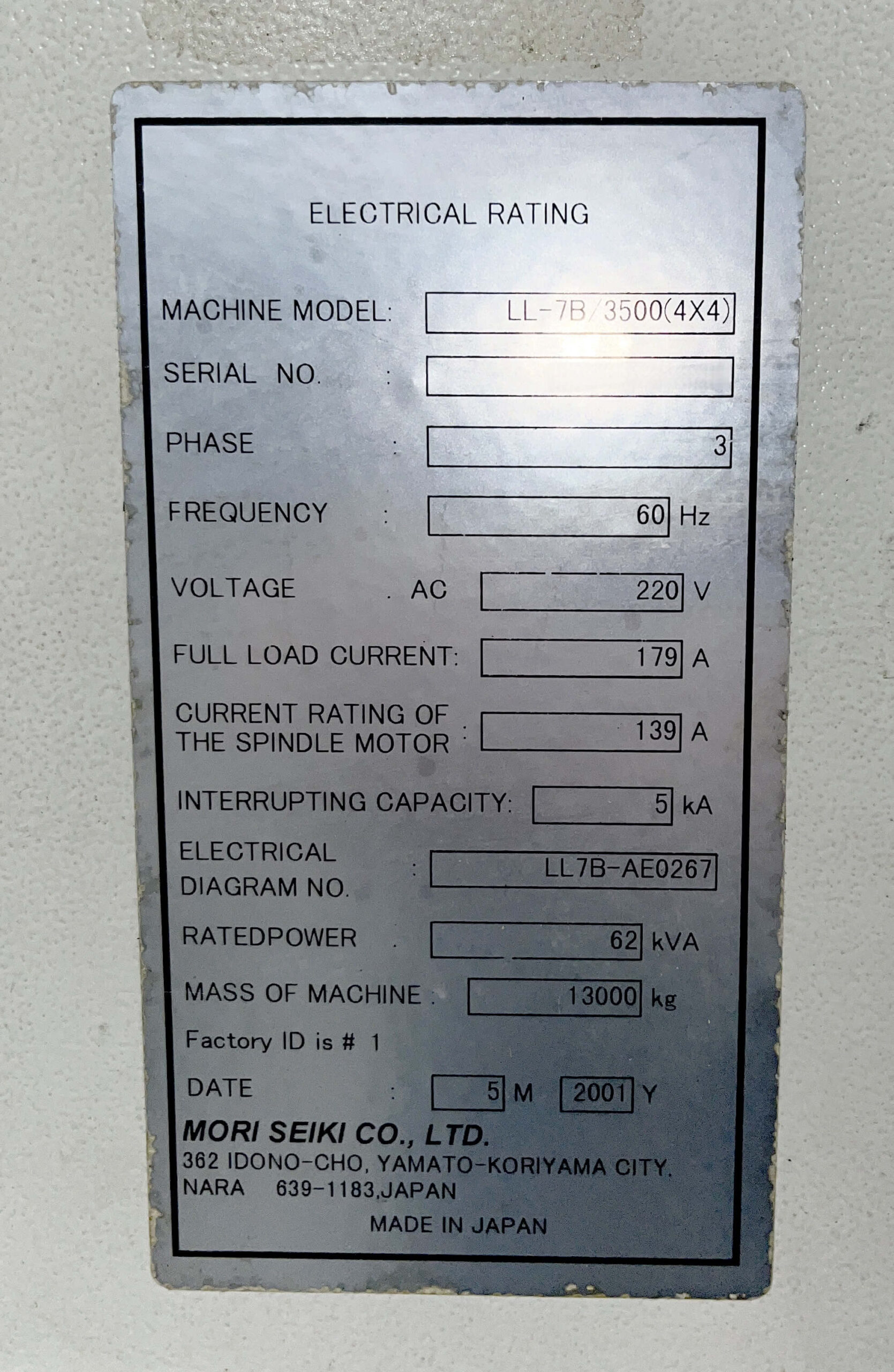

| Electrical: 220 V / 3 Phase / 60 Hz |
| Rated Power: 62 kVA |
| Machine Dimensions (Approx.): 258″ × 90″ × 98″ |
| Machine Weight: 28,660 lbs |
