*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

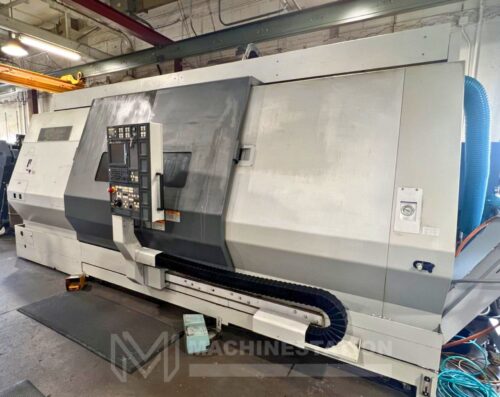

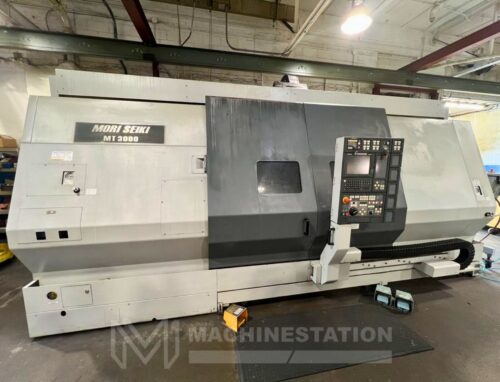

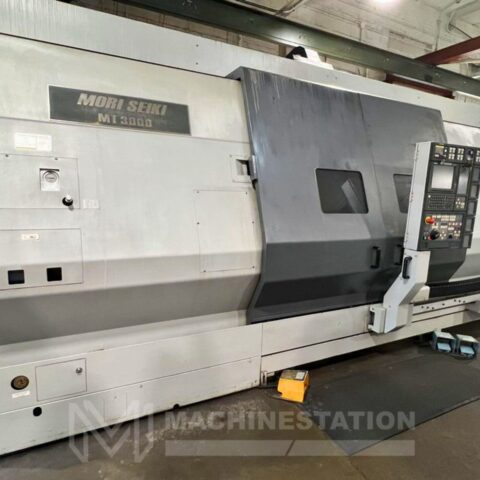

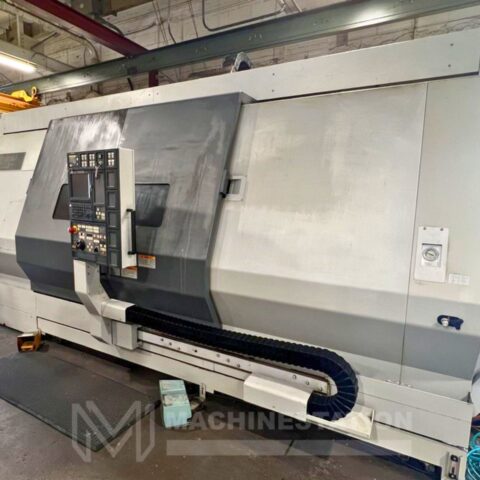

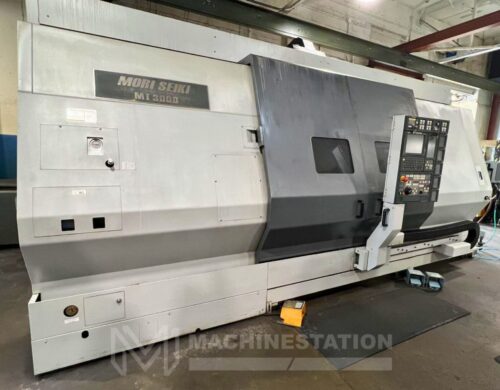

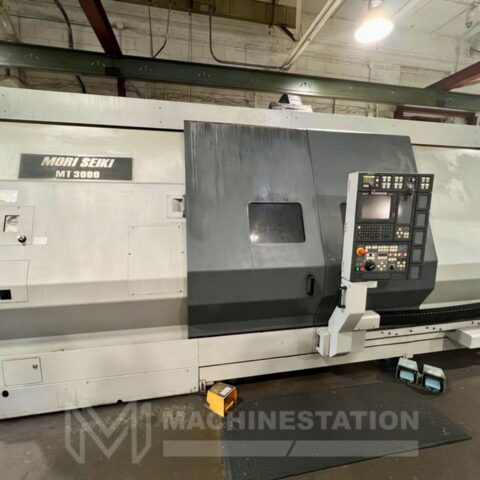

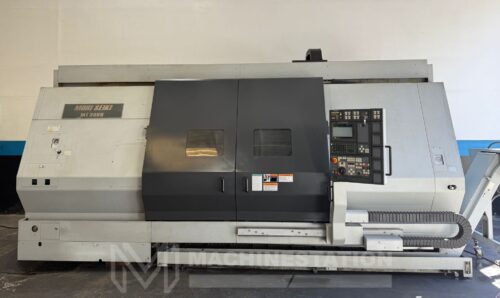

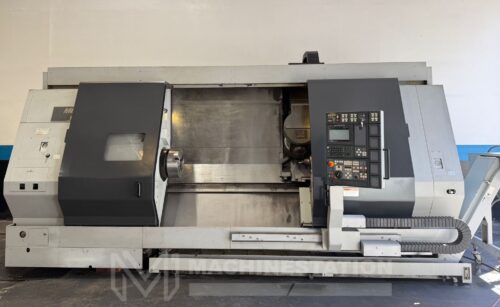

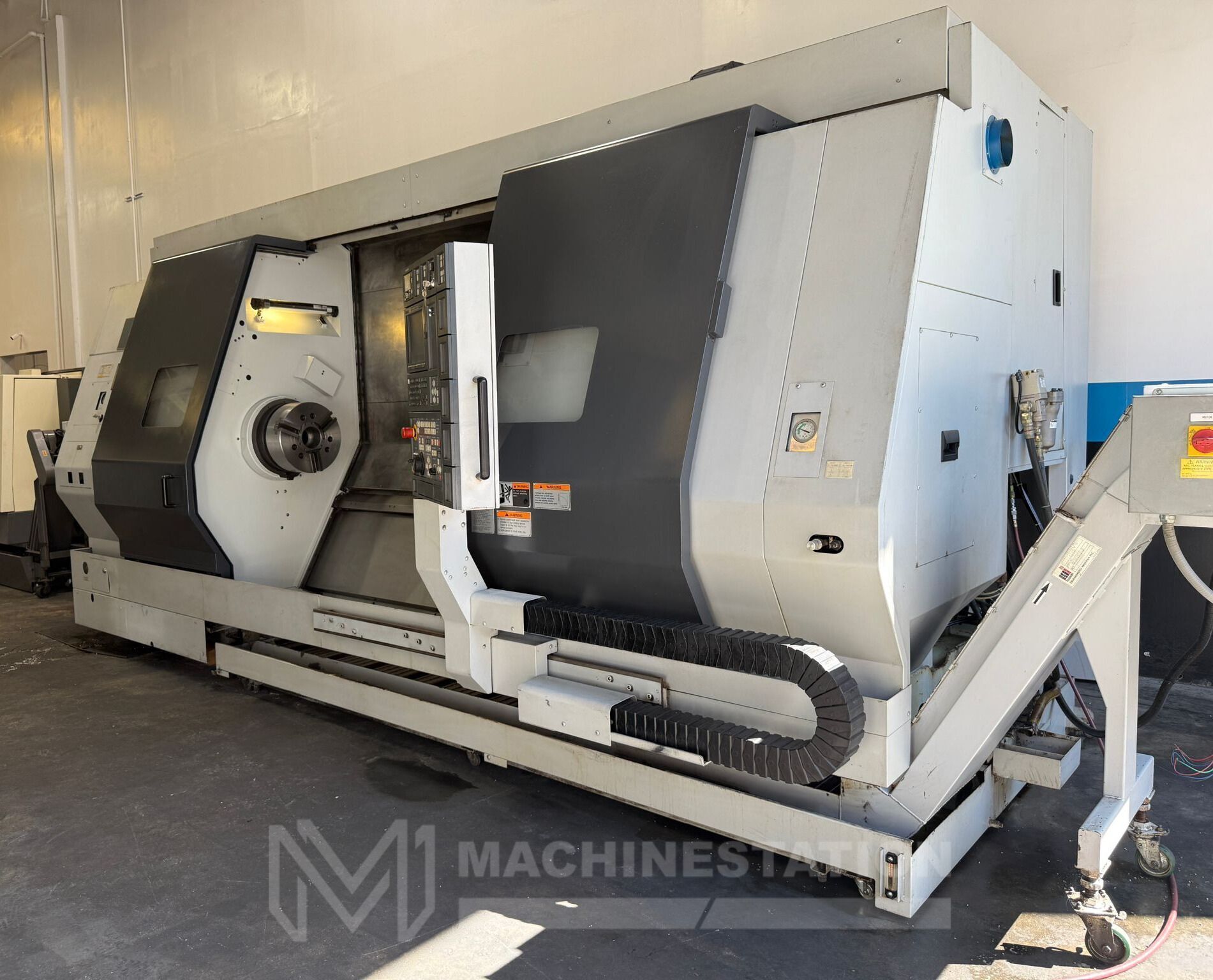

| Make: | Mori Seiki |
| Model No.: | MT3000/1500 |
| Year of Manufacture: | 2003 |
| Equipped With: |
|---|

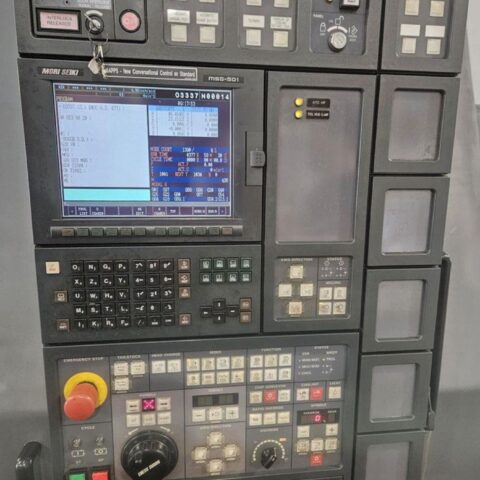

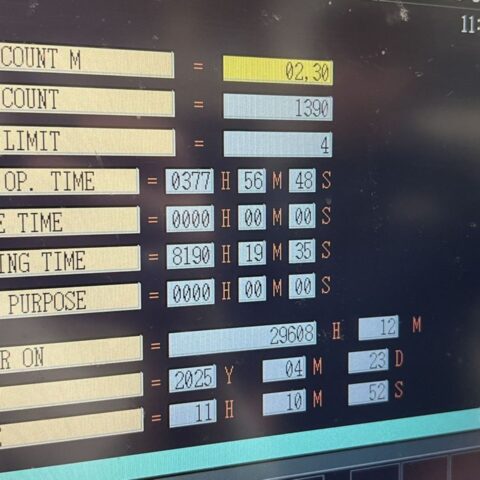

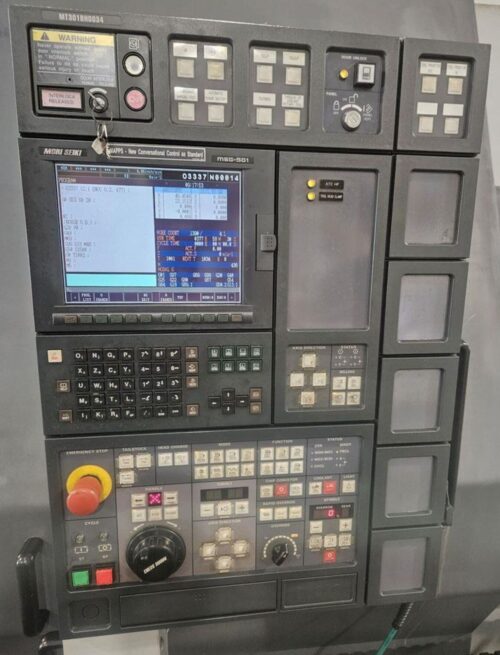

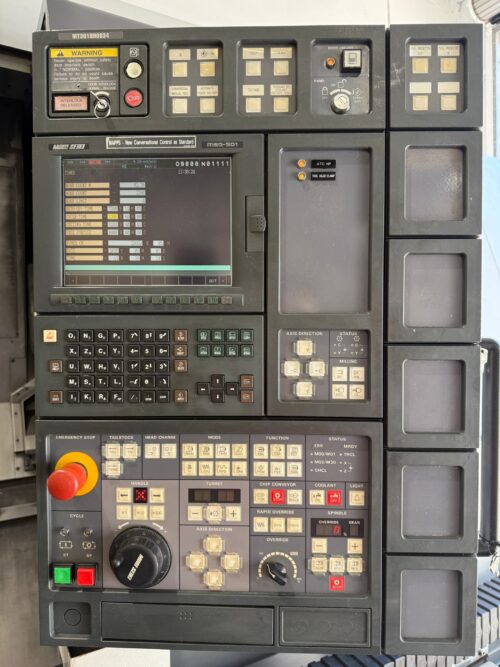

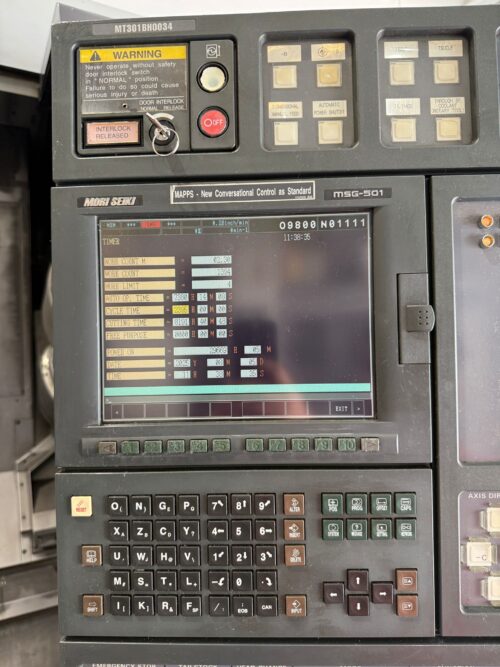

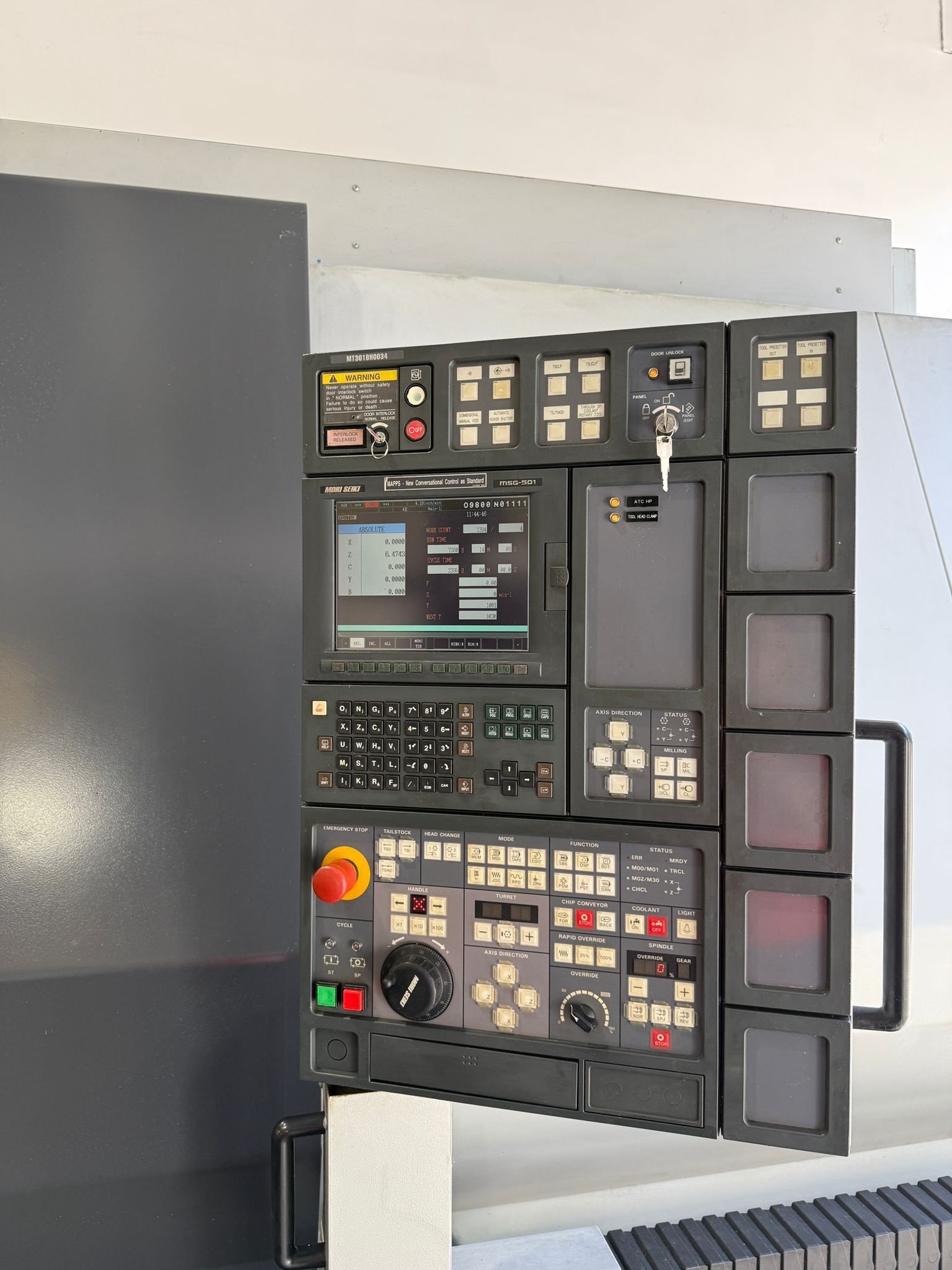

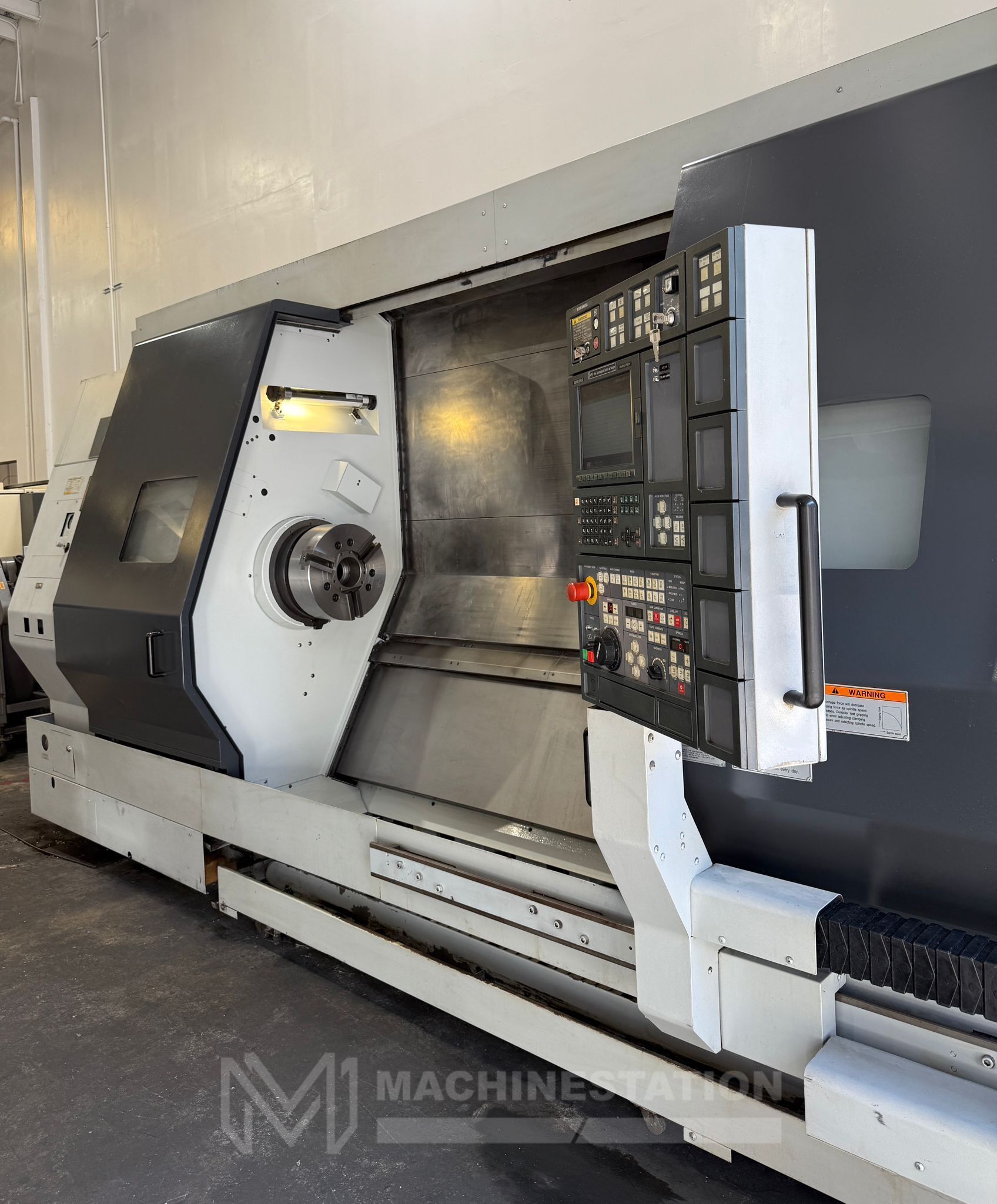

| Mori Seiki MSG-501 (Fanuc) CNC Control |

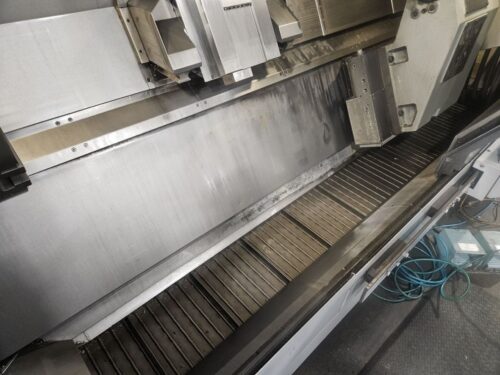

| Linear Ways Construction |

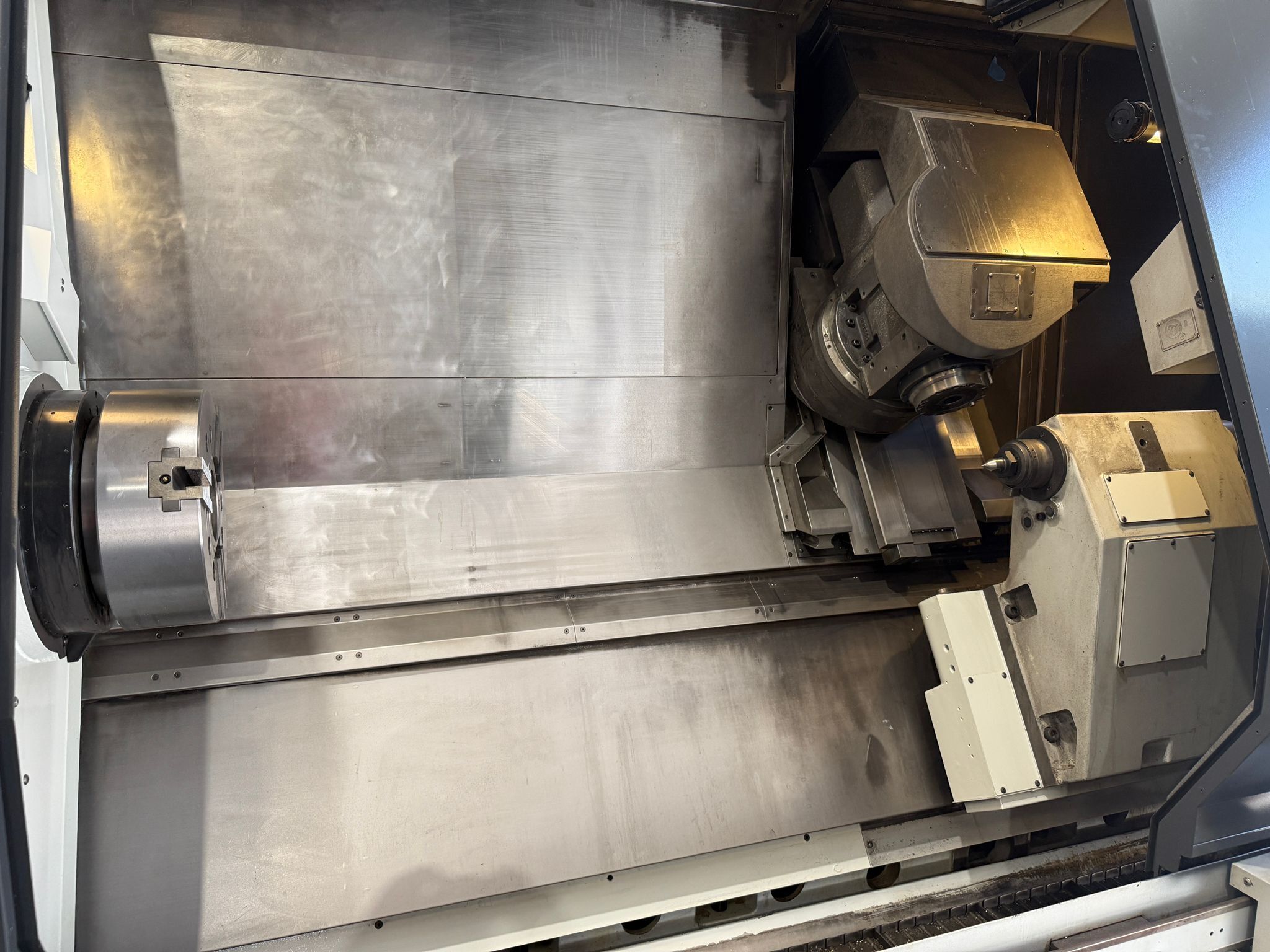

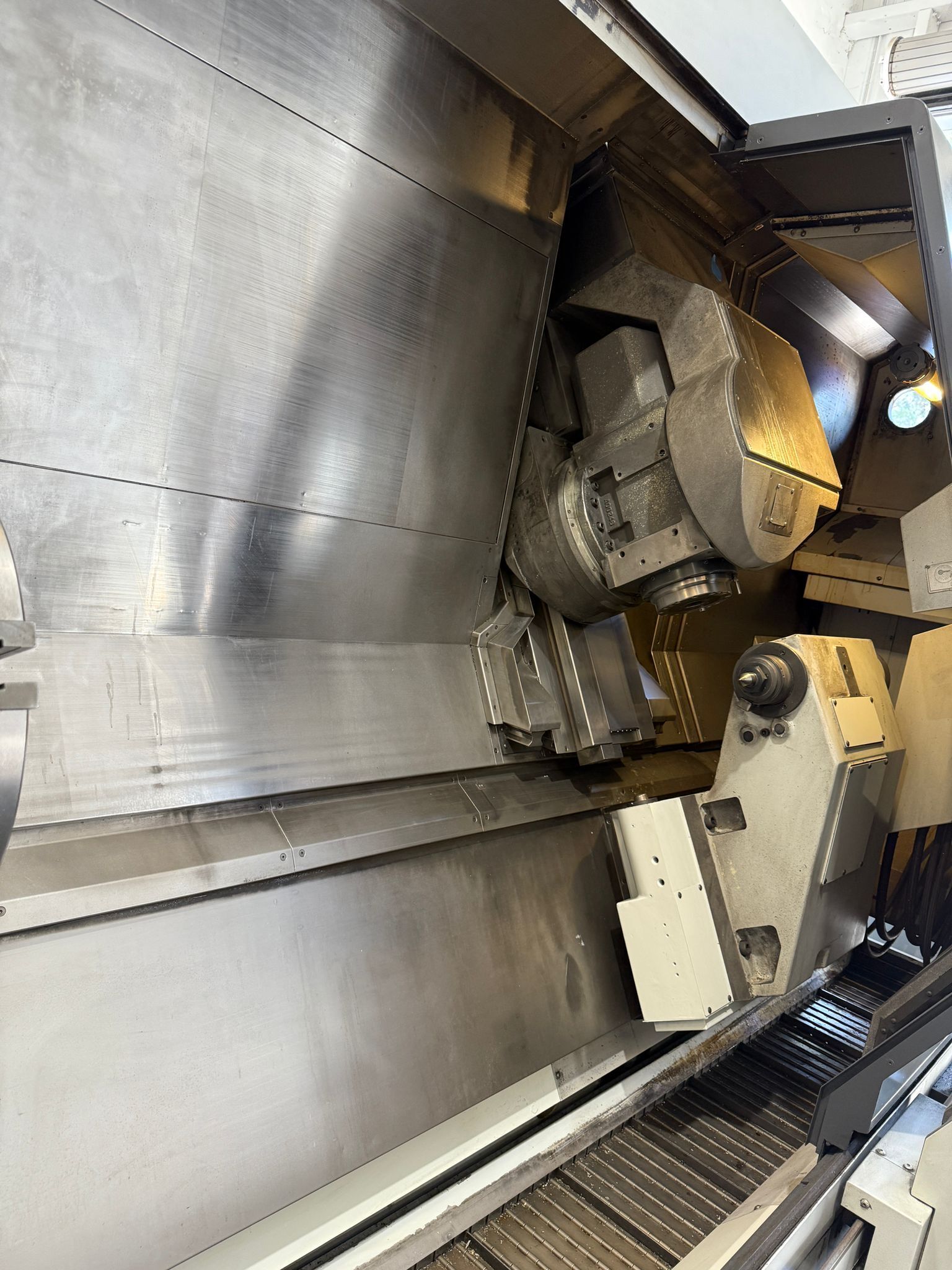

| 8,000 RPM Pendulum Milling Head |

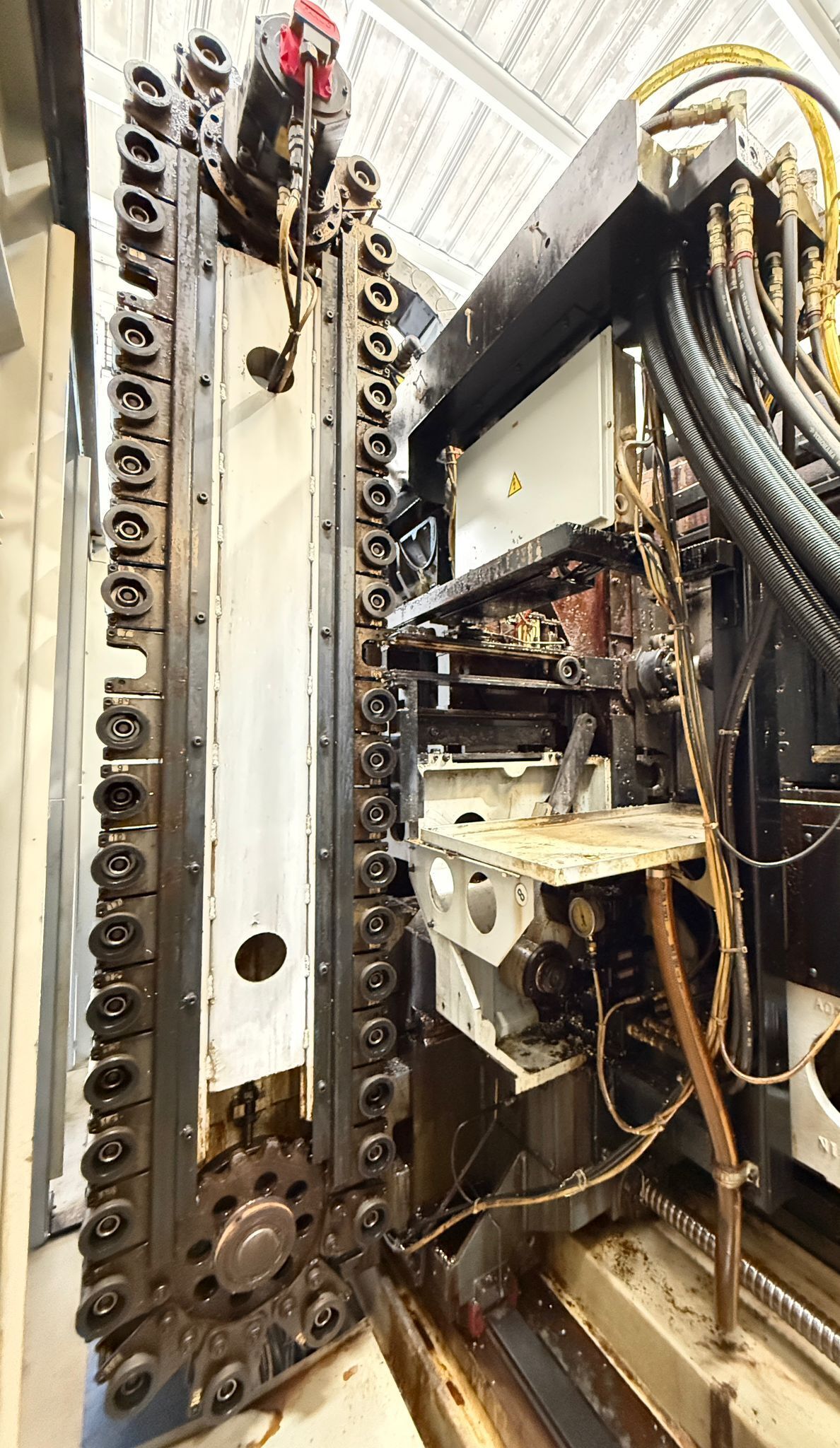

| 44 Station Tool Magazine |

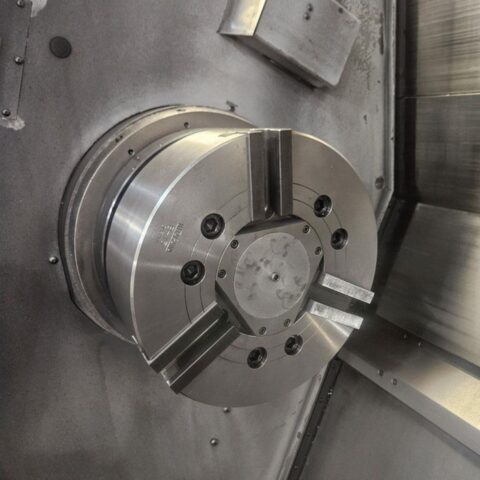

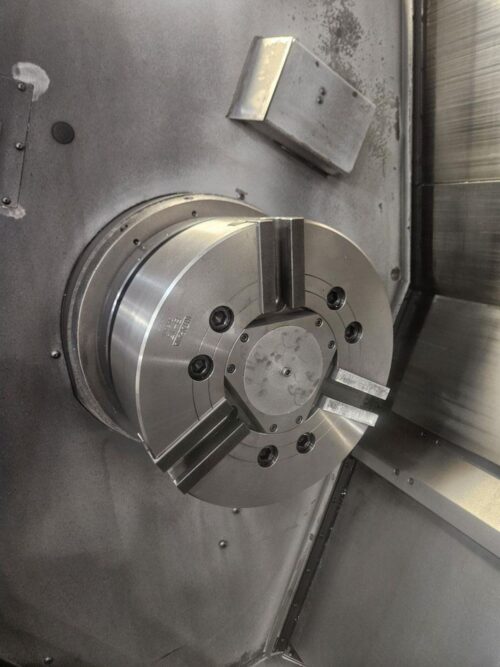

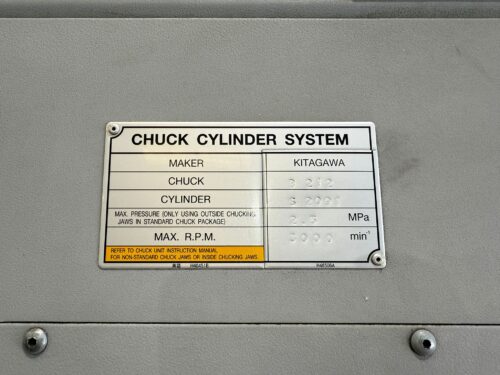

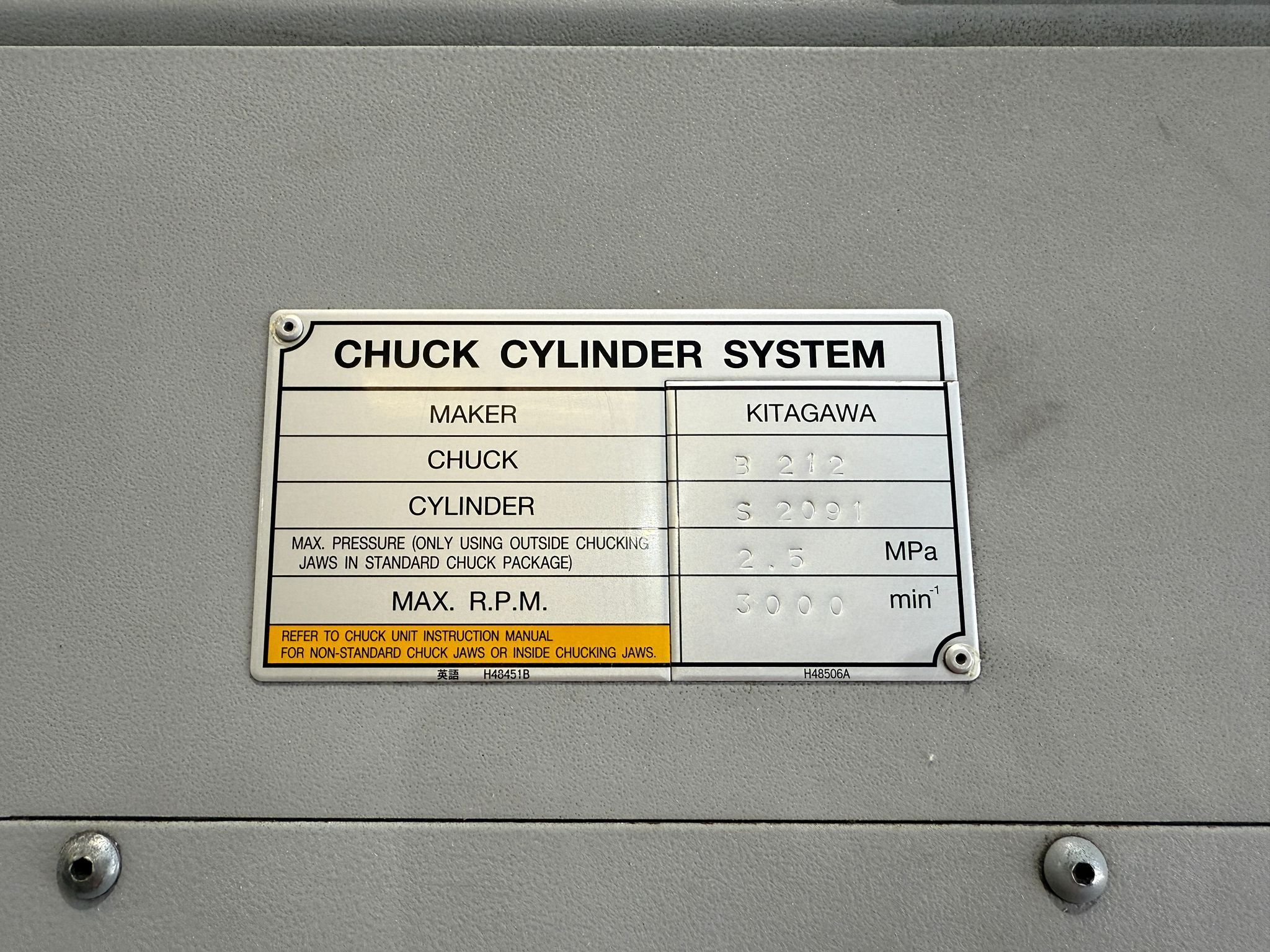

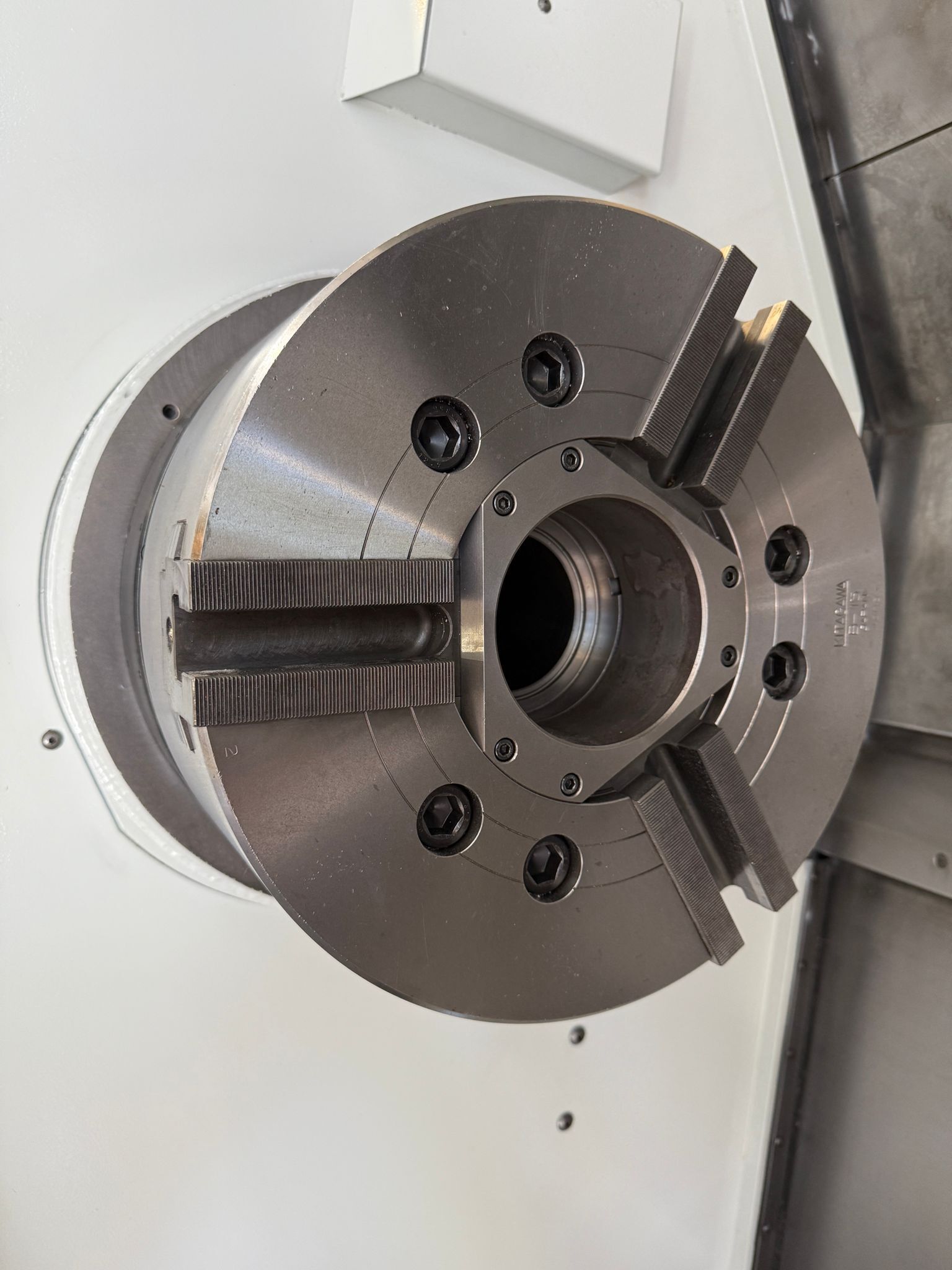

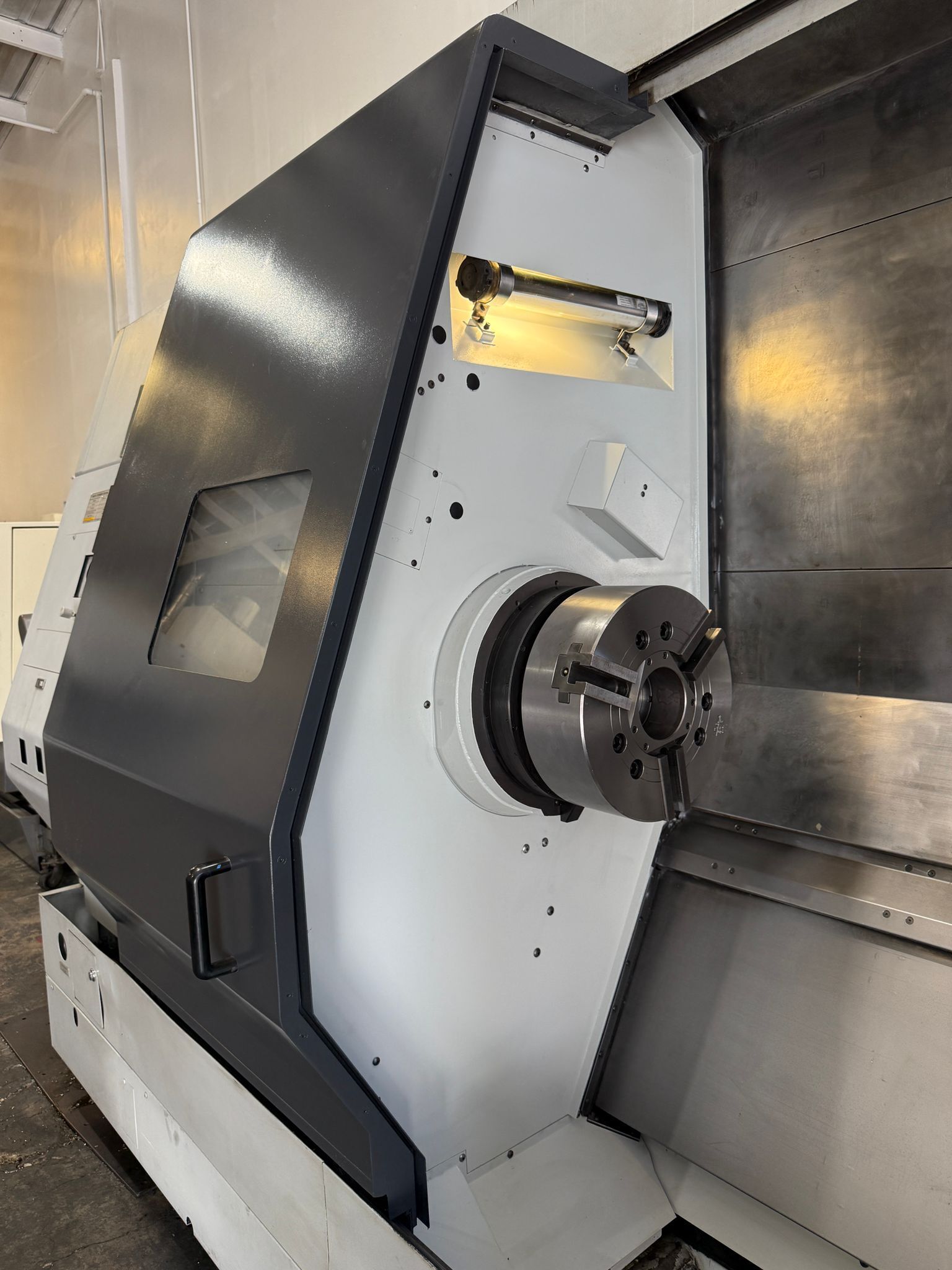

| 15″ 3-Jaw B-15 Kitagawa Chuck |
| Servo Controlled Full C-Axis on Spindles |
| Y-Axis on Upper Turret (Milling Head) |
| Tool Presetter |

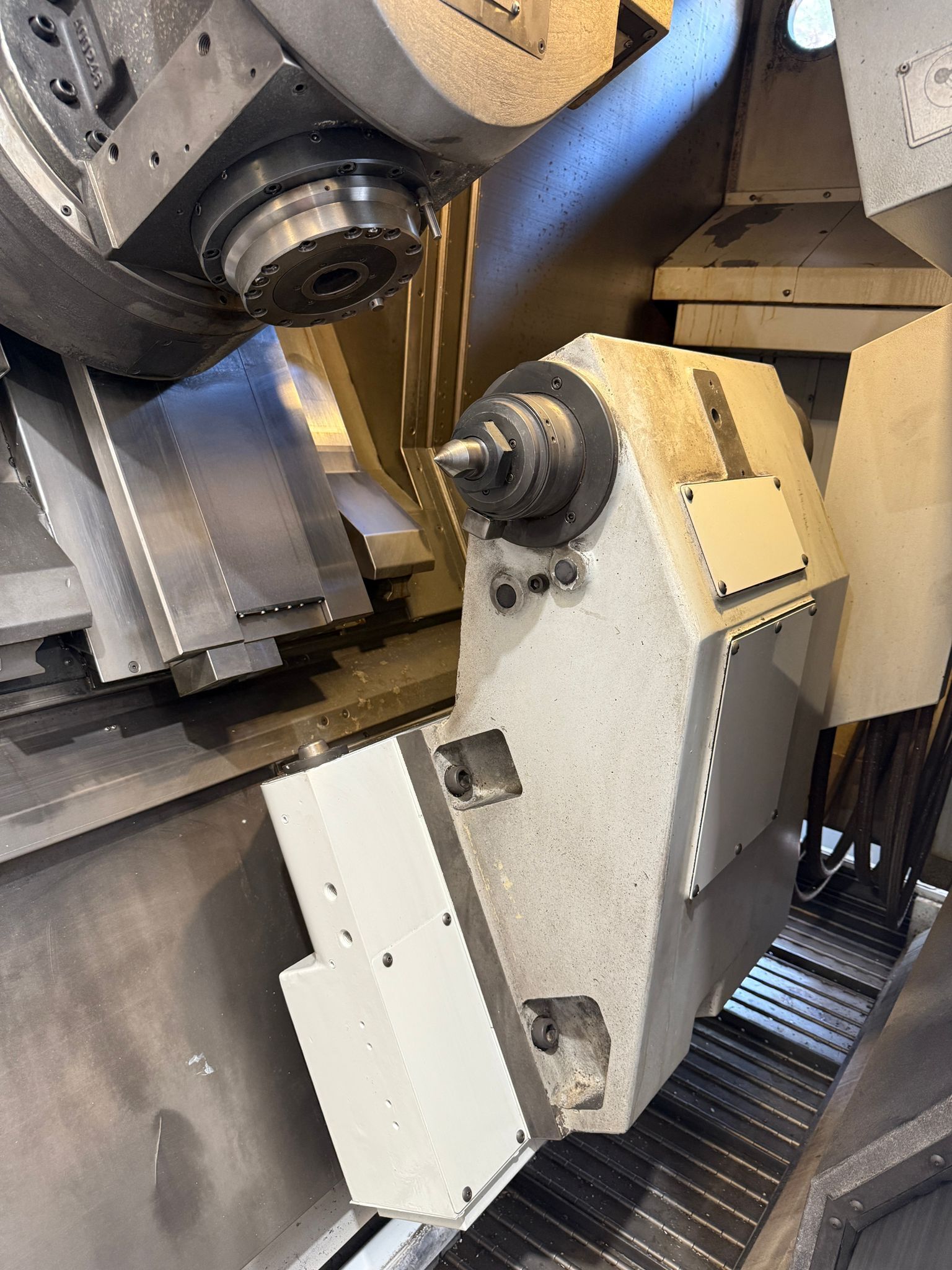

| Tailstock |
| Rigid Tapping |

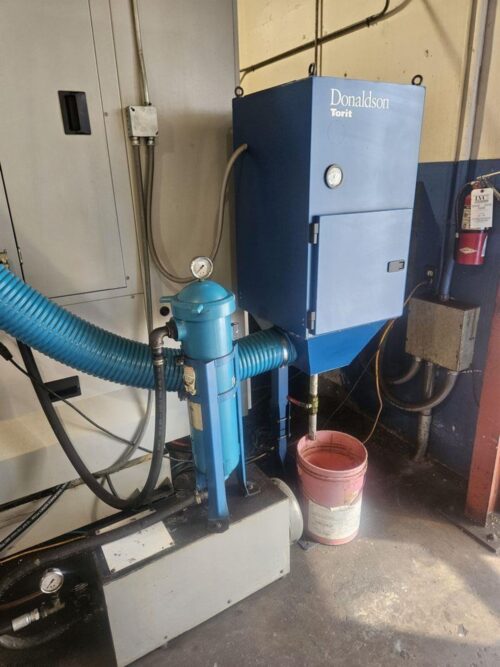

| Coolant Tank |

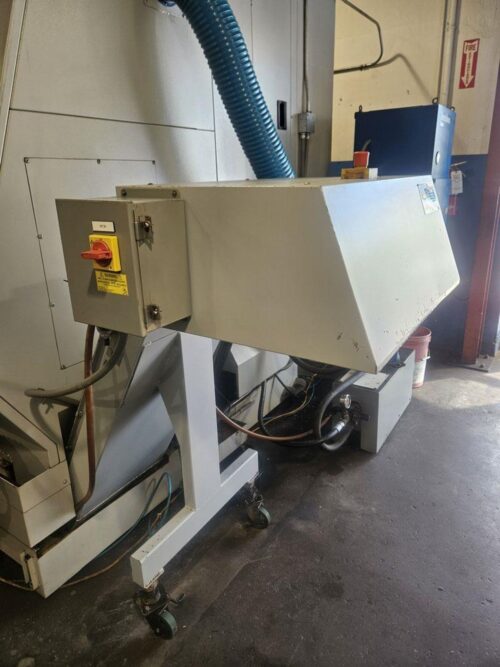

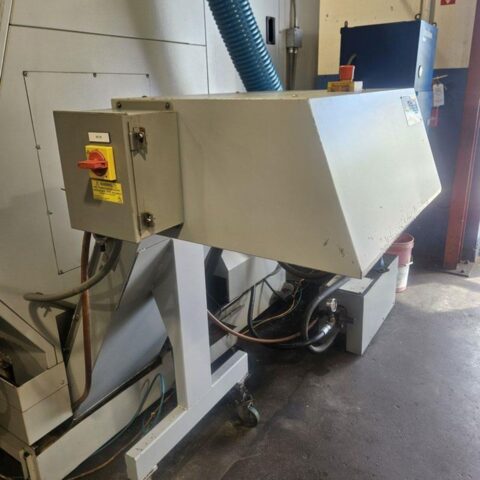

| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter: 22.44″ |
| Max Turning Length: 60.00″ |
| Max Swing Over Bed: 31.50″ |
| Max Bar Capacity: 3.50″ |
| Travel: |
|---|
| X Axis Travel: 25.0″ |
| Z Axis Travel: 62.7″ |
| Y Axis Travel: 8.6″ (+/- 4.3″) |
| B Axis Travel: -120° / +105° |
| C Axis: 360° (0.001°) |
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Rapid Traverse Y Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 4.1″ |
| Bar Capacity: 3.5″ |
| Spindle Speed: 30 – 3,000 RPM |
| Spindle Power: 40 HP |

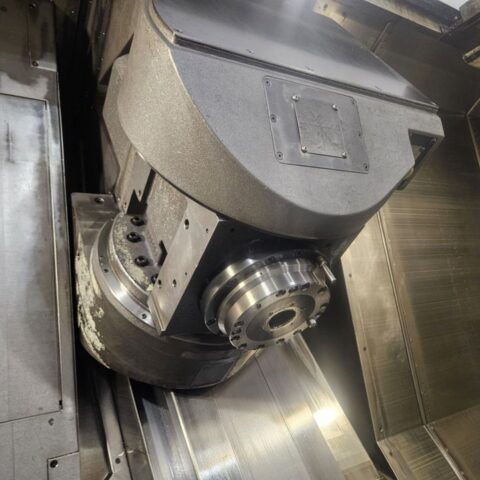

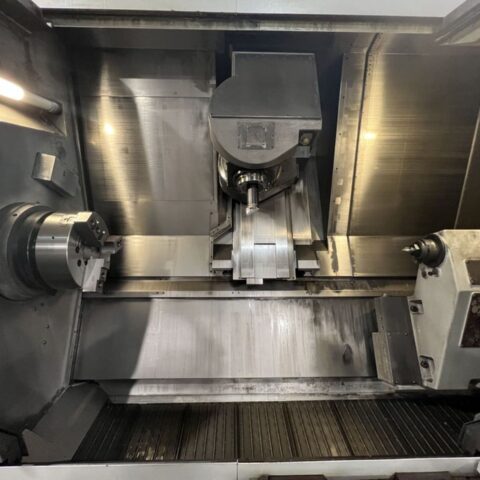

| Milling Head: |
|---|

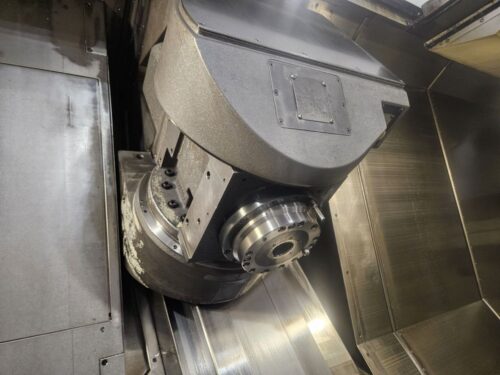

| Single Station Pendulum Head with 44 ATC |
| B Axis Indexing: -120° / +105°, 0.001 Degree |
| Tool Type: CAPTO C6 |
| Tool Spindle Speed: 8,000 RPM |
| Tool Spindle Motor: 15 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 44 Tools |
| Tool Type: CAPTO C6 |
| Max Tool Diameter: 3.54″ – 4.72″ |
| Max Tool Length: 11.81″ |
| Max Tool Weight: 17.63 lbs |
| Tool Change Time: 4.2 Seconds |

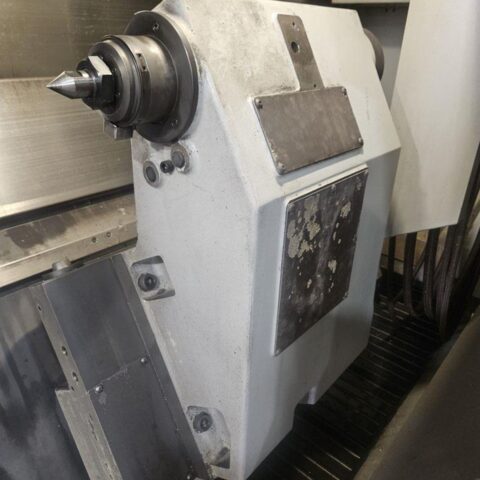

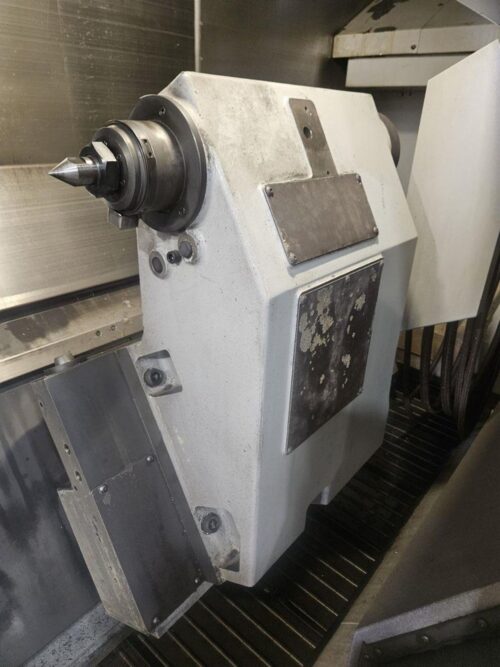

| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Quil Diameter: 4.33″ |
| Tailstock Quil Travel: 5.90″ |

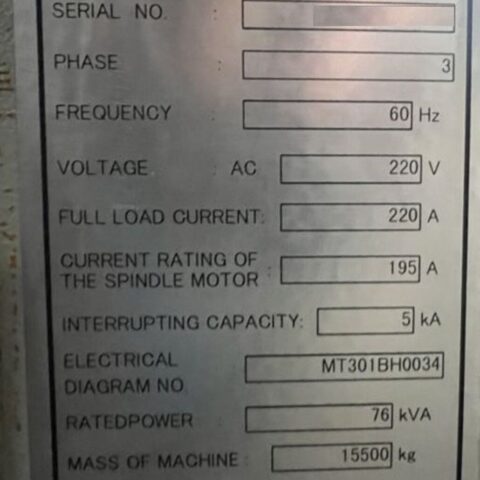

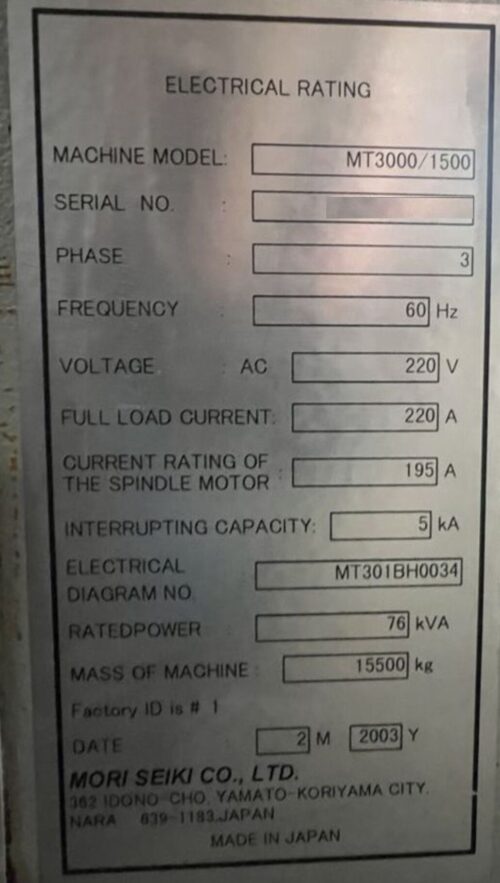

| General: |
|---|

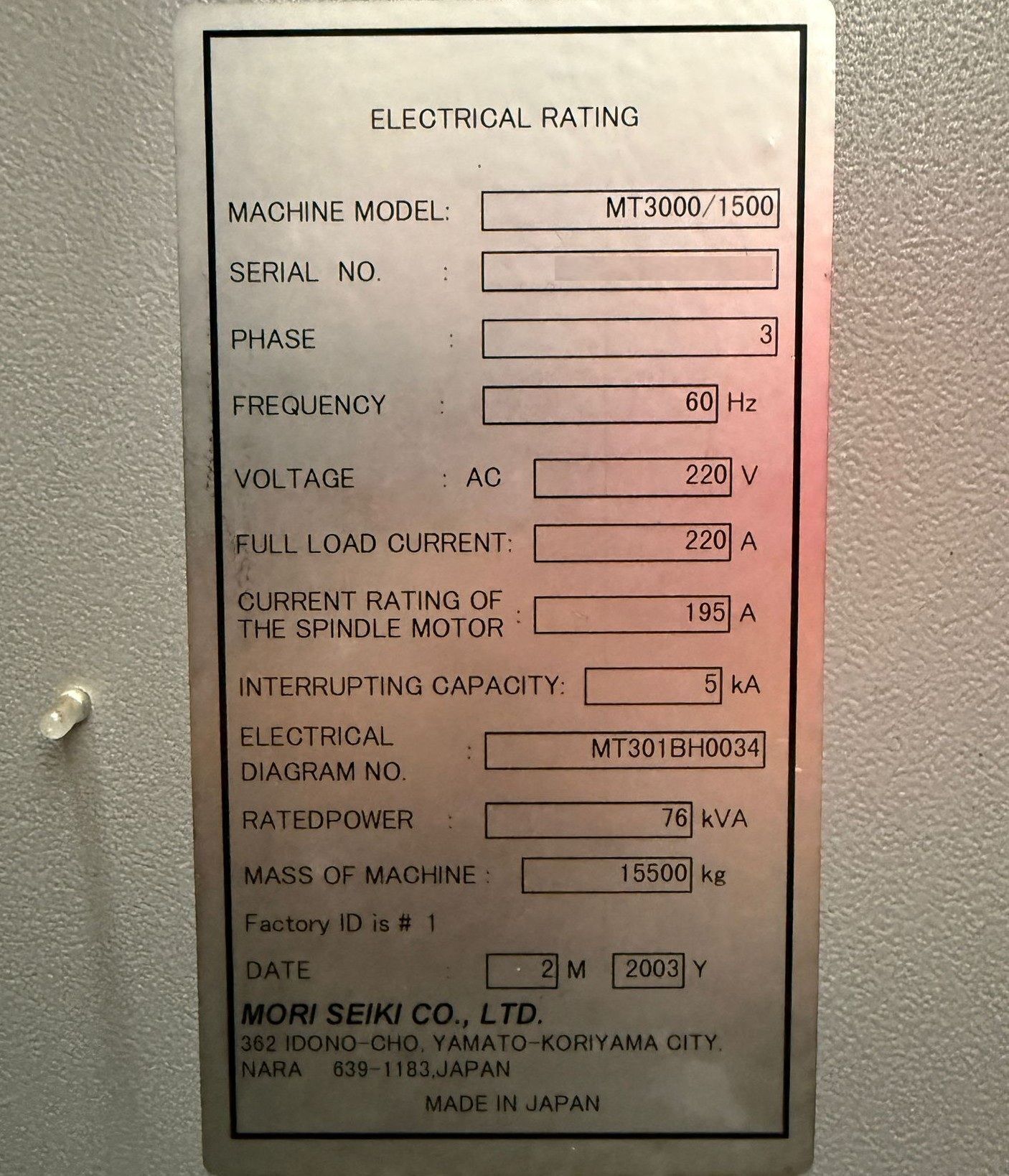

| Power Source: 220v / 3-Phase / 60 Hz |
| Power Requirement: 76 kva |
| Overall Dimensions: 227″ x 120″ x 130″ High Approx. |
| Weight: 34,170 lbs Approx. |
