*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

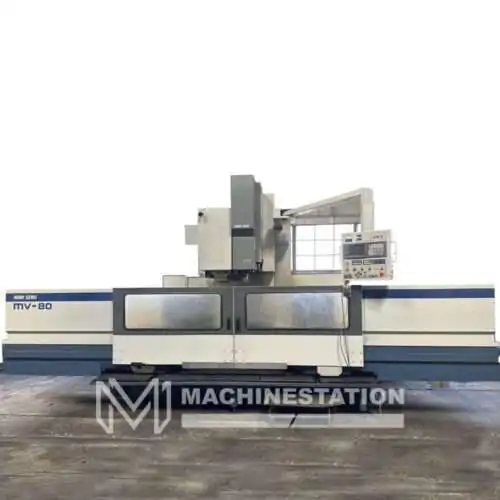

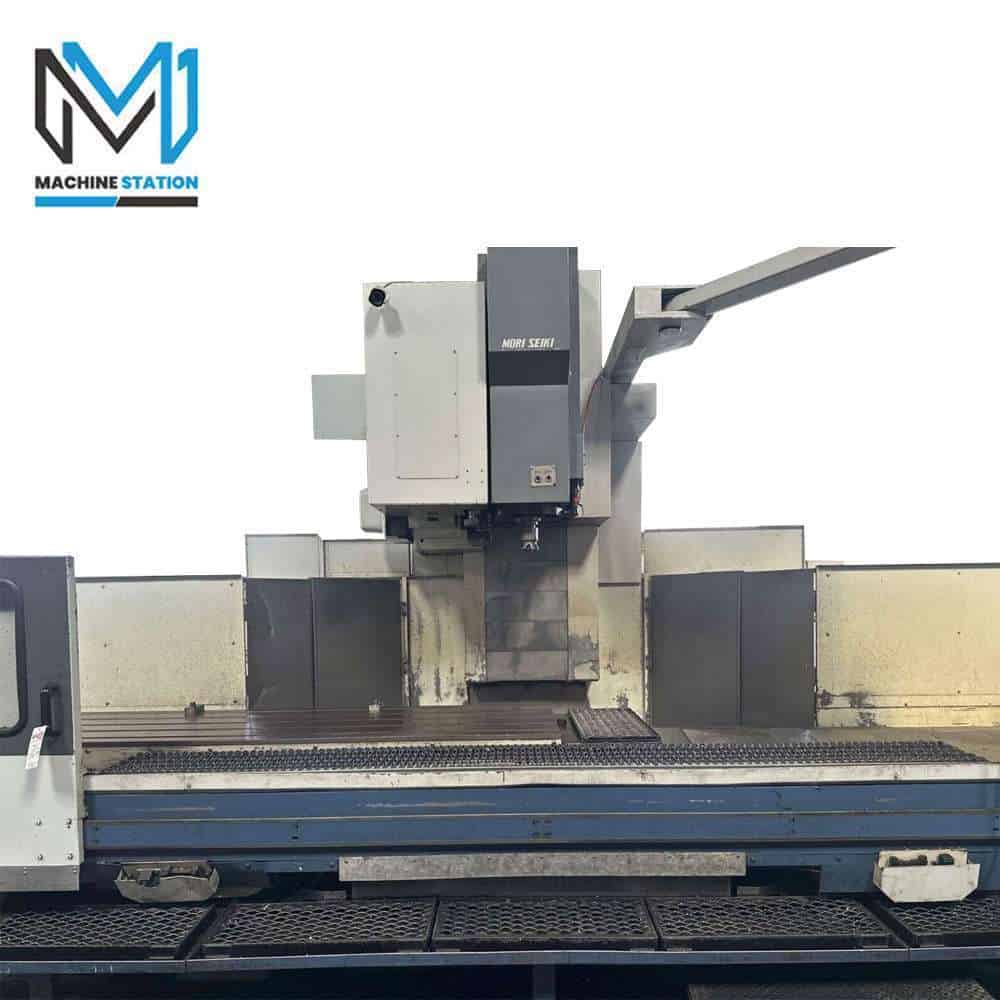

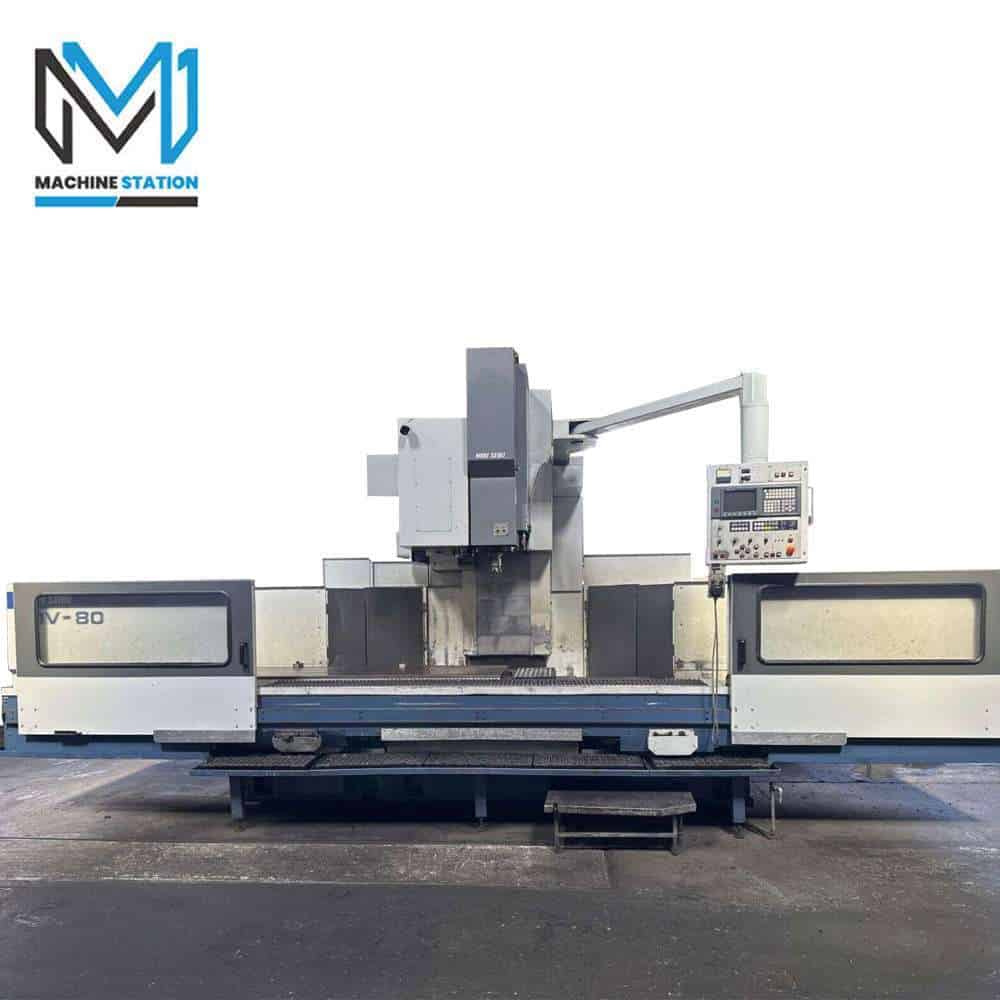

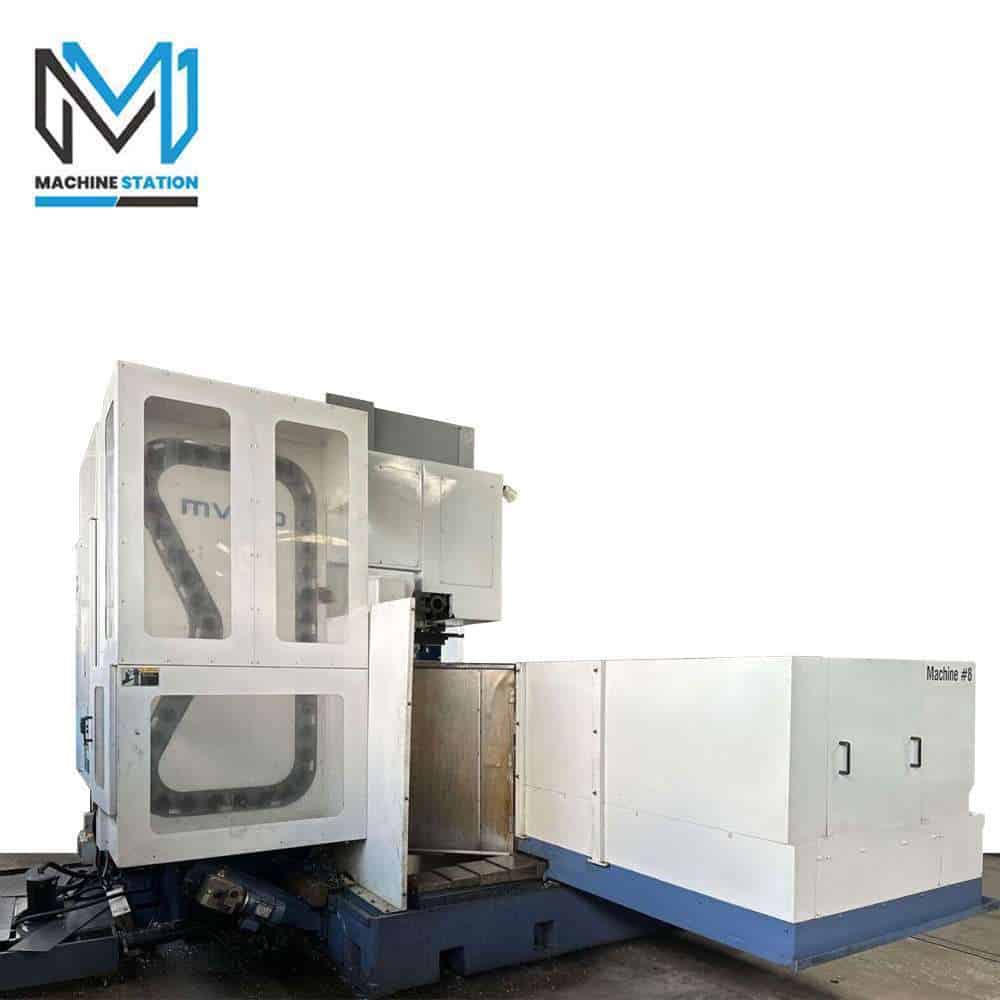

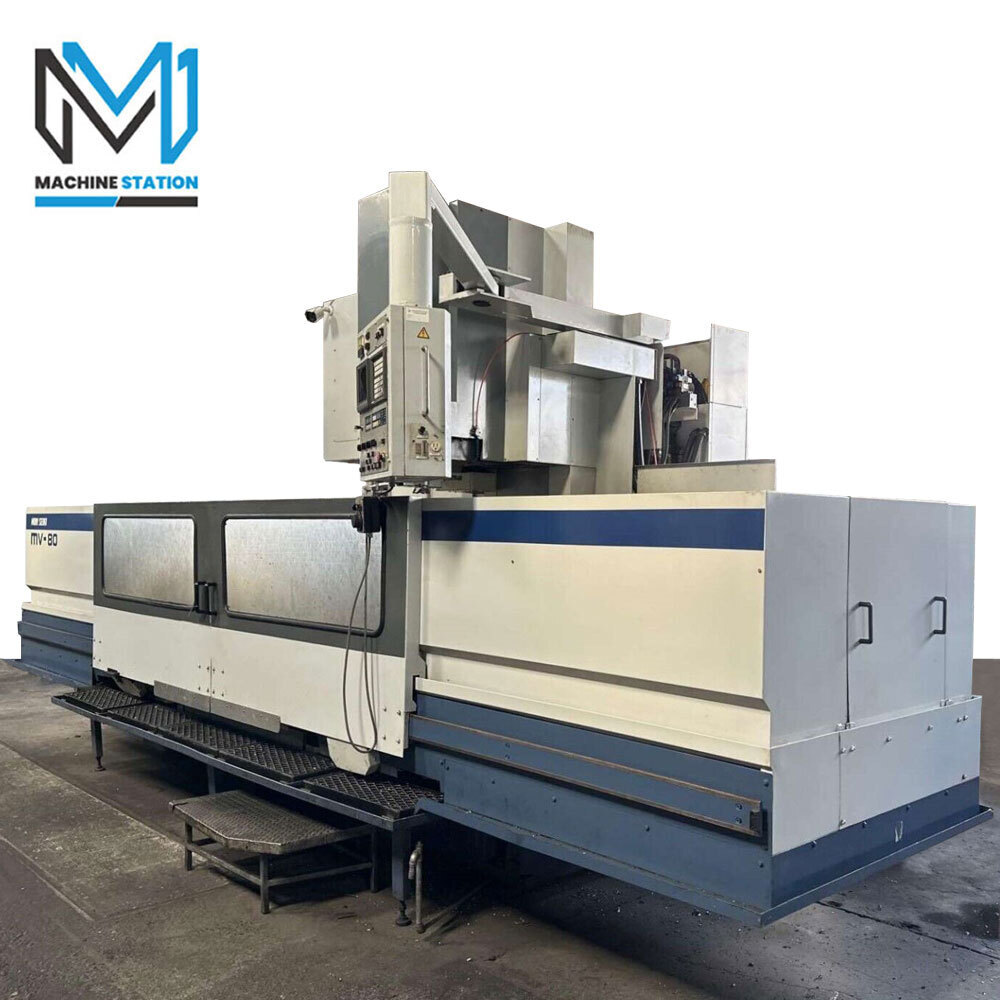

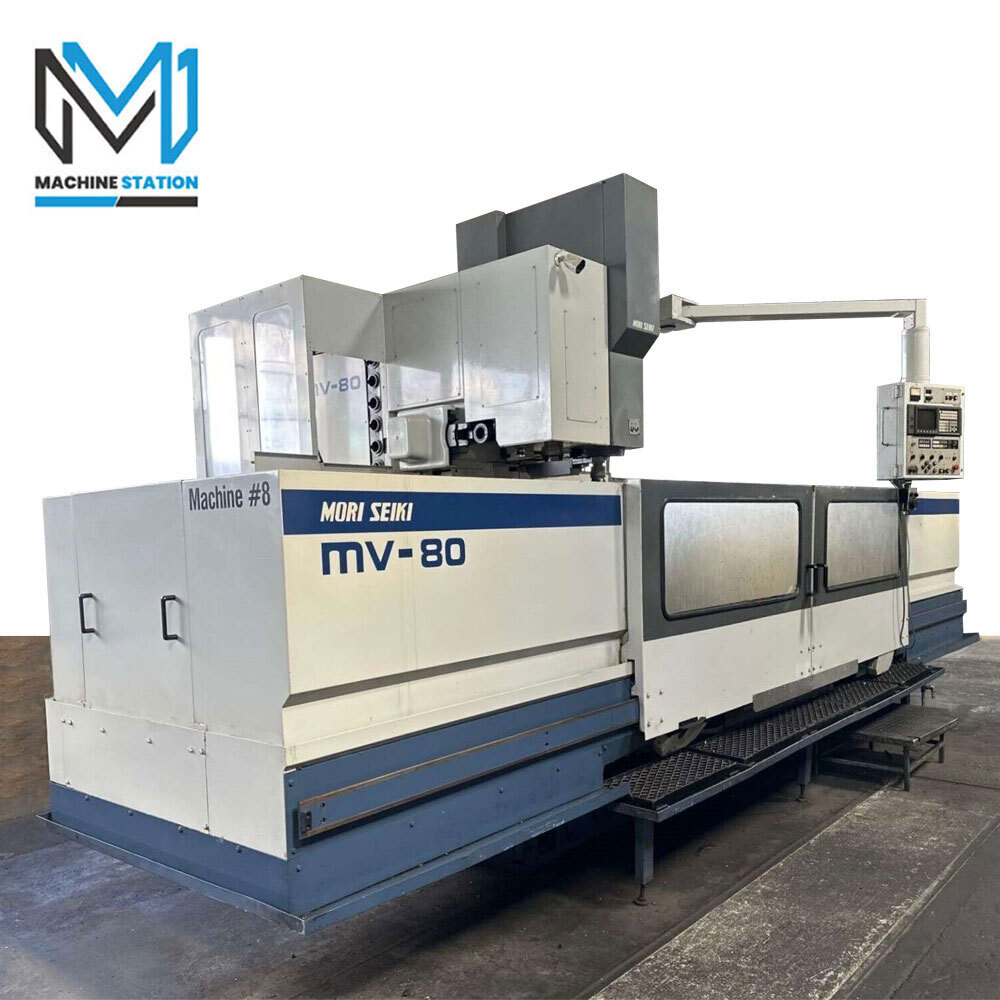

| Make: | MORI SEIKI |
| Model: | MV-80C/50 |
| Year: | 1997 |
| Condition: | Used – Good |
| Features: |
|---|

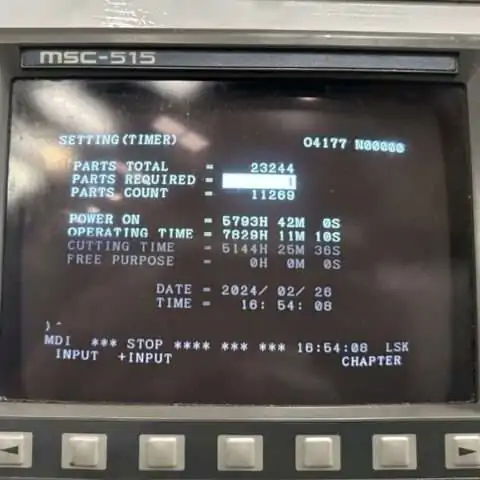

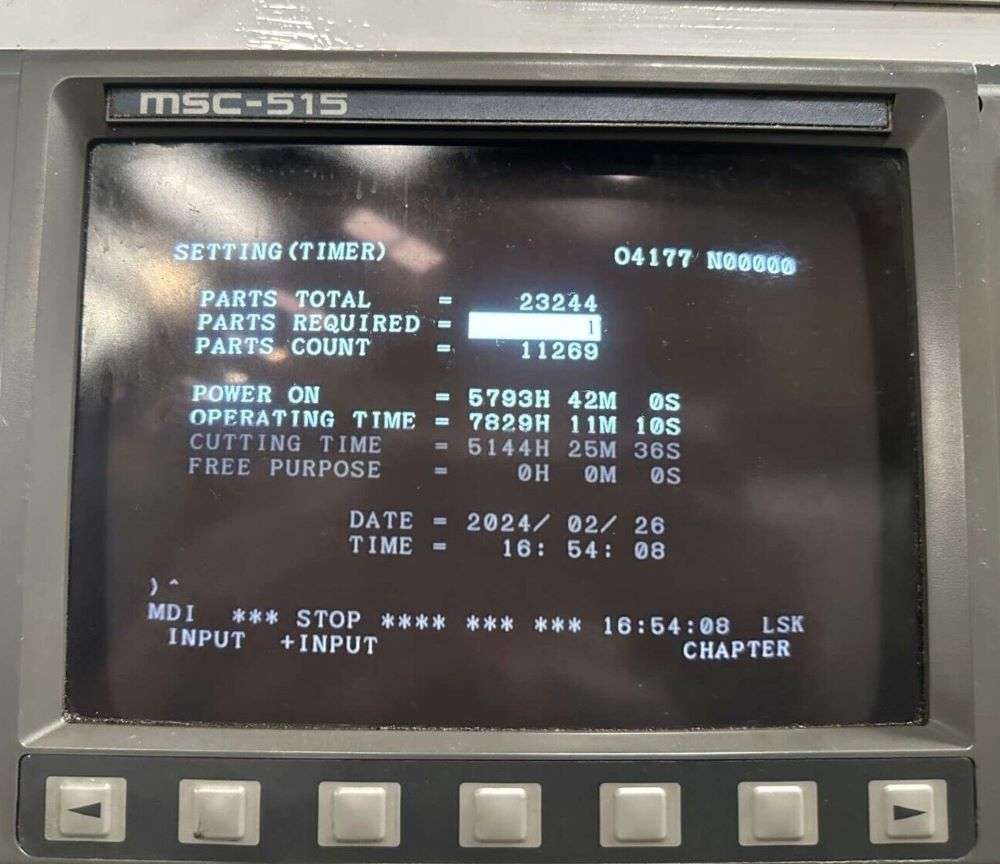

| Mori Seiki MSC-515 ( Fanuc) CNC Control |
| Box Ways Construction |
| 110″ x 32″ Long Bed |
| 50 Taper 3500 RPM Spindle |
| 30 HP Spindle Drive |
| 30 Station Automatic Tool Changer |
| MPG Hand Wheel Control |
| RS-232 Port |
| Spindle Orientation |
| Rigid Tapping |
| Coolant System |
| Travels: |
|---|
| X-Axis: 102″ |
| Y-Axis: 32″ |
| Z-Axis: 29″ |
| Rapid Traverse Rate: 397 IPM |

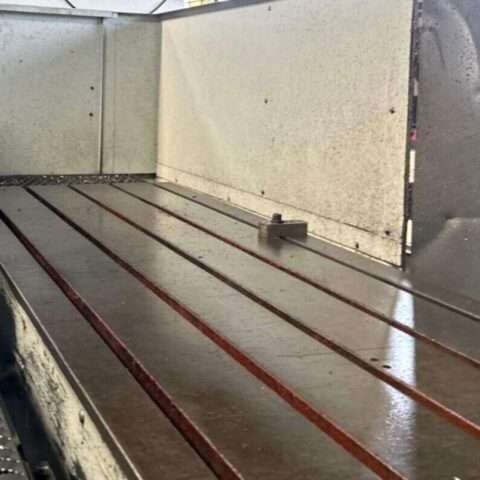

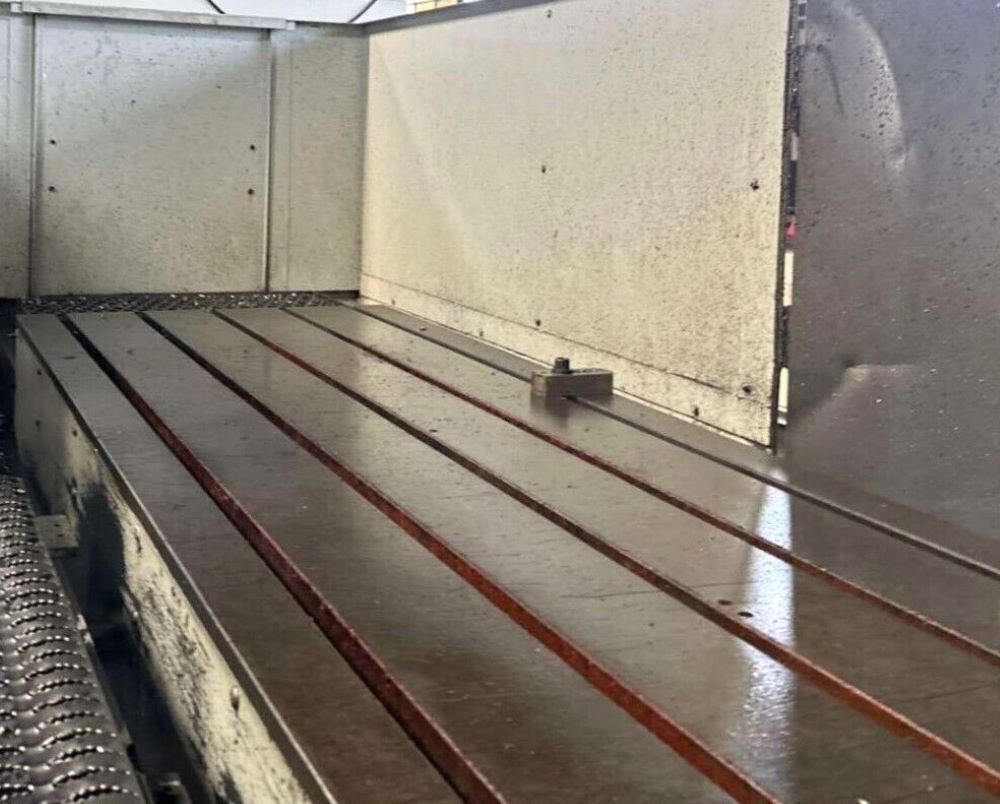

| Table: |
|---|
| Length: 110.2″ |
| Width: 32.0″ |
| Max Weight on Table: 6615 lbs |
| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 3500 RPM |
| Spindle Power: 30 HP |

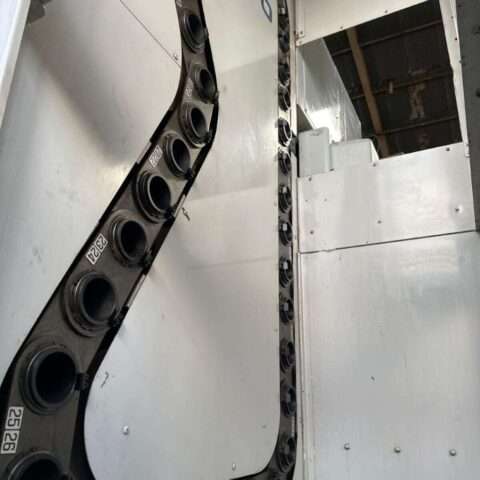

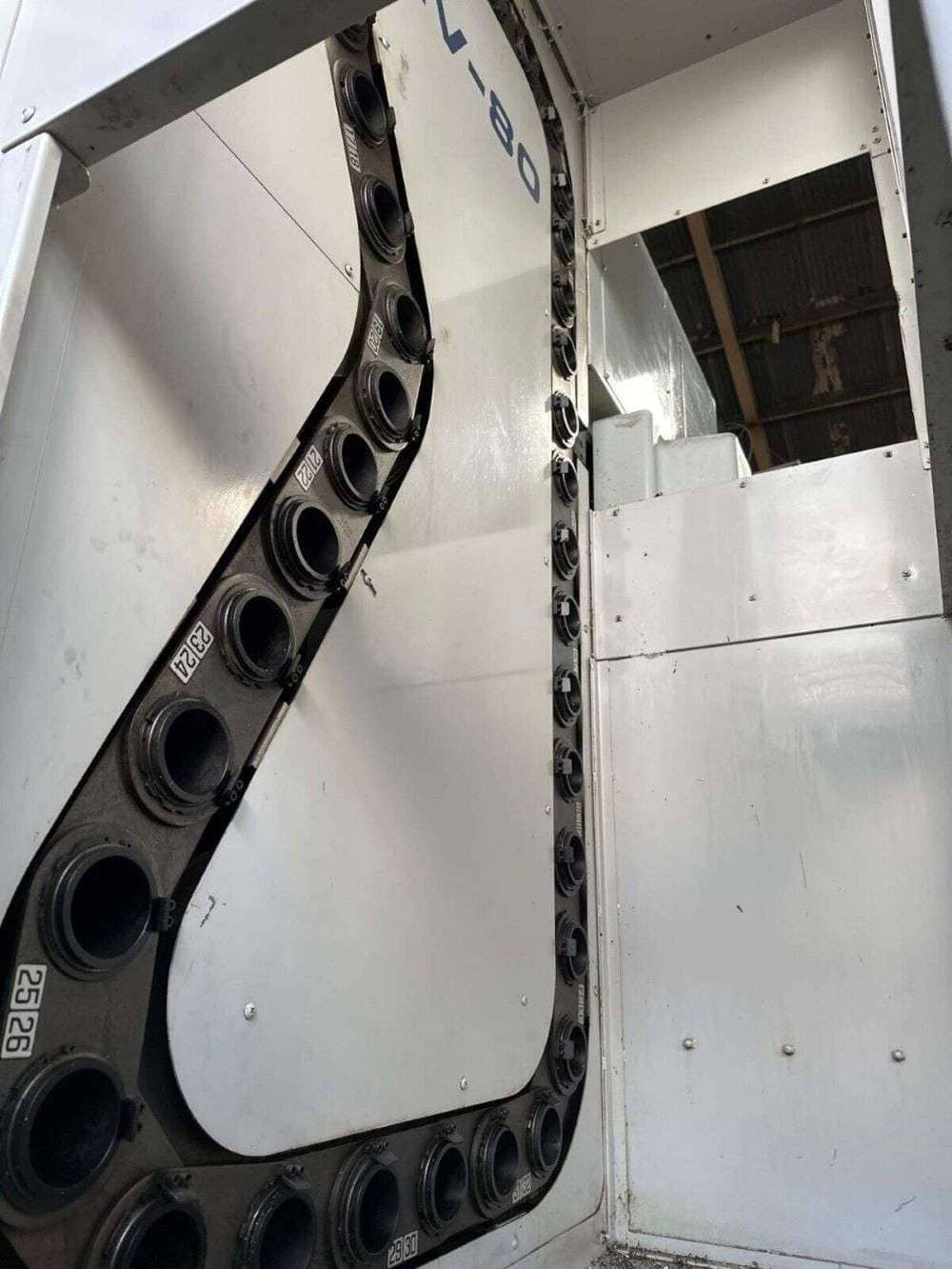

| Automatic Tool Changer: |
|---|
| Capacity: 30 Station |
| Max Tool Weight: 33 lbs |
| Max Tool Length: 13.78″ |
| Max Tool Diameter: 4.90″ |
| General: |
|---|
| Air Required: 80 psi 4 scfm |

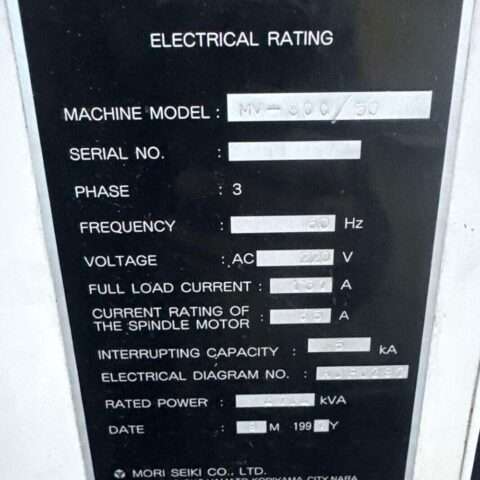

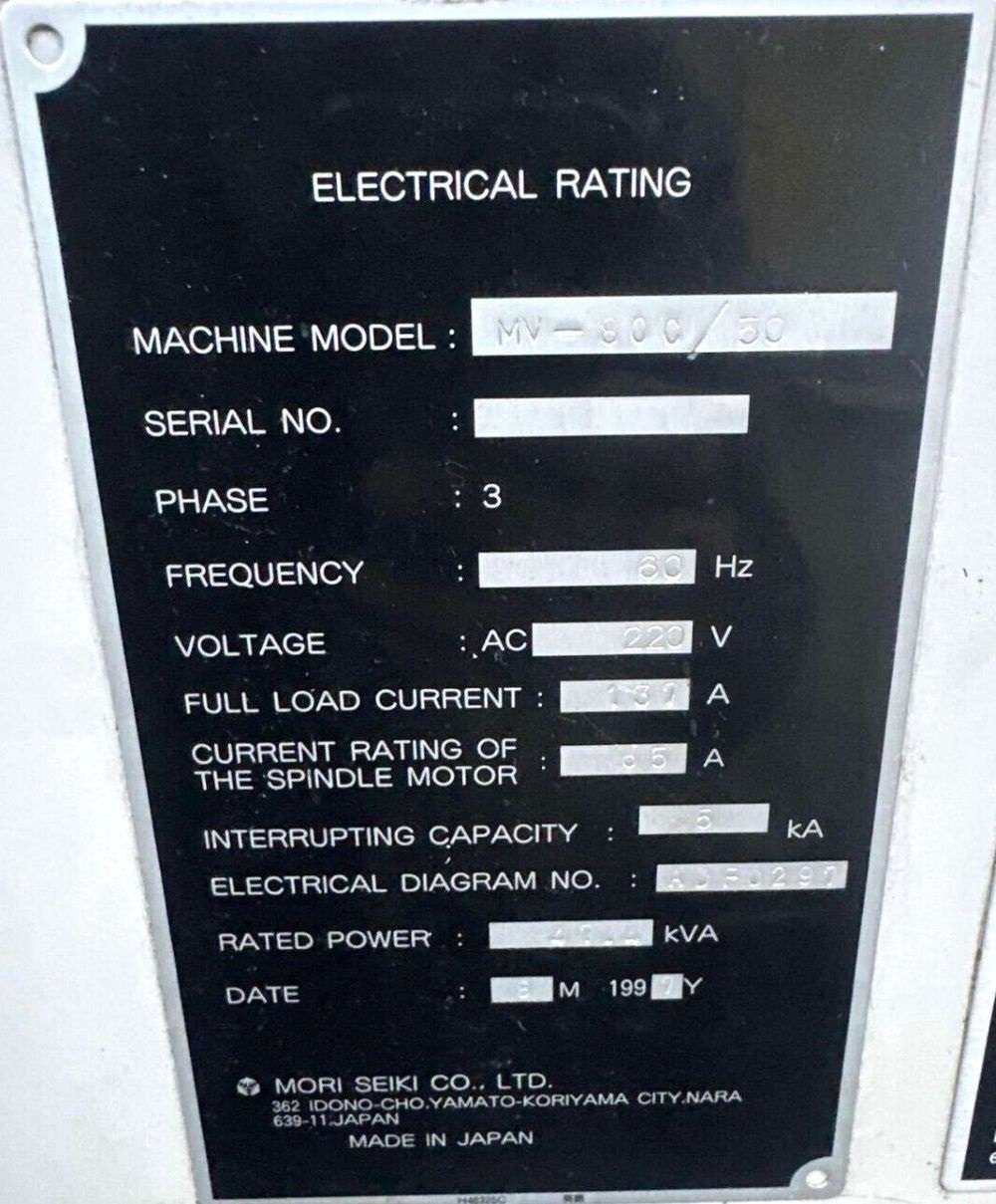

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: ” L X ” W X ” High |
| Weight: lbs |
