Mori Seiki NH4000 DCG CNC Horizontal Machining Center

SKU 11854
Make/Model Mori Seiki NH4000 DCG
Year 2005
Out of stock
SKU: 11854
Make/Model: Mori Seiki NH4000 DCG
Year: 2005
SKU: 11854

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Mori Seiki
Model: NH4000 DCG
Year: 2005
Machine Type: 4-Axis CNC Horizontal Machining Center
CNC Control: Mori Seiki MSX-501
Features:
Mori Seiki MSX-501 CNC Control
60-Station Automatic Tool Changer
CAT 40 Spindle Taper
14,000 RPM Spindle
24 HP Spindle Motor

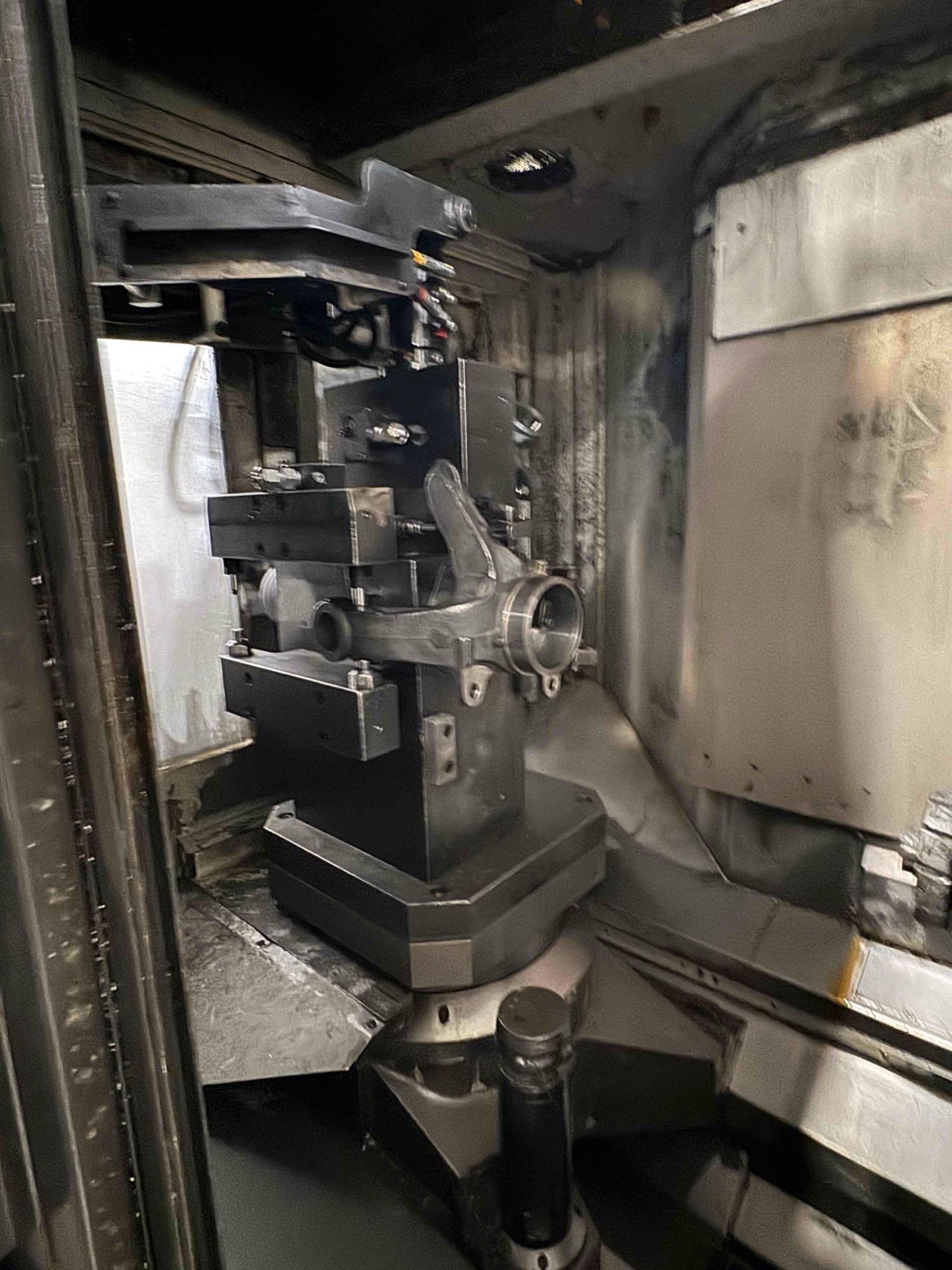

4th Axis / B-Axis Rotary Pallet
400 mm Pallet
Chip Conveyor
Coolant System
Enclosed Work Area
Automatic Pallet Changer (APC)
Capacity:
Pallet Size: 15.75″ × 15.75″
Maximum Pallet Load: 882 lbs.
Spindle Center to Pallet: Approx. 3.9″–28.7″
Travels:
X-Axis Travel: 22.5″
Y-Axis Travel: 22.5″
Z-Axis Travel: 24.8″
Rapid Traverse X/Y/Z-Axis: 1,968 IPM
Spindle:
Spindle Orientation: Horizontal
Spindle Taper: CAT 40
Maximum Spindle Speed: 14,000 RPM
Spindle Motor: 24 HP
Spindle Type: High-Speed Direct Drive
Turret / ATC:
Tool Changer Type: Automatic Tool Changer
Tool Changer Capacity: 60 Stations
Tool Taper: CAT 40
Pallet System:
Pallet Size: 15.75″ × 15.75″
Pallet Capacity: 882 lbs.
Pallet System: Automatic Pallet Changer
General:

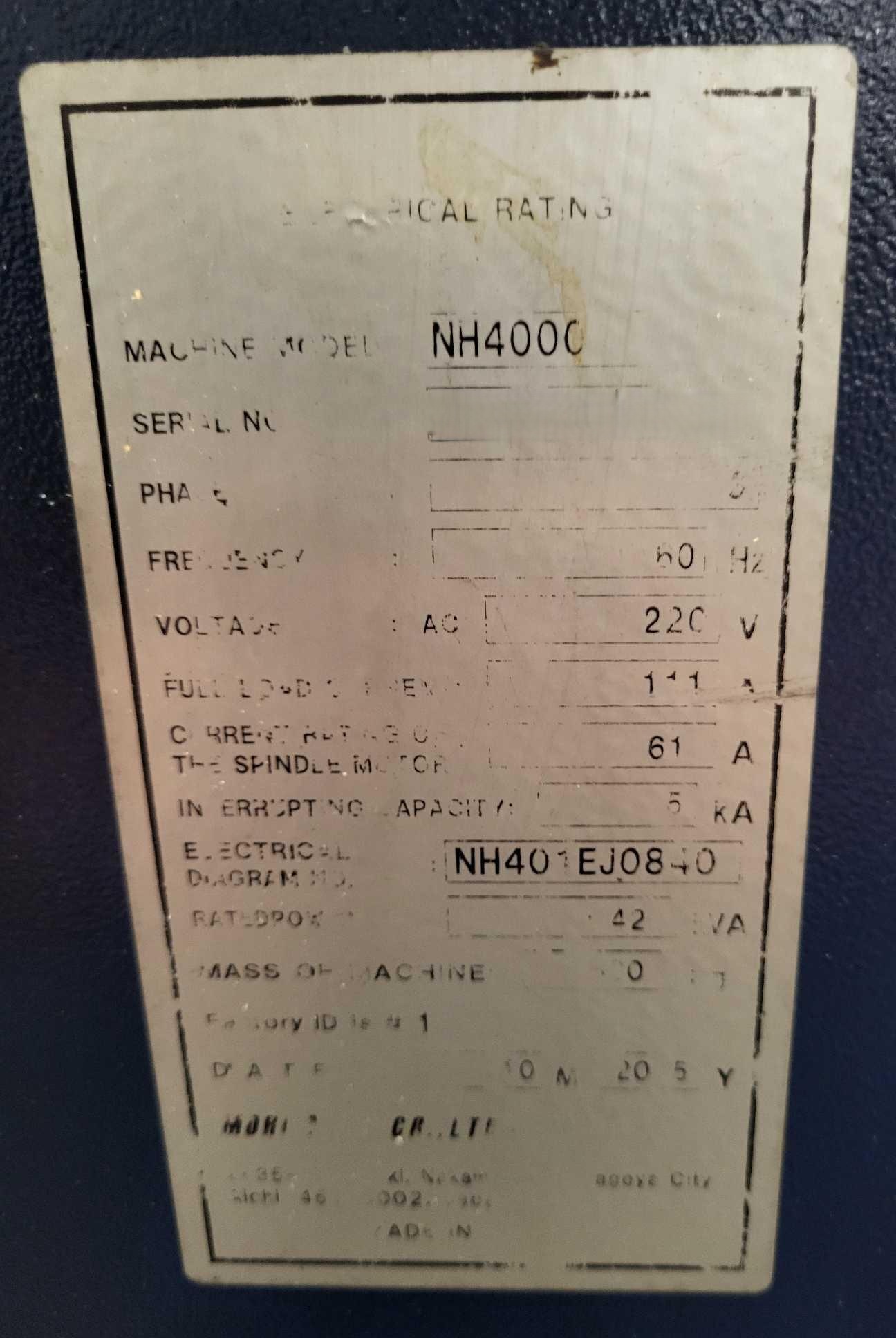

Power Source: 220v / 3-Phase / 60 Hz
Machine Dimensions: Approx. 91″ W × 148″ D × 103″ H
Machine Weight: Approx. 21,200 lbs.
Capacity:
Pallet Size: 400 mm × 400 mm
Maximum Pallet Load: 882 lbs.
Spindle Center to Pallet: Approx. 99 mm–729 mm
Travels:
X-Axis Travel: 572 mm
Y-Axis Travel: 572 mm
Z-Axis Travel: 630 mm
Rapid Traverse X/Y/Z-Axis: 1,968 IPM
Spindle:
Spindle Orientation: Horizontal
Spindle Taper: CAT 40
Maximum Spindle Speed: 14,000 RPM
Spindle Motor: 24 HP
Spindle Type: High-Speed Direct Drive
Turret / ATC:
Tool Changer Type: Automatic Tool Changer
Tool Changer Capacity: 60 Stations
Tool Taper: CAT 40
Pallet System:
Pallet Size: 400 mm × 400 mm
Pallet Capacity: 882 lbs.
Pallet System: Automatic Pallet Changer
General:
Power Source: 220v / 3-Phase / 60 Hz
Machine Dimensions: Approx. 2,311 mm W × 3,759 mm D × 2,616 mm H
Machine Weight: Approx. 21,200 lbs.
CategoriesCNC Horizontal Machining Center
MakeMori Seiki
ModelNH4000 DCG
  • Mori Seiki MSX-501 CNC Control
  • 60-Station Automatic Tool Changer
  • CAT 40 Spindle Taper
  • 14,000 RPM Spindle
  • 24 HP Spindle Motor
  • 4th Axis / B-Axis Rotary Pallet
  • 400 mm Pallet
  • Chip Conveyor
  • Coolant System
  • Enclosed Work Area
  • Automatic Pallet Changer (APC)
