*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | NL3000/2000 |
| Year: | 2007 |
| Equipped With: |
|---|
| Mori Seiki MSX-850III CNC Control |
| 12″ Hydraulic 3-Jaw Chuck |

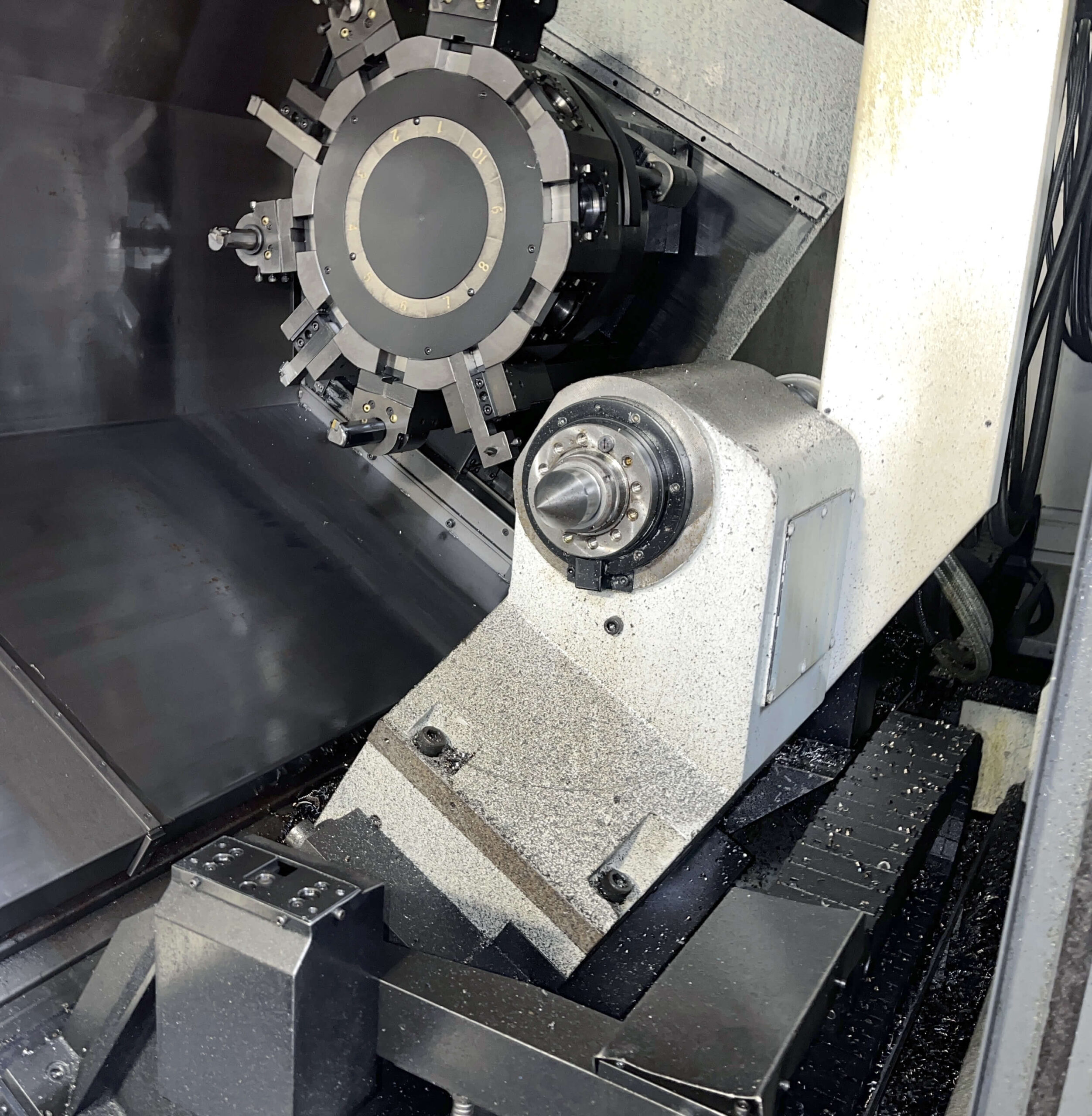

| 10-Station Turret |
| Programmable Hydraulic Tailstock |
| Tool Presetter |
| Hydraulic Movable Work Rest |
| Tool Life Management |
| Chip Conveyor |
| Automatic Lubrication System |
| Fully Enclosed Splash Guard |
| Work Light |
| Capacity: |
|---|
| Swing Over Bed: 39″ |
| Distance Between Centers: 79″ |
| Chuck Size: 12″ |
| Bar Capacity: 3.5″ |
| Travels: |
|---|
| X-Axis Travel: Approx. 11″ |
| Z-Axis Travel: Approx. 82″ |
| Rapid Traverse (X-Axis): 944 IPM |
| Rapid Traverse (Z-Axis): 1,181 IPM |
| Spindle: |
|---|
| Spindle Speed: 3,000 RPM |
| Spindle Motor: 30 HP |
| Bar Capacity: 3.5″ |
| Turret: |
|---|
| Turret Capacity: 10 Stations |
| Turret Type: Servo Indexing |
| Tailstock: |
|---|
| Tailstock Type: Programmable Hydraulic |
| General: |
|---|

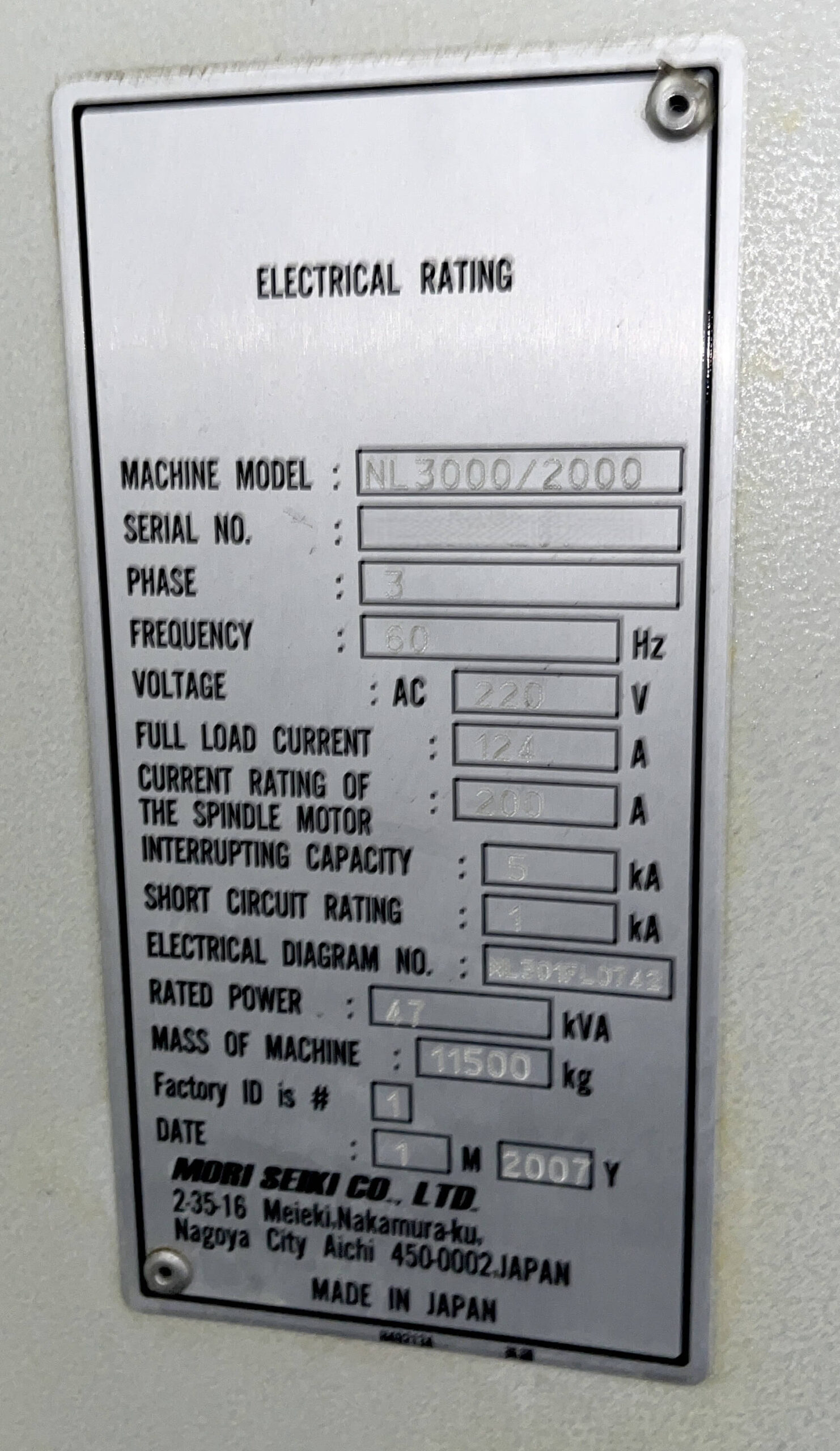

| Power Requirement: 220 V / 3 Phase / 60 Hz |
| Rated Power: 47 kVA |
| Machine Dimensions (Approx.): 205″ × 79″ × 83″ |
| Machine Weight: 25,353 lbs |
