Sold
Mori Seiki NLX2500 700 (2)

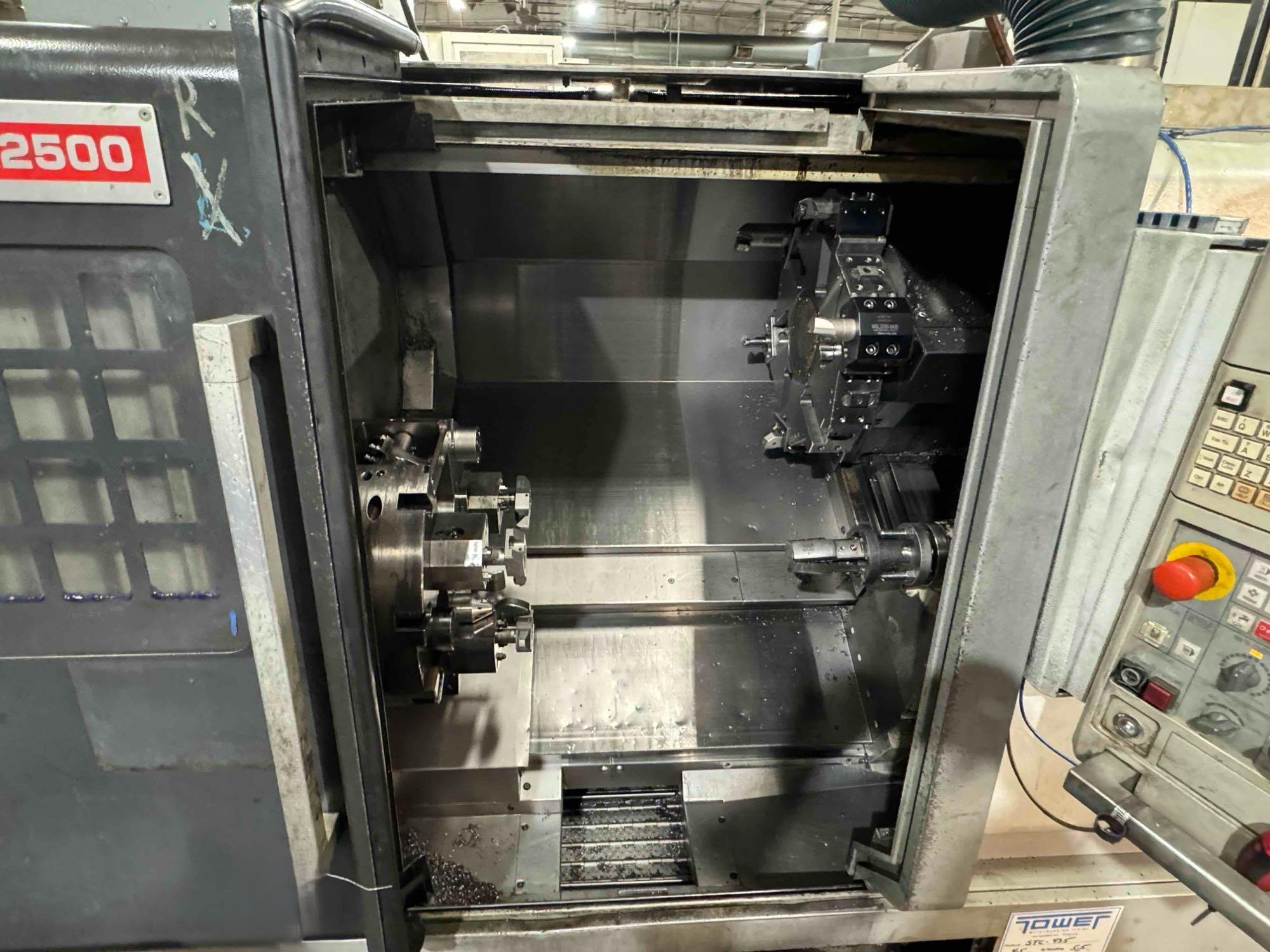

Mori Seiki NLX2500 700 (3)

Mori Seiki NLX2500/700 CNC Turning Center

SKU 11855
Make/Model Mori Seiki NLX2500/700
Year 2013
Out of stock
SKU: 11855
Make/Model: Mori Seiki NLX2500/700
Year: 2013
SKU: 11855

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Mori Seiki
Model: NLX2500/700
Year: 2013
Machine Type: CNC Turning Center
CNC Control: Mitsubishi M730BM
Equipped With:
Mitsubishi M730BM CNC Control
12-Station Turret
10″ 3-Jaw Chuck
Automatic Tool Presetter
Hydraulic Tailstock
Chip Conveyor
Coolant System
Enclosed Work Area
Ethernet Port
Capacity:
Swing Over Bed: 36.2″
Swing Over Cross Slide: 29.2″
Maximum Turning Diameter: 18.1″
Standard Turning Diameter: 14″
Maximum Turning Length: 27.7″
Center Distance: 28.7″
Bar Capacity: 3.1″
Chuck Size: 10″
Spindle Bore: 3.6″
Travels:
X-Axis Travel: 10.2″
Z-Axis Travel: 31.3″
Rapid Traverse X/Z-Axis: 1,181 IPM
Spindle:
Maximum Spindle Speed: 4,000 RPM
Spindle Motor: 25 HP
Spindle Nose: A2-8
Spindle Bore: 3.6″
Spindle Type: Main Spindle
Turret:
Turret Type: Automatic Turret
Turret Capacity: 12 Stations
Tailstock:
Tailstock: Hydraulic
Tailstock Type: Programmable / Automatic Hydraulic Tailstock
General:
Power Source: 220v / 3-Phase / 60 Hz
Machine Dimensions (Approx.): 145″ W × 71″ D × 69″ H
Machine Weight (Approx.): 12,500 lbs.
Equipped With:
Mitsubishi M730BM CNC Control
12-Station Turret
254 mm 3-Jaw Chuck
Automatic Tool Presetter
Hydraulic Tailstock
Chip Conveyor
Coolant System
Enclosed Work Area
Ethernet Port
Capacity:
Swing Over Bed: 919 mm
Swing Over Cross Slide: 742 mm
Maximum Turning Diameter: 460 mm
Standard Turning Diameter: 356 mm
Maximum Turning Length: 704 mm
Center Distance: 729 mm
Bar Capacity: 79 mm
Chuck Size: 254 mm
Spindle Bore: 91 mm
Travels:
X-Axis Travel: 259 mm
Z-Axis Travel: 795 mm
Rapid Traverse X/Z-Axis: 1,181 IPM
Spindle:
Maximum Spindle Speed: 4,000 RPM
Spindle Motor: 25 HP
Spindle Nose: A2-8
Spindle Bore: 91 mm
Spindle Type: Main Spindle
Turret:
Turret Type: Automatic Turret
Turret Capacity: 12 Stations
Tailstock:
Tailstock: Hydraulic
Tailstock Type: Programmable / Automatic Hydraulic Tailstock
General:
Power Source: 220v / 3-Phase / 60 Hz
Machine Dimensions (Approx.): 3,683 mm W × 1,803 mm D × 1,753 mm H
Machine Weight (Approx.): 12,500 lbs.
CategoriesCNC Lathes & Turning Centers
MakeMori Seiki
ModelNLX2500/700
Mori Seiki NLX2500 700 (2)Mori Seiki NLX2500 700 (3)

Payment Terms

Up to 3 buyers can reserve the same machine. If you're 2nd or 3rd in line, we'll tell you your place, and you'll get the next chance if the first buyer doesn't proceed.

Shipping & Logistics

We coordinate domestic and international shipping, including loading, containerization, and freight arrangements through trusted logistics partners.

Machine Inspection

Buyers can request a live video demonstration, machine inspection, or schedule an on-site visit before completing the purchase.

Export & Documentation

For international orders, we can assist with export documentation, commercial paperwork, and pre-shipment inspection requirements.
