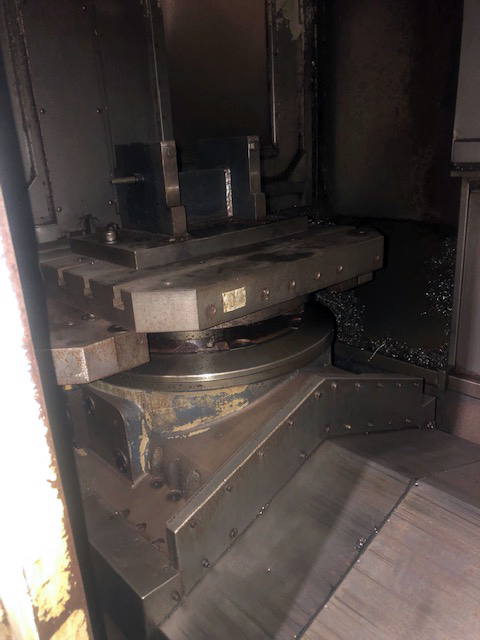

Mori Seiki SH 630 (4)

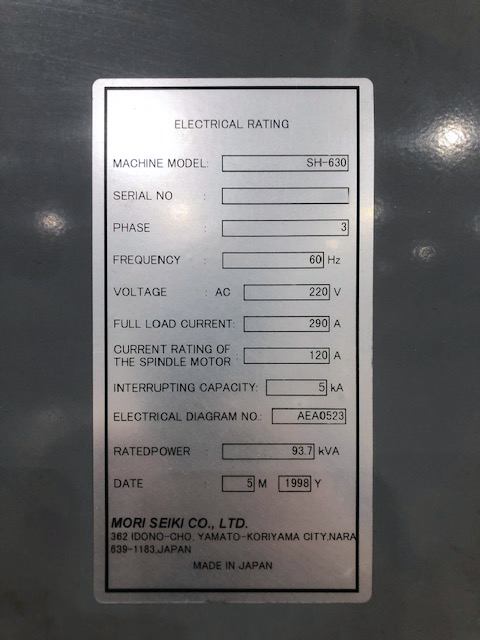

Mori Seiki SH 630 (3)

Mori Seiki SH-630 CNC Horizontal Machining Center

SKU 11763
Make/Model Mori Seiki SH-630
Year 1998
Video On Request
Out of stock
SKU: 11763
Make/Model: Mori Seiki SH-630
Year: 1998
Video: On Request
SKU: 11763

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Mori Seiki
Model: SH-630
Year: 1998
Machine Type: CNC Horizontal Machining Center
Control: Mori Seiki MSC-502
Features:
Mori Seiki MSC-502 CNC Control
Dual Pallet Automatic Pallet Changer
120-Station Automatic Tool Changer
CAT 50 Spindle Taper
4th-Axis Pallet Indexing
Chip Conveyor
Coolant Tank
Through-Spindle Coolant
High-Pressure Coolant
Rigid Tapping
Remote Pendant
Travels:
X-Axis Travel: 33.1″
Y-Axis Travel: 29.9″
Z-Axis Travel: 33.1″
Rapid Traverse X/Y/Z: 1,260 IPM
Cutting Feedrate: Up to 629 IPM
Pallet / Table:
Pallet Size: 24.8″ × 24.8″
Number of Pallets: 2
Pallet Load Capacity: 2,640 lbs
Pallet Indexing: 1°
Pallet Indexing Positions: 360
Spindle:
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 50
Spindle Motor: 30 HP
Spindle Motor Rating: 33.5 HP Continuous / 40 HP Maximum
Automatic Tool Changer:
Tool Changer Type: Automatic Tool Changer
Tool Capacity: 120 Stations
Tool Taper: CAT 50
Maximum Tool Diameter: 4.7″
Maximum Tool Diameter Without Adjacent Tools: 11.8″
Maximum Tool Length: 19.69″
Maximum Tool Weight: 66 lbs
General:
Machine Weight (Approx.): 40,000 lbs
Machine Dimensions (Approx.): 220″ L × 132″ W × 130″ H
Power Source: 220v / 3 Phase / 60 Hz
Travels:
X-Axis Travel: 841 mm
Y-Axis Travel: 759 mm
Z-Axis Travel: 841 mm
Rapid Traverse X/Y/Z: 1,260 IPM
Cutting Feedrate: Up to 629 IPM
Pallet / Table:
Pallet Size: 630 mm × 630 mm
Number of Pallets: 2
Pallet Load Capacity: 2,640 lbs
Pallet Indexing: 1°
Pallet Indexing Positions: 360
Spindle:
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 50
Spindle Motor: 30 HP
Spindle Motor Rating: 33.5 HP Continuous / 40 HP Maximum
Automatic Tool Changer:
Tool Changer Type: Automatic Tool Changer
Tool Capacity: 120 Stations
Tool Taper: CAT 50
Maximum Tool Diameter: 119 mm
Maximum Tool Diameter Without Adjacent Tools: 300 mm
Maximum Tool Length: 500 mm
Maximum Tool Weight: 66 lbs
General:
Machine Weight (Approx.): 40,000 lbs
Machine Dimensions (Approx.): 5,588 mm L × 3,353 mm W × 3,302 mm H
Power Source: 220v / 3 Phase / 60 Hz
CategoriesCNC Horizontal Machining Center
MakeMori Seiki
ModelSH-630
  • Mori Seiki MSC-502 CNC Control
  • Dual Pallet Automatic Pallet Changer
  • 120-Station Automatic Tool Changer
  • CAT 50 Spindle Taper
  • 4th-Axis Pallet Indexing
  • Chip Conveyor
  • Coolant Tank
  • Through-Spindle Coolant
  • High-Pressure Coolant
  • Rigid Tapping
  • Remote Pendant
Mori Seiki SH 630 (2)Mori Seiki SH 630 (4)Mori Seiki SH 630 (3)
