*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

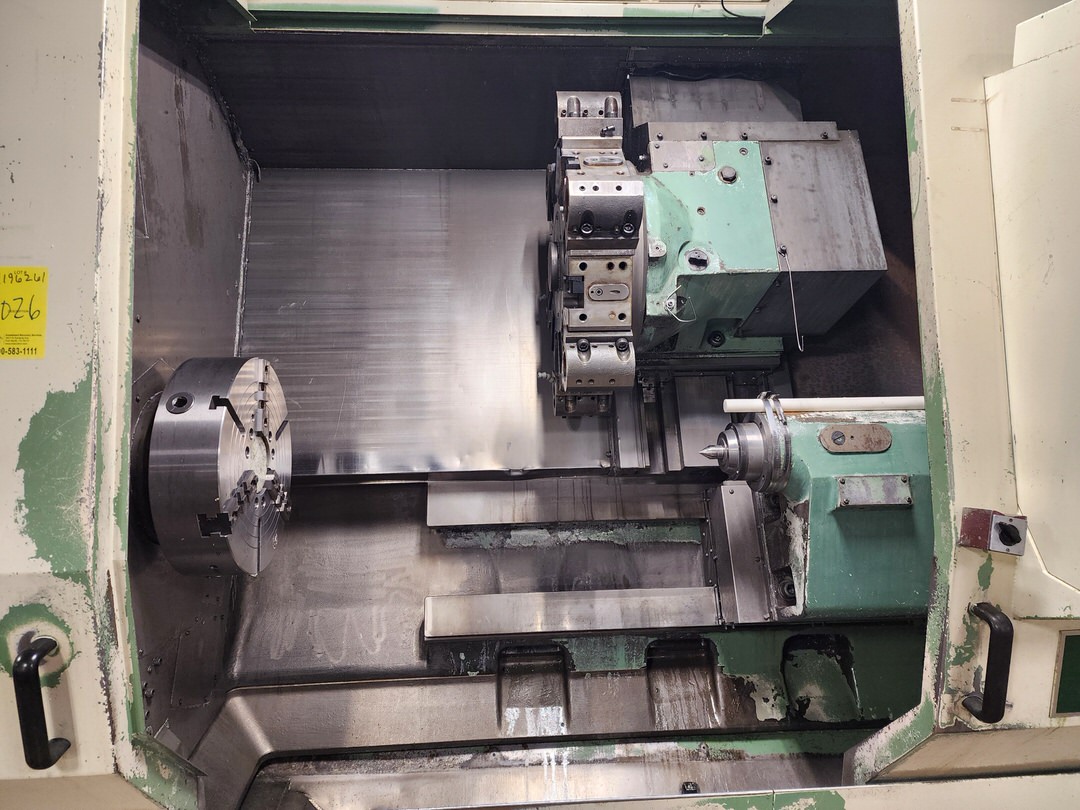

| Make: | Mori Seiki |
| Model: | SL-45A |
| Year: | 1983 |
| Equipped With: |
|---|
| Fanuc CNC Control |
| 18″ 3-Jaw Chuck |
| 12-Station Turret |
| Hydraulic Tailstock |
| Chip Conveyor |
| Coolant System |
| Automatic Lubrication System |
| Mist Collector |
| Work Light |
| Full Machine Enclosure |
| Capacity: |
|---|
| Maximum Swing Over Bed: 28.3″ |
| Maximum Turning Diameter: 18.9″ |
| Maximum Turning Length: 59.1″ |
| Bar Capacity: 4.5″ |
| Chuck Size: 18″ |
| Travels: |
|---|
| X-Axis Travel: 13.0″ |
| Z-Axis Travel: 61.0″ |
| Rapid Traverse (X-Axis): 394 IPM |
| Rapid Traverse (Z-Axis): 472 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 4.92″ |
| Spindle Speed: 1,500 RPM |
| Main Spindle Motor: 40 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Tool Shank Size: 1.25″ |
| Boring Bar Capacity: 2.5″ |
| Turret Indexing: Bi-Directional Servo Indexing |
| Tailstock: |
|---|
| Tailstock Type: Hydraulic |
| Quill Diameter: 4.7″ |
| Quill Travel: 5.9″ |
| Tailstock Taper: MT-5 |
| General: |
|---|

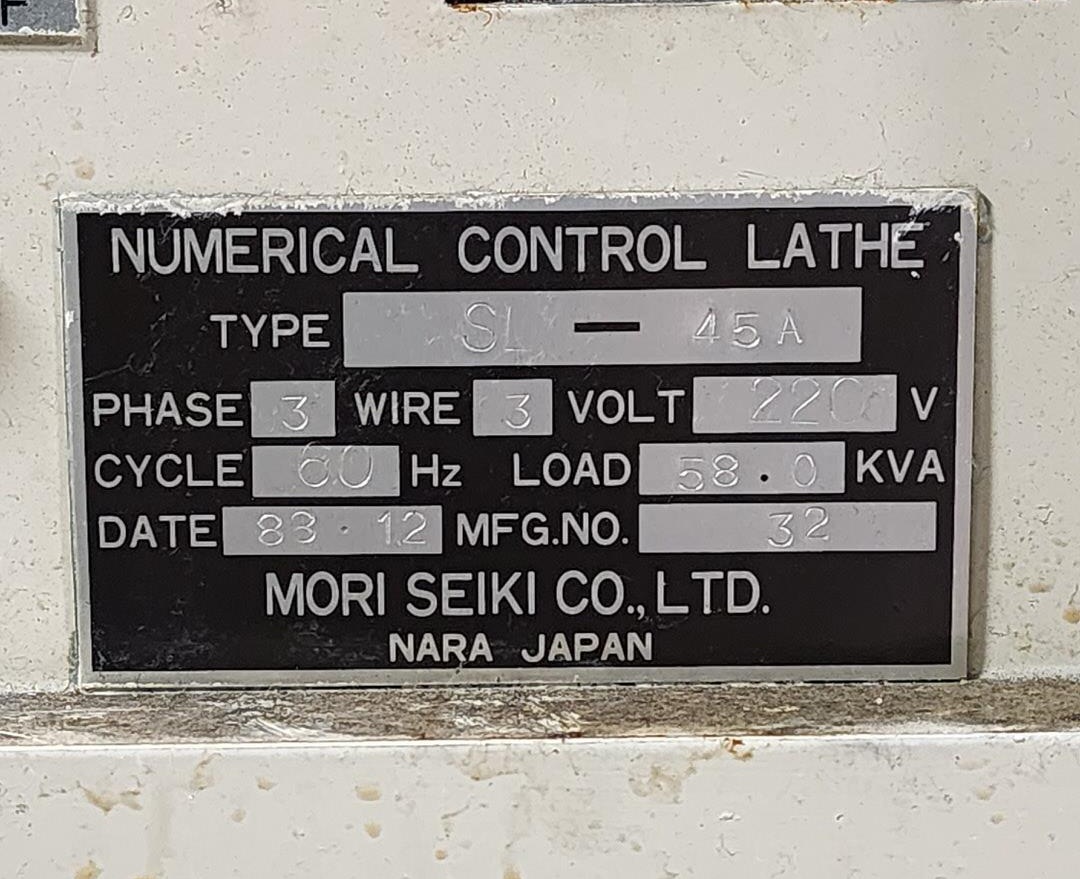

| Power Requirement: 220V / 3 Phase / 60 Hz |
| Machine Dimensions (Approx.): 205″ × 92″ × 88″ |
| Machine Weight (Approx.): 19,800 lbs |
