*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Mori Seiki |
| Model: |
SL303A/700 |
| Year: |
2001 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Turning Center |
| CNC Control: |
Mori Seiki MSG-501 CNC Control |
| Country of Origin: |
Japan |
| Equipped With: |
| Mori Seiki MSG-501 CNC Control |
| MAPPS Conversational Programming |
| 10″ Hydraulic Chuck |

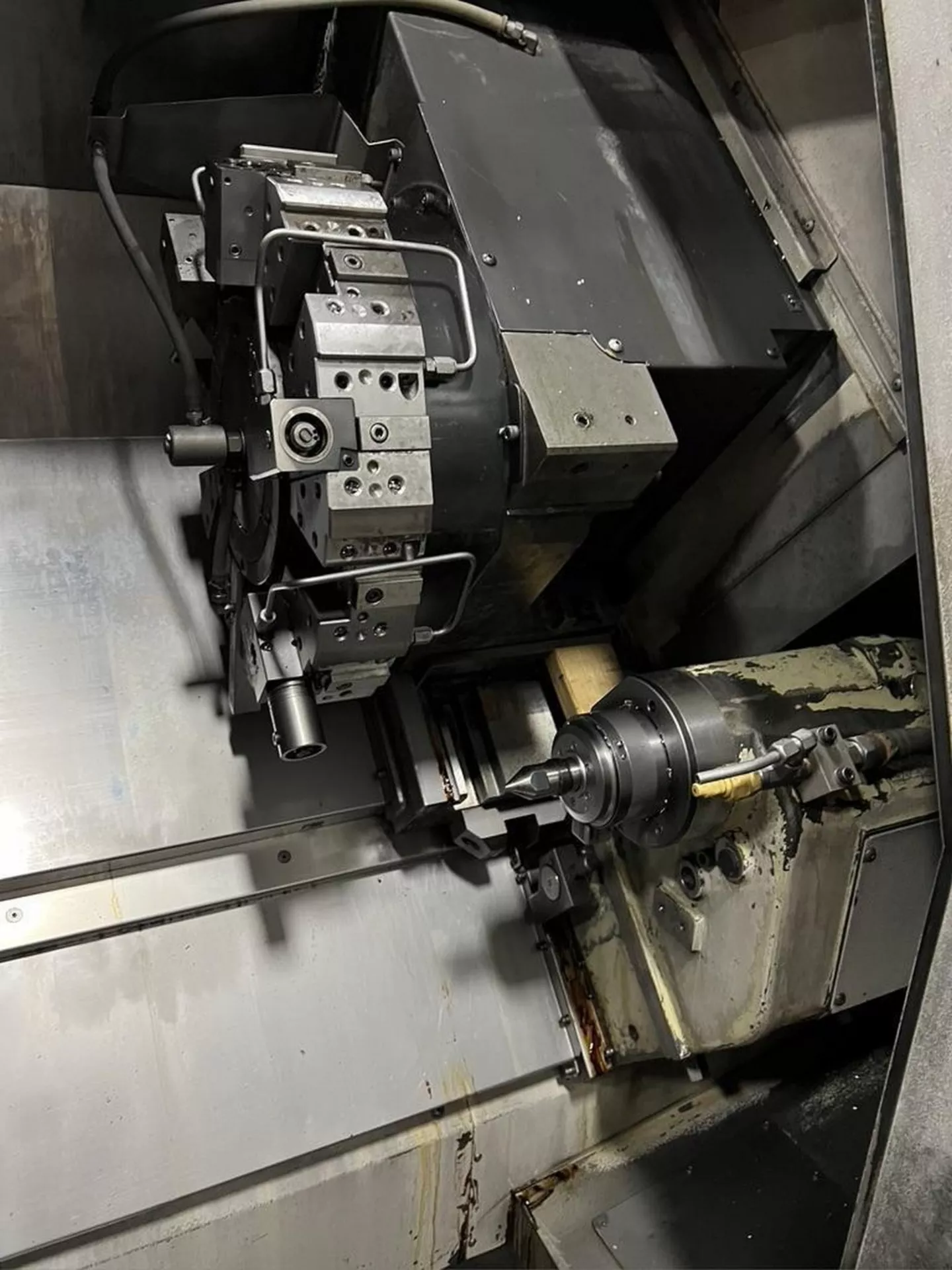

| 12-Station Turret |
| Programmable Tailstock |
| Chip Conveyor |
| Coolant System |
| Hydraulic System |
| Automatic Lubrication |
| Full Enclosure |
| Capacity: |
| Max Turning Diameter: 14.17″ |
| Max Turning Length: 27.56″ |
| Swing Over Bed: 20.47″ |
| Swing Over Cross Slide: 15.35″ |
| Bar Capacity: 3.15″ |
| Travels: |
| X-Axis Travel: 9.84″ |
| Z-Axis Travel: 29.13″ |
| Spindle: |
| Spindle Speed: 3,500 RPM |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.62″ |
| Main Motor: 30 HP |
| Turret: |
| Turret Capacity: 12 Stations |
| Tool Size: 1.25″ |
| Boring Bar Capacity: 2.00″ |
| Tailstock: |
| Tailstock Type: Programmable Hydraulic |
| Quill Diameter: 3.94″ |
| Quill Travel: 3.94″ |
| Feed Rates: |
| Rapid Traverse (X-Axis): 787 IPM |
| Rapid Traverse (Z-Axis): 945 IPM |
| Cutting Feed Rate: Programmable |

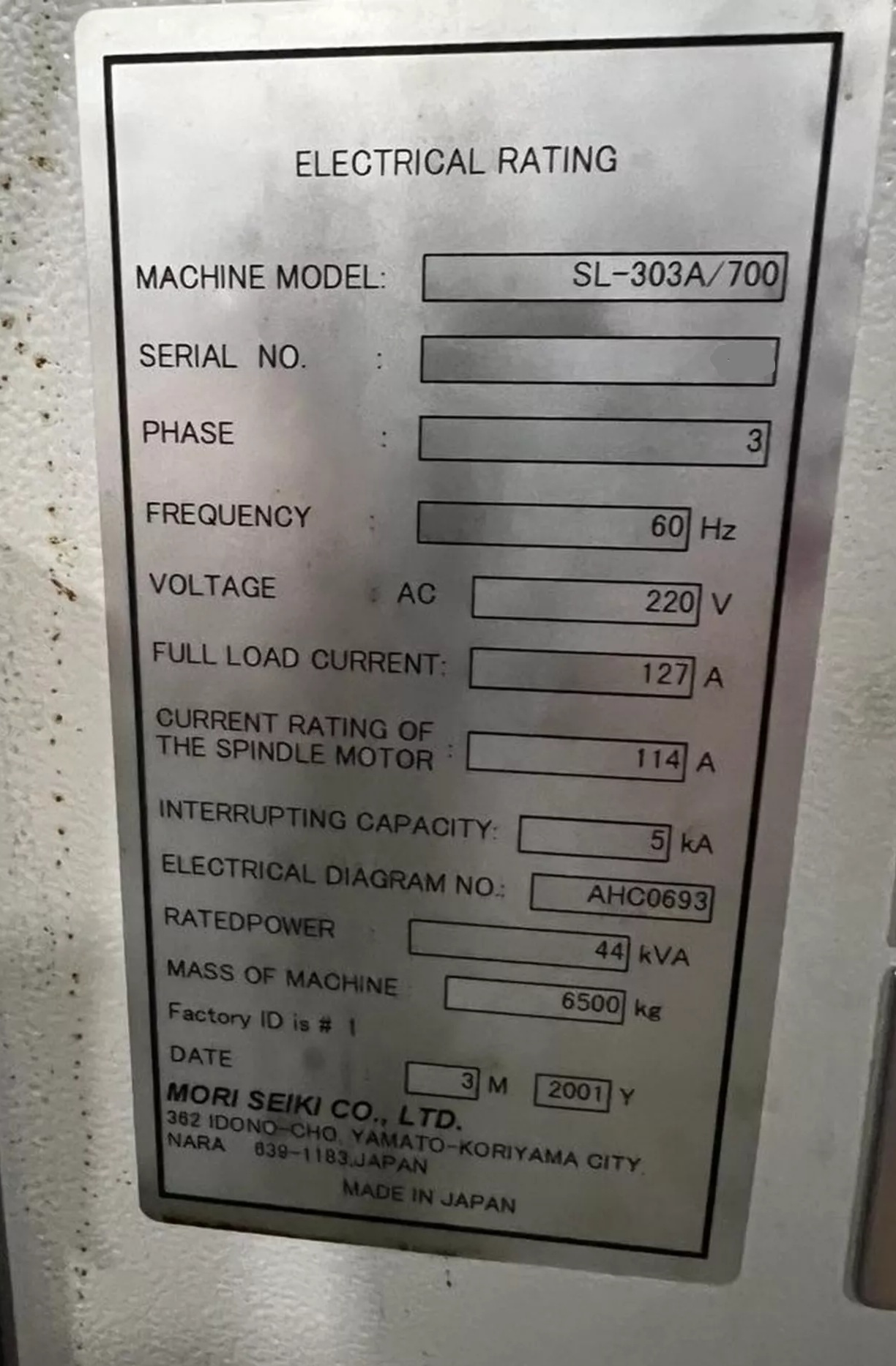

| Electrical: |
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Rated Power: 44 kVA |
| General: |
| Machine Weight: 14,330 lbs |
| Chip Conveyor Included |
