*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | SL403B/2000 |
| Year: | 2006 |
| Equipped With: |
|---|
| Mori Seiki MSX-500III CNC Control |
| 15″ Hydraulic 3-Jaw Chuck |
| 12-Station Turret |
| Programmable Hydraulic Tailstock |
| Tool Presetter |
| Spindle Chiller |
| Chip Conveyor |
| Automatic Lubrication System |
| Flood Coolant System |
| Fully Enclosed Splash Guard |
| Work Light |
| Capacity: |
|---|
| Swing Over Bed: 37″ |
| Distance Between Centers: 79″ |
| Chuck Size: 15″ |
| Bar Capacity: 4.5″ |
| Travels: |
|---|
| X-Axis Travel: Approx. 13″ |
| Z-Axis Travel: Approx. 82″ |
| Rapid Traverse (X-Axis): Approx. 787 IPM |
| Rapid Traverse (Z-Axis): Approx. 944 IPM |
| Spindle: |
|---|
| Spindle Speed: 2,400 RPM |
| Spindle Motor: 40 HP |
| Bar Capacity: 4.5″ |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Type: Servo Indexing |
| Tailstock: |
|---|
| Tailstock Type: Programmable Hydraulic |
| General: |
|---|

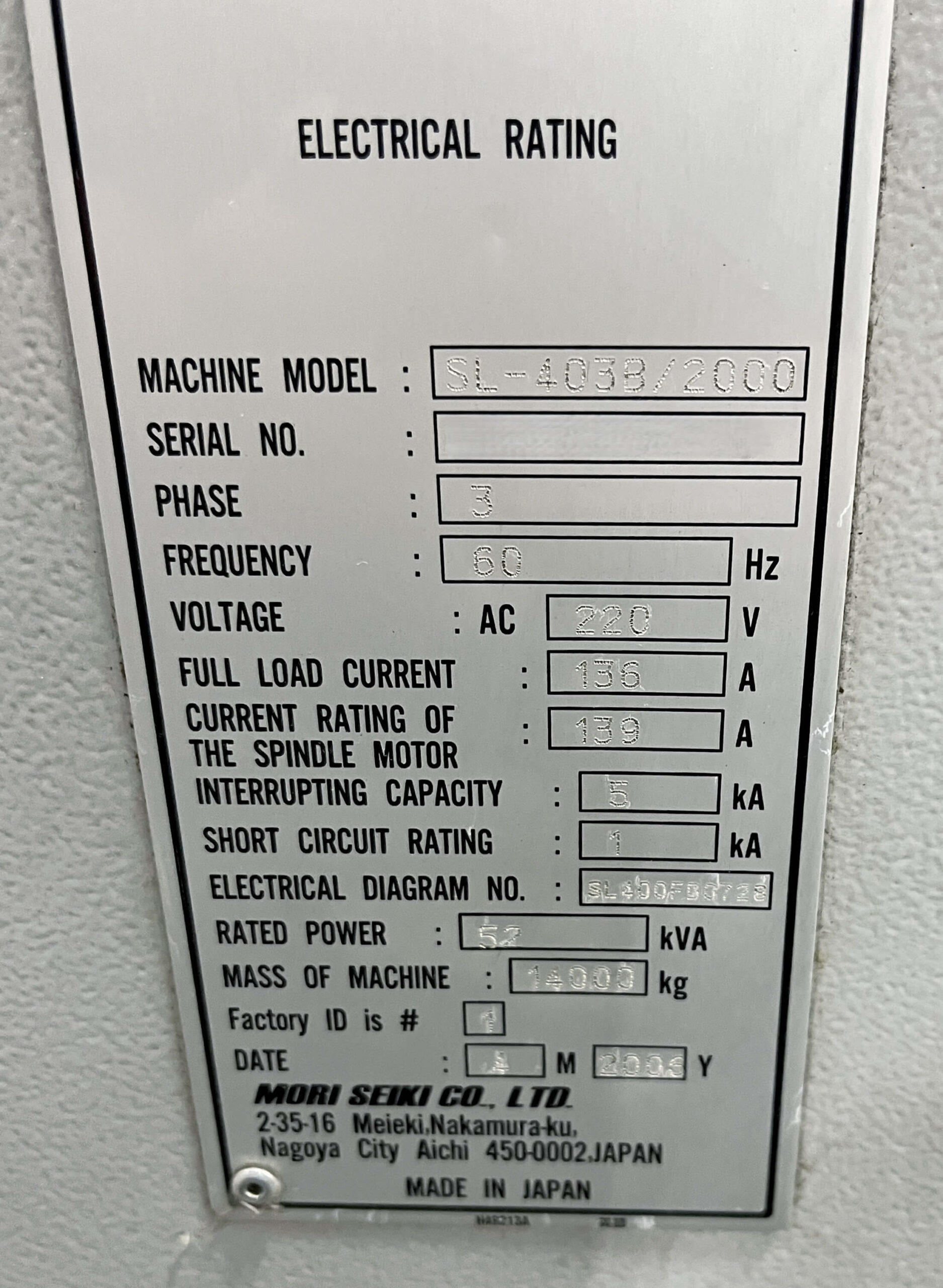

| Power Requirement: 220 V / 3 Phase / 60 Hz |
| Rated Power: 52 kVA |
| Machine Dimensions (Approx.): 220″ × 88″ × 90″ |
| Machine Weight: 30,865 lbs |
