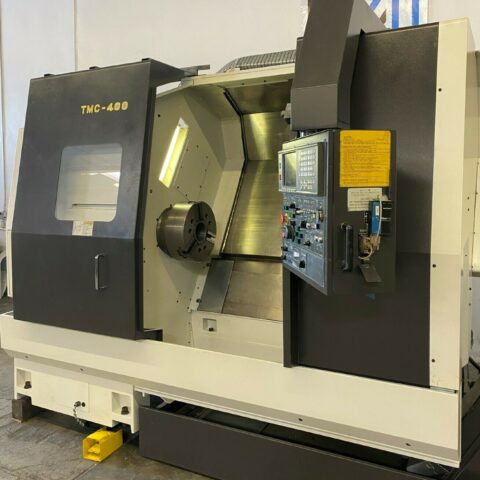

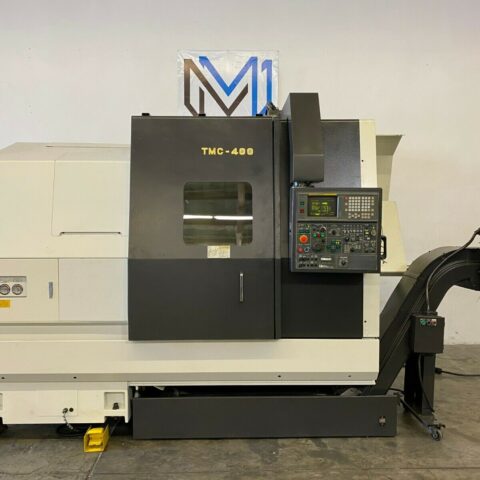

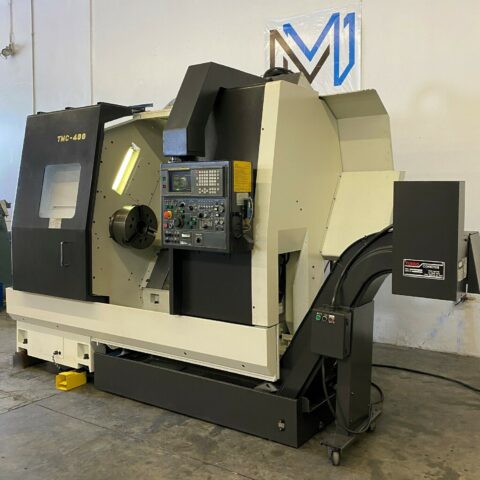

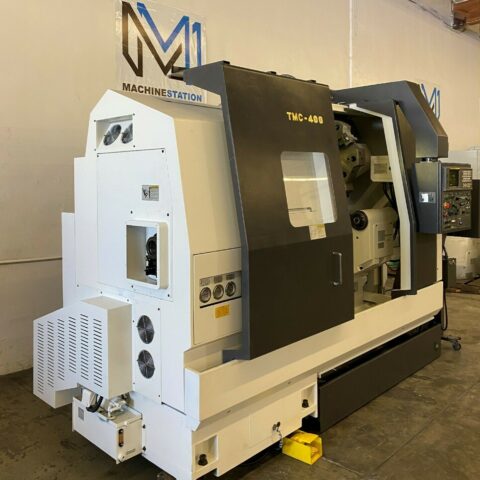

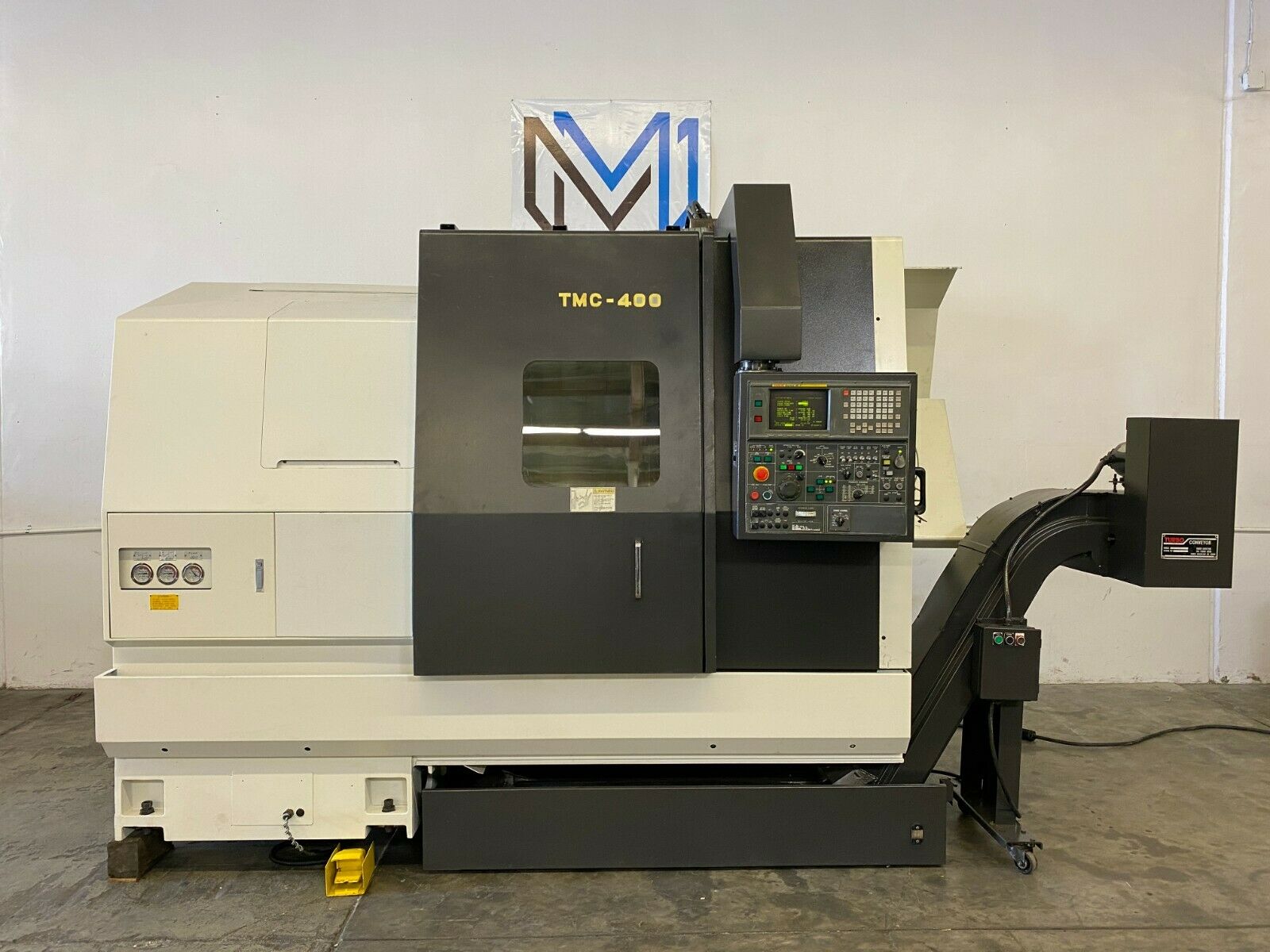

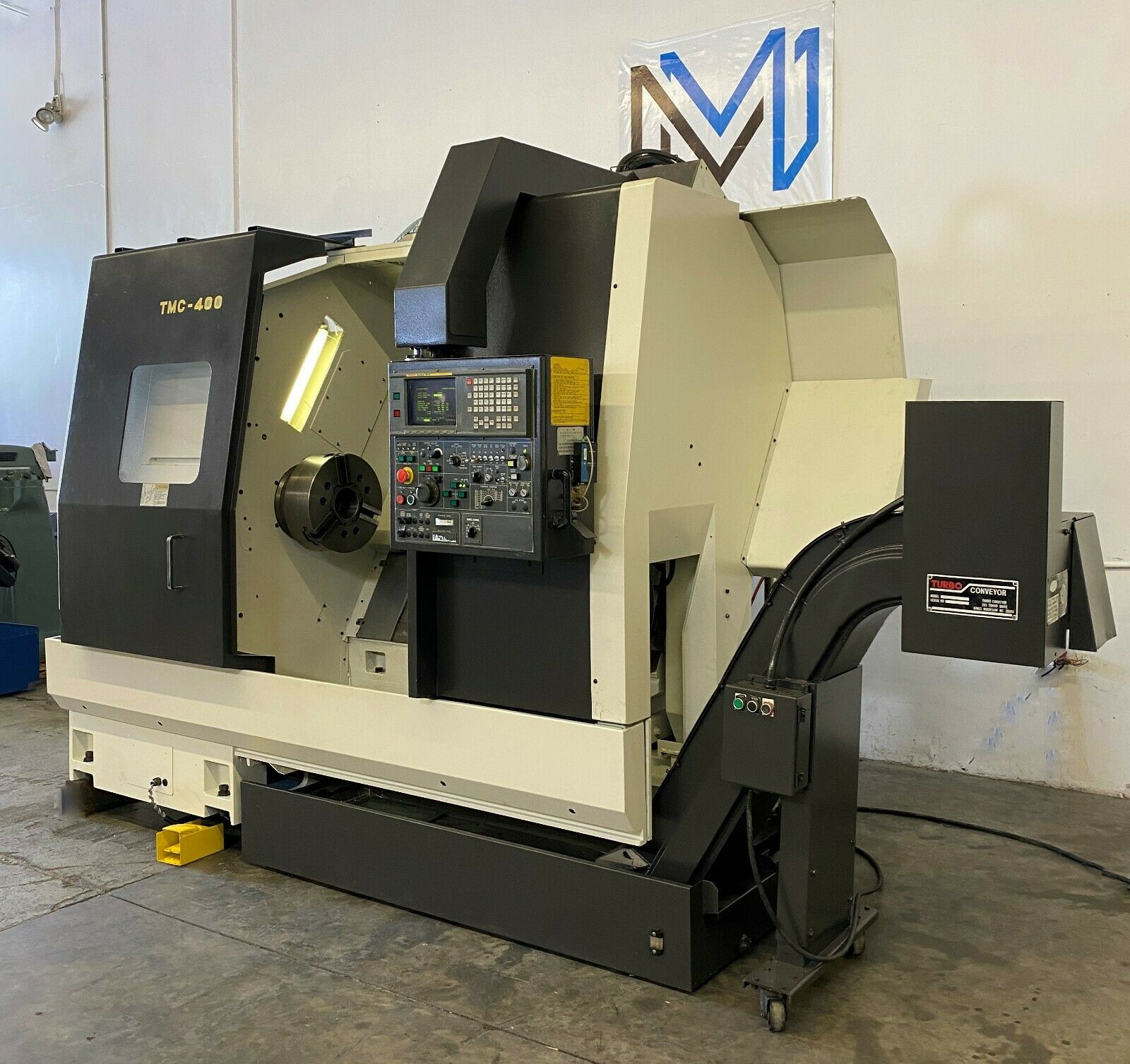

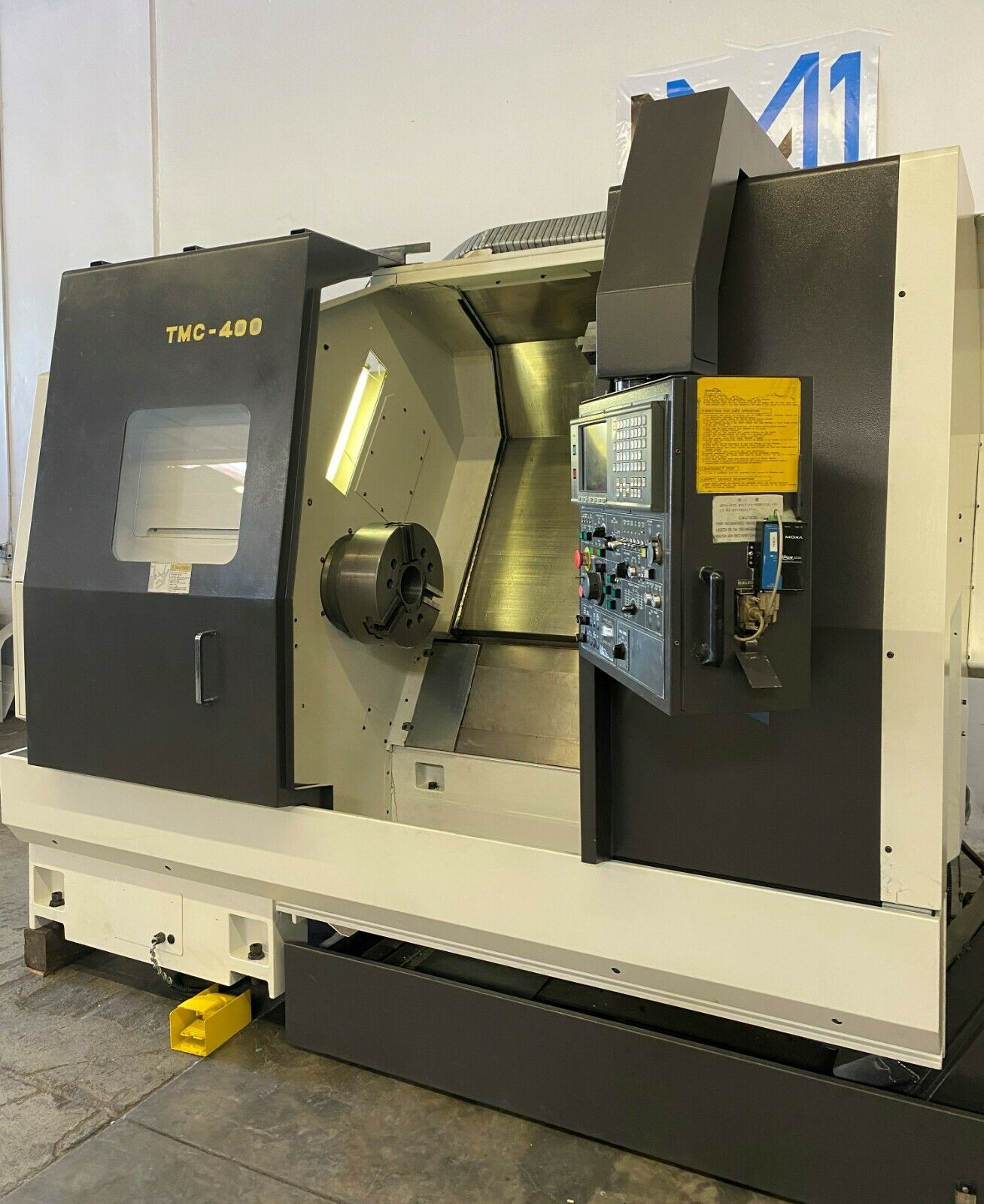

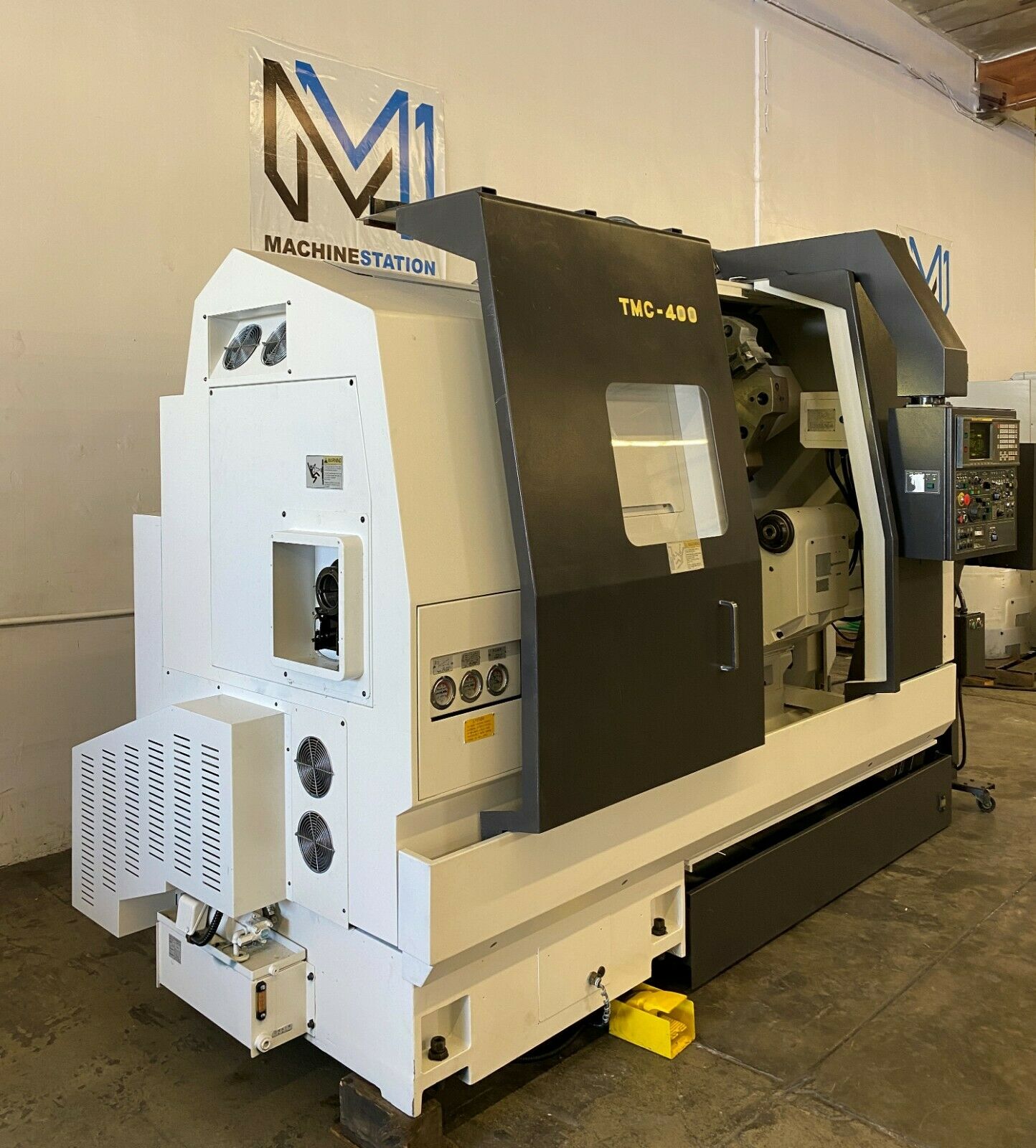

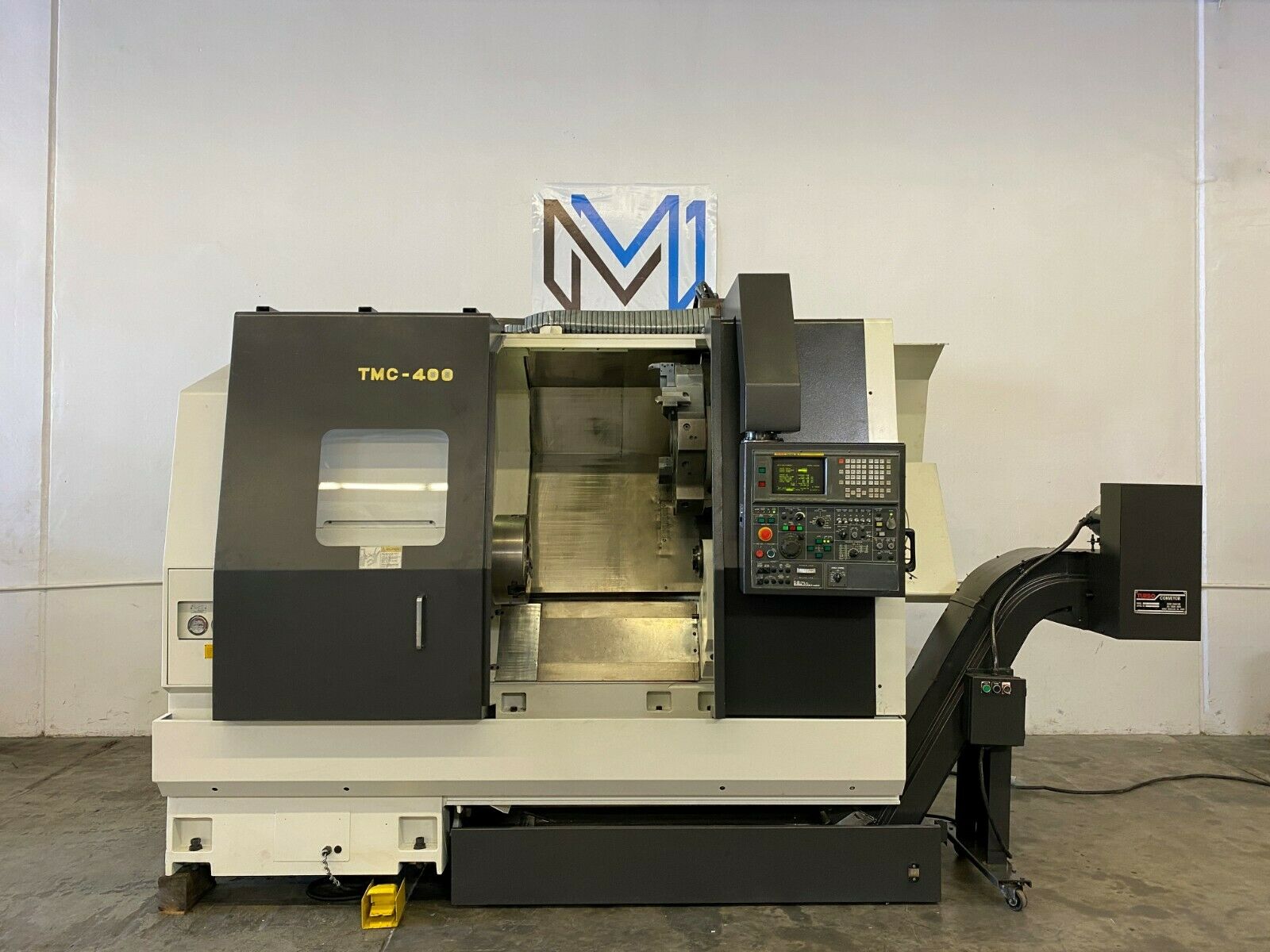

Nakamura TMC-400 CNC Turning Center

All specifications are approximations and are subject to verification.

• Nakamura TMC-400 Equipped With:

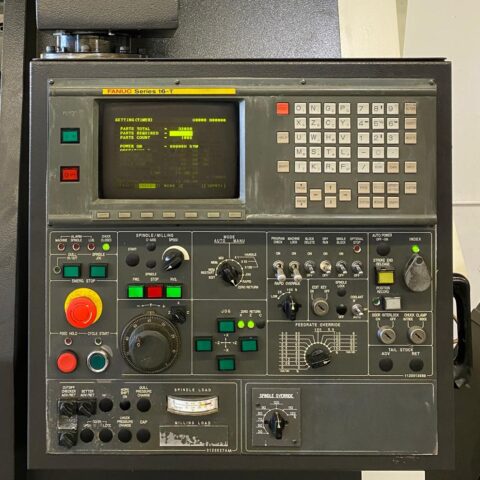

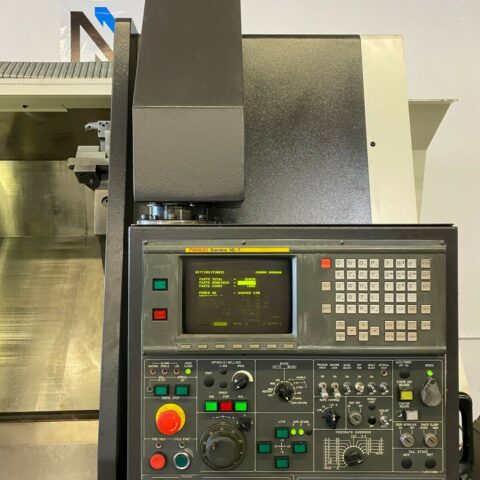

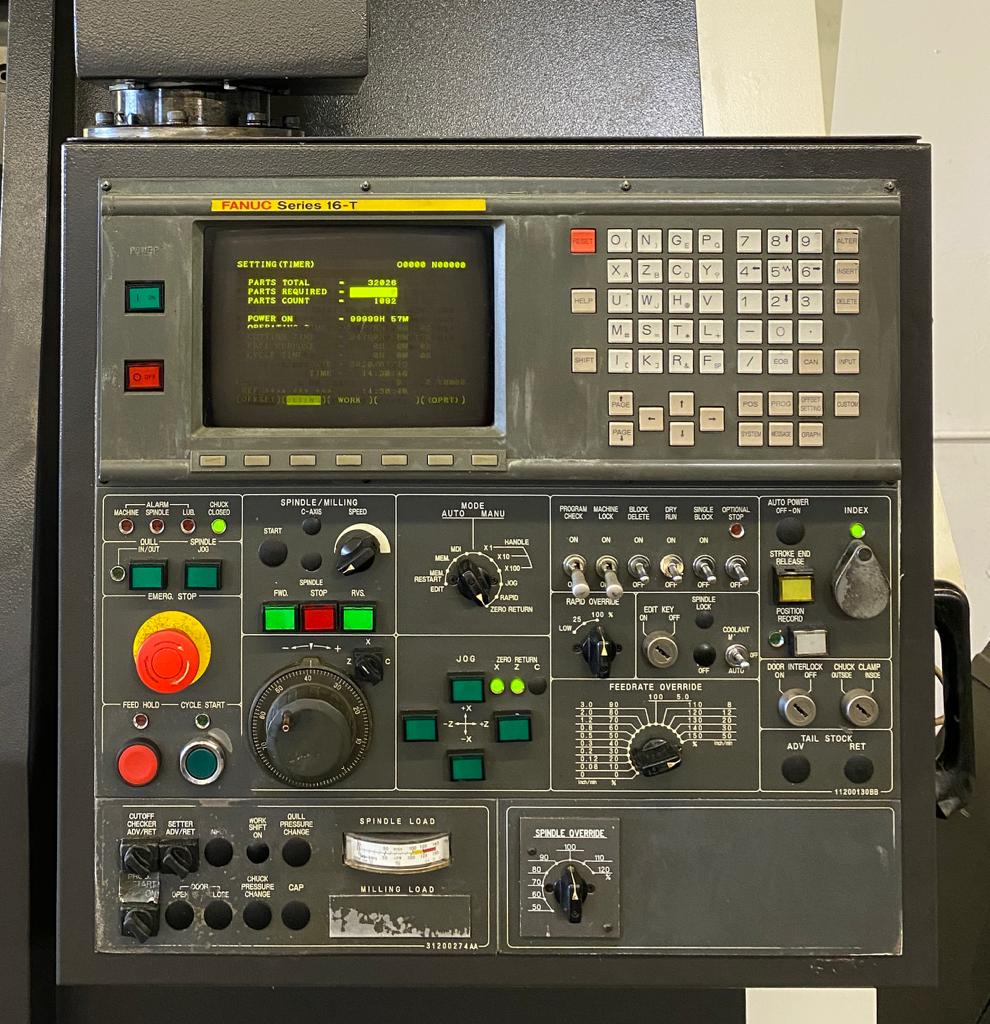

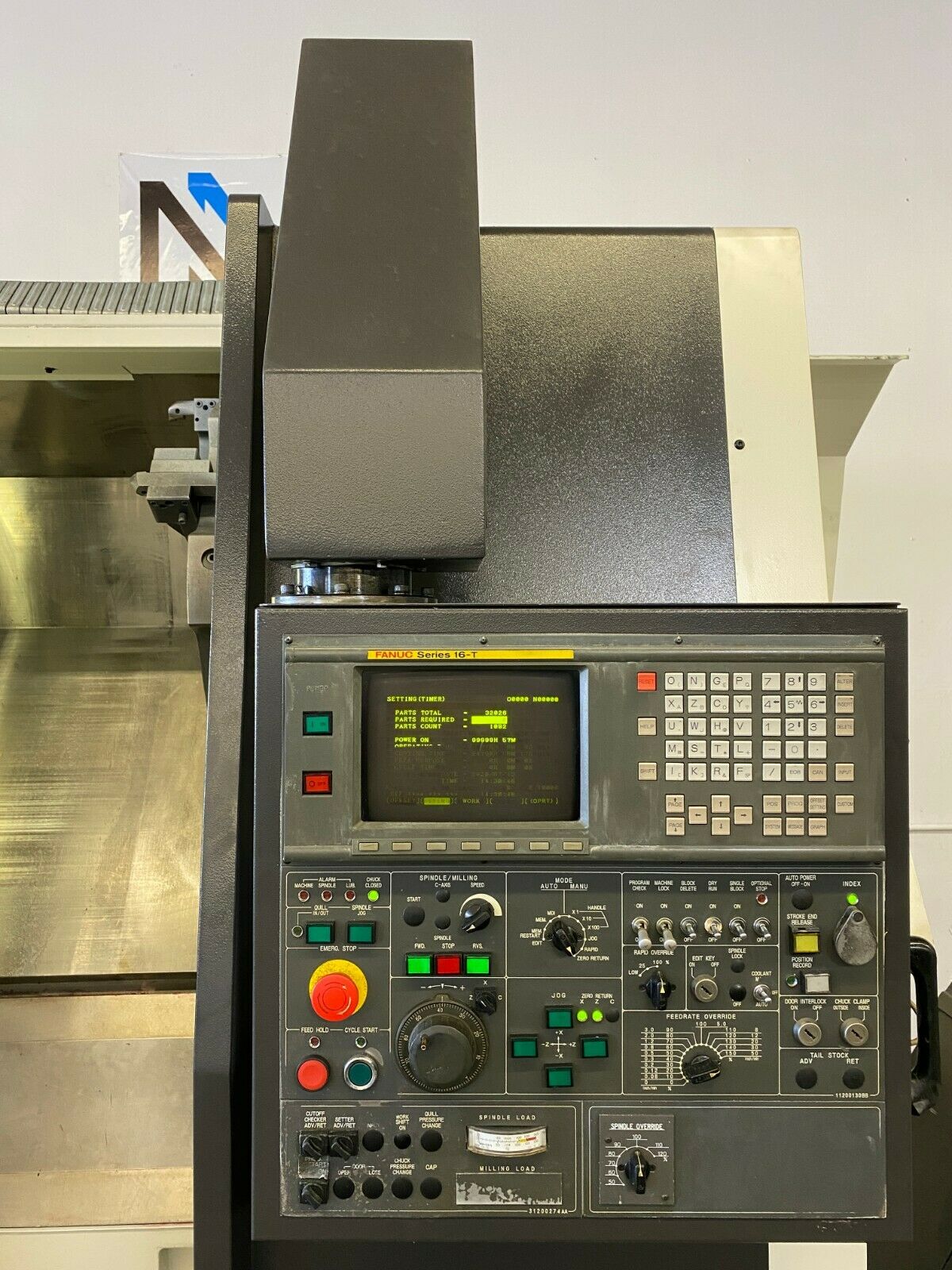

• Fanuc 16T CNC Control

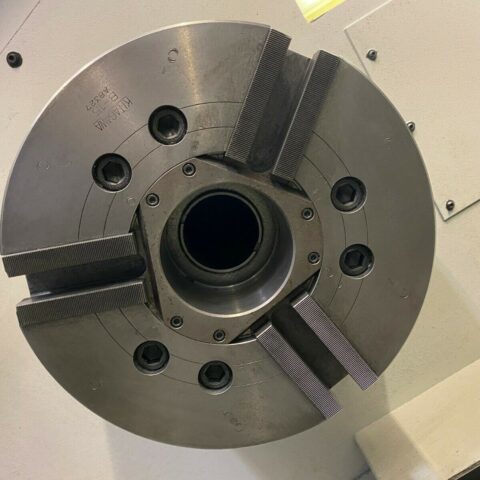

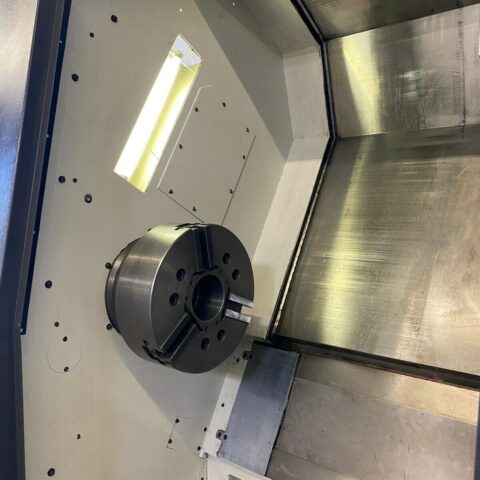

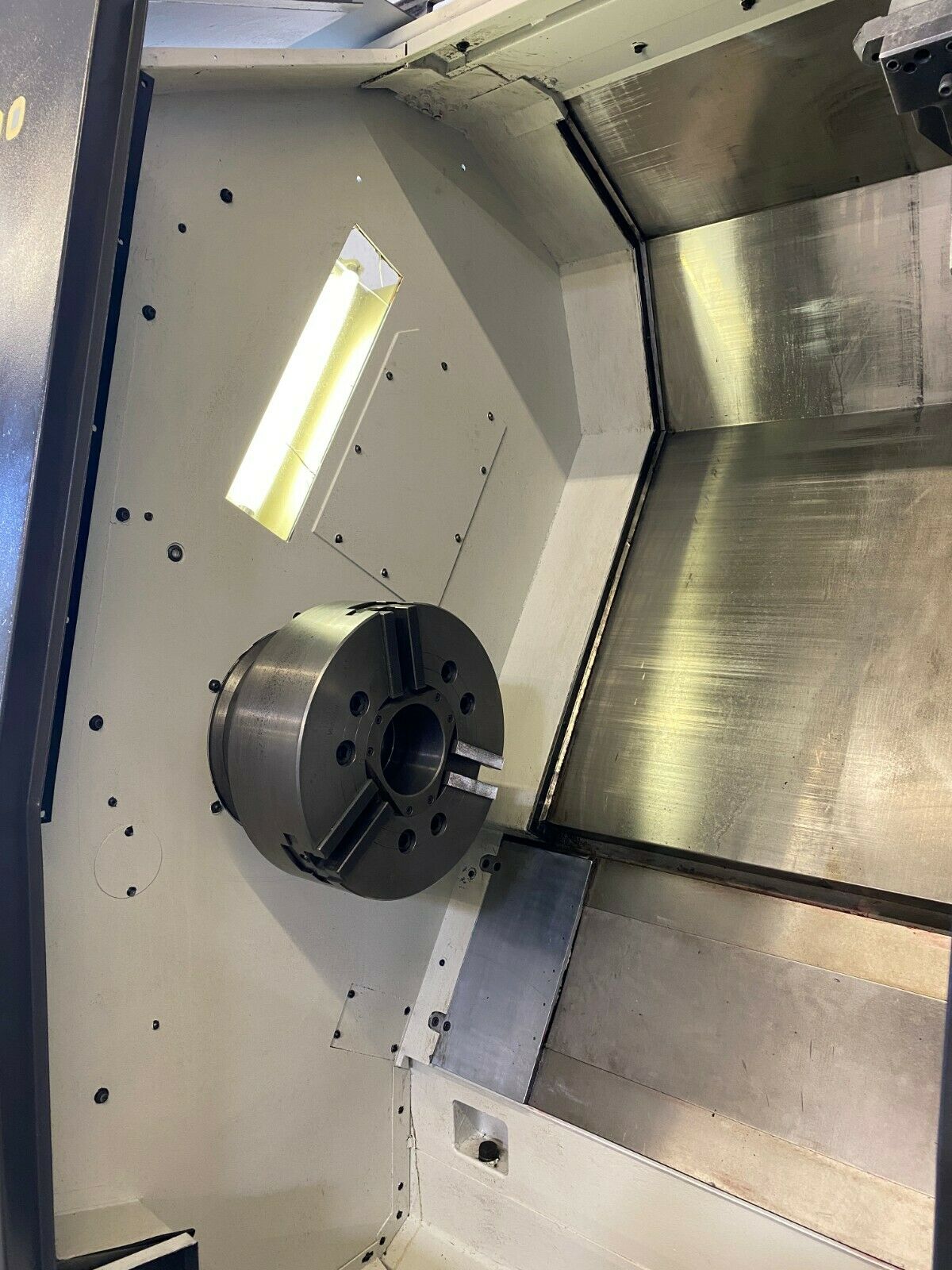

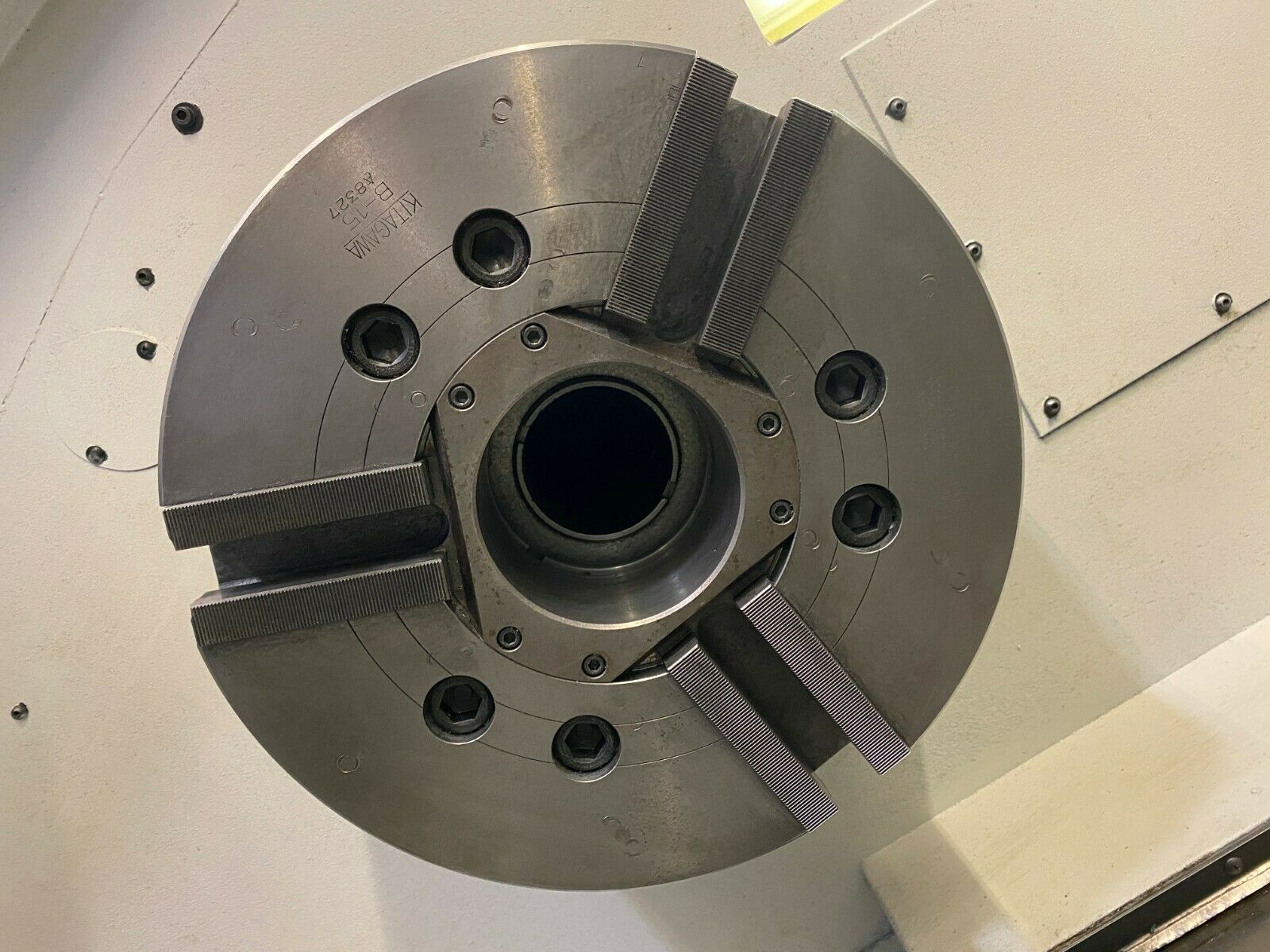

• 15″ Hydraulic Chuck

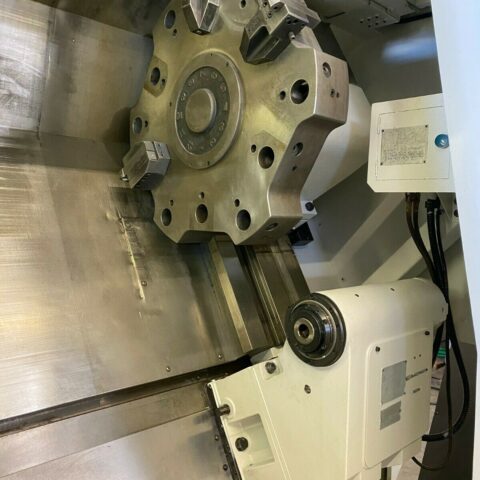

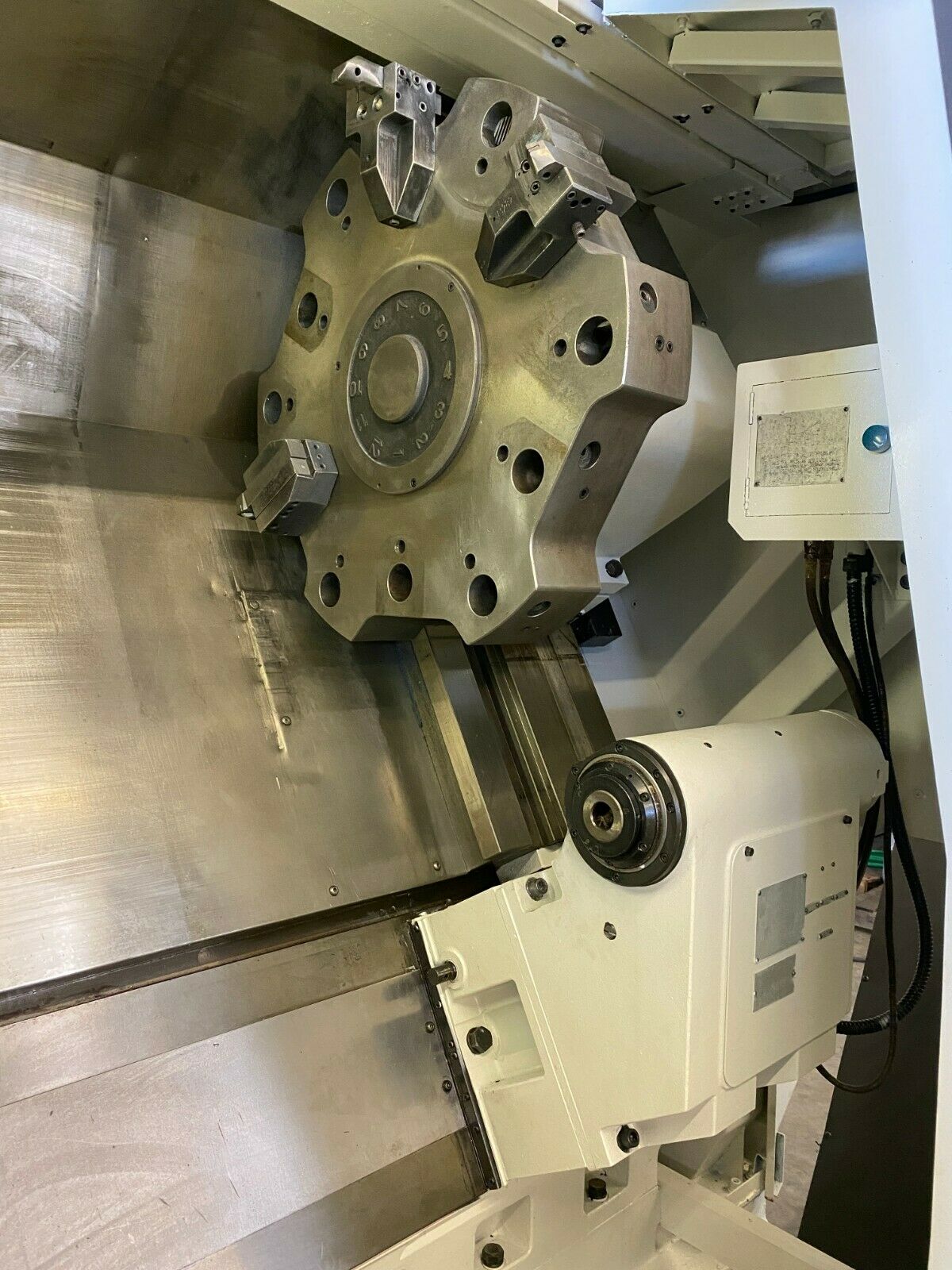

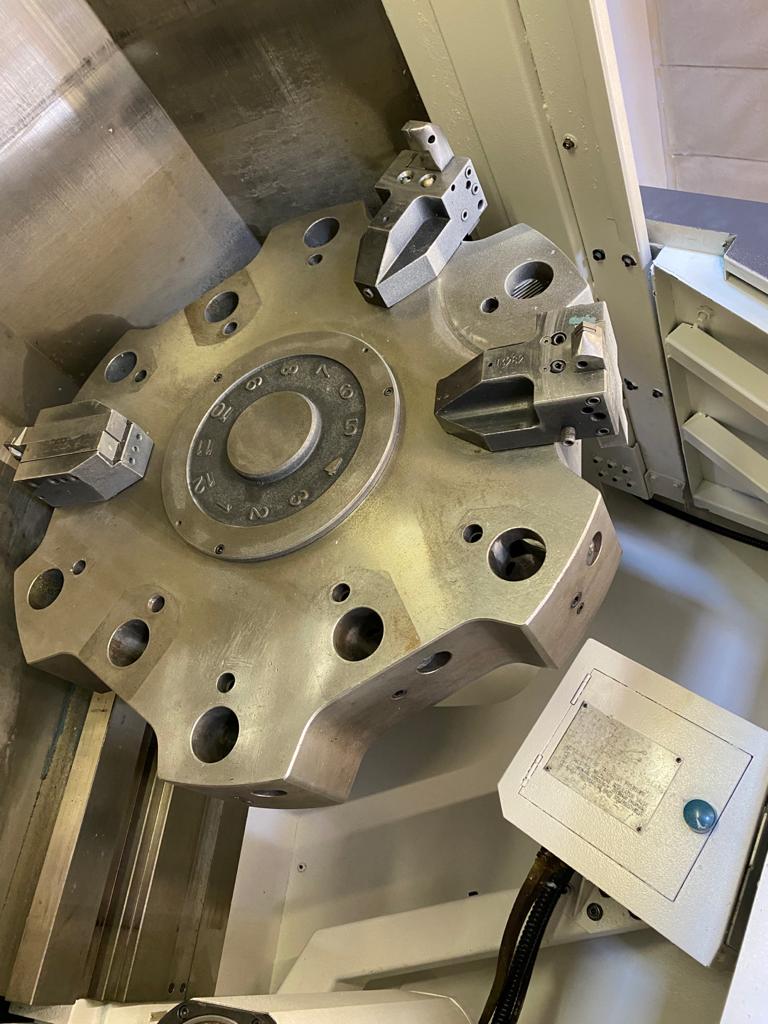

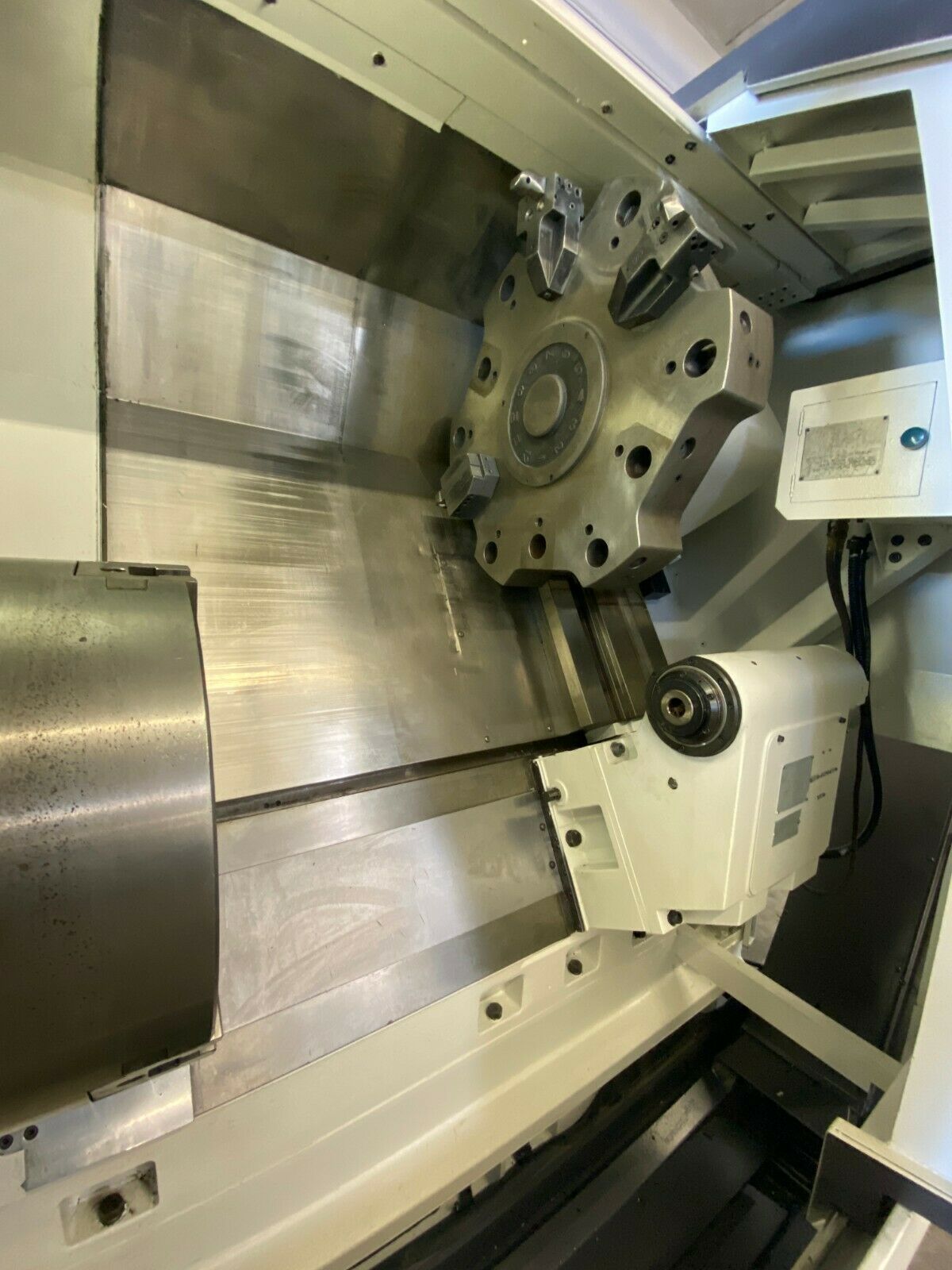

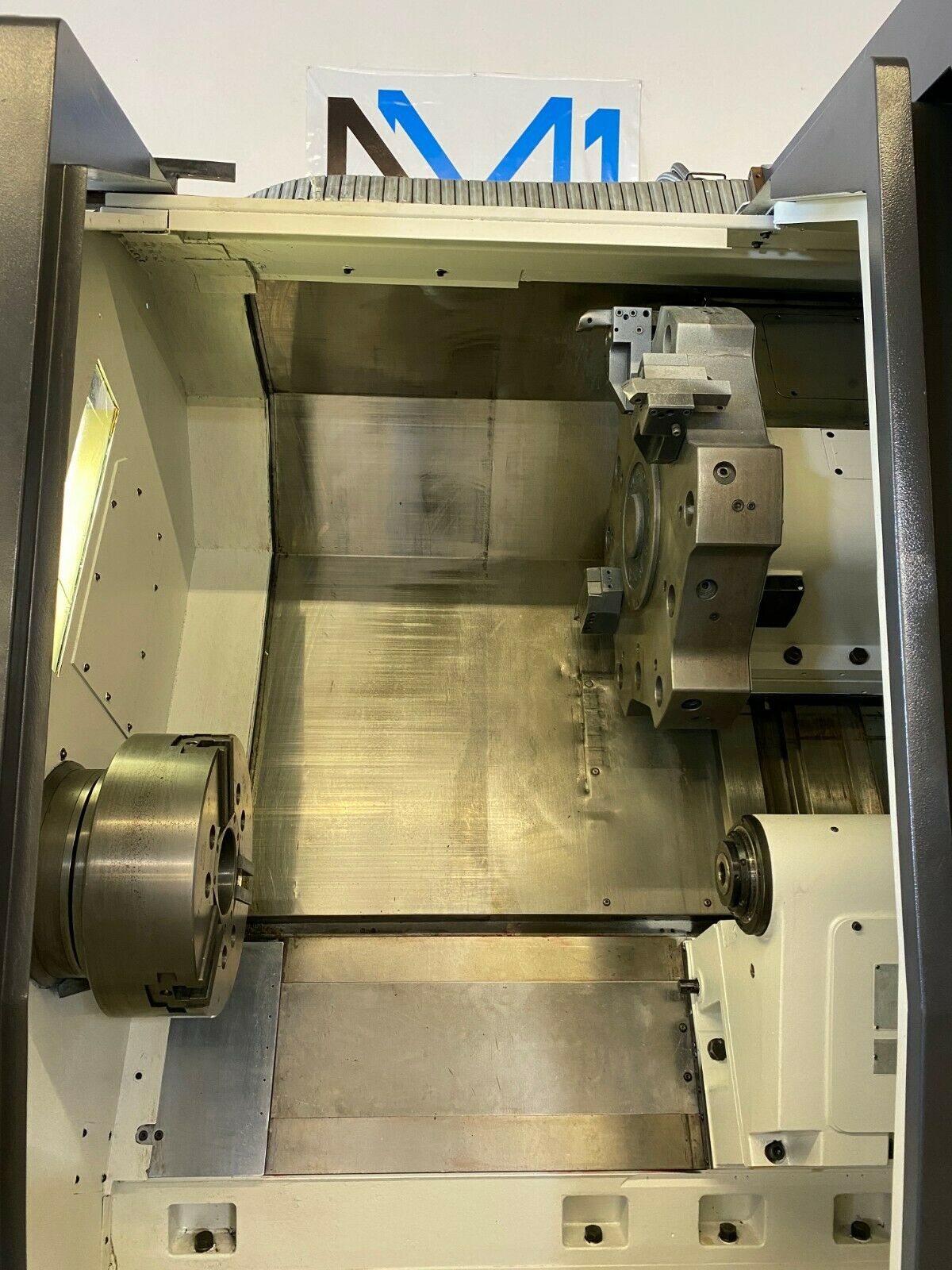

• 12-Station Turret
• Gear Head A2-8 Spindle
• Heavy duty Box Way Construction
• Hydraulic Tailstock with Power Quill
• Chip Pan and Chip Conveyor
• RS-232 Port with wifi DNC Upgrade
• Coolant System
• Automatic Lubrication system
• Foot Operated Control for Chuck

• Nakamura TMC-400 Specifications:

• Max Turning Diameter: 18.31″
• Max Turning Length: 21.65″
• Max Bar Capacity: 3.15″
• Swing Over Bed: 33.86″
• Distance Between Centers: 26.4″

• Travel:

• X Axis Travel: 12.4″
• Z Axis Travel: 23.23″
• Rapid Traverse X Axis: 472 IPM
• Rapid Traverse Z Axis: 591 IPM

• Spindle:

• Spindle Nose: A2-8
• Spindle Bore: 3.94″
• Spindle Speed: 10-2500 RPM
• Spindle Motor: 30 HP

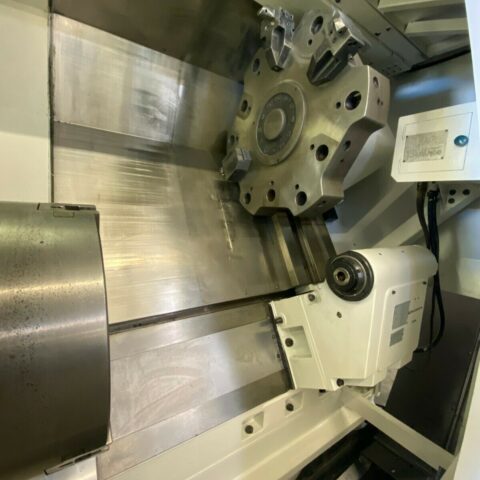

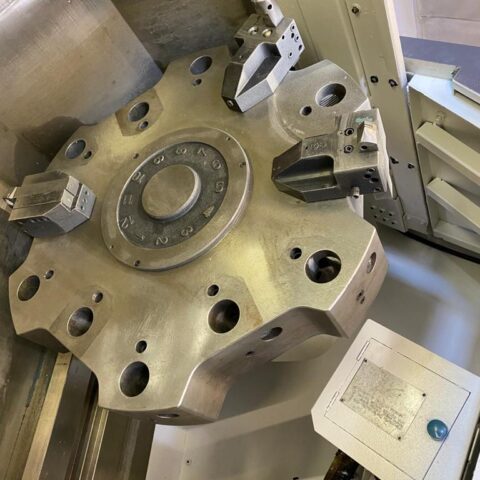

• Turret:

• Turret Capacity: 12 Stations
• Turret Index Time: 1 Second

• Tailstock:

• Tailstock Body Travel: 14.3″
• Tailstock Quill Dia.: 3.54″
• Tailstock Quill Stroke: 4.72″
• Tailstock Taper: MT-5

• General:

• Power Source: AC 220 V, Three Phase, 60 Hz
• Power Requirement: 68 Amps
• Overall Dimensions: 126″ x 68″ x 80″ High
• Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor
• Weight : 15000 lbs Approx.
