*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Nakamura-Tome |
| Model: | SC-250 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |

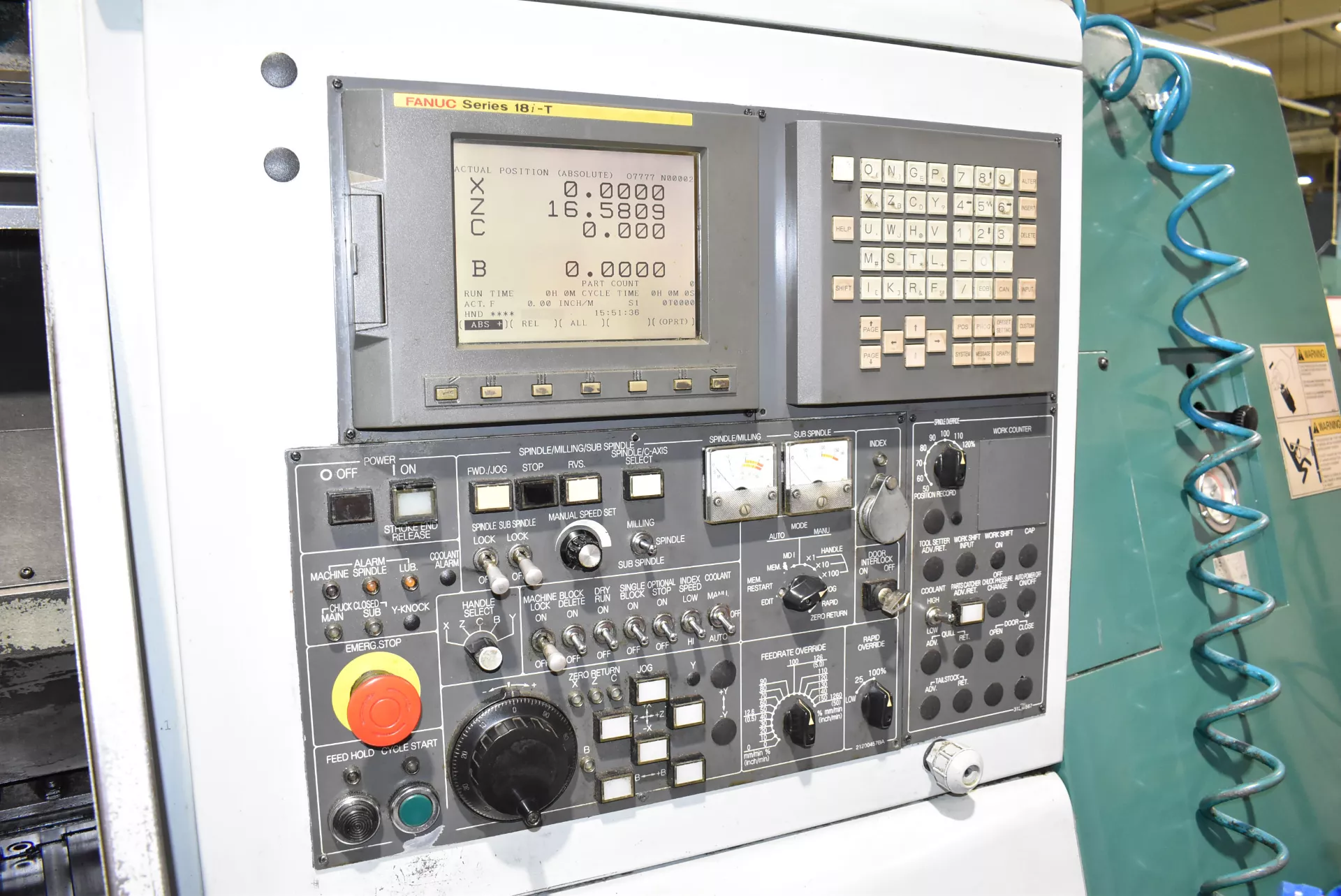

| Control: | Fanuc Series 18i-T CNC Control |
| EQUIPPED WITH: |
|---|
| Fanuc Series 18i-T CNC Control |
| Opposed Twin Spindle Configuration |
| Live Tool Capability |
| C-Axis |
| 12-Station Automatic Turret |
| Chip Conveyor |
| Coolant System |
| Intermis Xcel FX2100 Mist Collector |
| Automatic Lubrication System |
| Work Light |
| CAPACITY: |
|---|
| Max Turning Diameter: 11.81″ |
| Max Turning Length: 19.69″ |
| Distance Between Centers: 27.13″ |
| Maximum Bar Capacity: 2.00″ |
| Chuck Size: 8″ |
| TRAVELS: |
|---|
| X-Axis Travel: 7.00″ |
| Z-Axis Travel: 21.65″ |
| Rapid Traverse X-Axis: 630 IPM |
| Rapid Traverse Z-Axis: 1,181 IPM |

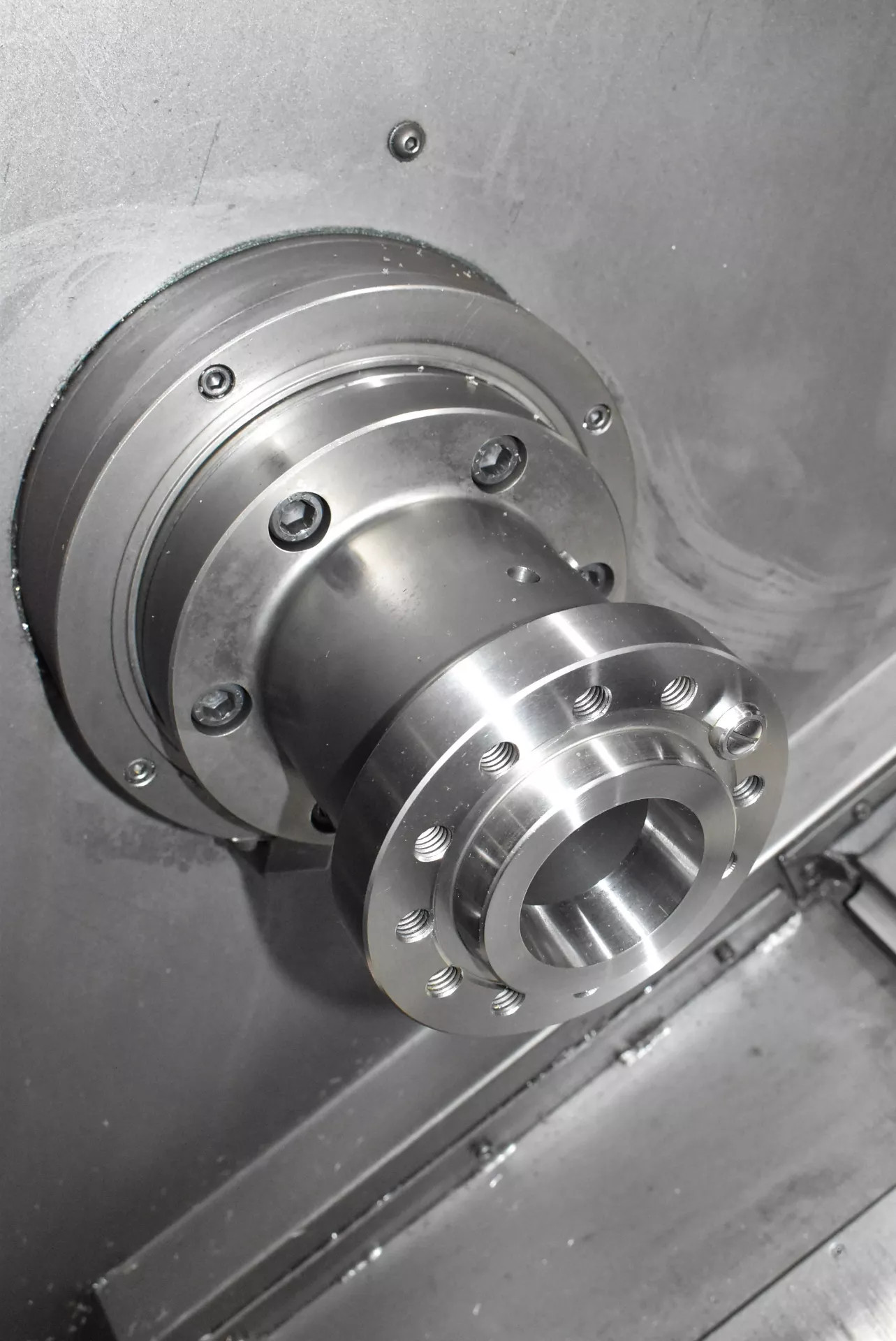

| SPINDLE: |
|---|
| Main Spindle Speed: 4,000 RPM |
| Main Spindle Bore: 2.50″ |
| Spindle Nose: A2-6 |
| Main Spindle Motor: 20 HP |
| SUB SPINDLE: |
|---|
| Opposed Sub-Spindle |
| Parts Transfer Capability |

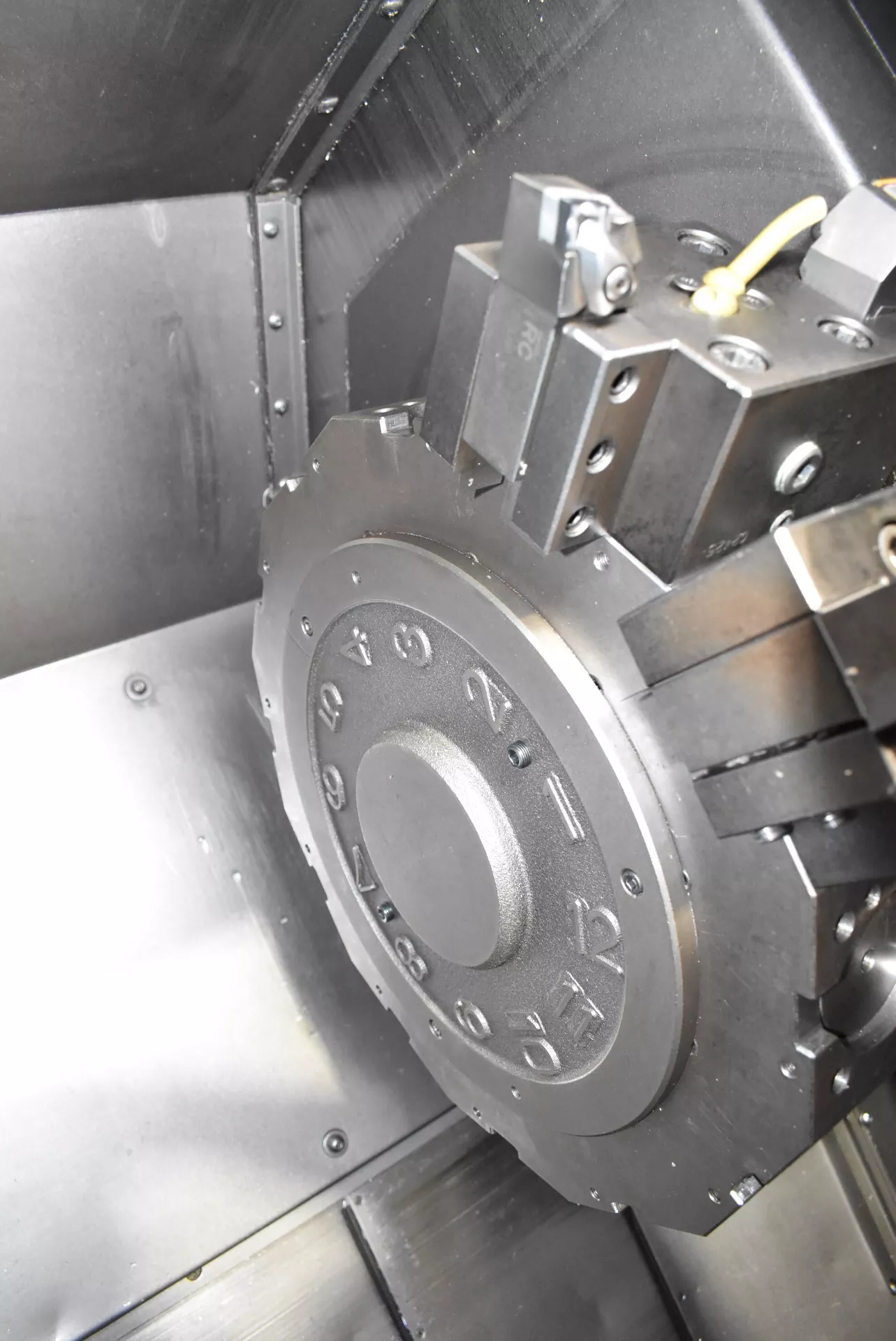

| TURRET: |
|---|
| 12-Station Automatic Turret |
| Live Tool Capability |
| C-Axis Machining |
| GENERAL: |
|---|
| Power Source: AC 200-220V / 3-Phase / 50-60 Hz |
| Machine Dimensions: 102″ x 66″ x 72″ High (Approx.) |
| Machine Weight: 8,400 lbs Approx. |
| Made in Japan |
