*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make | Nakamura-Tome |
| Model | WT-100 |
| Year | 2005 |
| Machine Type | CNC Multi-Tasking Turning Center |
| Control | Fanuc Series 31i-Model A CNC Control |
| EQUIPPED WITH |
|---|
| Fanuc Series 31i-Model A CNC Control |

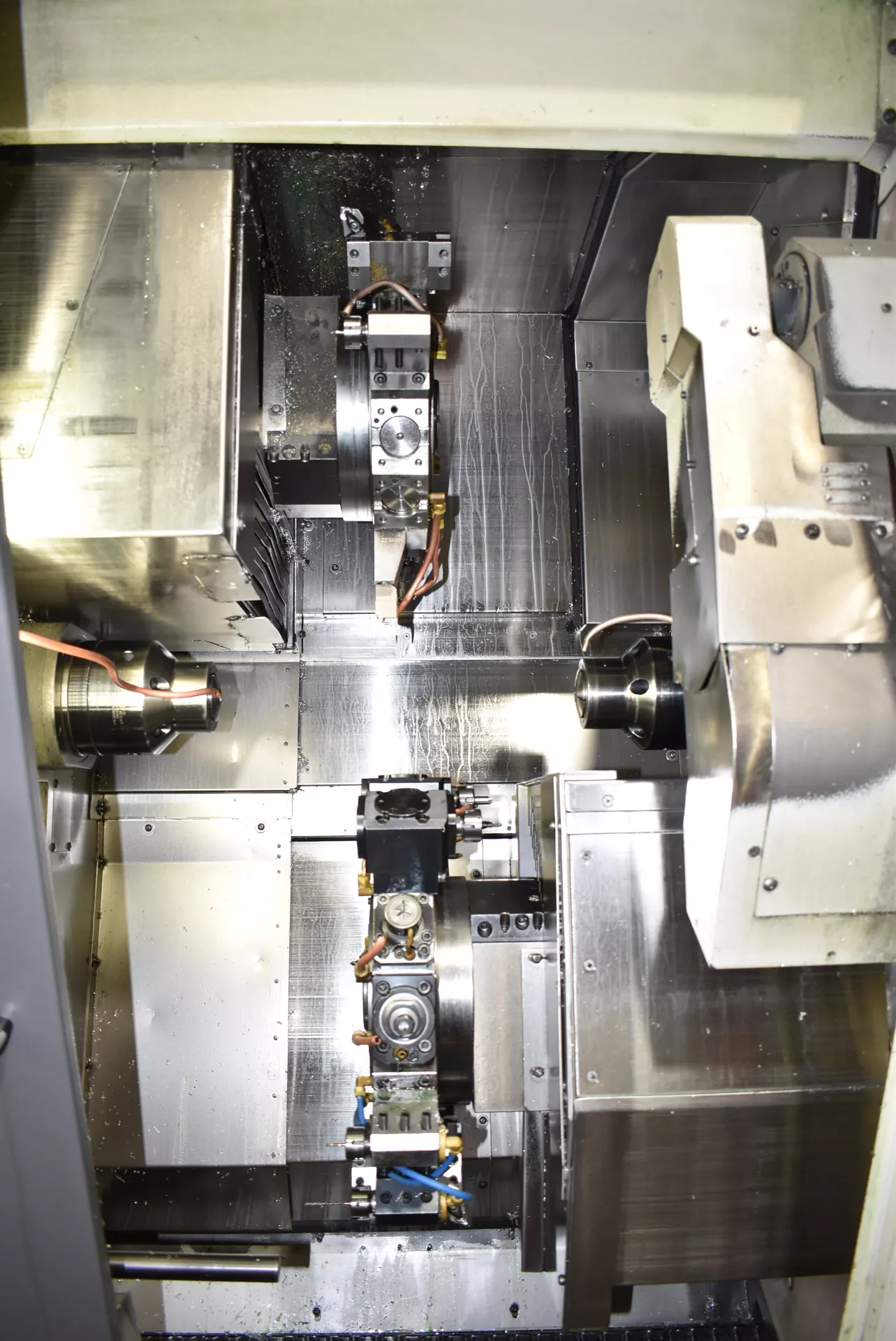

| Opposed Twin Spindles |
| Twin 24-Station Turrets |
| Live Tooling |
| Y-Axis |
| B2-Axis |
| C-Axis on Both Spindles |
| High-Pressure Coolant System |
| Type-G Parts Catcher |
| Parts Delivery Conveyor System |
| Aeroex Mist Eliminator |
| Hydraulic System |
| Foot Pedals |
| Coolant System |
| CAPACITY |
|---|
| Maximum Turning Diameter: 7.48″ |
| Maximum Turning Length: 19.80″ |
| Distance Between Spindle Noses: 8.27″ – 28.94″ |
| Spindle Bore: 2.20″ |
| TRAVELS |
|---|
| X1 Axis Travel: 5.31″ |
| Z1 Axis Travel: 19.80″ |
| X2 Axis Travel: 5.31″ |
| Z2 Axis Travel: 19.80″ |
| Y Axis Travel: ±1.22″ |
| B2 Axis Travel: 20.67″ |
| C Axis: 360° in 0.001° Increments |
| SPINDLE |
|---|
| Main Spindle Speed: 6,000 RPM |
| Main Spindle Bore: 2.20″ |
| Main Spindle C-Axis Positioning |
| C-Axis Indexing: 0.001° Increments |

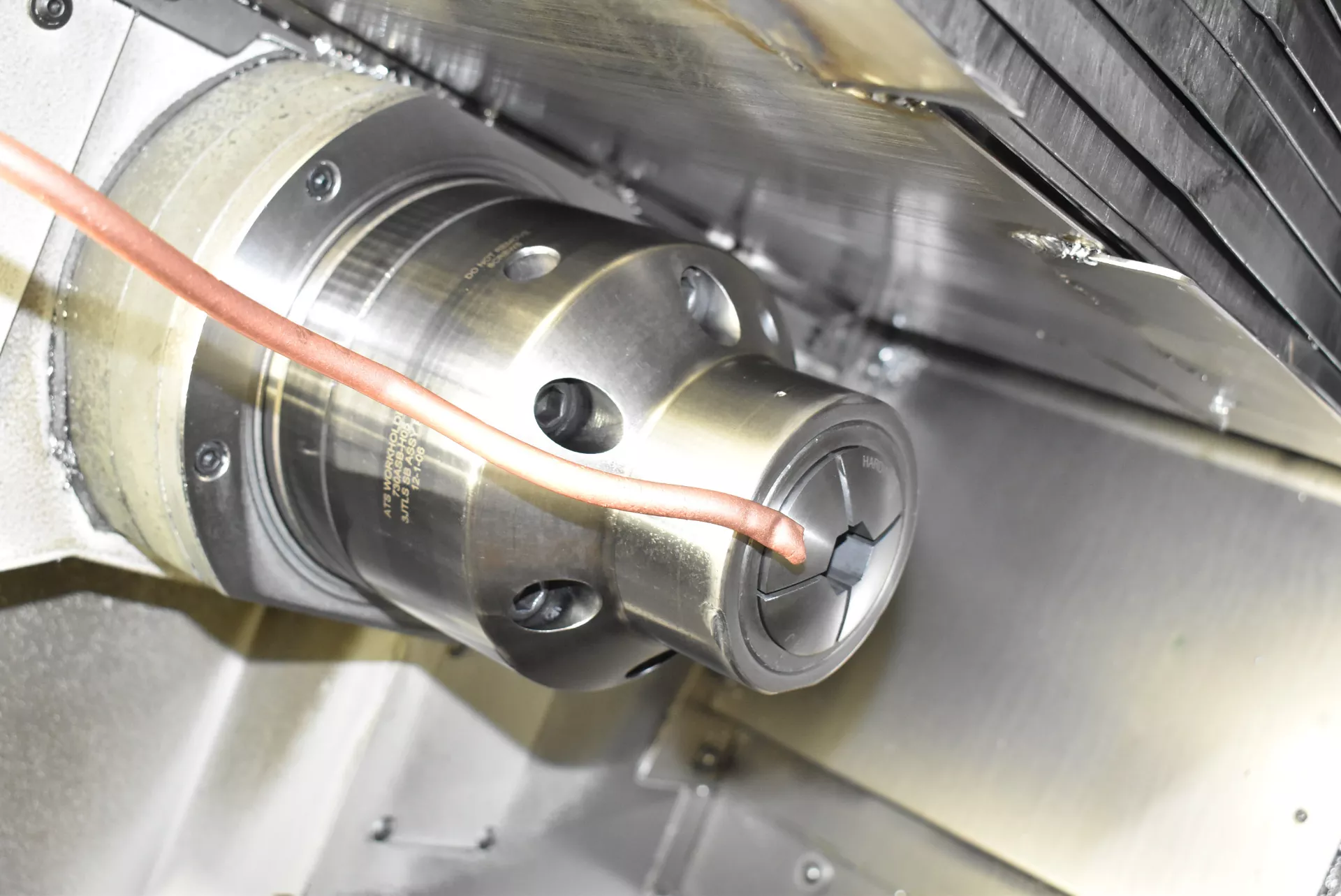

| >Opposed Sub Spindle |
| TURRETS |
|---|

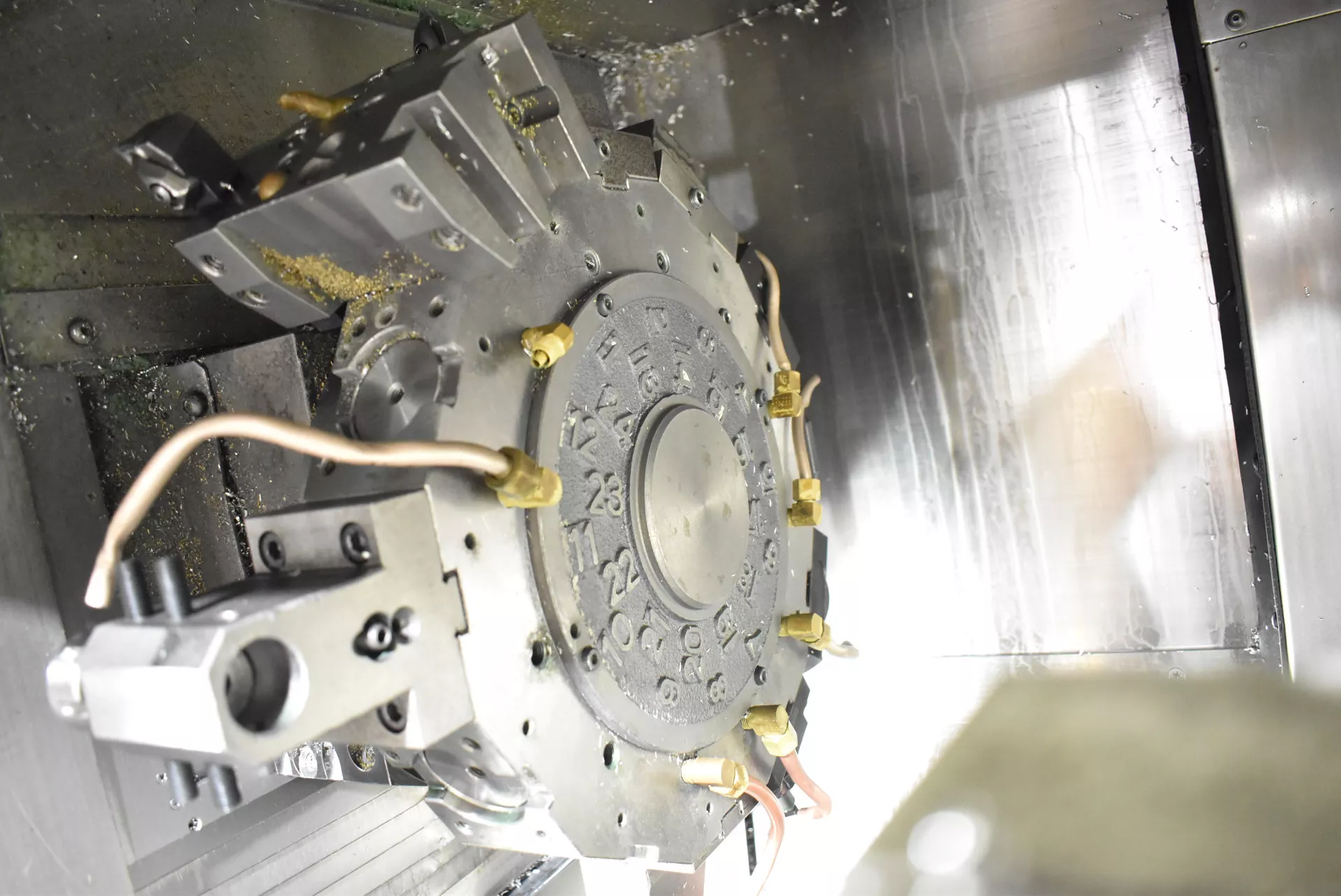

| Upper 24-Station Turret |
| Lower 24-Station Turret |
| Twin Servo Turrets |
| Bidirectional Indexing |
| Capable of Simultaneous Upper & Lower Turret Machining |
| GENERAL |
|---|

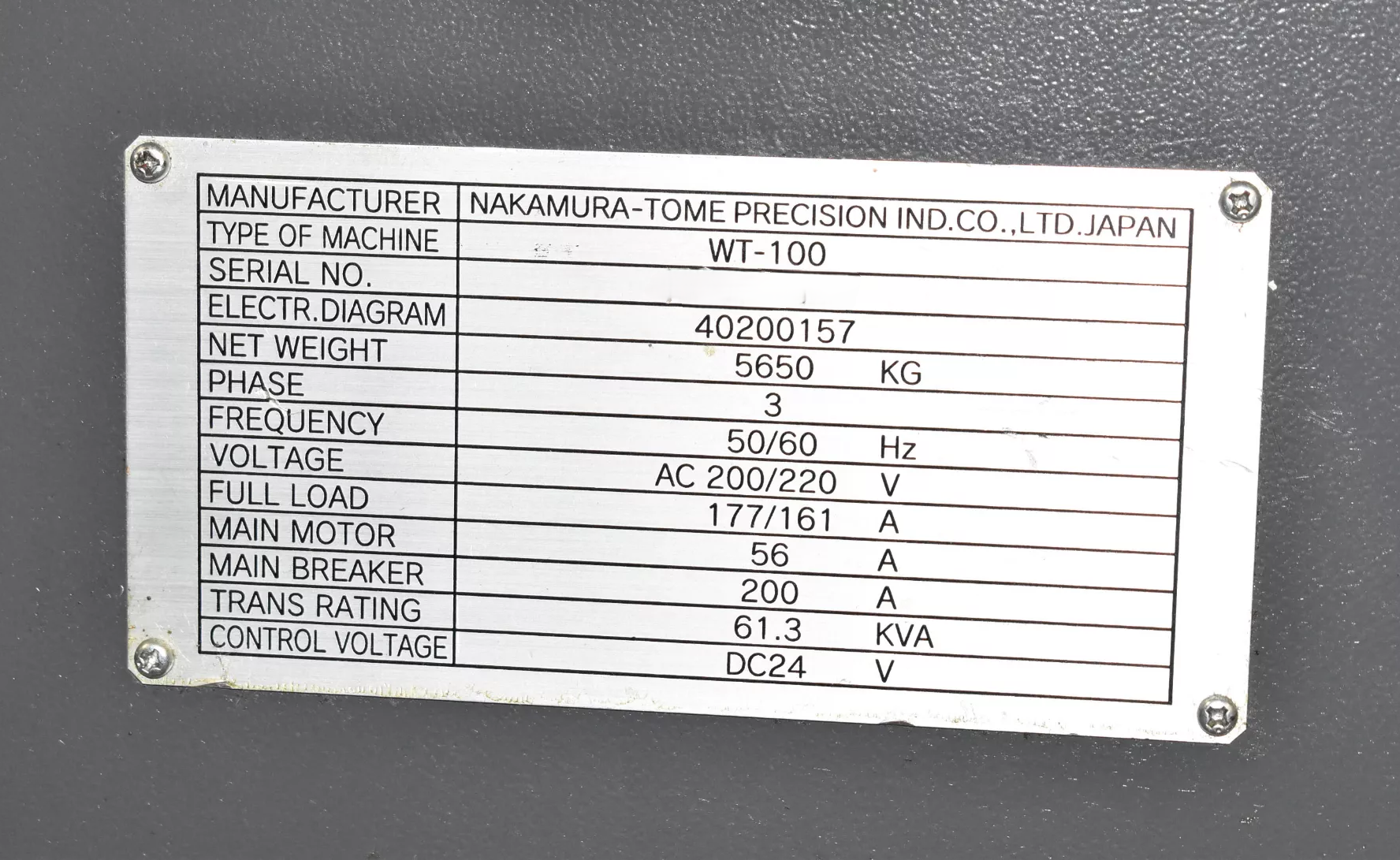

| Power: 200–220v / 3 Phase / 50/60 Hz |
| Machine Weight: 12,456 lbs Approx. |
| Machine Dimensions: Approx. 125″ × 85″ × 90″ |
