*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Nakamura-Tome |
| Model: | WT-250 |
| Year: | 2006 |
| Condition: | Used – Good |
| Machine Type: | Multi-Axis Spindle Twin Turret CNC Multi-Tasking Turning Center |
| Control: | Fanuc Series 18i-TB CNC Control |
| EQUIPPED WITH: |
|---|
| Fanuc Series 18i-TB CNC Control |

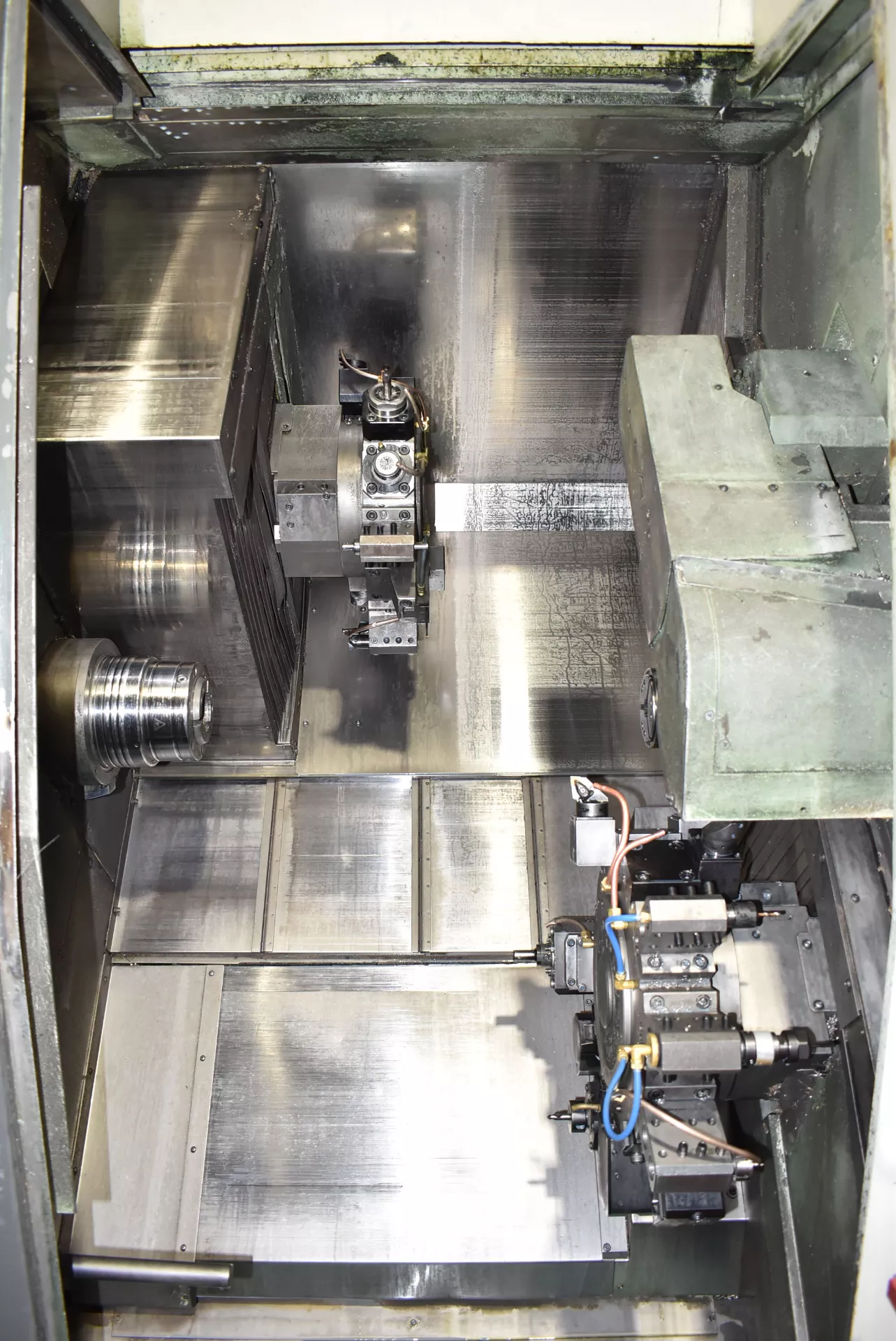

| Twin Opposed Spindle Configuration |
| Twin 12-Station Turrets |
| Live Tooling |
| Y-Axis |
| C-Axis Positioning |
| Upper & Lower Turrets |
| Hydraulic Chucks |
| Coolant System |
| Automatic Lubrication System |
| Type-G Parts Catcher |
| Delivery Conveyor System |
| Chip Conveyor |
| Aeroex ROX-400 3/4 HP Mist Eliminator |
| Fully Enclosed Splash Guard |
| CAPACITY: |
|---|
| Max Turning Diameter: 9.84″ |
| Max Turning Length: 17.12″ |
| Main Spindle Bar Capacity: 2.56″ |
| Sub Spindle Bar Capacity: 2.56″ |
| Opposed Twin Spindle Design |
| TRAVELS: |
|---|
| X1-Axis Travel: 7.68″ |
| X2-Axis Travel: 7.68″ |
| Z1-Axis Travel: 18.90″ |
| Z2-Axis Travel: 18.90″ |
| Y-Axis Travel: ±1.61″ |
| C-Axis: 360° |
| MAIN SPINDLE: |
|---|
| Max Spindle Speed: 4,500 RPM |

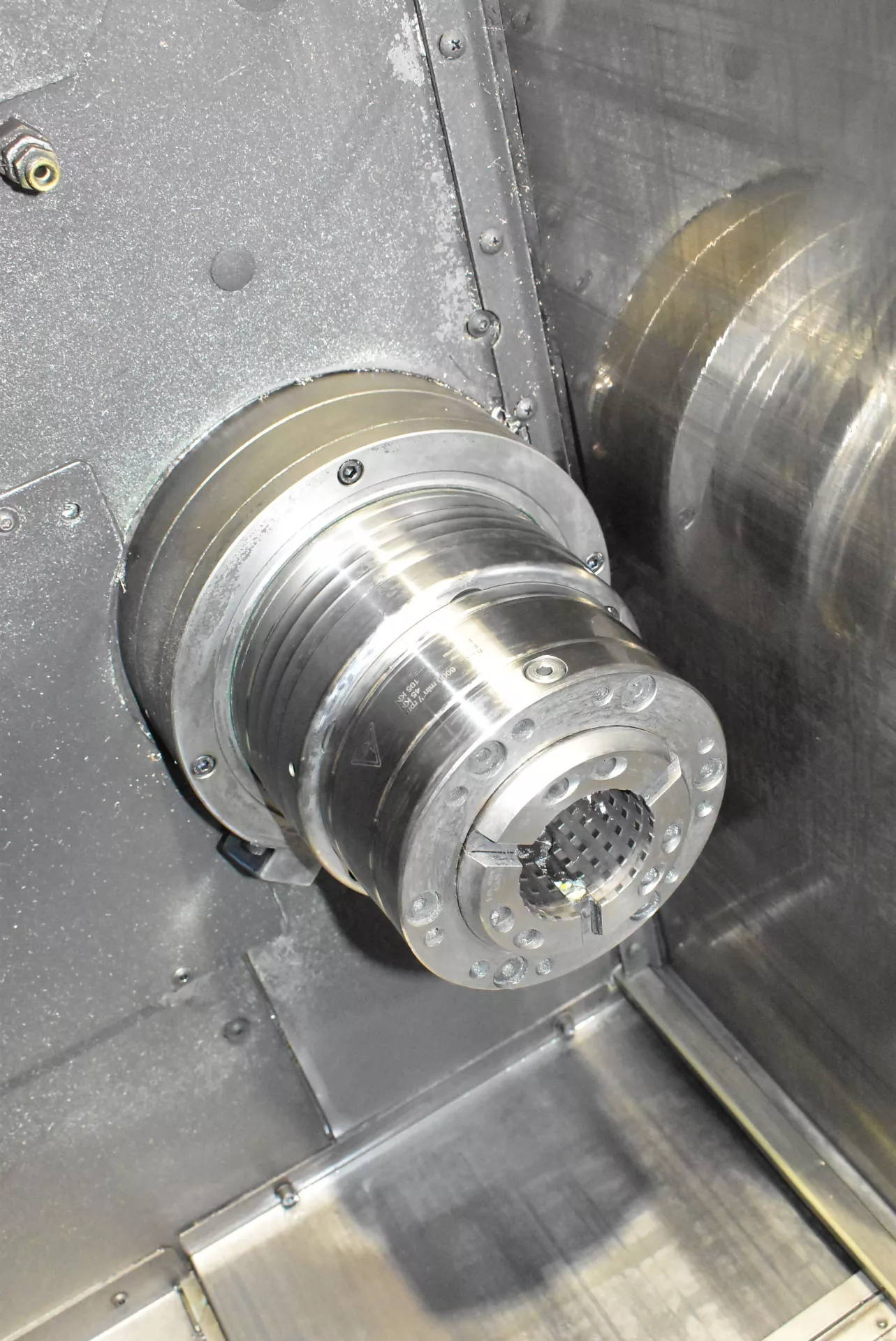

| Hydraulic Chuck |
| C-Axis Positioning |
| Opposed Main Spindle Configuration |

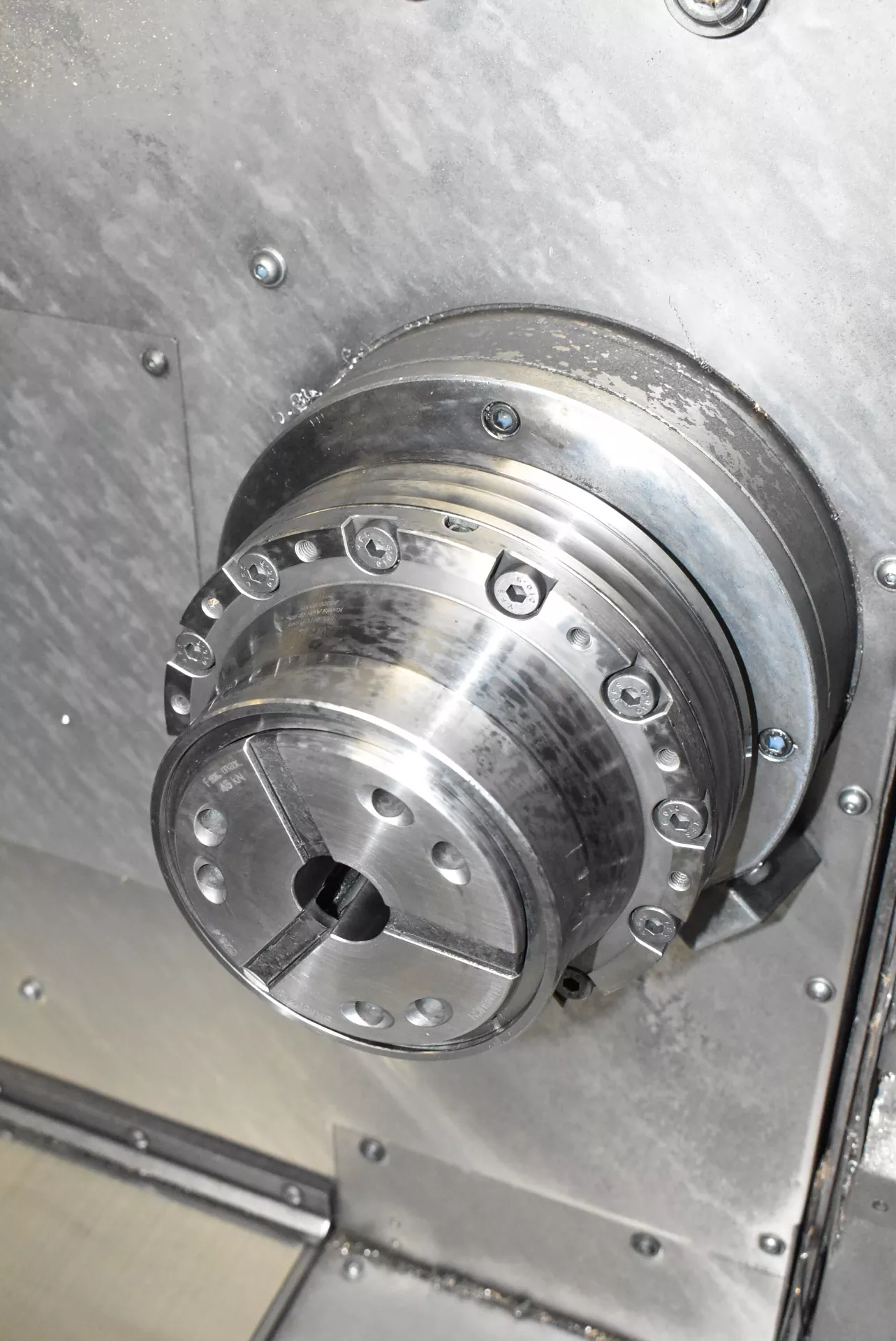

| Opposed Sub Spindle |
| TURRETS: |
|---|

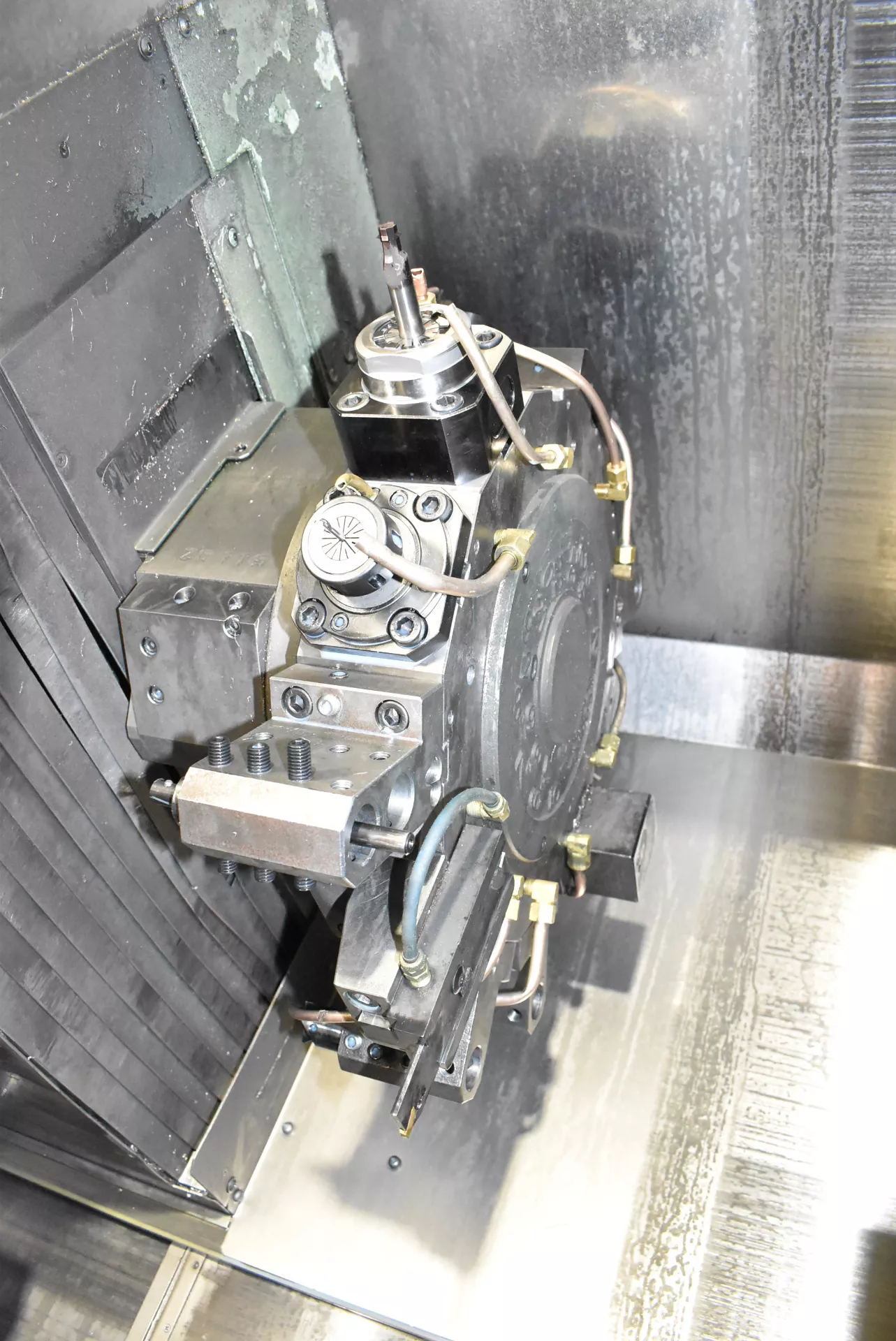

| (2) 12-Station Turrets |
| Upper Turret |
| Lower Turret |
| Live Tool Capability |
| Turning & Milling Operations |
| GENERAL: |
|---|
| Power Requirement: 200-220v / 3-Phase / 50-60 Hz |
| Machine Weight: Approx. 20,000 lbs |
| Machine Dimensions: Approx. 137″ × 80″ × 87″ |
| Manufactured: Japan |
