*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Nakamura Tome |
| Model No.: | SC-250 |
| Year: | 2005 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |

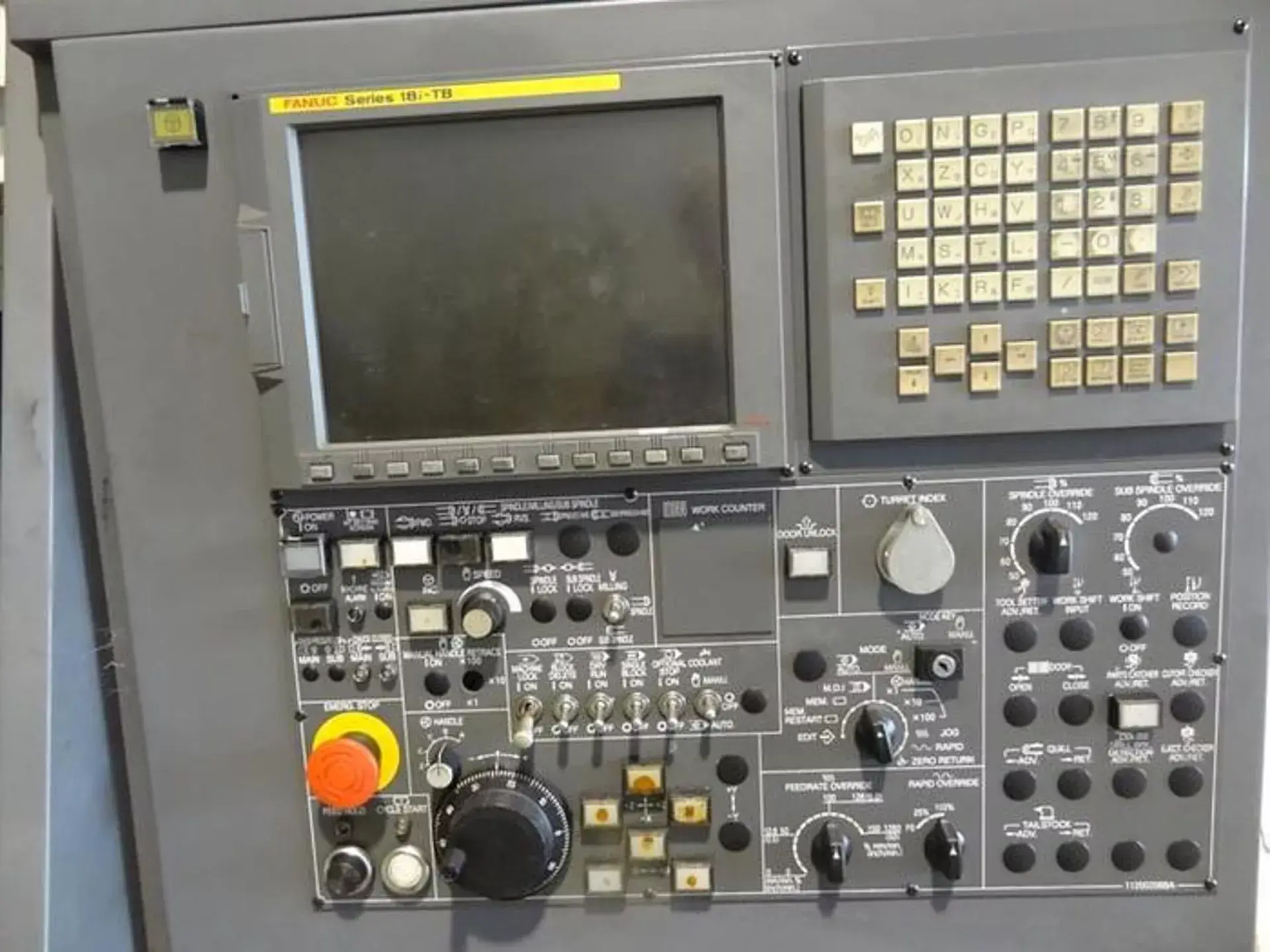

| Control: | Fanuc Series 18i-TB CNC Control |
| Country of Origin: | Japan |
| Features: |
|---|
| Fanuc Series 18i-TB CNC Control |
| 10-Station Turret |
| Hydraulic Chuck |
| Programmable Tailstock |
| Fully Enclosed Splash Guard |
| Coolant System |
| Chip Conveyor Ready |
| Automatic Lubrication System |
| Heavy Duty Slant Bed Construction |
| Manual Guide Bushing/Parts Catcher Assembly |
| Work Light |
| Emergency Stop |
| Capacity: |
|---|
| Maximum Swing: Approx. 20″ |
| Maximum Turning Diameter: Approx. 10″ |
| Maximum Turning Length: Approx. 20″ |
| Bar Capacity: Approx. 2.5″ |
| Chuck Size: 8″ |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Speed: Approx. 4,500 RPM |
| Main Spindle Motor: Approx. 20 HP |
| Turret: |
|---|
| Number of Stations: 10 |
| Turret Type: Bidirectional Automatic Indexing |
| General: |
|---|
| Machine Weight: Approx. 10,000 lbs |
| Machine Dimensions: Approx. 110″ x 70″ x 75″ |
