*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |

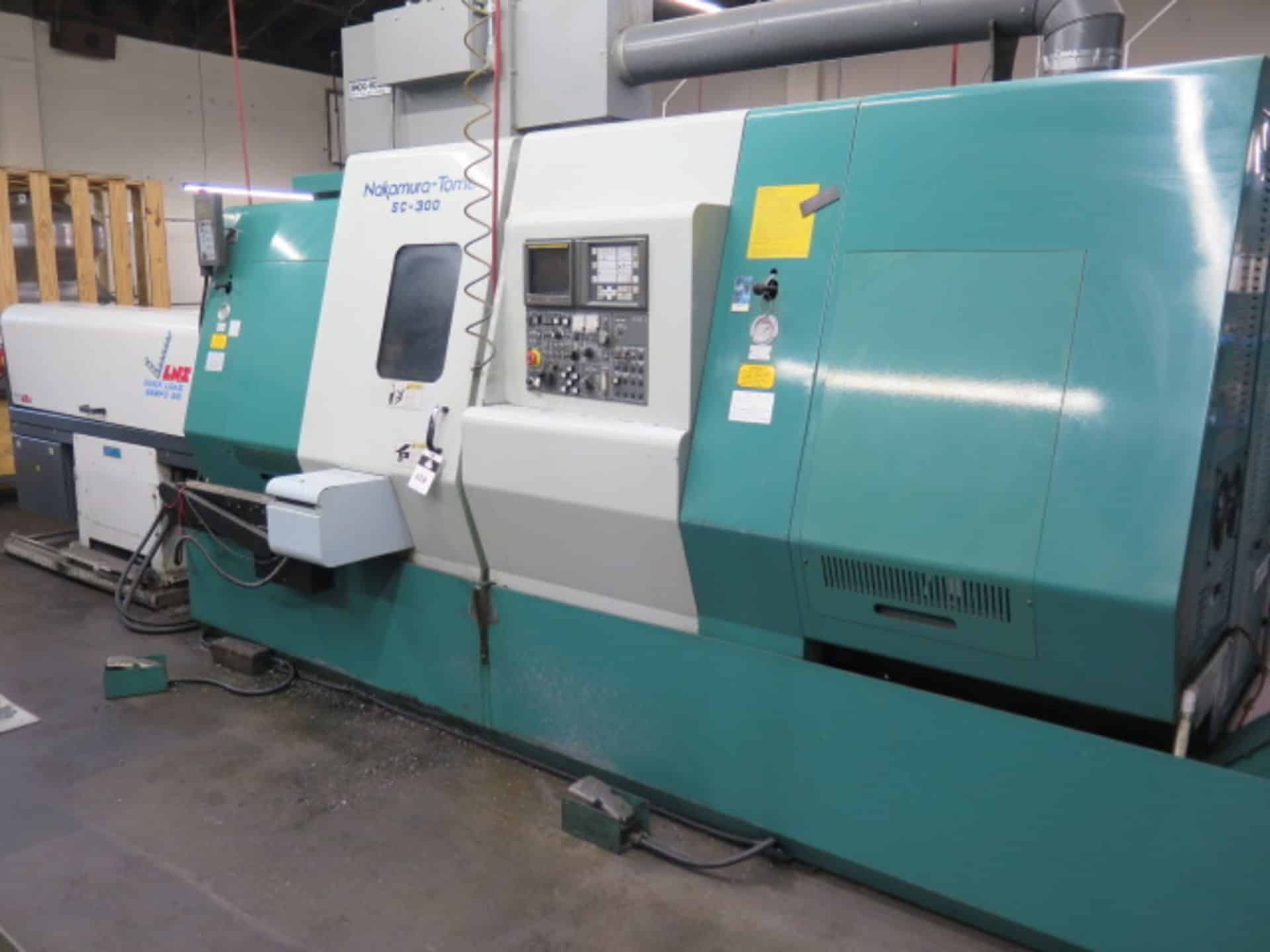

Nakamura Tome |
| Model: |
SC-300 |
| Condition: |
Used – Good |
| Equipped With: |
| FANUC 21T Control |
| Tool Presetter |
| 12-Station Double-Sided Live Turret |
| Radial and Axial Live Tooling |
| 3500 RPM Main Spindle and Sub Spindle |
| ATS S26 Main Collet Pad Nose and Sub Collet Pad Nose |
| Parts Catcher |
| Chip Conveyor |
| Smog-Hog Industrial Air Cleaner |
| Coolant System |
| LNS Quick Load Servo S2 Bar Loader/Feeder |
| Capacity: |
| Max Turning Diameter : 13.78″ |
| Max Turning Length: 28″ |
| Max Bar Capacity : 2.795″ |
| Spindle: |
| Main Spindle Speed: 3500 RPM |
| Sub Spindle Speed: 3500 RPM |
| Spindle Motor: 30 HP |
| Turret: |
| 12-Station Double Sided Live Turret |
