*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Nakamura-Tome |
| Model: | SC-300 II |
| Year: | 2005 |
| Condition: | Used |
| Machine Type: | CNC Turning & Live Milling Center |

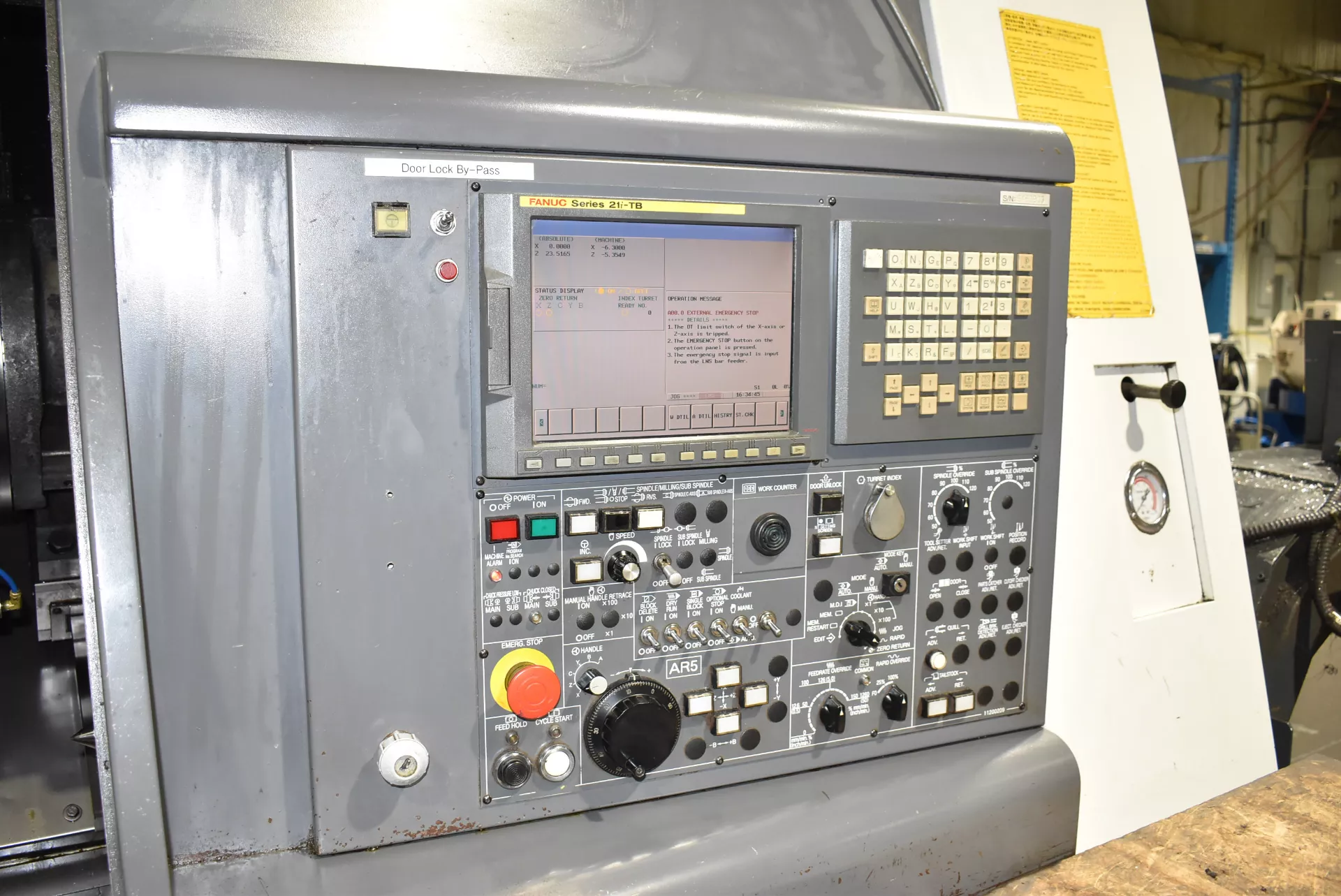

| Control: | Fanuc Series 21i-TB CNC Control |
| EQUIPPED WITH: |
|---|
| Fanuc Series 21i-TB CNC Control |
| C-Axis |
| Live Milling Capability |

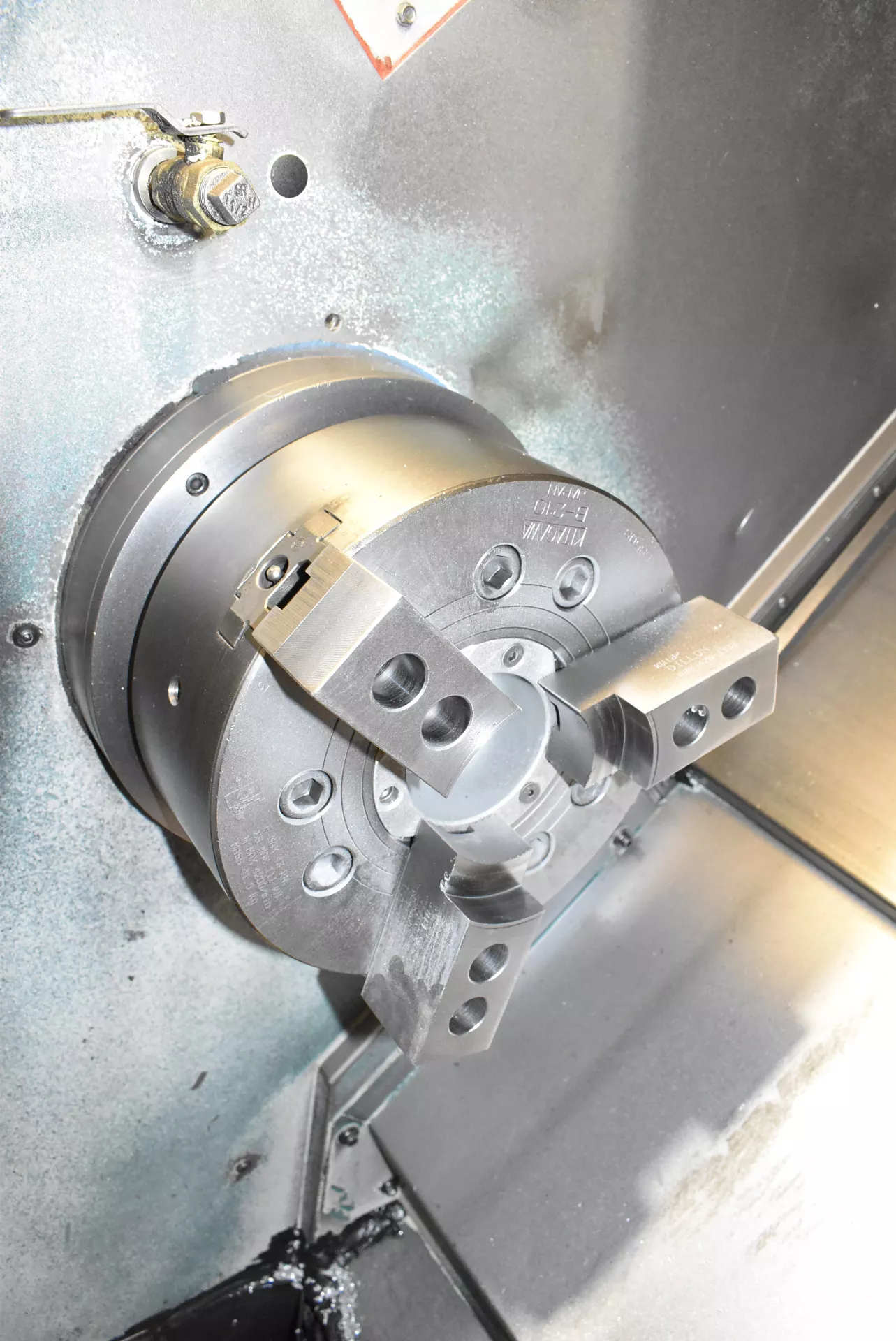

| 10″ 3-Jaw Chuck |

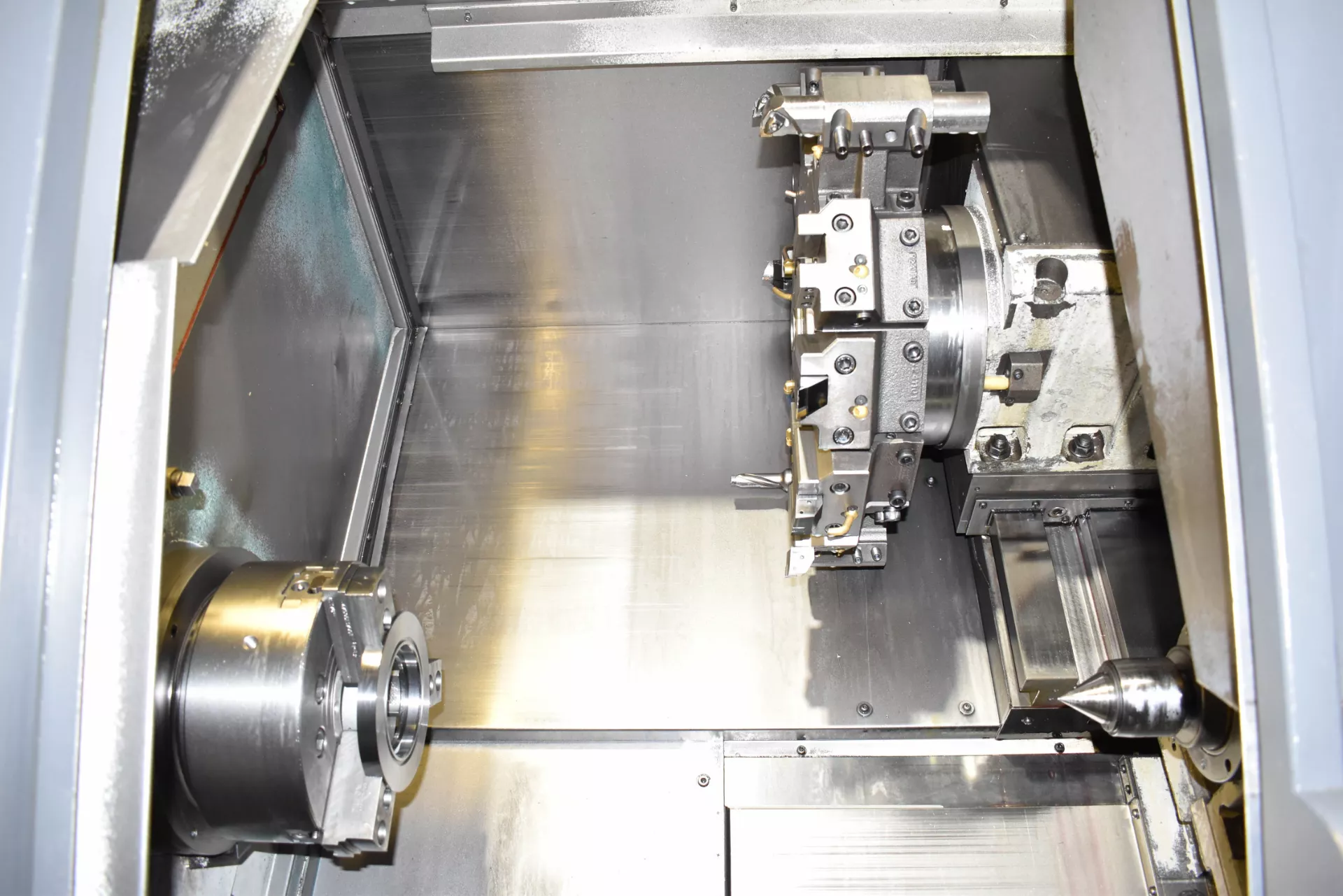

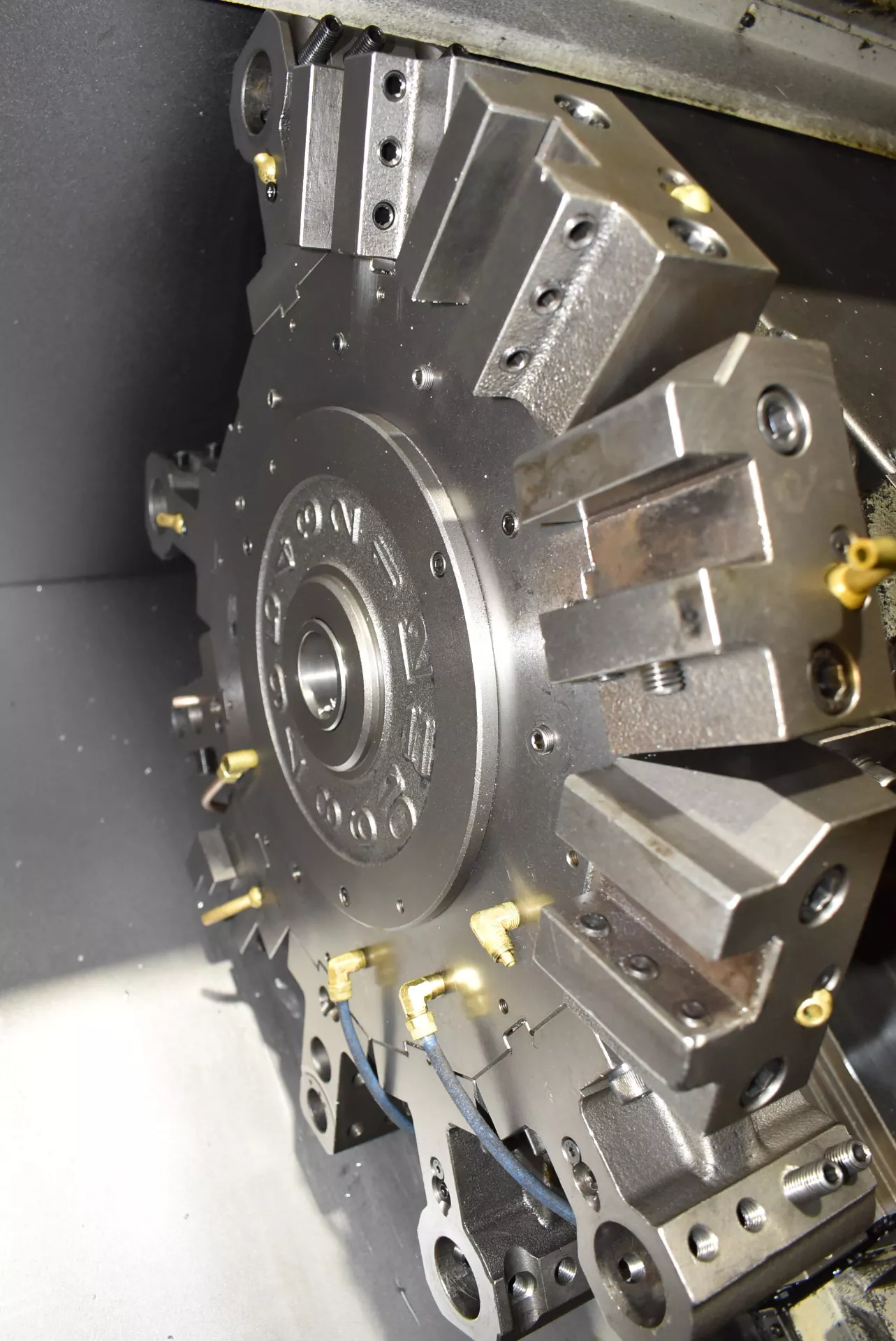

| 12-Station Turret |

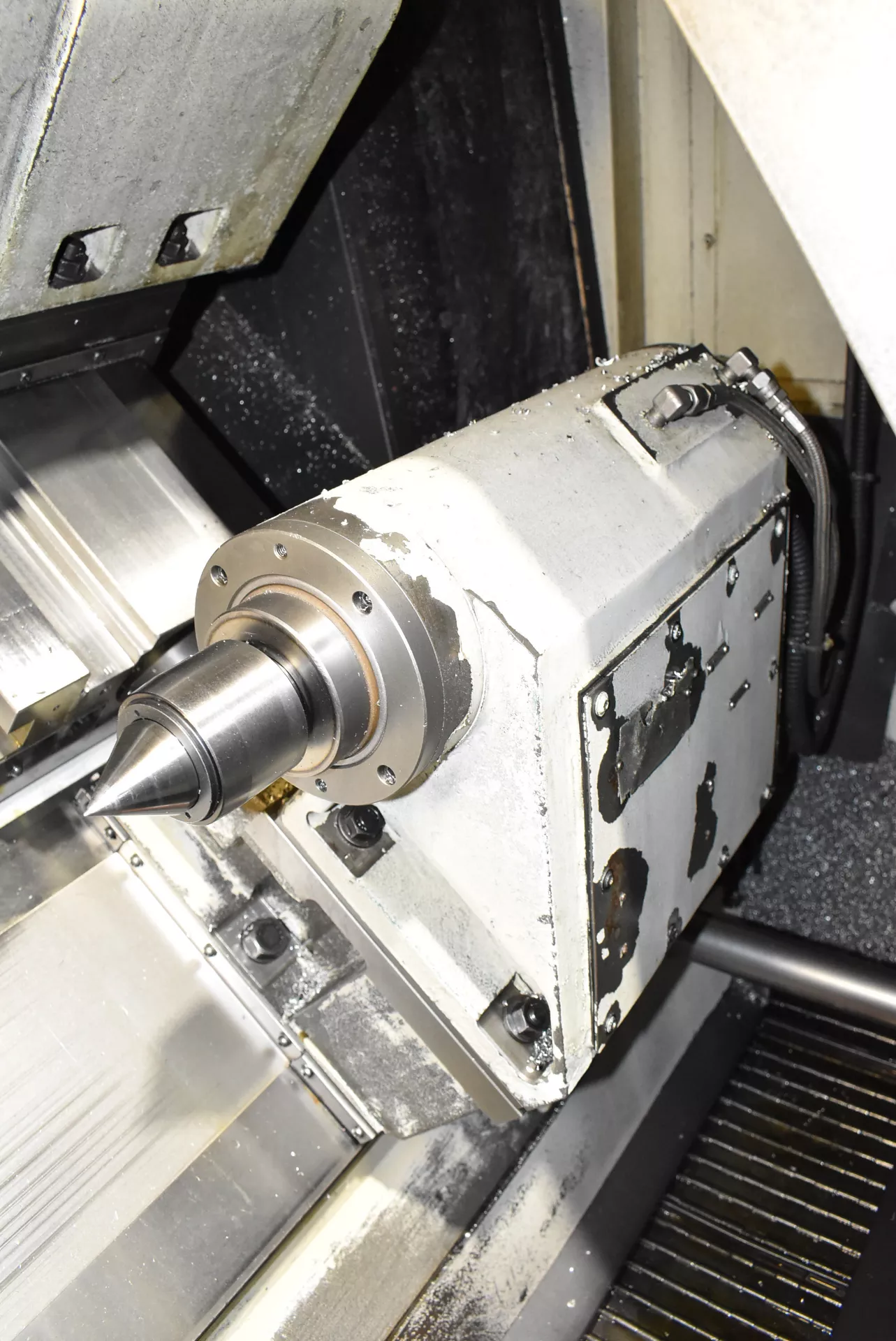

| Hydraulic Tailstock |
| Hakusan Chip Conveyor |
| Aeroex Mist Eliminator |
| Coolant System |
| Work Light |
| CAPACITIES: |
|---|
| Swing Over Bed: 22.04″ |
| Maxi Turning Diameter: 13.77″ |
| Maxi Turning Length: 23.62″ |
| Distance Between Centers: 28.09″ |
| TRAVELS: |
|---|
| X-Axis Travel: 8.75″ |
| Z-Axis Travel: 25.00″ |
| B-Axis (C-Axis): 360° |
| SPINDLE: |
|---|
| Chuck Size: 10″ |
| Spindle Speed: 3,500 RPM |
| Main Spindle Bore: 3.34″ |
| TURRET: |
|---|
| 12-Station Turret |
| Live Tool Capability |
| TAILSTOCK: |
|---|
| Hydraulic Tailstock |

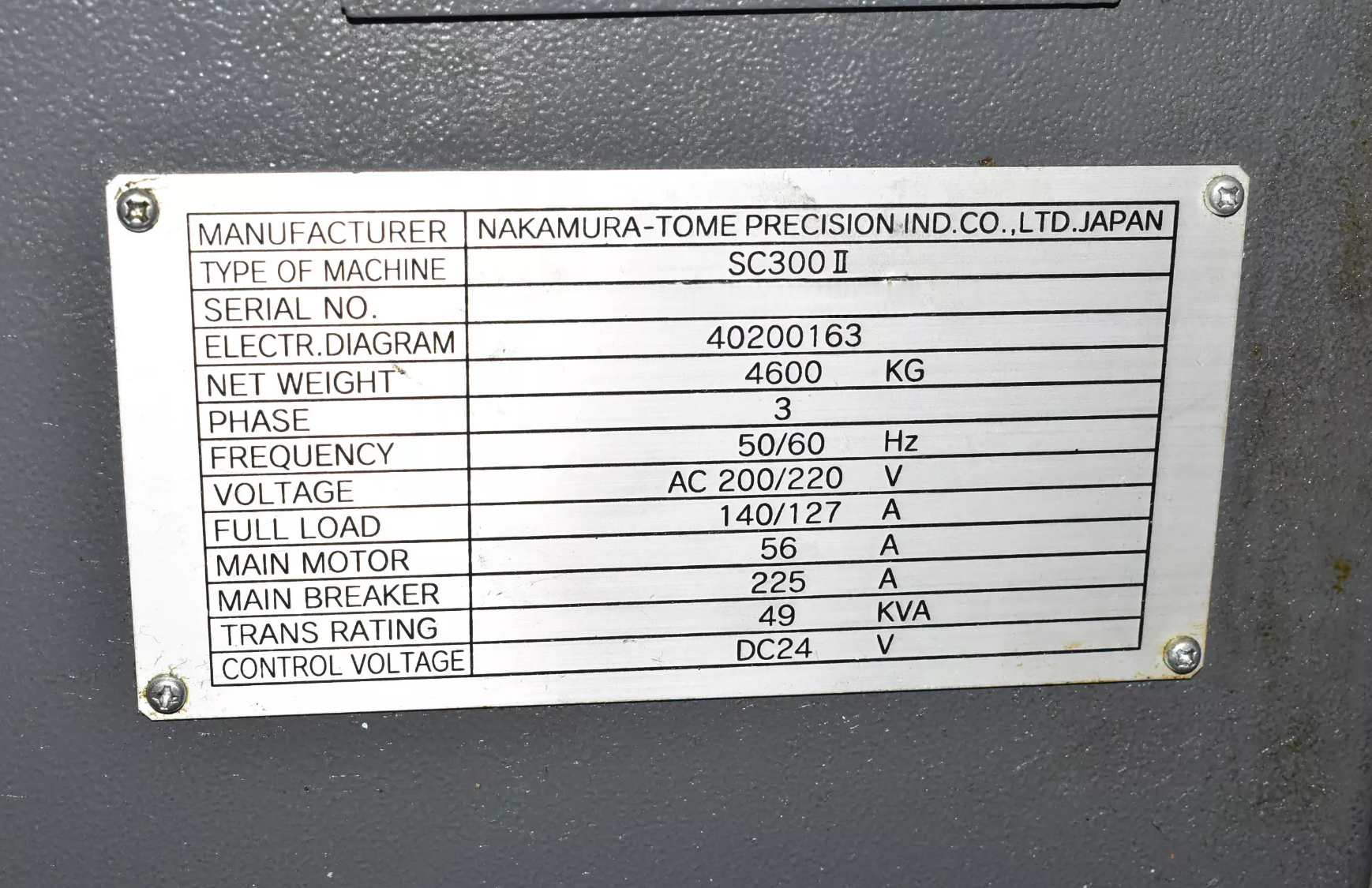

| ELECTRICAL: |
|---|
| Voltage: 200-220 Volt |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| GENERAL: |
|---|
| Machine Weight: 10,141 lbs Approx. |
