*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Nakamura-Tome |
| Model: | WT-250 II |
| Year: | 2013 |
| Condition: | Used – Good |
| Machine Type: | Multi-Axis CNC Multi-Tasking Turning Center |

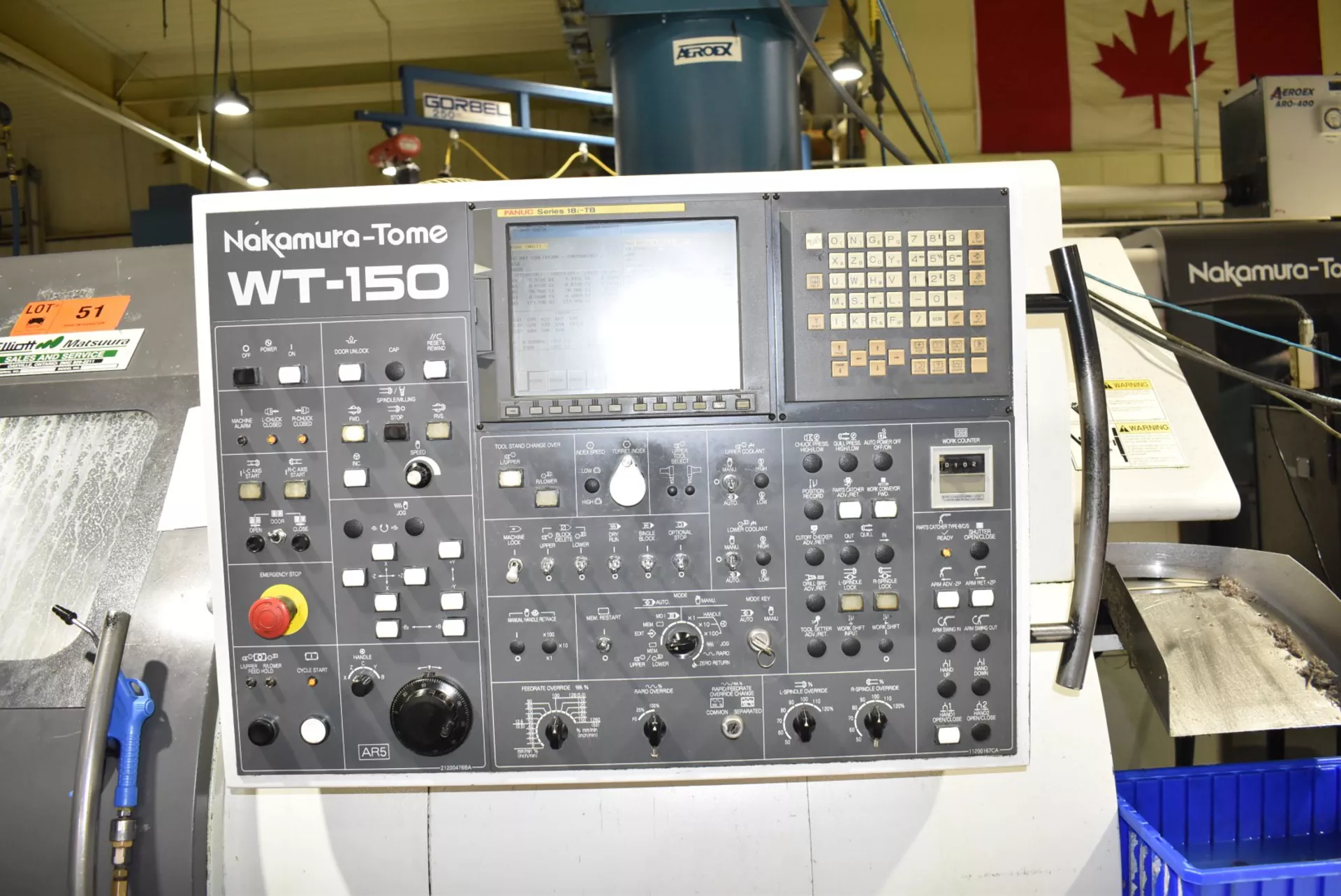

| Control: | Nakamura-Tome CNC Control |
| EQUIPPED WITH: |
|---|
| Nakamura-Tome CNC Control |
| Opposed Twin Spindle Configuration |
| Twin 12-Station Live Tool Turrets |
| Live Milling Capability |
| Main & Sub C-Axis Control |
| Hydraulic Main & Sub Chucks |
| Automatic Door |
| Coolant System |
| Hakusan Chip Conveyor |
| Aeroex Mist Collector |
| Automatic Lubrication System |
| Fully Enclosed Splash Guard |
| CAPACITY: |
|---|
| Maxi Turning Diameter: 9.84″ |
| Max Turning Length: 21.85″ |
| Max Swing: 23.62″ |
| TRAVELS: |
|---|
| X1-Axis Travel: 7.68″ |
| X2-Axis Travel: 7.68″ |
| Z1-Axis Travel: 23.62″ |
| Z2-Axis Travel: 23.62″ |
| Rapid Traverse (X-Axis): 1,181 IPM |
| Rapid Traverse (Z-Axis): 1,575 IPM |

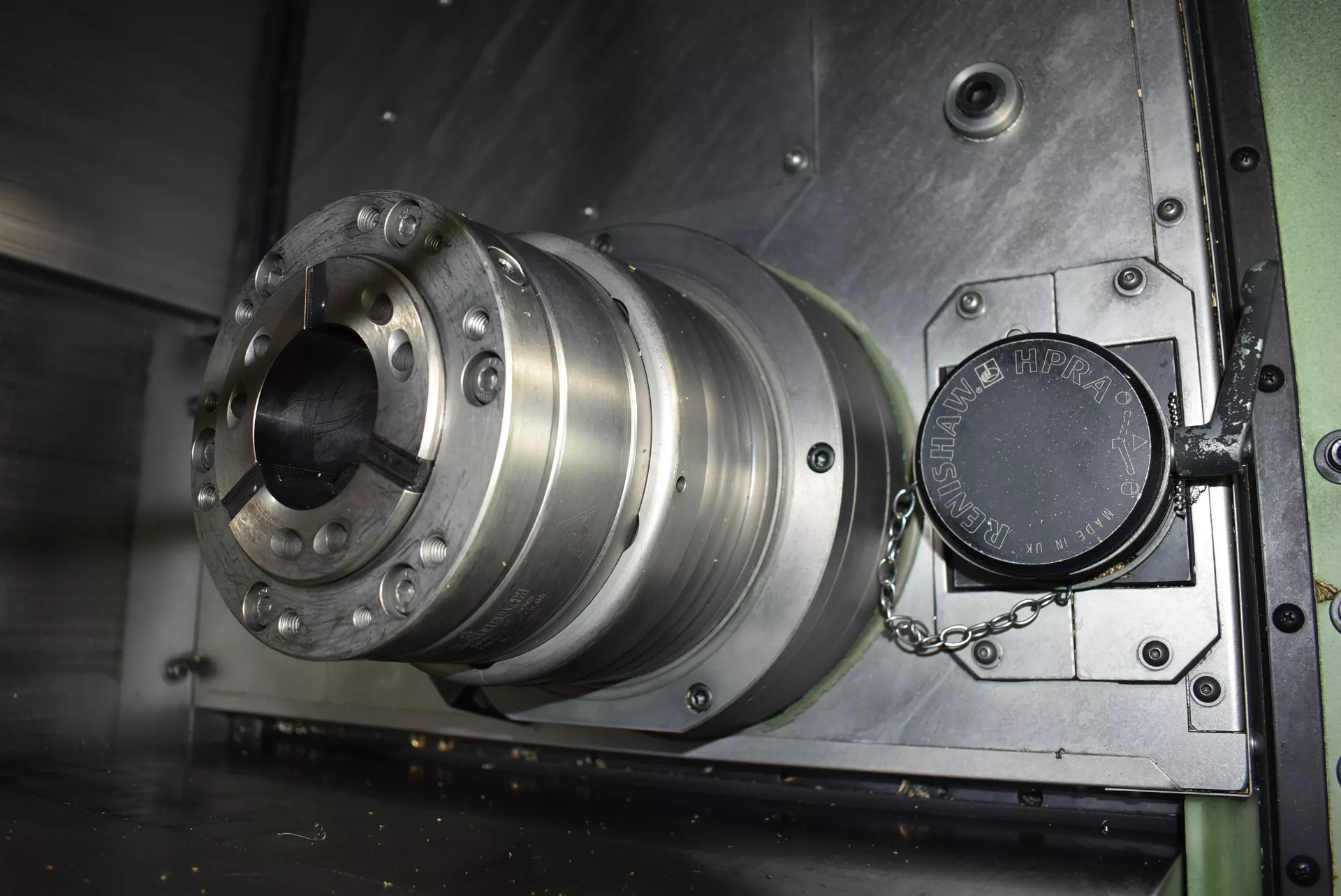

| MAIN SPINDLE: |
|---|
| Maximum Spindle Speed: 4,500 RPM |
| Hydraulic Main Spindle Chuck |
| C-Axis Positioning |
| Built-In Spindle Motor |
| Programmable Spindle Orientation |

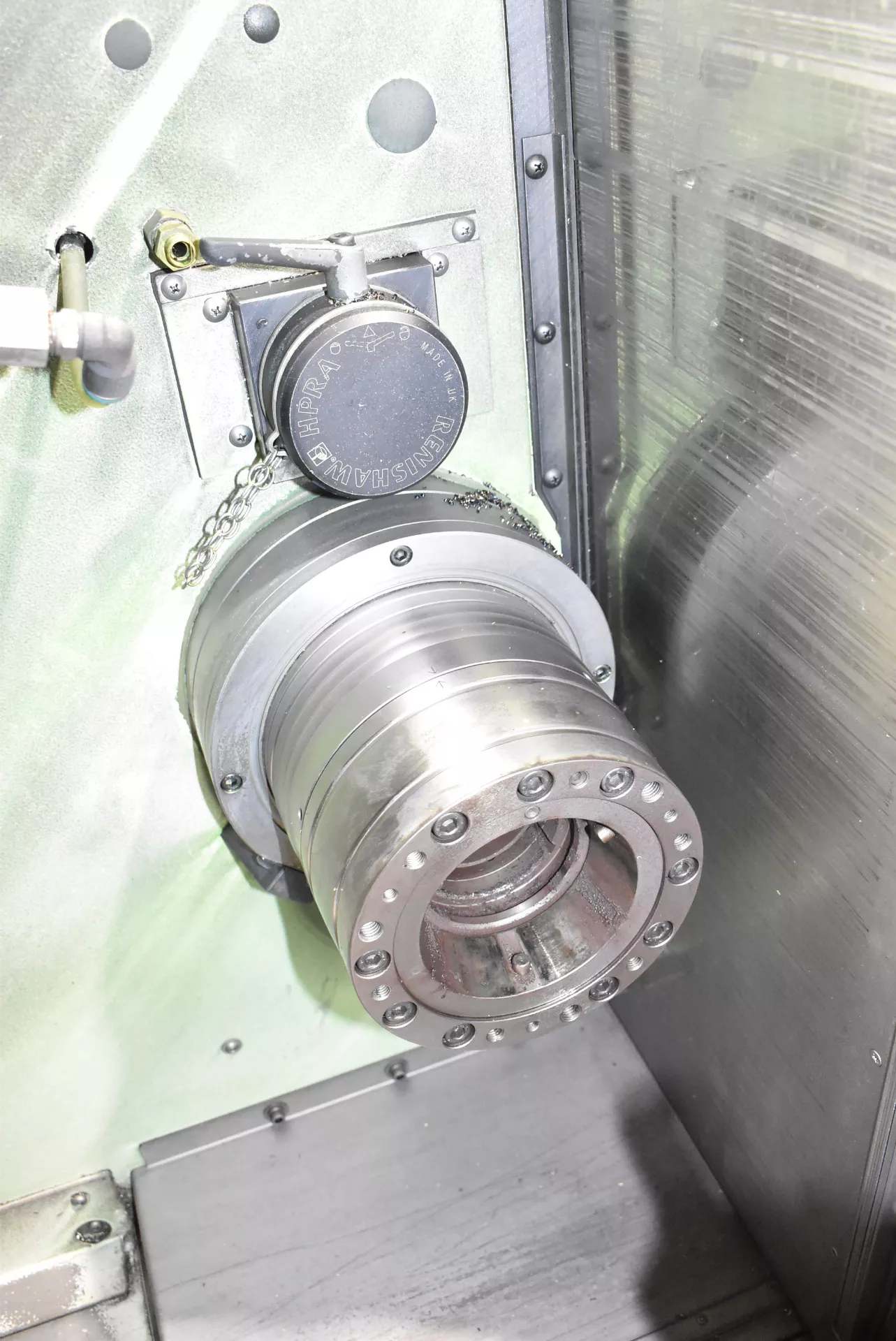

| SUB SPINDLE: |
|---|
| Opposed Sub Spindle |
| Maximum Spindle Speed: 4,500 RPM |
| Hydraulic Sub Spindle Chuck |
| C-Axis Positioning |
| Automatic Parts Transfer Capability |

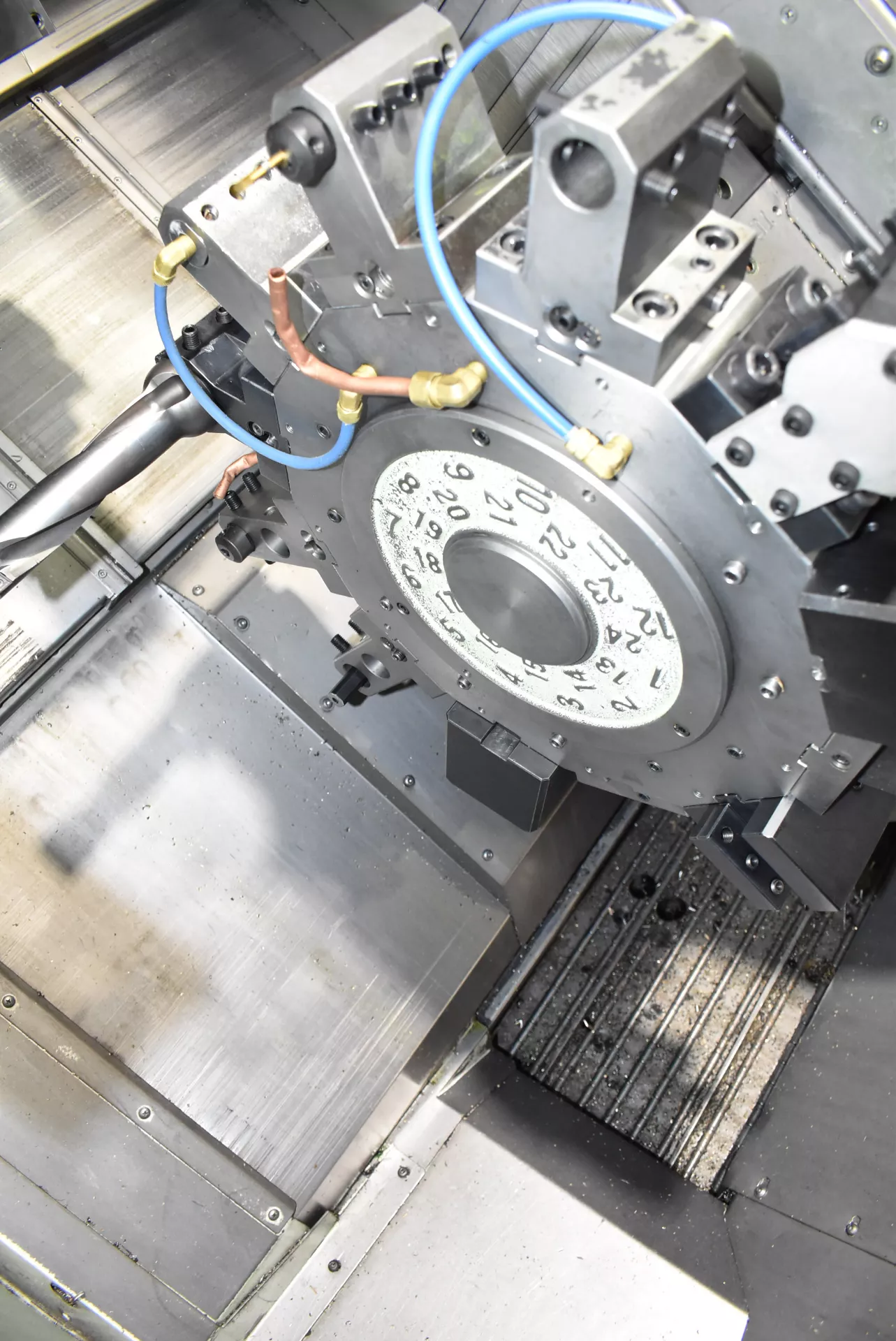

| TURRETS: |
|---|
| (2) 12-Station Servo Turrets |
| Upper & Lower Turret Configuration |
| Live Tool Capability |
| Bi-Directional Indexing |
| GENERAL: |
|---|

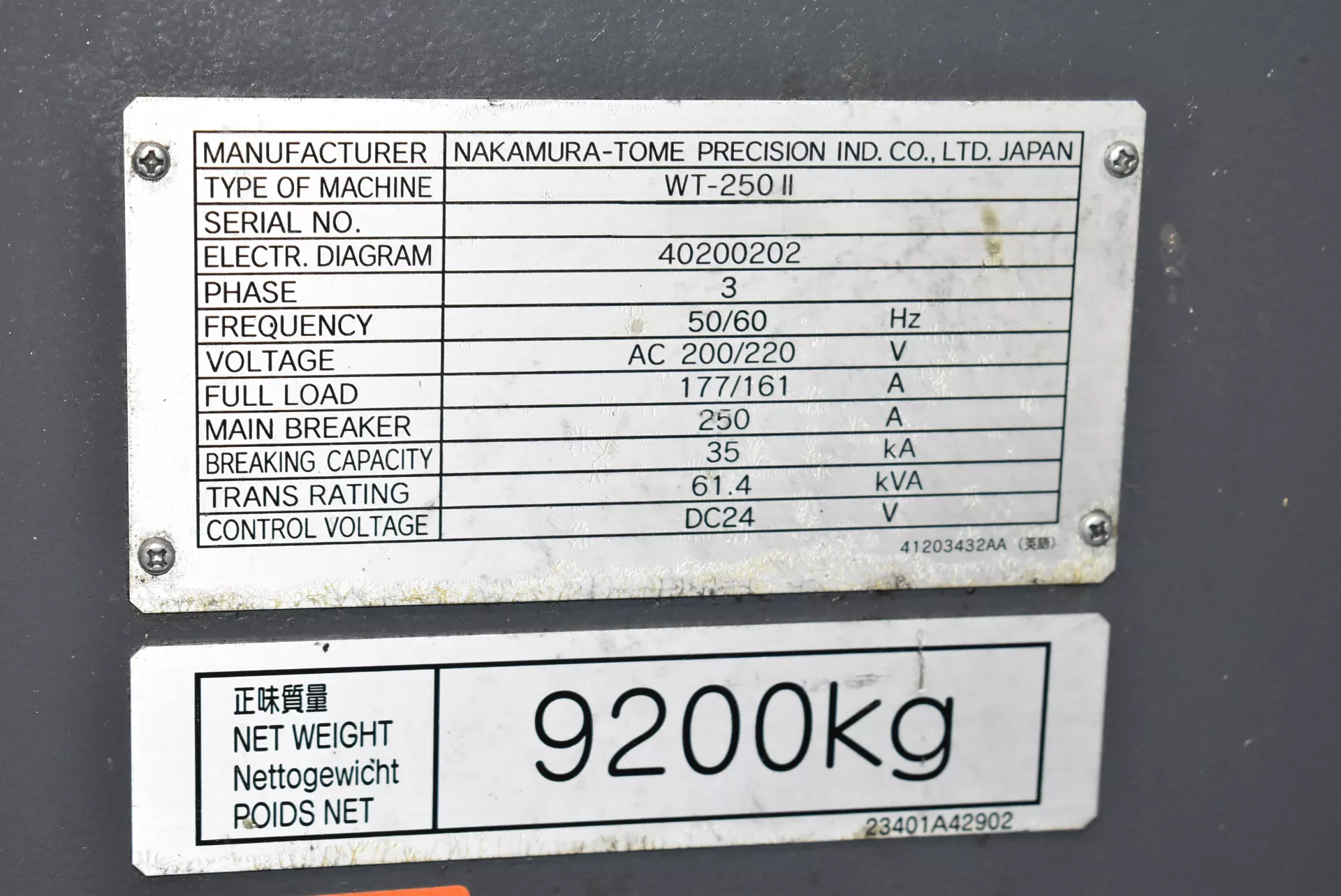

| Power : 200-220V / 3-Phase / 50-60 Hz |
| Machine Dimensions: 150″ x 98″ x 92″ Approx. |
| Machine Weight: 19,500 lbs Approx. |
| Made in Japan |
